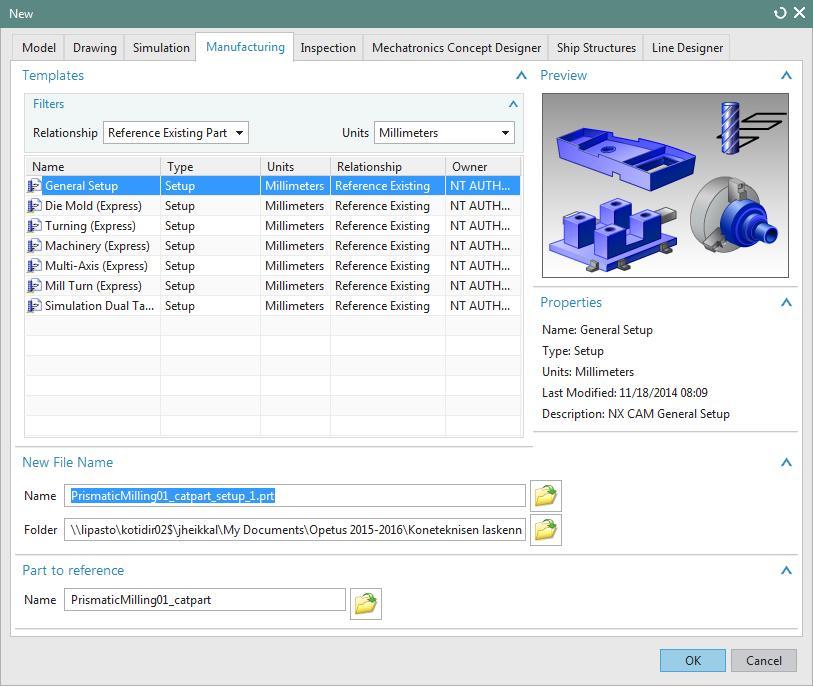

1 KONEISTUSKOKOONPANON TEKEMINEN NX10-YMPÄRISTÖSSÄ Knowledge-Base-NX/How-to-simulate-any-G-code-file-in-NX- CAM/ta-p/3340 Koneistusympäristön määrittely 1. Create the Part and the Blank geometry. (The Part Geometry is only required if gouge checking is performed.) New => Lataa kappale (aihio) Open => 1

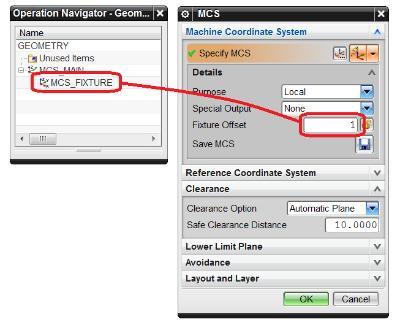

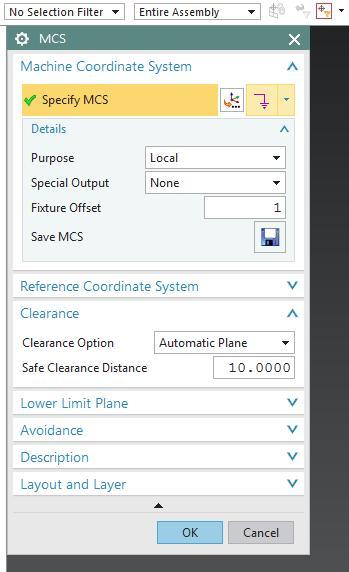

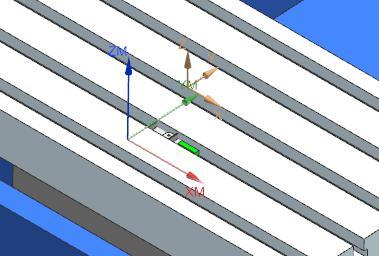

2 2. Create a manufacturing setup and move the MCS to the correct location in reference to the part shape. In the MCS specify a Fixture Offset number of 1 to be used for G54 output. All simulation setups require that an MCS with a Fixture Offset of 1 be present even if unused. If a G55 through G59 are used in the G-code file then an additional MCS will need to be created for each of these. The Fixture Offset value that is entered in the MCS will be 2 through 6, respectively. Geometry view: Valitse MCS_MILL hiiren oikealla. => Edit-> Geometry -> MCS Huom! Määritä koordinaatiston paikka Valitse paikka 2

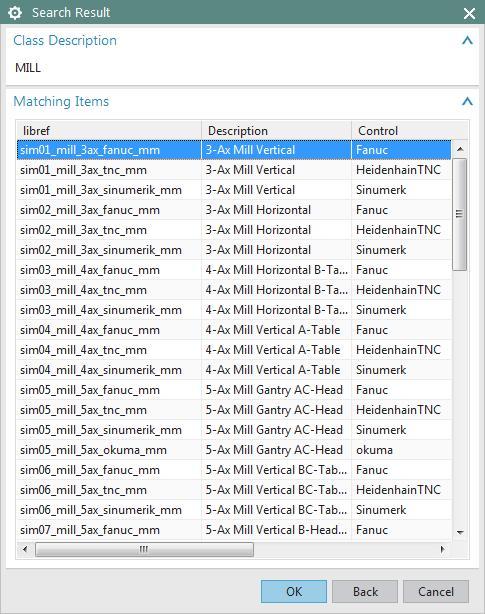

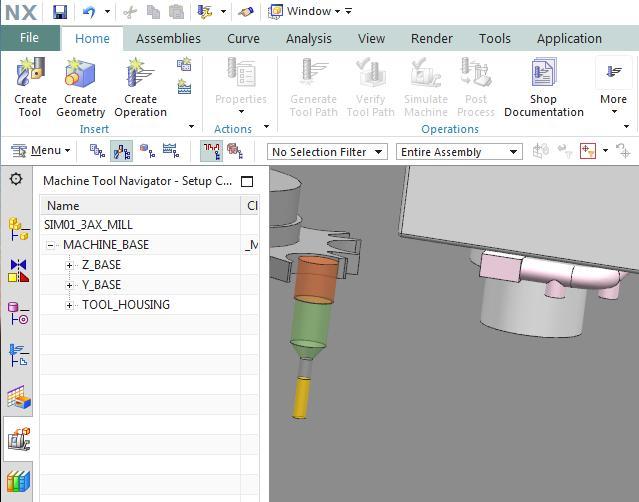

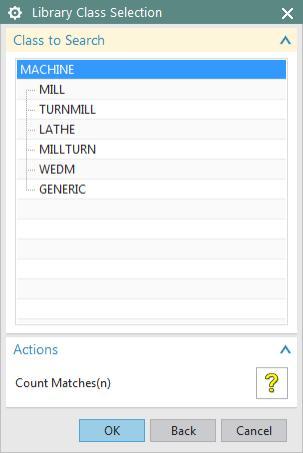

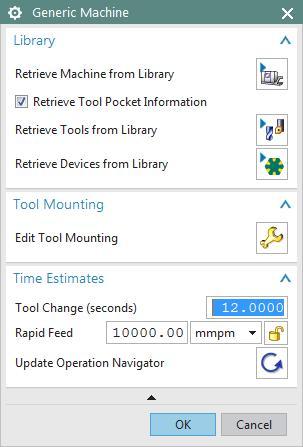

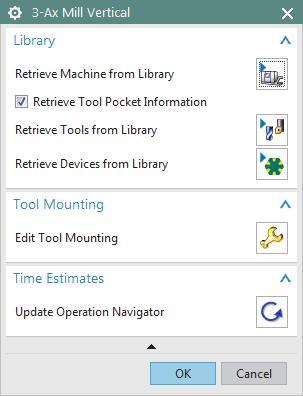

3 3. Load the simulation machine into the part file. Machine tool view: 3

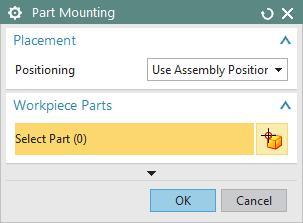

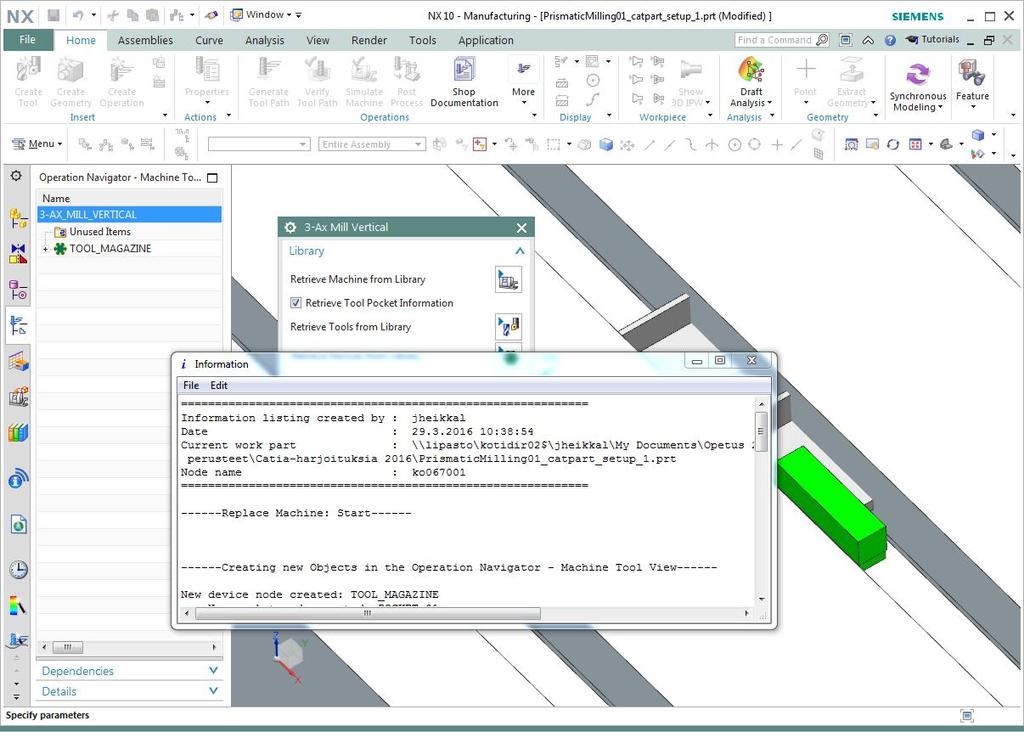

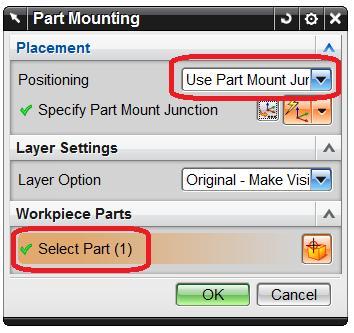

4 4. When loading the machine specify the Part Mount Junction so that the part can be positioned on the simulation machine correctly. Use the Workpiece Parts pane to select the part model to be used for Gouge Checking. Valitse työkappale: klikkaa kappaletta 4

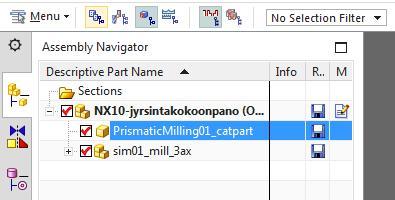

5 Siirrä kappaletta ylöspäin: - Valitse Assembly Navigator Paina hiiren oikealla näppäimellä => Move Siirrä Z-akselin suunnassa 5

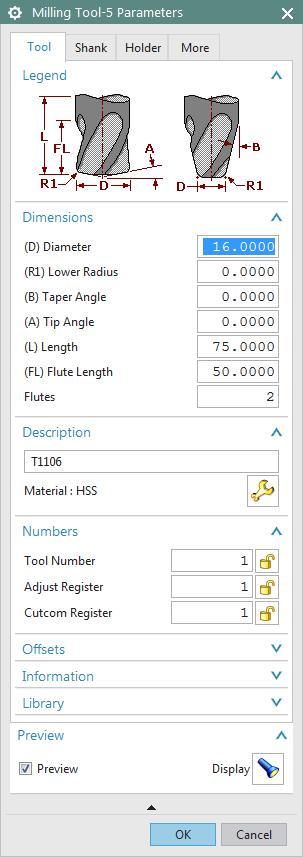

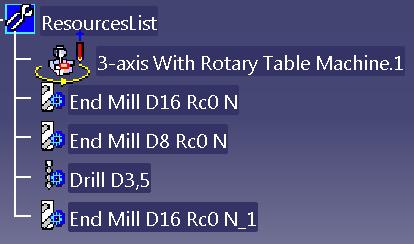

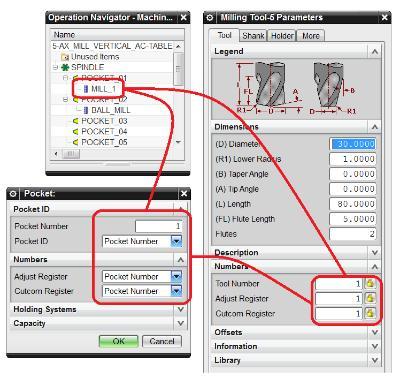

6 5. Create all the tools in NX that will be used in the program. Add these tools to the Pocket with the correct Tool Number and then alter the Adjust and Cutcom Registers to match those used in the G-code file. If a Tool, Adjust or Cutcom value is used in the G-code file which cannot be found associated to an NX Tool than an error will be displayed during simulation. Työkalut Catiassa: 1106 End Mill D16 Rc0 N => End Mill D8 Rc0 N => Drill D3,5 => End Mill D16 Rc0 N_1 => 1 jne. 6

7 NC-ohjelma % O0000 ( :18) N5 G90 G10 L2 P1 X Y Z-5. A0 (G54 A0.) ( PARTNO : PART TO BE MACHINED ) ( TOOL : End Mill D16 Rc0 N_1 ) N10 T01 M06 N15 G90 G54 G94 G01 X82. Y F300. S70 M03 N20 G43 Z26.5 H01 N25 Z-3.5 N30 Y F1000. N35 G03 X79.95 Y I-7. J0. N40 G01 X Y N45 G02 X Y I9.192 J9.192 N50 G01 X Y N55 X Y N60 Y Konflikti koordinaatistoissa Seuraus: Ratkaisu: Koordinaatiston asetuslause on poistettava NCohjelmasta, tai asetettava siihen toimivat koordinaatit. 7

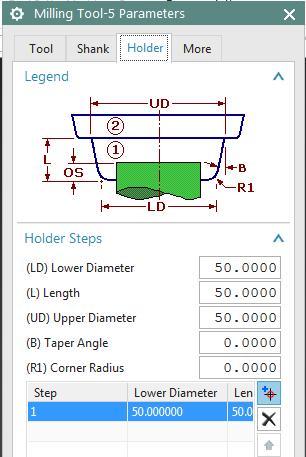

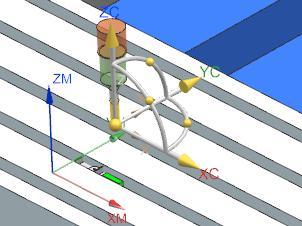

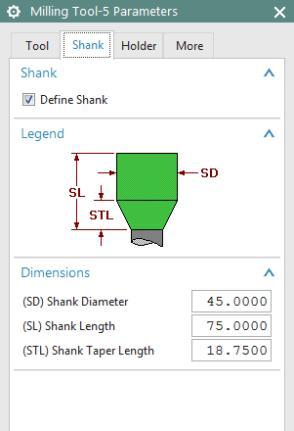

8 Työkalujen lisääminen simulaatioon Machine tool view: Hiiren oikea: Insert -> Tool => 8

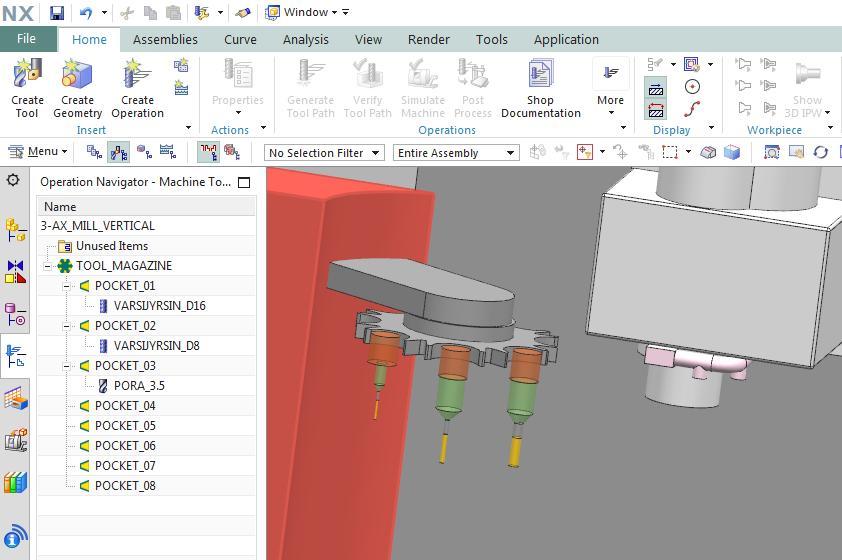

9 Samalla tavalla muut työkalut 9

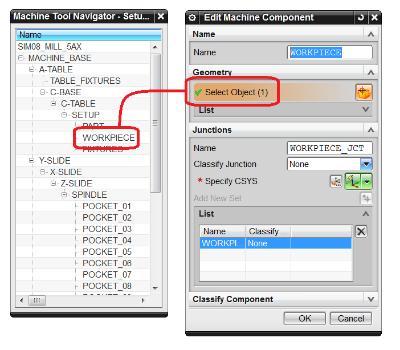

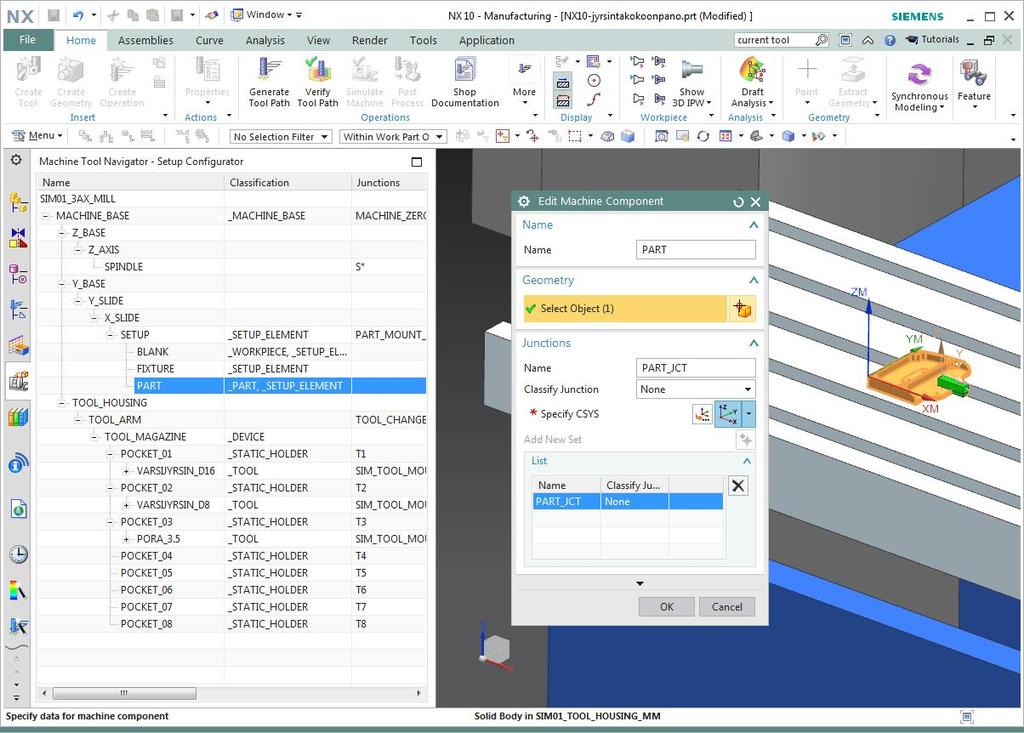

10 6. Open the Machine Tool Navigator and locate the Workpiece in the Setup section. Select the model that will be used as blank geometry in the simulation. If any machining fixtures are used, a vise for example, they can be added under Fixtures. Paina hiiren oikealla näppäimellä => Expand all 10

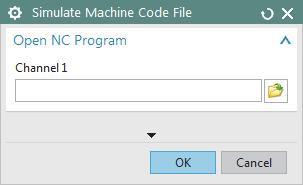

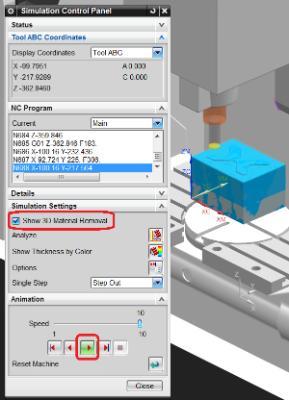

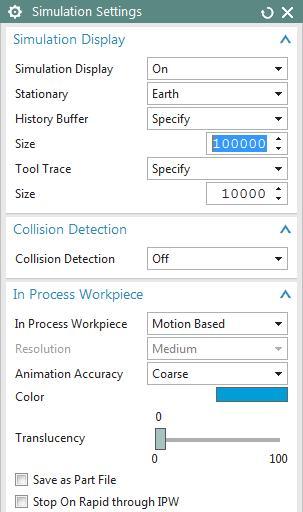

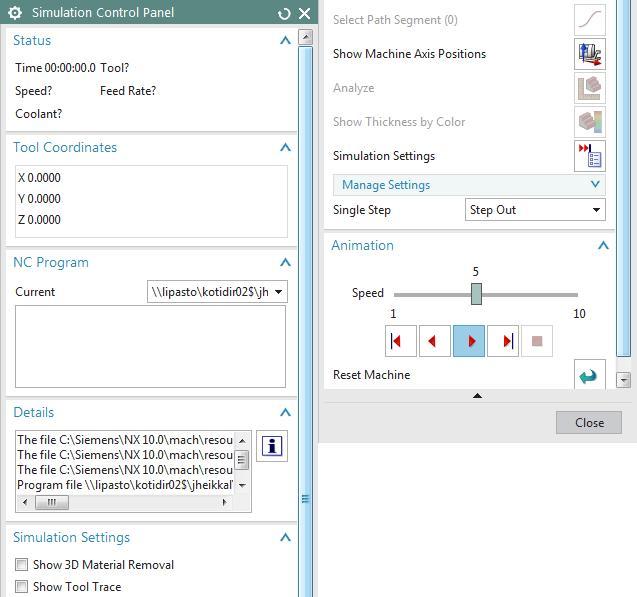

11 7. To start the simulation go to Tools -> Simulate Machine Code File and, when prompted, select the G-code file that will be simulated. On the Simulation Control Panel check On the Show 3D Material Removal option and press Play to simulate. Make sure that a G20 or a G21 is included in the G-code file so that the machine simulates in the correct part units. Menu => Tools => Simulate Machine Code File 11

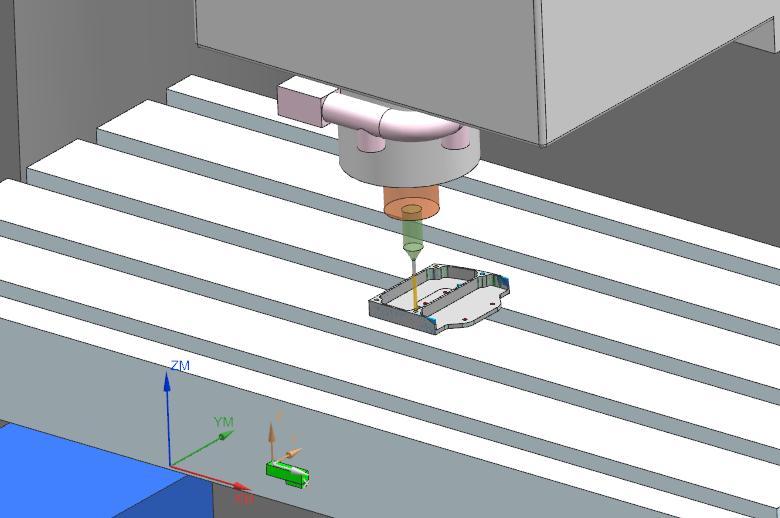

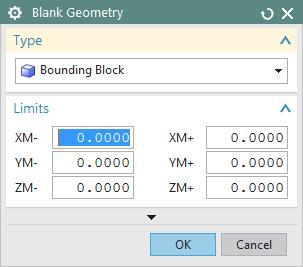

12 Aihion mitat (Z-suunnassa työvara) Lopputulos: 12

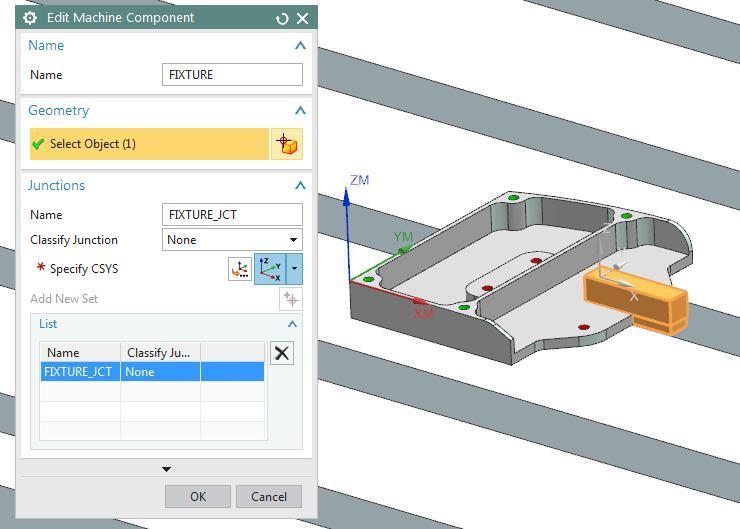

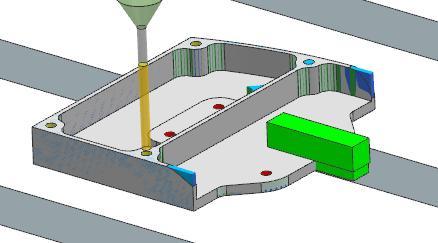

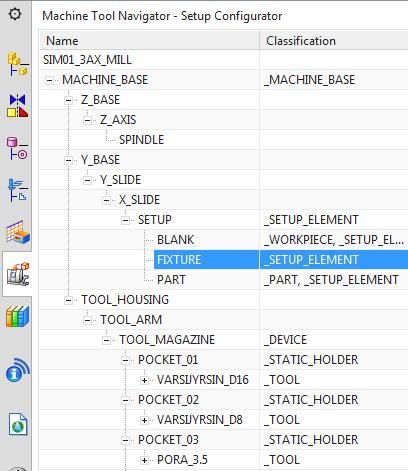

13 Määritellään kiinnitin Törmäystarkastelu: 13
