1 SAVONIA UAS PRINTING INSTRUCTIONS Mika Siiskonen Data Administration

2 printing_students.docx 1 / 28 Sisällys 1. General printing instructions in Savonia New printing system (multifunction devices) Registering into printing system Registering to Canon multifunction devices Registering to Xerox multifunction devices Printing in printing system Releasing your printing jobs with your user account Releasing you print jobs with your RFID-identifier Error situations Release the jammed printings Make sure your own print job comes out Selecting the default printer (Windows 7) Print settings (Canon) Color printing (Canon) sided printing (Canon) Finishing settings (Canon) Number of the holes (Canon) Booklet printing (Canon) The list of multifunction devices in Savonia... 25

3 printing_students.docx 2 / General printing instructions in Savonia The printers in Savonia should only be used for the studying purposes. The studying materials should mainly be published in electronic form (pdf). At 1st of January and at 1st of August a printing credit of 15 euros (which is 150 pages) will be added to all Savonia UAS students existing printing credits. The print of one black & white page costs 10 cents and one color page costs 50 cents. Savonia pays the printing papers. Printing has been defined to be 2-sided. If you print two b&w pages (one page each side of one paper) your printing credit will decrease with two pages (= 20 cents). You can only print if your printing credit allows it. So if your printing credit is 50 cents and you try to print 6 pages you can t print any pages at all (unless you define that you only print 5 pages of the file). You can buy more printing credit from Savonia s libraries. For thesis you will have an extra 250 pages printing credit added to your existing credit. For that send to Savonia s Service Desk (sd@savonia.fi). You can check your own printing credit by logging into Savonia s computers. Then open the Linkit-folder on the desktop. After that doubleclick Tulostussaldon tarkistus. Next click Continue to this website (IE) tai Allow (Firefox), if needed. Login with your campus user name and password. The URL to check your credit is: Unused credits won t be paid in cash! In you have any questions about printing, please, don t hesitate to ask Savonia s Service Desk ( / sd@savonia.fi / ). When contacting SD always tell: o which campus, which room and which printer the problem is about o what was the name of the file that caused the printing problem o at which day and at which time you were trying to print o what was the problem when trying to print

4 printing_students.docx 3 / 28 Savonia s printers have been named according to syntex: Cam-Room-Printer, where o o o Cam is the campus Room is the room where the printer is located Printer is the mark and the model of the printer. So e.g. printer Mic-S447-Canon-5035 is located on the Microkatu campus and on the room S447 (elevator lobby) of building S and the printer is Canon In every printer there is also a sticker with the printer s name on it (picture 1 below) In Savonia you always print to secure printing queues (in the picture to the right there is a Canon secure printing queue). You can find your own computer s printing queues by selecting Start/Devices and Printers. You can release your own printings from any printing device on any campus. Picture 1. The console of Canon multifunction device and RFID-reader (RFID-LUKIJA in finnish)

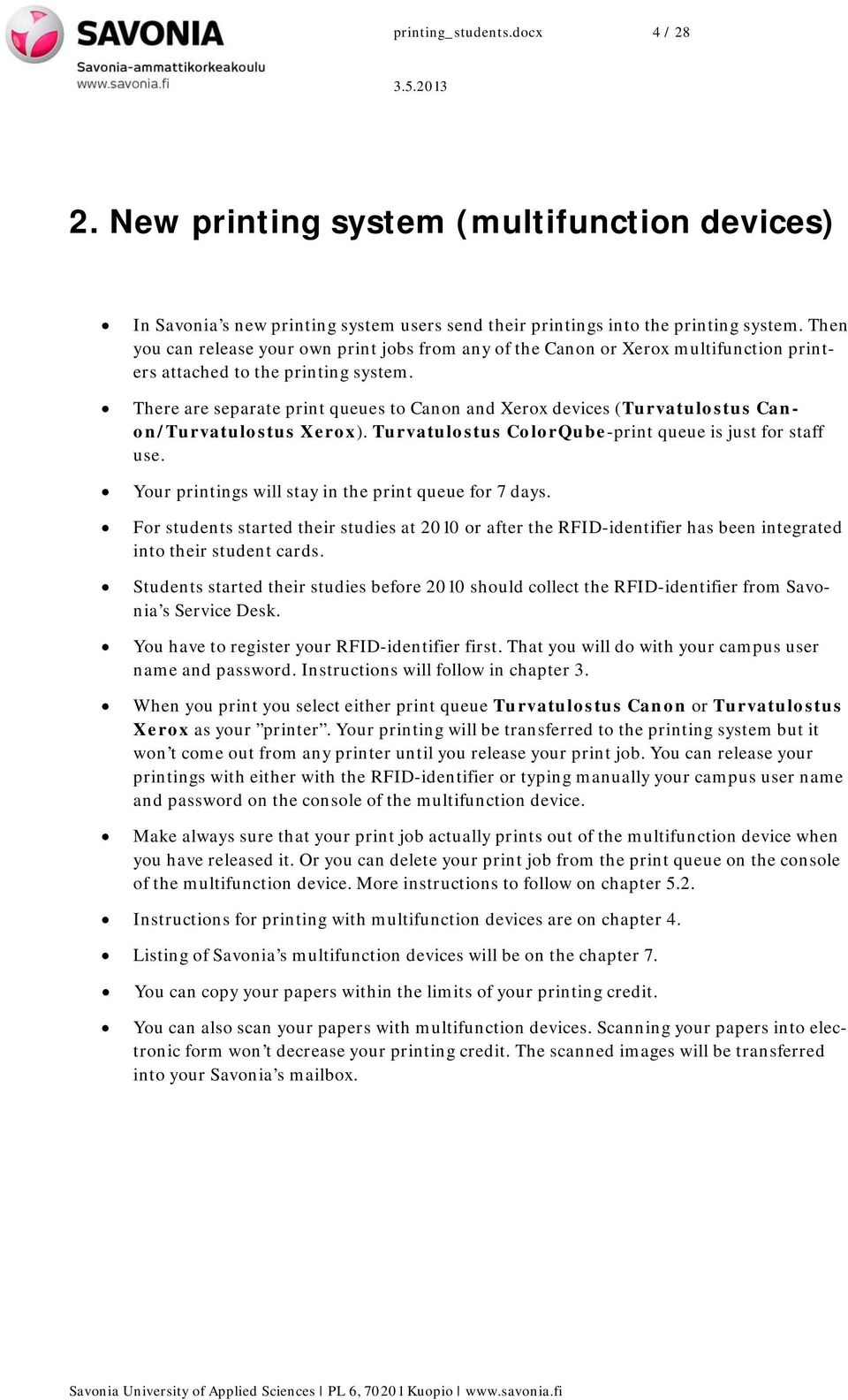

5 printing_students.docx 4 / New printing system (multifunction devices) In Savonia s new printing system users send their printings into the printing system. Then you can release your own print jobs from any of the Canon or Xerox multifunction printers attached to the printing system. There are separate print queues to Canon and Xerox devices (Turvatulostus Canon/Turvatulostus Xerox). Turvatulostus ColorQube-print queue is just for staff use. Your printings will stay in the print queue for 7 days. For students started their studies at 2010 or after the RFID-identifier has been integrated into their student cards. Students started their studies before 2010 should collect the RFID-identifier from Savonia s Service Desk. You have to register your RFID-identifier first. That you will do with your campus user name and password. Instructions will follow in chapter 3. When you print you select either print queue Turvatulostus Canon or Turvatulostus Xerox as your printer. Your printing will be transferred to the printing system but it won t come out from any printer until you release your print job. You can release your printings with either with the RFID-identifier or typing manually your campus user name and password on the console of the multifunction device. Make always sure that your print job actually prints out of the multifunction device when you have released it. Or you can delete your print job from the print queue on the console of the multifunction device. More instructions to follow on chapter 5.2. Instructions for printing with multifunction devices are on chapter 4. Listing of Savonia s multifunction devices will be on the chapter 7. You can copy your papers within the limits of your printing credit. You can also scan your papers with multifunction devices. Scanning your papers into electronic form won t decrease your printing credit. The scanned images will be transferred into your Savonia s mailbox.

6 printing_students.docx 5 / Registering into printing system Before you can print you have to register to the printing system with your RFID-identifier 3.1. Registering to Canon multifunction devices a. Move your RFID-identifier from side to side near the RFID-reader (picture 2 below). You should see the green light blink. Picture 2. RFID-reader b. Press Login & Release Print Jobs on the console of the multifunction device (in picture 3 below surrounded by red color). Picture 3. Press Login & Realease Print Jobs on the console

7 printing_students.docx 6 / 28 c. Press the white box to the right from the Käyttäjän ID-button (in picture 4 below surrounded by red color). Next you will have a keyboard on the console (picture 5). If you can see the keyboard icon to the right from the white box you can have the keyboard also by pressing that icon (not visible in picture 5). Picture 4. Press white box to have keyboard on the console for the user name d. Type your campus user name and press OK. If you need any special characters press Aakkosnum. and select Tunnus. Picture 5. Type in your user name on the console keyboard

8 printing_students.docx 7 / 28 Press white box to the right from the Salasana-button (in picture 6 below surrounded by red color). Next you will have a keyboard on the console (picture 7). If you can see the keyboard icon to the right from the white box you can have the keyboard also by pressing that icon (not visible in picture 6). Picture 6. Press white box to have keyboard on the console for the password e. Type your password and press OK. If you need any special characters press Aakkosnum. and select Tunnus. Picture 7. Type in your password on the console keyboard

9 printing_students.docx 8 / 28 Press Login & Release Print Jobs (in picture 8 below surrounded by red color). Picture 8. Now you can login by pressing Login & Release Print Jobs f. Press End Session (in picture 9 below surrounded by the red color). Your RFIDidentifier has now been registered and you can start printing into Canon multifunction devices (chapter 4). Picture 9. Log out by pressing End Session

10 printing_students.docx 9 / Registering to Xerox multifunction devices Step 1. Hold you RFID card in front of the reader until you see the green light flashing. then you can see the text: PIN not recognized. Would you like to associate pin with account? Press Kyllä on the screen. Step 2. Next type in your Savonia user name and press Valmis on the screen. Then type in your Savonia password and press Valmis. Now the registration is done. Always remember to log out.

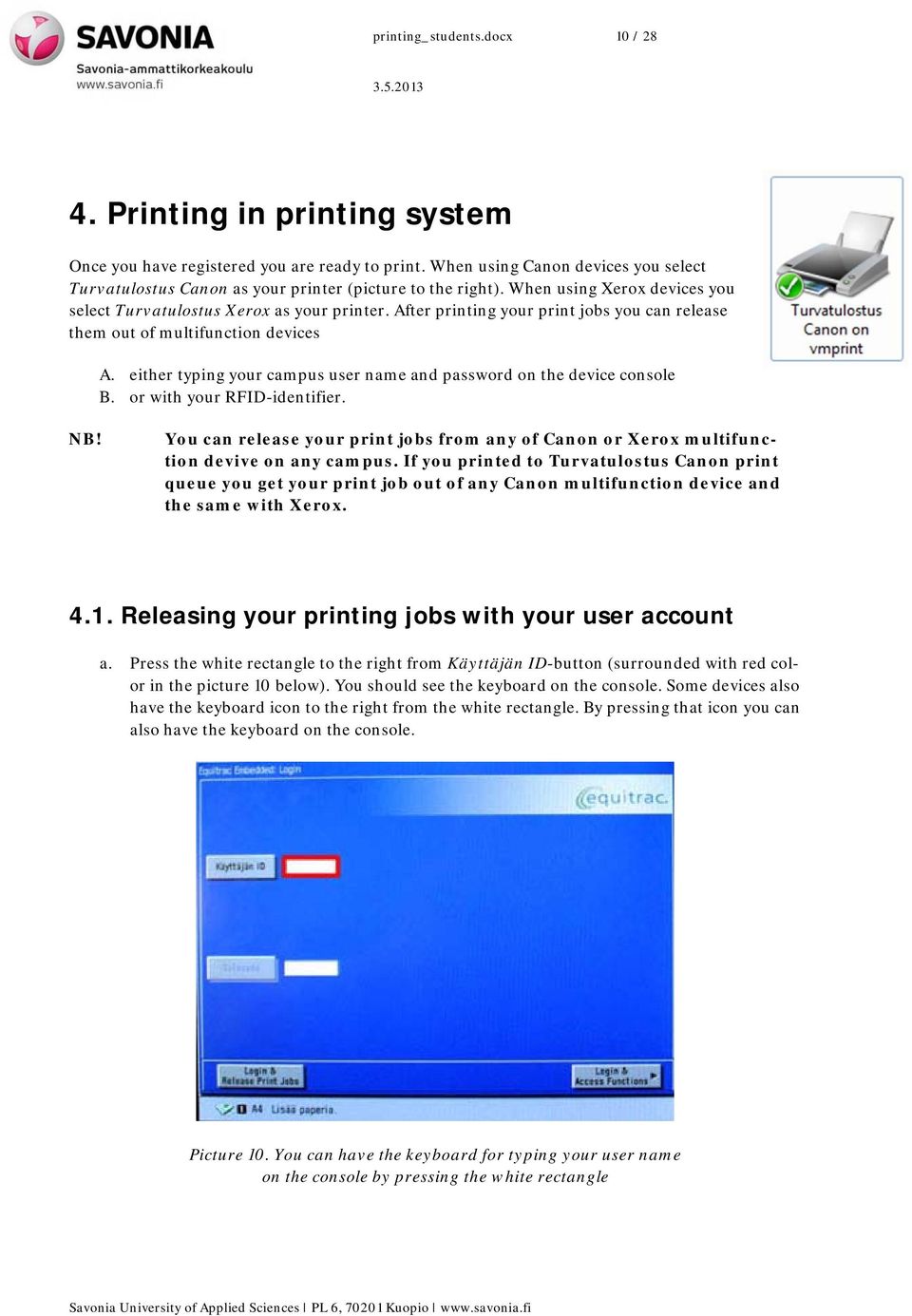

11 printing_students.docx 10 / Printing in printing system Once you have registered you are ready to print. When using Canon devices you select Turvatulostus Canon as your printer (picture to the right). When using Xerox devices you select Turvatulostus Xerox as your printer. After printing your print jobs you can release them out of multifunction devices A. either typing your campus user name and password on the device console B. or with your RFID-identifier. NB! You can release your print jobs from any of Canon or Xerox multifunction devive on any campus. If you printed to Turvatulostus Canon print queue you get your print job out of any Canon multifunction device and the same with Xerox Releasing your printing jobs with your user account a. Press the white rectangle to the right from Käyttäjän ID-button (surrounded with red color in the picture 10 below). You should see the keyboard on the console. Some devices also have the keyboard icon to the right from the white rectangle. By pressing that icon you can also have the keyboard on the console. Picture 10. You can have the keyboard for typing your user name on the console by pressing the white rectangle

12 printing_students.docx 11 / 28 b. Type in your user name (picture 11 below) and press OK. If you need special characters just press Aakkosnum.-text and select Tunnus. Picture 11. Type in your user name c. Press the white rectangle to the right from Salasana-button (surrounded with red color in the picture 12 below). You should see the keyboard on the console. Some devices also have the keyboard icon to the right from the white rectangle. By pressing that icon you can also have the keyboard on the console. Picture 12. You can have the keyboard for typing your password on the console by pressing the white rectangle

13 printing_students.docx 12 / 28 d. Type in your password (picture 13 below) and press OK. If you need special characters just press Aakkosnum.-text and select Tunnus. Picture 13. Type in your password e. Press Login & Release Print Jobs (surrounded by red color in the picture 14 below) to see your print jobs waiting to be printed. By pressing Login & Access Functions you can copy and scan your documents. Picture 14. Press Login & Release Print Jobs to see your print jobs

14 printing_students.docx 13 / 28 f. Select the print job you want to print or press Select All to print them all (surrounded by red color in the picture 15 below). Picture 15. Select your print jobs to be printed g. Press Print and then End Session (picture 16 below) Picture 16. The print jobs have been selected: press Print and then End session NB! If your print jobs doesn t come out of the printer after you have pressed Print check the instructions in the chapter 5.

15 printing_students.docx 14 / Releasing you print jobs with your RFID-identifier If you have a RFID-identifier which has been registered into the printing system (chapter 3), hold it in front of the RFID-reader (chapter 3a) and go on with the instructions 3e-3g.

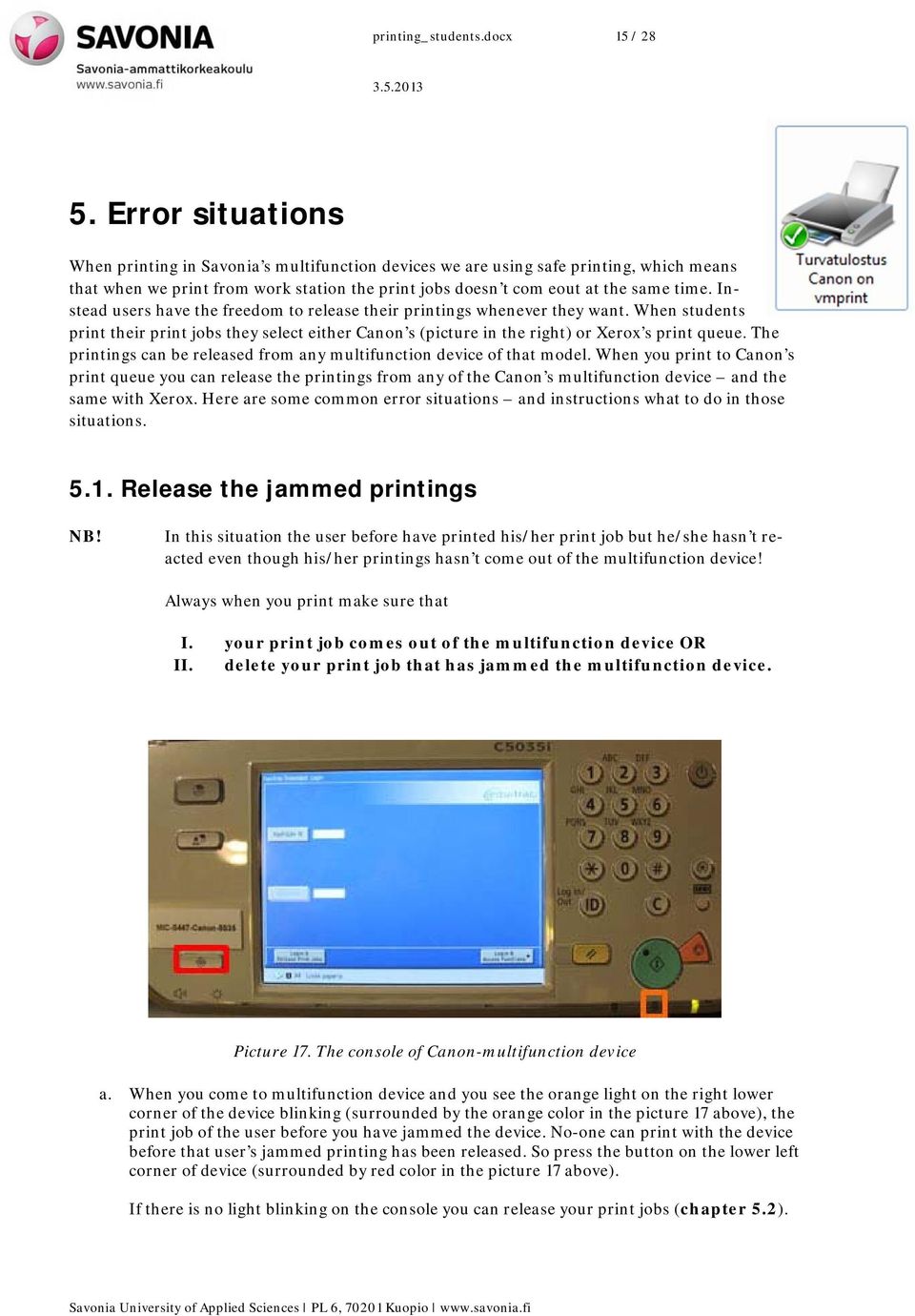

16 printing_students.docx 15 / Error situations When printing in Savonia s multifunction devices we are using safe printing, which means that when we print from work station the print jobs doesn t com eout at the same time. Instead users have the freedom to release their printings whenever they want. When students print their print jobs they select either Canon s (picture in the right) or Xerox s print queue. The printings can be released from any multifunction device of that model. When you print to Canon s print queue you can release the printings from any of the Canon s multifunction device and the same with Xerox. Here are some common error situations and instructions what to do in those situations Release the jammed printings NB! In this situation the user before have printed his/her print job but he/she hasn t reacted even though his/her printings hasn t come out of the multifunction device! Always when you print make sure that I. your print job comes out of the multifunction device OR II. delete your print job that has jammed the multifunction device. Picture 17. The console of Canon-multifunction device a. When you come to multifunction device and you see the orange light on the right lower corner of the device blinking (surrounded by the orange color in the picture 17 above), the print job of the user before you have jammed the device. No-one can print with the device before that user s jammed printing has been released. So press the button on the lower left corner of device (surrounded by red color in the picture 17 above). If there is no light blinking on the console you can release your print jobs (chapter 5.2).

17 printing_students.docx 16 / 28 b. Now you should see the window like this on the console (picture 18 below). Picture 18. Error when printing: the wrong type of paper selected (Canon) c. The problem is usually that the user has selected a different paper size than A4 (usually Letter) in the program where he/she has printed his/her print job from. Press OK on the console screen (surrounded by the red color on the picture 18 above) and the printing should come out of the multifunction device. By pressing Pysäytä on the console screen you could stop your printing and it would also be deleted from the print queue. d. Press OK once again on the next screen on the console (picture 19 below). Picture 19. The printing is on again click OK (Canon)

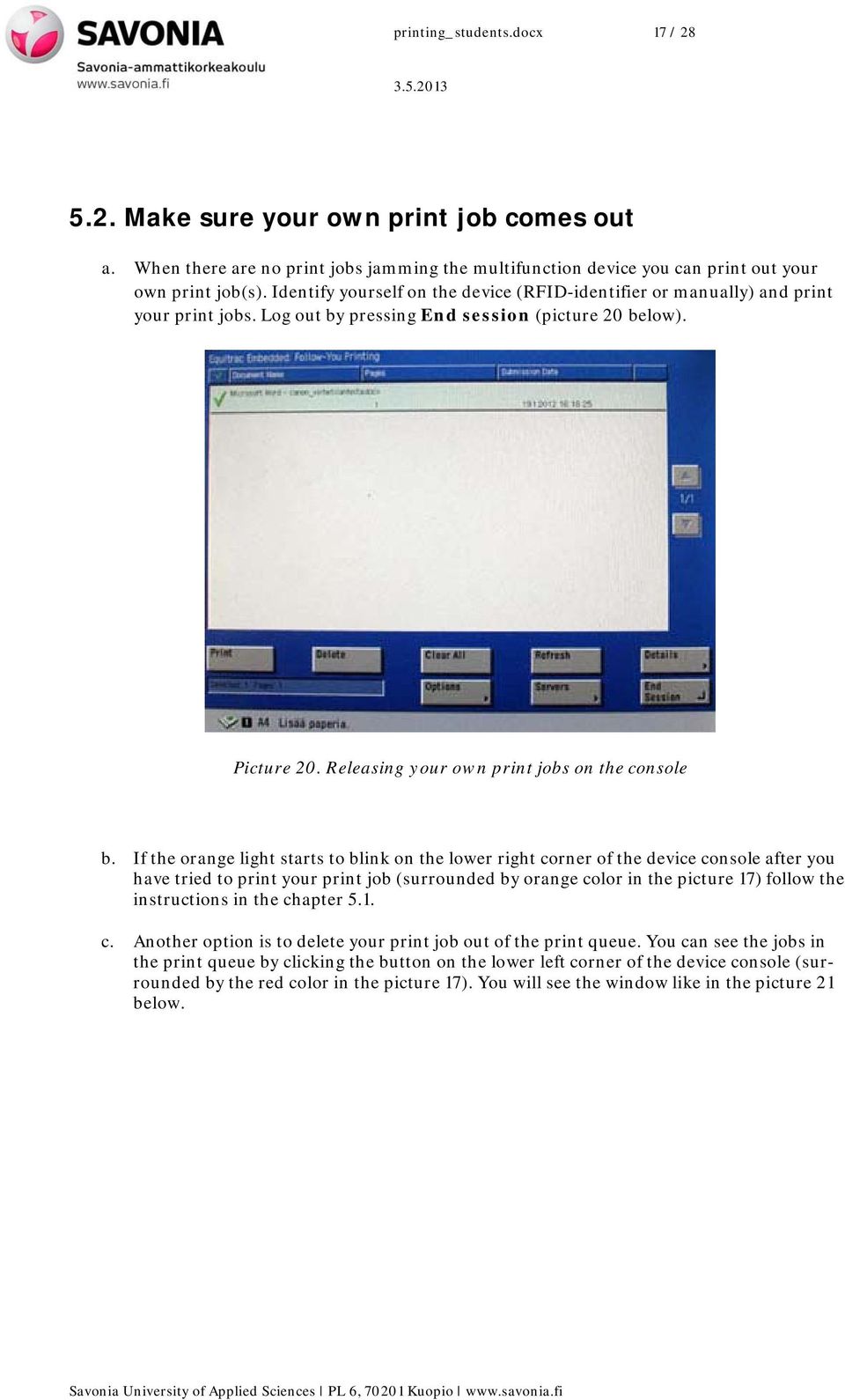

18 printing_students.docx 17 / Make sure your own print job comes out a. When there are no print jobs jamming the multifunction device you can print out your own print job(s). Identify yourself on the device (RFID-identifier or manually) and print your print jobs. Log out by pressing End session (picture 20 below). Picture 20. Releasing your own print jobs on the console b. If the orange light starts to blink on the lower right corner of the device console after you have tried to print your print job (surrounded by orange color in the picture 17) follow the instructions in the chapter 5.1. c. Another option is to delete your print job out of the print queue. You can see the jobs in the print queue by clicking the button on the lower left corner of the device console (surrounded by the red color in the picture 17). You will see the window like in the picture 21 below.

19 printing_students.docx 18 / 28 Picture 21. The print jobs in the print queue (Canon) d. Here you could delete your own print jobs by selecting your job and pressing Pysäytä (picture 21 above). e. By pressing Loki in the window above you could see the list of the print jobs printed out of the printer (picture 22 below). Picture 22. The list of the printed jobs (Canon)

20 printing_students.docx 19 / Selecting the default printer (Windows 7) This is how you can select the default printer in Windows 7. a. Click the Windows Start-button with your left mouse button. b. Select Devices and Printers (Laitteet ja tulostimet). c. Click the printer you want to select as your default printer with right mouse button. d. Select Set as default printer (Määritä oletustulostimeksi). e. The default printer is marked with green icon.

21 printing_students.docx 20 / Print settings (Canon) 2-sided black & white printing is the default setting when printing in Savonia. However, you can change the print settings. here are listed some common settings. You change the settings through printer s properties. In Word you select File/Print and then Printer properties (Tulostimen ominaisuudet in finnish), surrounded by red color in the picture below. After that you can see the printer properties window, picture below.

22 printing_students.docx 21 / Color printing (Canon) NB! One color page decreases your printing credit by 50 cents. One b&w page is 10 cents. You select the color printing on the Quality-tab s Color Mode-list (surrounded by red color in the picture below). When you want a color printing don t select Color, but Auto (Color/B&W). Color-selection prints black color by mixing all the other colors. Auto (Color/B&W) prints black with black color and uses other colors only when printing other colors than black.

23 printing_students.docx 22 / sided printing (Canon) You can change the 2-sided printing to 1-sided printing on the Page Setup-tab. Select Valitse 1- sidedfrom the Profile-list.

24 printing_students.docx 23 / Finishing settings (Canon) You can set the automatic stapling on the Finishing-tab by selecting Staple + Collate (Nido ja Lajittele in finnish) from the Finishing-list (surrounded by red color in the picture below). If you click Staple Position-button you can select the position of the staples.

25 printing_students.docx 24 / Number of the holes (Canon) You can have 2 holes on the left edge of the papers. That setting you can find from the Finishingtab by selecting 2 Holes from the Hole Punch-list (surrounded by orange color in the picture above) Booklet printing (Canon) YTou can print your printing in the form of booklet. On the Finishing-tab select Booklet Printing from the Print Style-list, surrounded by red color in the picture below.

26 printing_students.docx 25 / The list of multifunction devices in Savonia The print queue for the Canon multifunction devices: Turvatulostus Canon in all the campuses in Kuopio, except KUMU The print queue(s) for the Xerox multifunction devices: Turvatulostus Xerox (Turvatulostus ColorQube for the staff only) in Iisalmi campus Here are listed all the multifunction devices and printers in Savonia. Iisalmi campus: Hau-A1008-HpLj-4250N, 45 s/min mustavalkolaser henkilökunnan käyttöön, kaksipuoleinen tulostus Iisalmi, Haukisaarentie, T&K, A1008 Hau-A1012-HpLj-2300N, 25 s/min mustavalkolaser henkilökunnan käyttöön, kaksipuoleinen tulostus. Iisalmi, Haukisaarentie, työhuone A1012 kirjasto Hau-A1018-HpLj-4250N, 45 s/min mustvalkolaser, oppilaskäyttöön, kaksipuoleinen tulostus. Iisalmi, Haukisaarentie, Ryhmätyötila A116 Hau-B2040-HpLj-4250N, 45 s/min mustavalkolaser henkilökunnan käyttöön, kaksipuoleinen tulostus. Iisalmi, Haukisaarentie, Huone B2040, Opintotoimisto Hau-B2064-Xerox-ColorQube9202, 50 s/min värimonitoimilaite henkilökunnan käyttöön, turvatulostus, EI ARKISTOINTIKELPOINEN, Iisalmi, Haukisaarentie, Kopiohuone B2064 Hau-B2064-Xerox-Workcentre7346, 46 s/min värimonitoimilaite henkilökunnan käyttöön, turvatulostus, Iisalmi, Haukisaarentie, Kopiohuone B2064 Hau-D1aula-HpLj-4250N, 45 s/min mustavalkolaser henkilökunnan ja opiskelijoiden käyttöön, kaksipuoleinen tulostus, Iisalmi, Haukisaarentie, ATK-luokka D180 Hau-D2aula-Xerox-Workcentre6400, 32 s/min A4 värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Iisalmi, Haukisaarentie, D2-käytävän aula Hau-F1013-HpColorLj-3600, 17 s/min värilaser tekniikan henkilökunnan käyttöön, Iisalmi, Haukisaarentie, työtila F1013 (tekniikka) Hau-F1019-Xerox-Workcentre7346, 46 s/min värimonitoimilaite henkilökunnan käyttöön, turvatulostus, Iisalmi, Haukisaarentie 2, väestönsuoja F1019 Hau-F2006-HpLj-2300N, 25 s/min mustavalkolaser henkilökunnan käyttöön, ei turvatulostusta, Iisalmi, Haukisaarentie, Opettajien huone F2006 Hau-F2007-HpLj-2200, 20 s/min mustavalkolaser henkilökunnan käyttöön, Iisalmi, Haukisaarentie, Opettajien työhuone F2007 Hau-F2014-HpLj-5200, 35 s/min A3 mustavalkolaser, Iisalmi Haukisaarentie, F2014, Tekniikka Hau-F2018-HpLj-4250N, 45 s/min mustavalkolaser henkilökunnan ja opiskelijoiden käyttöön, kaksipuoleinen tulostus, Iisalmi, Haukisaarentie, ATK-luokka F2018 Hau-F2021-HpLj4250N, 45 s/min mustavalkolaser henkilökunnan ja opiskelijoiden käyttöön, kaksipuoleinen tulostus, Iisalmi, Haukisaarentie, ATK-luokka, F2021

27 printing_students.docx 26 / 28 Music Centre, Kuopio (KUMU): Kuo-003-HpLj-2055DN, Harmaasävy laser opiskelijoiden käyttöön, Musiikkikeskus atkluokka 003 Kuo-105-HpColorLj-5550, Musiikkikeskus (1. krs käytävä) Kuo-322-HpLj-4250N, Musiikkikeskus 3.krs käytävä Microkatu campus: Mic-B3001-Canon-5035, 35 s/min, värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, Turvatulostus, Microkatu, B3001 aula (IT-kehitysyksikön edusta) Mic-C2008-Canon-3225, 25s/min, mustavalkomonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Microkatu, C2 käytävä (Ympäristötekniikka) Mic-C4002-Canon-7095, 95s/min, mustavalkomonitoimilaite henkilökunnan käyttöön, turvatulostus, Microkatu C4002, Kepa, Aula Mic-C4016-Canon-5035, 35s/min värimonitoimilaite henkilökunnan käyttöön, turvatulostus, fax, Microkatu, C4016, Kepa kirjaamo Mic-D3001-Canon-2380, 23s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Microkatu, D3001 aula Mic-D4025-Canon-5035, 35s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Microkatu, D4025 Mic-F3001-Canon-5035, 35 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Microkatu, F3001 aula/kahvio Mic-F4001-Canon-2380, 23s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Microkatu, F4001 aula Mic-R321-Canon-5030, 35s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Microkatu, R321 aula Mic-S447-Canon-5035, 35s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Microkatu S447, hissiaula Mic-S547-Canon-5030, 30s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Microkatu S547, hissiaula Opistotie campus: Opi-A1057-Canon-5045, 45 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Opistotie A1057 aula Opi-A1057-Canon-5055, Harmaasävy monitoimilaite henkilökunnan käyttöön, Opistotie A1057, likun opettajien tulostuspiste Opi-A1070-Canon-5030, 30 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Opistotie A1070, kirjaston monistustila Opi-A1077-Canon-5045, 45 s/min värimonitoimilaite henkilökunnan käyttöön, turvatulostus, Opistotie A1077 opintotoimisto Opi-A1105-Canon-5030, 30 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Opistotie A1105, tarvikevaraston aula Opi-A Canon-5030, 30 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, Turvatulostus, Opistotie A2115 aula

28 printing_students.docx 27 / 28 Opi-A Canon-5030, 30 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Opistotie A , Kuopio-hallin päädyn aula Opi-A Canon-5030, 30 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Opistotie A , aula Opi-A Canon-5030, 30 s/min värimonitoimilaite Henkilökunnan ja opiskelijoiden käyttöön. Turvatulostus, Opistotien kampus A aula Opi-B1196-Canon-5035, 35 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön. Turvatulostus, Opistotie B1196 sähkölaboratorion aula Opi-B2151-Canon-5035, 35 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Opistotie B2151 aula Opi-B3120-Canon-2380, 23 s/min värimonitoimilaite henkilökunnan käyttöön, turvatulostus, Opistotie B3120, tietohallintokeskus aula Opi-D2011-Canon-5030, 30 s/min värimonitoimilaite opiskelijoiden ja henkilökunnan käyttöön, Turvatulostus, Opistotie D2011 aula hitsavonia Varkaus campus: Osm-A1023-Xerox-WorkCentre7232, 32 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Osmajoentien kampus, A1023 Osm-A2001-Xerox-WorkCentre7335, 35 ppm, Color multifuction printer for staff and students, secure printing, Osmajoentien kampus, A2001 Kirjaston aula (library hall) Osm-A3001-Xerox-WorkCentre7232, 32 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Osmajoentien, A3001 Osm-B1028-HpLj-5200TN, A3/A4 grayscale laserprinter for students and staff, Osmajoentie, aula B1028 Osm-B2018-HpLj-4200N, Grayscale laserprinter for students and staff, no secure printig feature, Osmajoentie, aula B2018 Osm-C1001-HpLj-4200N, Harmaasävylaser opiskelijoiden käyttöön, Monochrome printer for students, Osmajoentien kampus C1001, 1krs aula, 1st floor hall Osm-C2010-Xerox-WorkCentre7245, 45 s/min värimonitoimilaite henkilökunnan käyttöön, ei turvatulostusta, Osmajoentien kampus, C2010 opintotoimisto Osm-C2019-Xerox-ColorQube9202, 50 s/min värimonitoimilaite henkilökunnan käyttöön, turvatulostus, EI ARKISTOINTIKELPOINEN, Osmajoentien kampus, C2019 kopiointihuone Osm-C2024-HpLj-4200N, Harmaasävylaser opiskelijoiden käyttöön, Osmajoentie, luokka C2024 Osm-C3001-HpLj-4200N, Harmaasävylaser opiskelijoiden käyttöön, Monochrome printer for students, Osmajoentien kampus C3001, 3krs. aula, 3rd floor hall Sairaalakatu campus: Sai Canon-5035, 35 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Sairaalakatu, aula Sai Canon-3580, 35s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Sairaalakatu, opintotoimistojen aula Sai Canon-5035, 35 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Sairaalakatu, aula

29 printing_students.docx 28 / 28 Sai Canon-5035, 35 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Sairaalakatu, aula Sai Canon-5045, 45 s/min värimonitoimilaite henkilökunnan käyttöön, vihkotaittaja, Sairaalakadun kampus, Sai HpLj-4350N, Reston opettajien työhuoneen mustavalkolaser Sai , Reston opettajien työhuoneen mustavalkolaser Sai Canon-5045, 45 s/min värimonitoimilaite henkilökunnan käyttöön, turvatulostus, vihkotaittaja, Sairaalakatu, aula Sai Canon-5030, 30 s/min värimonitoimiltaite henkilökunnan käyttöön, turvatulostus, Sairaalakatu, aula Sai Canon-5035, 35 s/min värimonitoimilaite henkilökunnan ja opiskelijoiden käyttöön, turvatulostus, Sairaalakatu, aula
