CB 5/25. 1 Kompakti järjestelmä. Vaihtoehto pesukadulle jos tilasta on pulaa. Mahtuu helposti vakiomitoilla olevaan autopesulaan.

Transkriptio

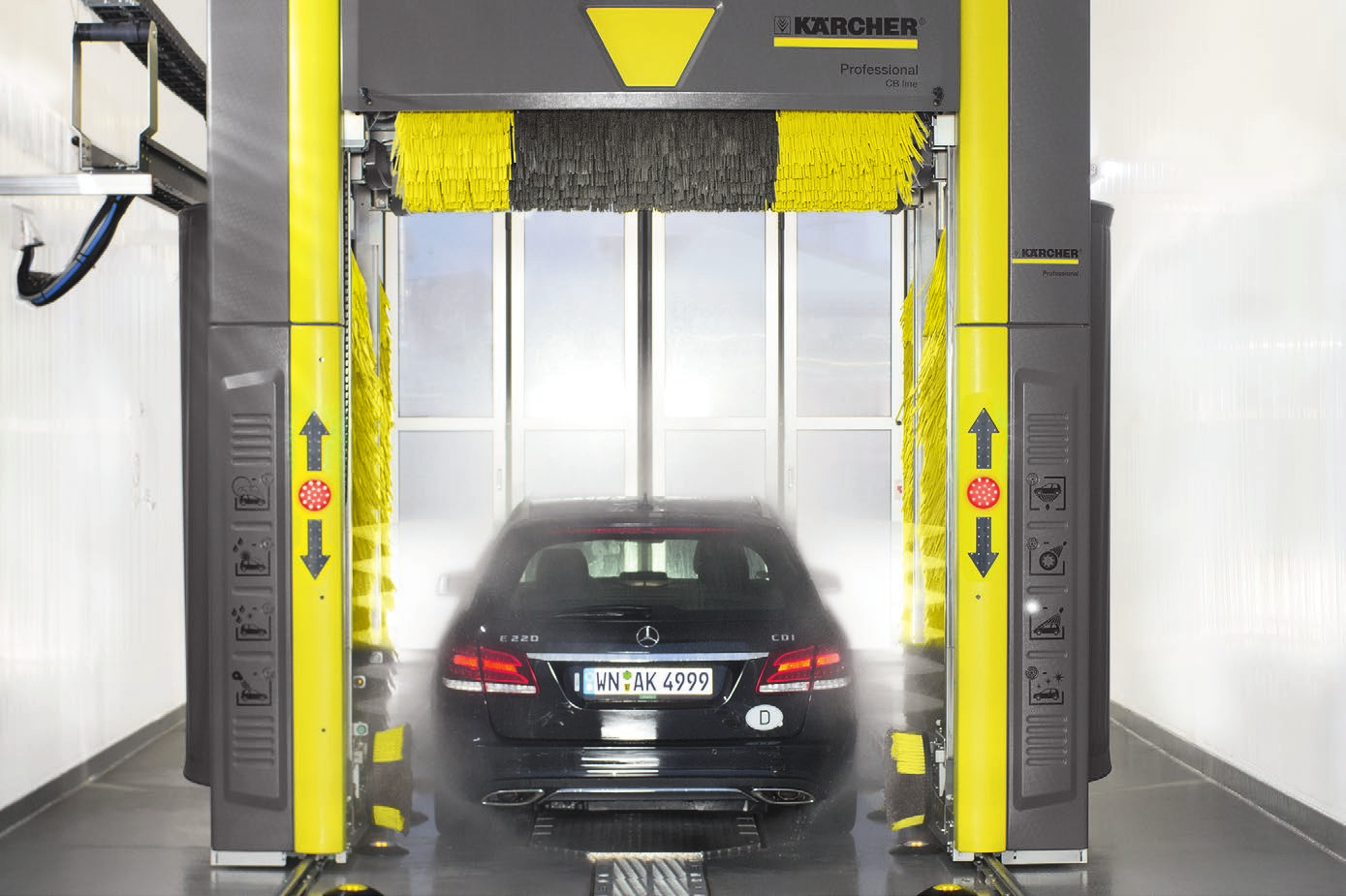

1 CB 5/25 CB 25/5 on viisiharjainen autonpesukone, kahdella katonkuivaimella, yhdellä parilla sivukuivaimia ja monilla varustevaihtoehdoilla. Maksimi pesukorkeus on 2,50 m. Kohteisiin joissa kapasiteetti alkaen 1200 pesua tai enemmän. 1 Kompakti järjestelmä Vaihtoehto pesukadulle jos tilasta on pulaa. Mahtuu helposti vakiomitoilla olevaan autopesulaan.

2 Tekniset tiedot ja laite. CB 5/25 Tekniset tiedot EAN koodi Pesukorkeus mm 2500 Järjestelmän leveys pyörivillä sivuharjoilla Järjestelmän korkeus ilman etupaneelia mm 4035 mm 3350 Järjestelmän korkeus etupaneelin mm 3415 kanssa Harjojen määrä kpl 5 Sivuharjojen määrä kpl 4 Kattoharjojen määrä kpl 1 Sivukuivainten määrä 1 Kattokuivainten määrä 2 Vesiliitäntä (volyymi) l/min 140 Vesiliitäntä (paine) bar 4 / 6 Moottoriteho kw 22 Jännite V 400

3 Ohjauskaapeli Ohjauskaapeli Ohjauskaapeli 3 x 1,5m Saatavilla olevat varusteet.

4 2 Hiekkasuodatin Ilmauspumppu Uimuri vesisäiliöön Puhtaanveden syöttö Veden talteenottosäiliö additional reclaimed water tank, 1,000 l Add-on kit box add-on Assembly kit WRP Add-on kit conductivity WRP Saatavilla olevat varusteet.

5 9 12 Kuljetuskiskojen jatko-osa 2x1 m kuljetuskiskon jatko-osa m travel way. Hot-galvanised special profile, 40 mm mounting height. The scope of delivery includes mounting and supporting material. The travel rails are directly fixed to the ground. The length of the travel rails depends on the length of the vehicles to be washed. The length is calculated by adding to the length of the longest vehicle to be washed approx. 6 m (for machine movements). The standard length of buses are 12 m and trucks are approximately 18 m long. Pakkassuojaus Veden paineennosto Merkki pesukorkeus/pesuleveys The labels are attached to car portal washing stations with a washing height of 2.50m to indicate the max. washing height The labels are attached to car portal washing stations to indicate the max. washing width of 2.25m. Label washing width 2,3m Harjat Add-on kit RAWA brushes Radkastenrei Brush Ø450, Radkastenr., RAL Add-on kit RAWA brushes Radkastenreinigu Brush wheel housing Ø370, RAL Energiansyöttö Cable carrier chain wall mounting m KE Cable carrier chain support 12m Energy chain for attachment to supports mounted on the KE 0900 floor. It ensures the space-saving and secure storage of hoses and cables (for max. 12m drive-rails). Cable transport 12m CB Etuovet Add-on kit doors complete Ampel links Add-on kit doors complete Ampel rechts Add-on kit doors complete Ampel rechts u Add-on kit doors complete Ampel - Wasch Kierrätysvesi Saatavilla olevat varusteet The "Deluxe" front doors are made from a high-quality plastic in RAL 7012 and RAL With 3-field LED positioning lights, to the left in the direction of entry The "Deluxe" front doors are made from a high-quality plastic in RAL 7012 and RAL With 3-field LED positioning lights on the left and right

6 21 Pesuaineen määrännäyttö Pinnanvartija 10 l tai 25 l pesuainetynnyreille Annosteluyksikkö maks. 5 annostelupumpulle Opens the possibility of storing detergent offboard (e.g. technical room). The big advantage is, that detergent can be stored in bigger quantities, up to 200l per detergent. If the plant is highly frequented the kit minimises the detergent refilling procedure a lot. It is only available in connection with the supply via energy chain. 10 l pesuainesäiliö Detergents can be stored on the plant. The available space can be used for either 2 x 25 l canisters, or 1 x 25 l and 2 x 10 l canisters or 4 x 10 l canisters. The concept of the plant allows the use of the same detergent (out of the same canister) for the two programs foam and shampoo and for the two programs drying aid and hot wax. Currently the detergents are only available in 25 l canisters. Thus the 10 l canisters are needed in case different detergents are used for each program or when the plant is equipped with the additional washing program intensive pre-wash. Pakkassuojausjärjestelmä Jatko -osa 60 bar Pakkassuojaus Automaattinen pakkassuojaus Asennuslevy pakkassuojaus Automaattinen pakkassuojaus Automaattinen pakkassuojaus kp-puoli/alustanpesu Manuaali pakkassuojaus Automaattinen pakkassuojaus Manuaalinen pakkassuojaus kp-puoli Pumput KP- pumppu HD-E 60/ Painepumppu 16 bar Standing, multi-level medium pressure centrifugal pump including central switch cabinet. The pump must be supplied by a tank in order to ensure safe operation. Voltage: 3~ / 400 V / 50 Hz Korkeapainepumppu HD-E 60/6 K2 II Crank shaft high-pressure pump unit mounted on a rack including control cabinet. Power 3~ / 400 V / 50 Hz Painepumppu 16 bar Fresh water tank module with a capacity of 210 litres for supplying water to portal washing stations. It is installed on the pump module. Supply valve included. Ohjauskiskot Pyörän ohjain Lateral guides to position the vehicles safely within the wash bay. Made of solid hot galvanised tubes mounted onto the ground. Turvalaitteet Saatavilla olevat varusteet.

7 58 Add-on kit safety switch positioning The "Too wide vehicle" safety device for car portal washing CB5 stations ensures that the required safety distances are observed. Add-on kit switch hall too narrow Add-on kit safety switch rear CB /25 Roiskesuoja Splash guard side brushes CB Alustanpesu Alustanpesu Pumpun liitäntäsetti, alustanpesu Alustanpesu 16 bar Pyöränpesu RAWA HD inside CB RAWA external CB RAWA HD contactless CB Suojauslaitteet Add-on kit covering front quer The front trim is attached in front of the roof brush and completes the look and feel of the car portal washing station. Ideal for washing bays at locations with brisk public traffic. Add-on kit covering rear quer Add-on kit ticker Solar panel CB Pesukortin- pinkoodinlukija Itsepalvelu liitäntä The "interface" is a prerequisite for connecting a wash card reader to the system. The various operating states are selected via the key-operated switch. Position 0: System off (end of operating time) Position 1: no manual programme start possible On the control section only manual interventions and functions are available. The wash programmes can be started only with the wash card reader Position 2: Programme start via control section and card reader possible This position allows programme start via the wash card reader and the control section. In addition all manual functions are available on the control section. Vedenkierrätysjärjestelmä Changeover osmosis engineering room Lisäohjelmat Pre-cleaner Intensive Dirt Remover CB Wax CB Foam polishing dosing pump The "Kärcher foam polish" care programme enables paintwork preservation without intermediate drying. For a longer vehicle paintwork life and an enduring, visible shine. Saatavilla olevat varusteet.

8 72 73 Korkeapaine HD pipe side CB Lisäohjauslaitteet Signaali Special control box which supplies potential free signals for connecting up to three pumps in-stalled already on-site. On-site pumps can be: - under chassis wash - fresh water pressure increase unit - reclaimed water unit Kaapeli 20 m Kaapeli 50 m Communication line between feed distributor which is installed at the energy chain and other components like frost protection and door control that are mounted in the technical room. Saatavilla olevat varusteet.
