CB 3. Laadukas ohjausjärjestelmä. Sisäänrakennettu korkeapainepumppu. Pikapesu korkeammalla kapasiteetillä. Vedensäästötila

Transkriptio

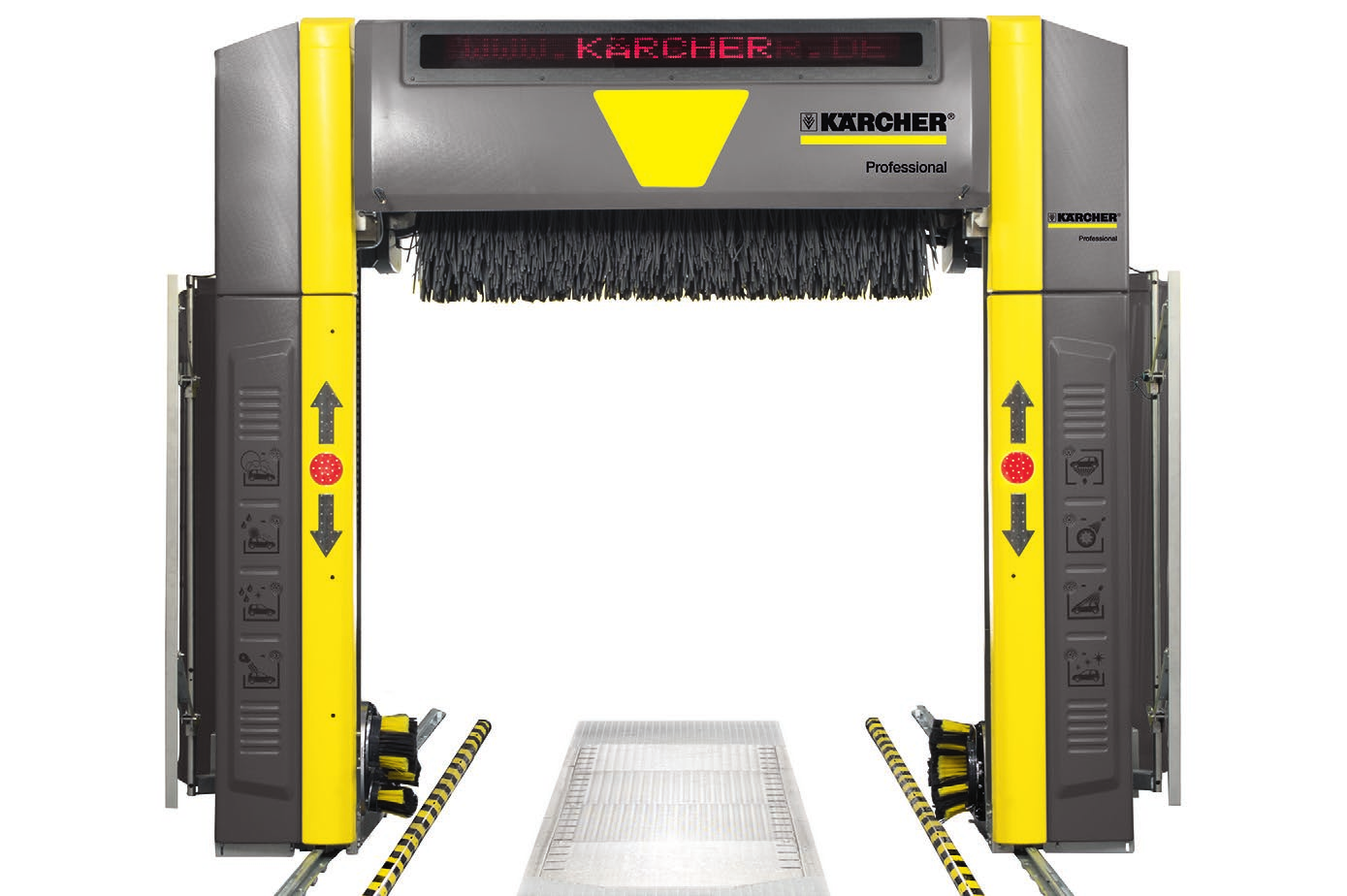

1 CB 3 Autonpesu voi oikeasti olla joustavaa ja nopeaa. Autonpesu voi oikeasti olla nopeaa ja taloudellista. Ja autonpesu voi oikeasti olla taloudellista ja monipuolista. CB 3 yhdistää nämä kolme ominaisuutta yhteen autonpesukoneeseen, joka voi täyttää kaikki nämä vaatimukset. 1 Laadukas ohjausjärjestelmä 3 Sisäänrakennettu korkeapainepumppu CB 3:n hyvin suunniteltu ohjainyksikkö on yhteensopiva Kärcherin laivueenhallintajärjestelmään. Järjestelmään on asennettu tehokas korkeapaineyksikkö (1300 l/h 70 bar). Tilaa säästävä, ei tarvitse erillistä teknistä tilaa. 2 Vedensäästötila 4 Pikapesu korkeammalla kapasiteetillä CB 3 käyttää ainoastaan 20 litraa puhdasta vettä / pesu. Kustannussäästö Pikapesuohjelma mahdollistaa korkean kapasiteetin. Lyhyet odotusajat lisäävät asiakastyytyväisyyttä.

2 Tekniset tiedot ja laite. CB 3 Tekniset tiedot EAN koodi Pesukorkeus mm 2300 Tilan korkeus mm 3215 Tilan leveys mm 3500 Vesiliitäntä (volyymi) l/min 50 Vesiliitäntä (paine) bar 4 / 6 Jännite V 400 Taajuus Hz 50 Vaiheiden määrä Ph 3

3 Ohjauskaapeli Ohjauskaapeli Ohjauskaapeli 3 x 1,5m Saatavilla olevat varusteet.

4 2 Hiekkasuodatin Ilmauspumppu Uimuri vesisäiliöön Puhtaanveden syöttö Veden talteenottosäiliö additional reclaimed water tank, 1,000 l Add-on kit box add-on Add-on kit foot WRP CarWash Add-on kit conductivity WRP CarWash Saatavilla olevat varusteet

5 Kuljetuskiskojen jatko-osa 2x1 m kuljetuskiskon jatko-osa m travel way. Hot-galvanised special profile, 40 mm mounting height. The scope of delivery includes mounting and supporting material. The travel rails are directly fixed to the ground. The length of the travel rails depends on the length of the vehicles to be washed. The length is calculated by adding to the length of the longest vehicle to be washed approx. 6 m (for machine movements). The standard length of buses are 12 m and trucks are approximately 18 m long. Pakkassuojaus Veden paineennosto Merkki pesukorkeus/pesuleveys The labels are attached to car portal washing stations with a washing height of 2.50m to indicate the max. washing height The labels are attached to car portal washing stations with a washing height of 2.80m to indicate the max. washing height The labels are attached to car portal washing stations to indicate the max. washing width of 2.25m. Label washing width 2,3m Käyttöpaneeli "Basic" ohjaus It is a very simple version covering the basic needs. Wash programs are selected via pressing single buttons or button combinations. The unit is equipped with an "emergency switch-off", a "start"-button and a "basic-position"-button. We suggest to install it in combination with a wash card reader to support the general automatic wash, for example if a special vehicle needs to be washed. The control panel allows manual interventions e.g. brush movements, during the automated washing process. Free length of cable is 10 m measured from the distribution device installed in the technical room. Washing programs max. 7 Control panel eight programs CB Harjat PE harjat The PE brushes are made of single bristles with a diameter of approx. 0.7 mm. The brush material assures a very good and efficient cleaning result. Saatavilla olevat varusteet.

6 16 18 Add-on kit RAWA brushes Radkastenrei Brush Ø450, Radkastenr., RAL Add-on kit RAWA brushes Radkastenreinigu Brush wheel housing Ø370, RAL Brushes standard colours Care Touch CB23 Brushes standard colours Care Touch CB25 Brushes standard colours Care Touch CB28 Brushes standard Care Touch Hybrid CB23 Brushes standard Care Touch Hybrid CB25 Brush set standard CB Energiansyöttö Jatkosetti The extension kit is an adapter for additional hoses. It is necessary if the unit will be equipped with high pressure. The kit is designed for the HP-hose and two additional hoses. Kuumagalvanoitu teline Add-on kit cable carrier chain panel CB Add-on kit cable carrier chain connectio Support roller cable carrier chain CB Valoköysi, seinäasennus The energy supply of power as well as the water and air hoses is housed in a festooned cable. It consists of a solid, hot-dipped galvanised C-profiled rail guiding the travelling carriage. The re-quired cables and hoses are fixed to the travelling carriage. The rail is fixed to a lateral wall with hot-dipped galvanised brackets. The festooned cable can only be fixed to a wall and therefore only used in washing halls. Length 9 m. Kuumagalvanoitu teline Etuovet Add-on kit doors complete Standard Add-on kit doors complete Ampel links Add-on kit doors complete Ampel rechts Add-on kit doors complete Ampel rechts u Saatavilla olevat varusteet The "Deluxe" front doors are made from a high-quality plastic in RAL 7012 and RAL With 3-field LED positioning lights, to the left in the direction of entry The "Deluxe" front doors are made from a high-quality plastic in RAL 7012 and RAL With 3-field LED positioning lights on the left and right.

7 Add-on kit doors complete Ampel Wasch Add-on kit doors traffic light links OEM Add-on kit doors traffic light rechts OE Add-on kit doors traffic light re + li O Nozzles set wheel wash unit 3000l MPa Covering front above Basic CB Covering front above Basic CB Covering front above Basic CB Covering front above Deluxe CB3-23 Covering front above Deluxe CB3-25 Covering front above Deluxe CB3-28 Covering front above Open Art CB3-23 Covering front above Open Art CB3-25 Covering front above Open Art CB3-28 Ajoneuvon asemointi Pakkassuojausjärjestelmä Jatko -osa 60 bar Pakkassuojaus Automaattinen pakkassuojaus Asennuslevy pakkassuojaus Antifreezing high-pressure module /10 Add-on kit changeover antifreezing 60/ Automaattinen pakkassuojaus Manuaali pakkassuojaus Automaattinen pakkassuojaus Manuaalinen pakkassuojaus kp-puoli Pumput KP- pumppu HD-E 60/ Korkeapainepumppu HD-E 60/6 K2 II Saatavilla olevat varusteet Crank shaft high-pressure pump unit mounted on a rack including control cabinet. Power 3~ / 400 V / 50 Hz

8 Add-on kit high-pressure Offboard MPa High-pressure pump with control cabinet Add-on kit pump II 1,6 MPa - CB Fresh water tank module with a capacity of 210 litres for supplying water to portal washing stations. It is installed on the pump module. Supply valve included. Ohjauskiskot Add-on kit wheel guide entry pipe CB Add-on kit wheel guide entry pipe lacque Reflector complete Speed Stop Turvalaitteet Safety switch splash guard CB Add-on kit safety switch positioning The "Too wide vehicle" safety device for car portal washing CB5 stations ensures that the required safety distances are observed. Add-on kit switch hall too narrow Safety switch splash guard CB Safety switch splash guard CB Add-on kit safety switch rear CB Roiskesuoja Splash guard CB Add-on kit splash guard side brush CB/23 Add-on kit splash guard side brush CB/25 Add-on kit splash guard side brush CB/28 Add-on kit splash guard CB Add-on kit splash guard CB Splash guard roof brush CB Alustanpesu Alustanpesu Pumpun liitäntäsetti, alustanpesu Alustanpesu 16 bar Kytkin venttiili Kp-yksikkö The "High-pressure undercarriage wash (HD/UBW) changeover valve" attachment kit enables the supply of water for undercarriage and high-pressure washing for car portal washing stations via the same pump. Changeover subsoil washing MPa Suojauslaitteet Conversion kit covering fuse CB Saatavilla olevat varusteet.

9 Add-on kit covering front quer The front trim is attached in front of the roof brush and completes the look and feel of the car portal washing station. Ideal for washing bays at locations with brisk public traffic. Add-on kit covering rear quer Add-on kit ticker Add-on kit frontal covering ticker Open Add-on kit covering high-pressure Onboar Covering side bottom Deluxe CB Covering side RAWA 2.0 Deluxe CB3 R Covering side RAWA 2.0 Deluxe CB3 L Covering side basic CB Covering RAWA CB Add-on kit ultra-violet protection Add-on kit frontal covering Open Art Add-on kit covering rear Open Art Pesukortin- pinkoodinlukija Itsepalvelu liitäntä The "interface" is a prerequisite for connecting a wash card reader to the system. The various operating states are selected via the key-operated switch. Position 0: System off (end of operating time) Position 1: no manual programme start possible On the control section only manual interventions and functions are available. The wash programmes can be started only with the wash card reader Position 2: Programme start via control section and card reader possible This position allows programme start via the wash card reader and the control section. In addition all manual functions are available on the control section. Vedenkierrätysjärjestelmä Changeover osmosis engineering room Lisäohjauslaitteet Signaali Special control box which supplies potential free signals for connecting up to three pumps in-stalled already on-site. On-site pumps can be: - under chassis wash - fresh water pressure increase unit - reclaimed water unit Kaapeli 20 m Kaapeli 50 m Communication line between feed distributor which is installed at the energy chain and other components like frost protection and door control that are mounted in the technical room. Saatavilla olevat varusteet.
