WP3 Decision Support Technologies

Transkriptio

1 WP3 Decision Support Technologies 1 WP3 Decision Support Technologies WP Leader: Jarmo Laitinen Proposed budget: , VTT , TUT WP3 focuses in utilizing decision support technologies in RECC processes, and validating their benefits. One of the main technologies will be iroom; a multi-screen presentation technology enabling synchronization of presentation of data from multiple software applications, and thus providing multiple simultaneous views to the complex project data and helping project participants to understand and create a shared view of the problems and solutions.

2 WP3 Decision Support Technologies 2

3 WP3.1 Design of technical solutions for decision support 3 WP3.1Design of technical solutions for decision support In charge: Jarmo Laitinen, TUT Method:Analysis and synthesis of WP2.1, WP 2.2 and WP4.2 results and data content from decision support viewpoint, including the iroom technologies. Deliverables: Specification for implementation to visualize the selected data sets for efficient decision support. At least one international conference or journal paper of the methods and findings.

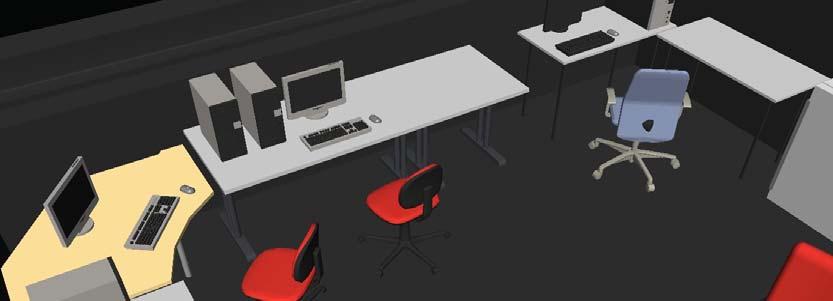

4 WP3.1 Design of technical solutions for decision support 4 iroom BIM -research -support -solutions

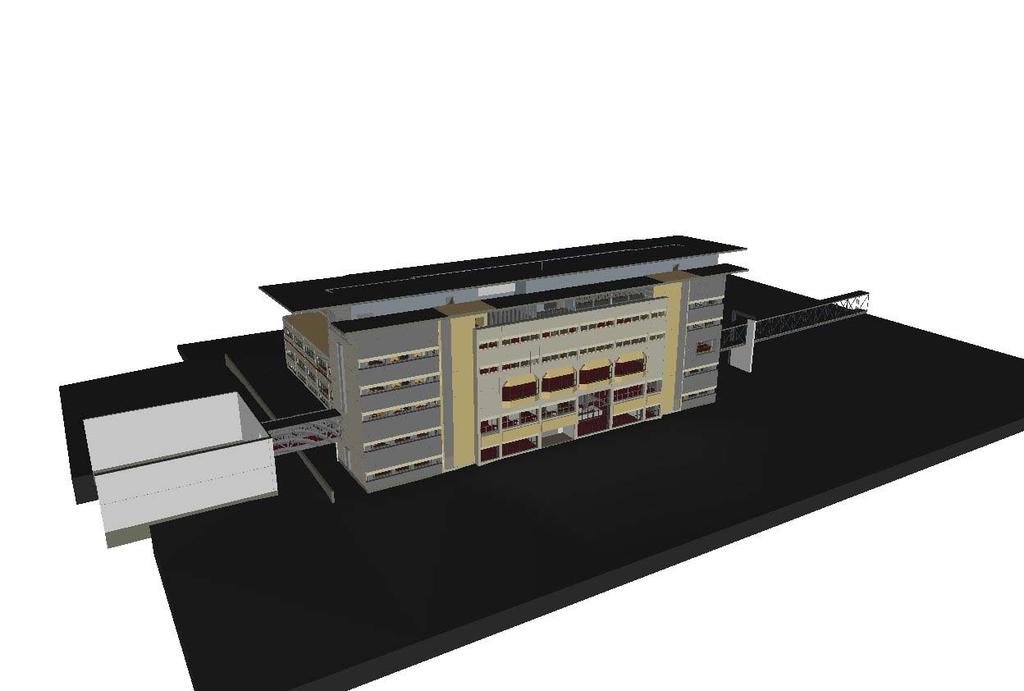

5 Pilot project: TTY-Main Building ARCHITECTURAL BIM 5 BIM modules supplied by designers ARK: Arkkitehtitoimisto Lasse Kosunen Oy -ArchiCad 225TTYPr.PLA (58, 805 MB)

6 Pilot project: TTY-Main Building STRUCTURAL BIM 6 RAK: Insinööritoimisto A-Insinöörit Oy -Tekla Structures: TTY_db (0,8 MB) -3D.dwg model.dwg (3,336 MB) -Public web viewer application file (1,1 MB)

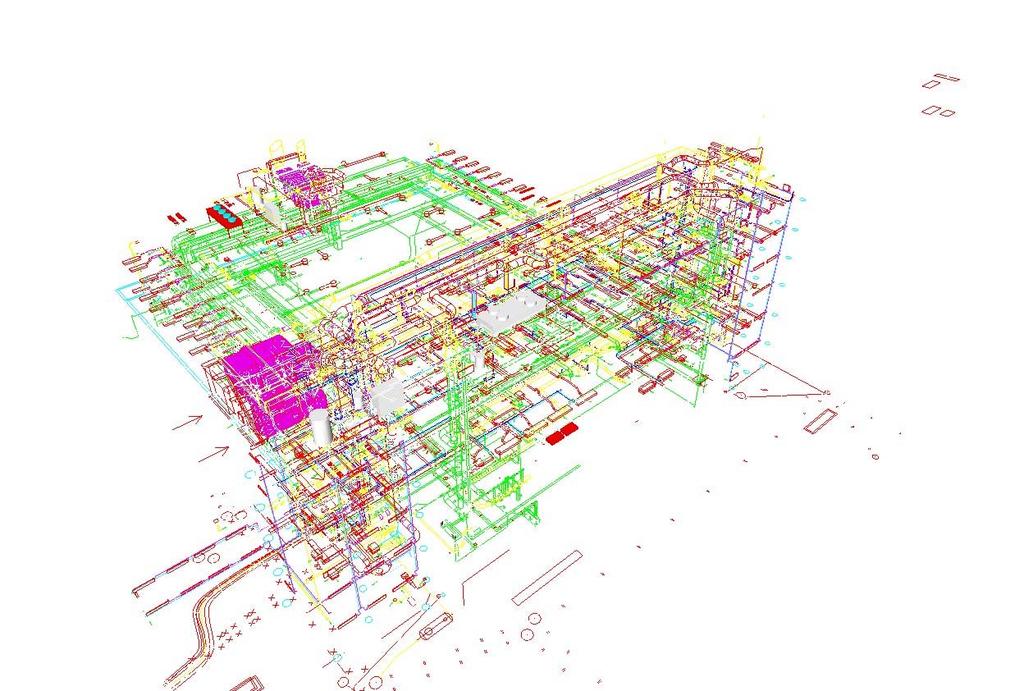

7 Pilot project: TTY-Main Building HVAC BIM 7 LVI: Insinööritoimisto Erkki Leskinen Oy MagiCad / AutoCAD -3D_kellari.dwg (3,089 MB) -3D_1.krs.dwg (3,964 MB) -3D_2.krs.dwg (3,978 MB) -3D_3.krs.dwg (2,260 MB) -3D_4.krs.dwg (2,131 MB) -3D_5.krs.dwg (1,837 MB) -3D_6.krs.dwg (2,013 MB) -3D_vesikatto.dwg (0,117 MB)

8 Pilot project: TTY-Main Building ELECTRICAL BIM 8 SÄH Insinööritoimisto Granlund Tampere Oy MagiCad / AutoCAD: -S-H8000.dwg (0,647 MB) -S-H8010.dwg (0,703 MB) -S-H8020.dwg (1,137 MB) -S-H8030.dwg (0,733 MB) -S-H8040.dwg (0,561MB) -S-H8050.dwg (0,611MB) -S-H8060.dwg (0,905 MB) -S-H8070.dwg (0,244 MB)

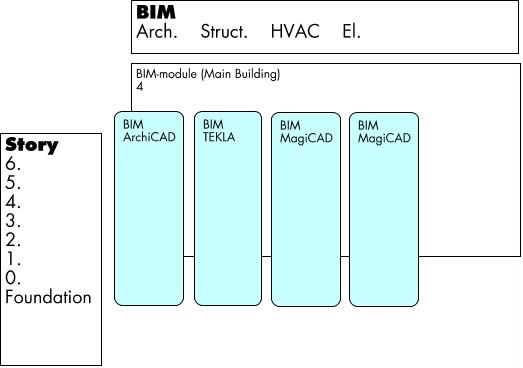

9 Pilot project: TTY-Main Building BIM structure 9 SEPARATED BIM-files were connected in NavisWorks application

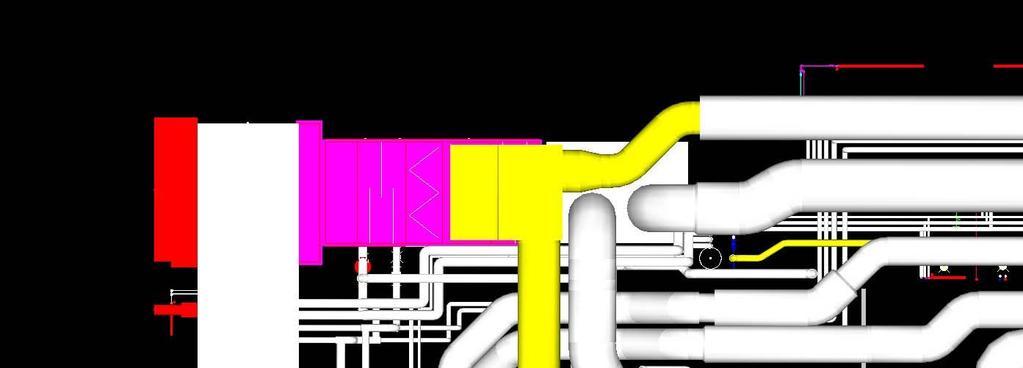

10 10 Predefined NavisWorks views 3D-Visual presentation for supporting decision process

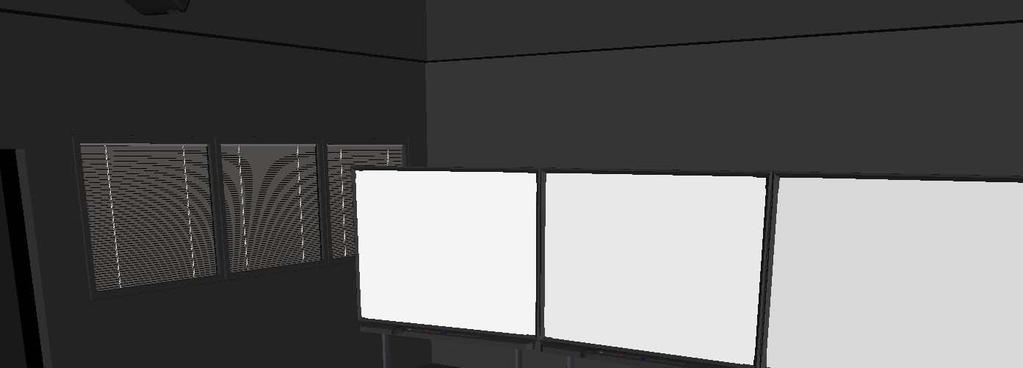

11 WP3.1 Design of technical solutions for decision support 11 Presentation and analysis in iroom

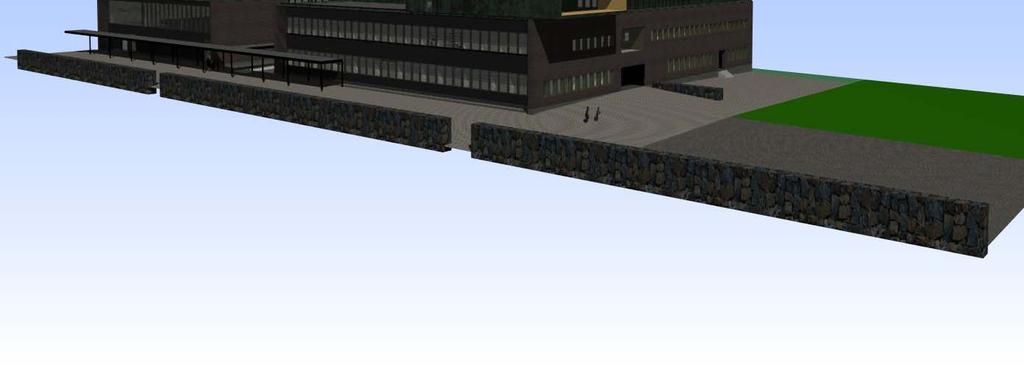

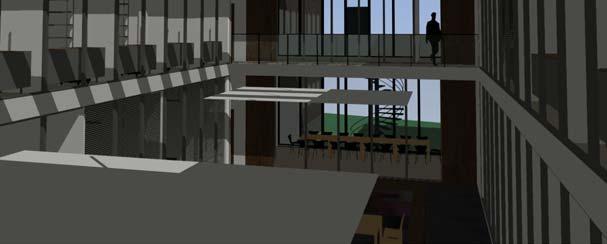

12 12 AURORA 2, Joensuu

13 WP3.2 Company-specific adaptations of design support technologies 13 WP3.2 Company-specific adaptations of decision support technologies In charge: Jarmo Laitinen, TUT and Jukka Rönkkö, VTT Method:Development of decision support software prototypes to support the visualization of selected company-specific data sets and use-cases. Deliverables:Prototype applications to demonstrate, test, and validate the company-specific data sets and use-cases.

14 Collaboration with participating companies!!! 14

15 WP3.3 Testing of the companyspecific integrated solutions 15 WP3.3 Testing of the company-specific integrated solutions In charge: Jarmo Laitinen Method: Validation of the business cases using the prototypes developed in WP3.2. Deliverables: Documented benefits of the developed methods in the selected company-specific business cases. At least one international conference or journal paper of the methods and findings..

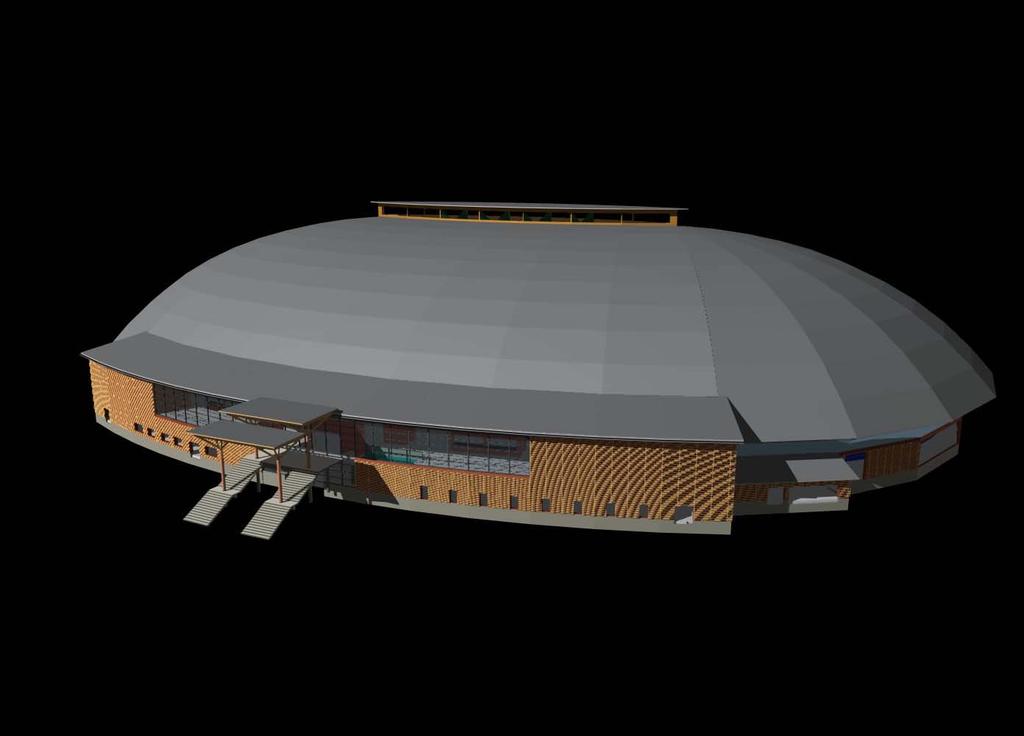

16 16 Sport-hall, Joensuu

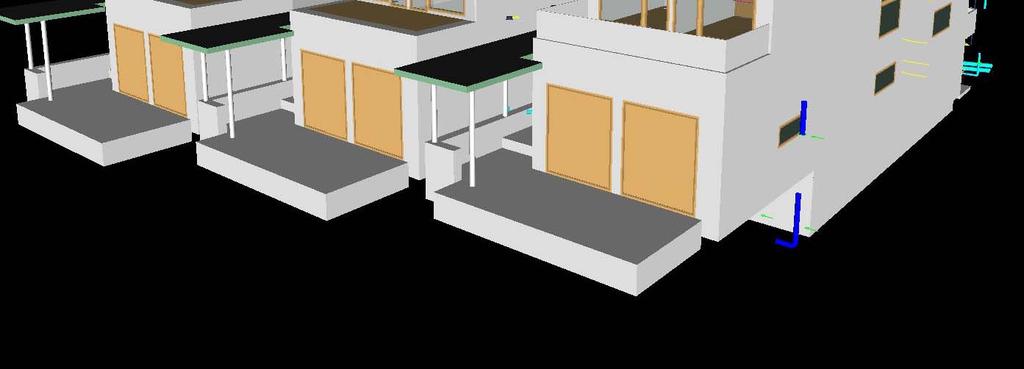

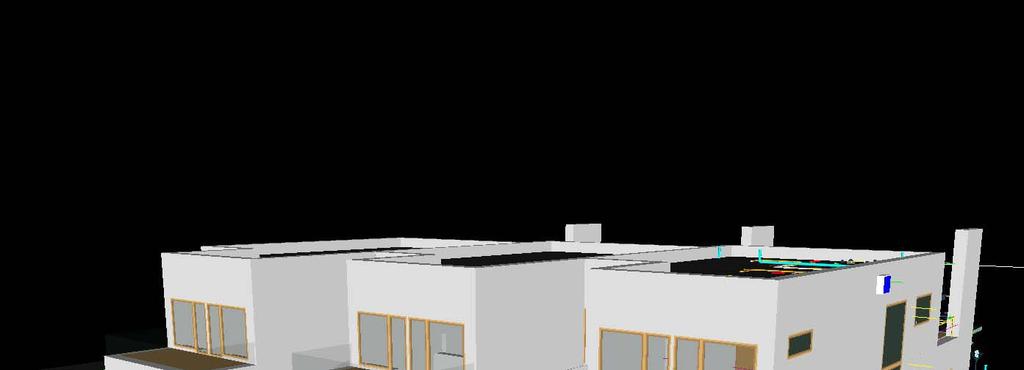

17 17 Instakon pilot projects

18 18 Yritysdata iroomympäristössä Seuraavaassa luettelossa on eri suunnittelijoiden tuottamien mallien mahdollinen hyödyntäminen. Laajin yhteiskäyttö edellellyttää ohjelmistojen välistä tehokasta tiedonsiirtoa, esimerkiksi IFC. WP2 tuottaa muutamia käyttötapauksia. Geometriaa voidaan hyödyntää myös ilman IFC:tä, esimerkiksi visuaalisissa tarkastateluissa, mallien yhdistämisessä sekä törmäystarkasteluissa.
