1 24789G-FI (rev.4) Safety, Operation and Maintenance Manual Turvallisuus-, käyttö- ja huolto-opas Jacobsen G-Plex III Series: FH - Engine type: Kubota D722 Product code: USAD002 Series: FJ - Engine type: Briggs & Stratton Product code: USAG002 Sarja: FH - Moottori: Kubota D722 Tuotenumero: USAD002 Sarja: FJ - Moottori: Briggs & Stratton Tuotenumero: USAG002 WARNING: If incorrectly used this machine can cause severe injury. Those who use and maintain this machine should be trained in its proper use, warned of its dangers and should read the entire manual before attempting to set up, operate, adjust or service the machine. FI Finland VAROITUS: Laitteen virheellinen käyttö voi aiheuttaa vakavia vahinkoja. Laitteen käyttäjille ja huoltajille on opetettava laitteen asianmukainen käyttö, heitä on varoitettava mahdollisista vaaroista ja heidän on luettava koko käyttöopas ennen laitteen valmistelua, käyttöä, säätämistä ja huoltamista. RJL / 100 January 2010

2 2010, Ransomes Jacobsen Limited. All Rights Reserved 2010, Ransomes Jacobsen Limited. Kaikki oikeudet pidätetään

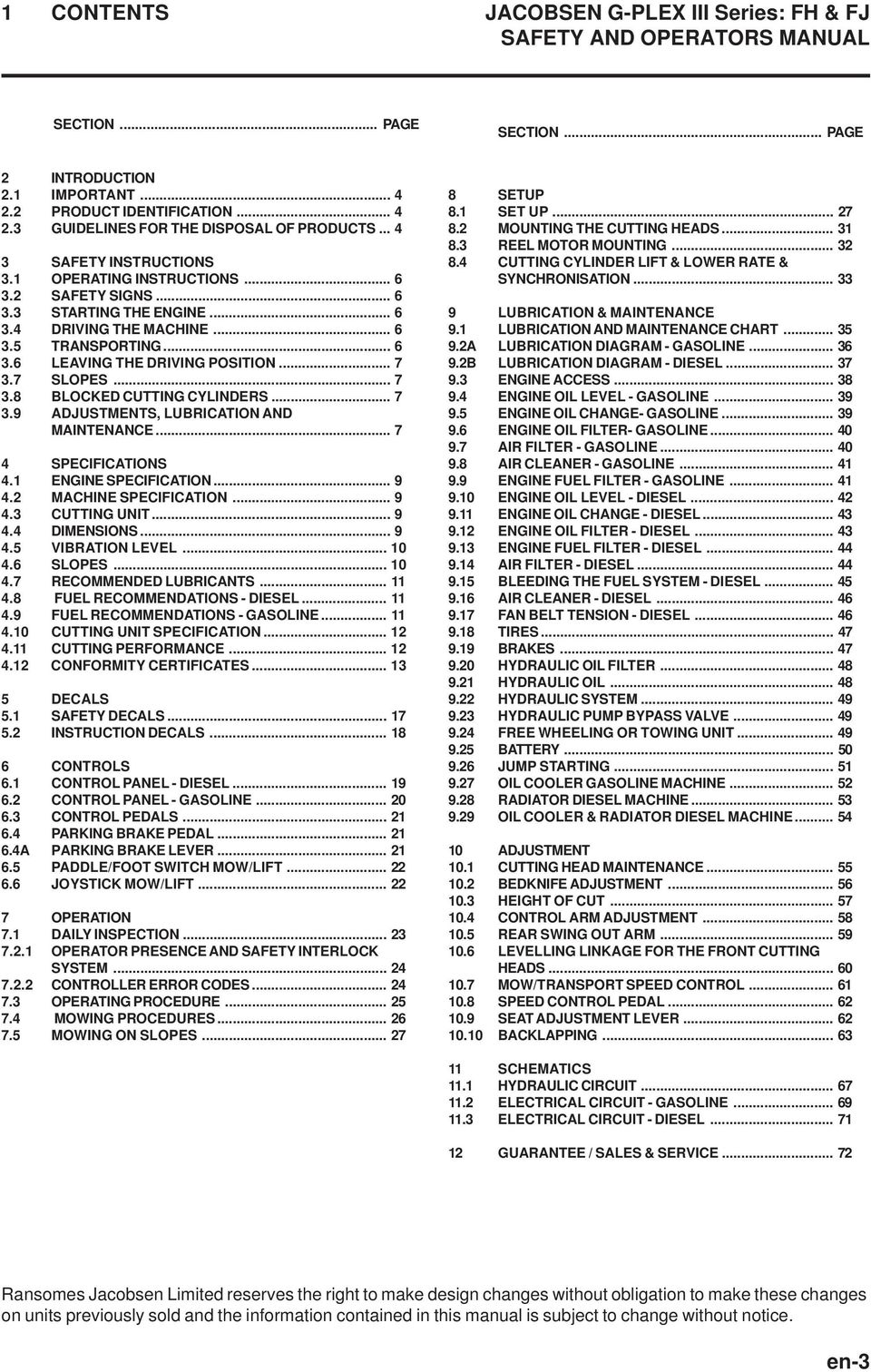

3 1 CONTENTS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL SECTION... PAGE SECTION... PAGE 2 INTRODUCTION 2.1 IMPORTANT PRODUCT IDENTIFICATION GUIDELINES FOR THE DISPOSAL OF PRODUCTS SAFETY INSTRUCTIONS 3.1 OPERATING INSTRUCTIONS SAFETY SIGNS STARTING THE ENGINE DRIVING THE MACHINE TRANSPORTING LEAVING THE DRIVING POSITION SLOPES BLOCKED CUTTING CYLINDERS ADJUSTMENTS, LUBRICATION AND MAINTENANCE SPECIFICATIONS 4.1 ENGINE SPECIFICATION MACHINE SPECIFICATION CUTTING UNIT DIMENSIONS VIBRATION LEVEL SLOPES RECOMMENDED LUBRICANTS FUEL RECOMMENDATIONS - DIESEL FUEL RECOMMENDATIONS - GASOLINE CUTTING UNIT SPECIFICATION CUTTING PERFORMANCE CONFORMITY CERTIFICATES DECALS 5.1 SAFETY DECALS INSTRUCTION DECALS CONTROLS 6.1 CONTROL PANEL - DIESEL CONTROL PANEL - GASOLINE CONTROL PEDALS PARKING BRAKE PEDAL A PARKING BRAKE LEVER PADDLE/FOOT SWITCH MOW/LIFT JOYSTICK MOW/LIFT OPERATION 7.1 DAILY INSPECTION OPERATOR PRESENCE AND SAFETY INTERLOCK SYSTEM CONTROLLER ERROR CODES OPERATING PROCEDURE MOWING PROCEDURES MOWING ON SLOPES SETUP 8.1 SET UP MOUNTING THE CUTTING HEADS REEL MOTOR MOUNTING CUTTING CYLINDER LIFT & LOWER RATE & SYNCHRONISATION LUBRICATION & MAINTENANCE 9.1 LUBRICATION AND MAINTENANCE CHART A LUBRICATION DIAGRAM - GASOLINE B LUBRICATION DIAGRAM - DIESEL ENGINE ACCESS ENGINE OIL LEVEL - GASOLINE ENGINE OIL CHANGE- GASOLINE ENGINE OIL FILTER- GASOLINE AIR FILTER - GASOLINE AIR CLEANER - GASOLINE ENGINE FUEL FILTER - GASOLINE ENGINE OIL LEVEL - DIESEL ENGINE OIL CHANGE - DIESEL ENGINE OIL FILTER - DIESEL ENGINE FUEL FILTER - DIESEL AIR FILTER - DIESEL BLEEDING THE FUEL SYSTEM - DIESEL AIR CLEANER - DIESEL FAN BELT TENSION - DIESEL TIRES BRAKES HYDRAULIC OIL FILTER HYDRAULIC OIL HYDRAULIC SYSTEM HYDRAULIC PUMP BYPASS VALVE FREE WHEELING OR TOWING UNIT BATTERY JUMP STARTING OIL COOLER GASOLINE MACHINE RADIATOR DIESEL MACHINE OIL COOLER & RADIATOR DIESEL MACHINE ADJUSTMENT 10.1 CUTTING HEAD MAINTENANCE BEDKNIFE ADJUSTMENT HEIGHT OF CUT CONTROL ARM ADJUSTMENT REAR SWING OUT ARM LEVELLING LINKAGE FOR THE FRONT CUTTING HEADS MOW/TRANSPORT SPEED CONTROL SPEED CONTROL PEDAL SEAT ADJUSTMENT LEVER BACKLAPPING SCHEMATICS 11.1 HYDRAULIC CIRCUIT ELECTRICAL CIRCUIT - GASOLINE ELECTRICAL CIRCUIT - DIESEL GUARANTEE / SALES & SERVICE Ransomes Jacobsen Limited reserves the right to make design changes without obligation to make these changes on units previously sold and the information contained in this manual is subject to change without notice. en-3

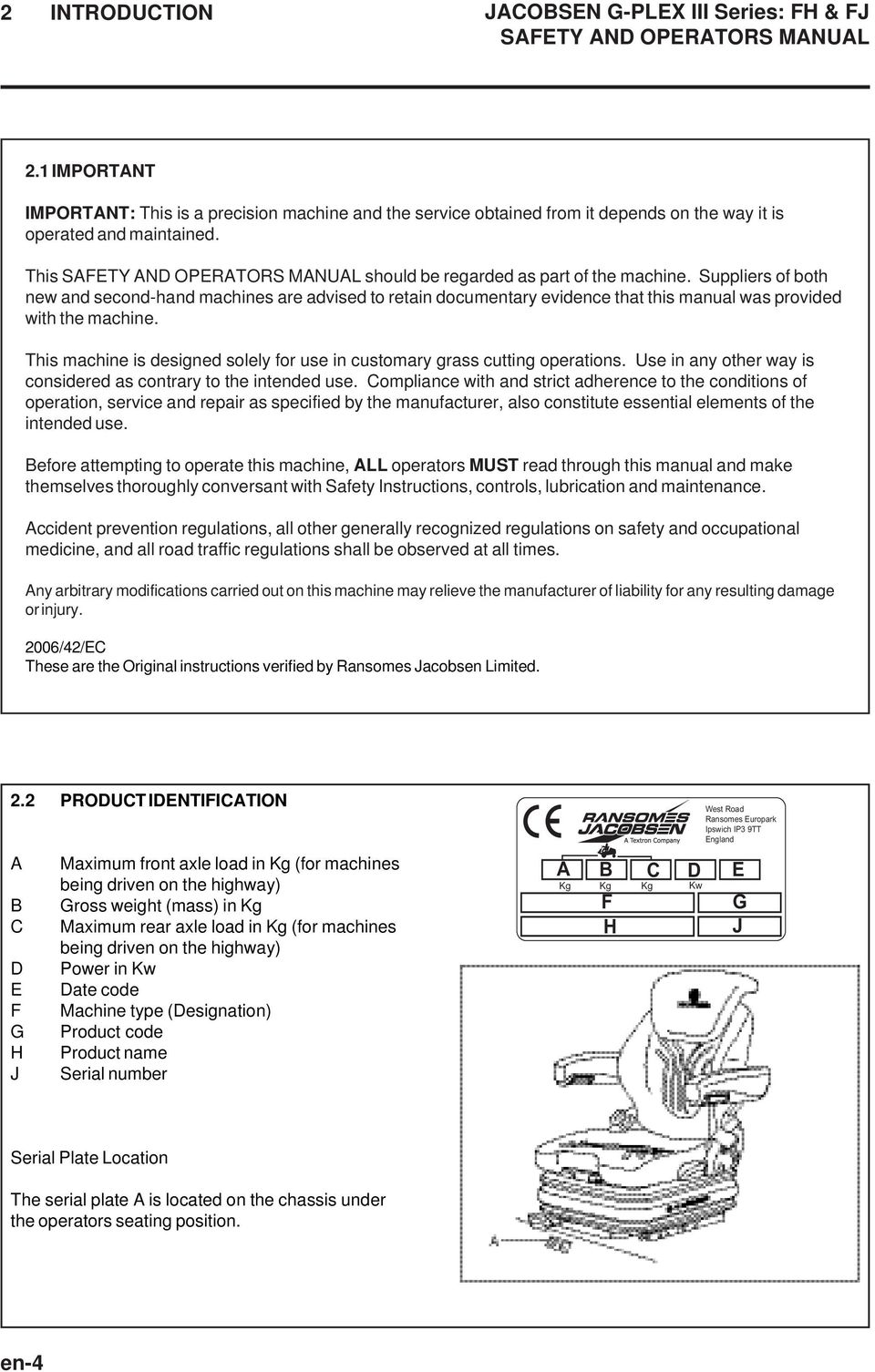

4 2 INTRODUCTION JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 2.1 IMPORTANT IMPORTANT: This is a precision machine and the service obtained from it depends on the way it is operated and maintained. This SAFETY AND OPERATORS MANUAL should be regarded as part of the machine. Suppliers of both new and second-hand machines are advised to retain documentary evidence that this manual was provided with the machine. This machine is designed solely for use in customary grass cutting operations. Use in any other way is considered as contrary to the intended use. Compliance with and strict adherence to the conditions of operation, service and repair as specified by the manufacturer, also constitute essential elements of the intended use. Before attempting to operate this machine, ALL operators MUST read through this manual and make themselves thoroughly conversant with Safety Instructions, controls, lubrication and maintenance. Accident prevention regulations, all other generally recognized regulations on safety and occupational medicine, and all road traffic regulations shall be observed at all times. Any arbitrary modifications carried out on this machine may relieve the manufacturer of liability for any resulting damage or injury. 2006/42/EC These are the Original instructions verified by Ransomes Jacobsen Limited. 2.2 PRODUCT IDENTIFICATION A Maximum front axle load in Kg (for machines being driven on the highway) B Gross weight (mass) in Kg C Maximum rear axle load in Kg (for machines being driven on the highway) D Power in Kw E Date code F Machine type (Designation) G Product code H Product name J Serial number West Road Ransomes Europark Ipswich IP3 9TT England A B C D E Kg Kg Kg Kw F G H J Serial Plate Location The serial plate A is located on the chassis under the operators seating position. en-4

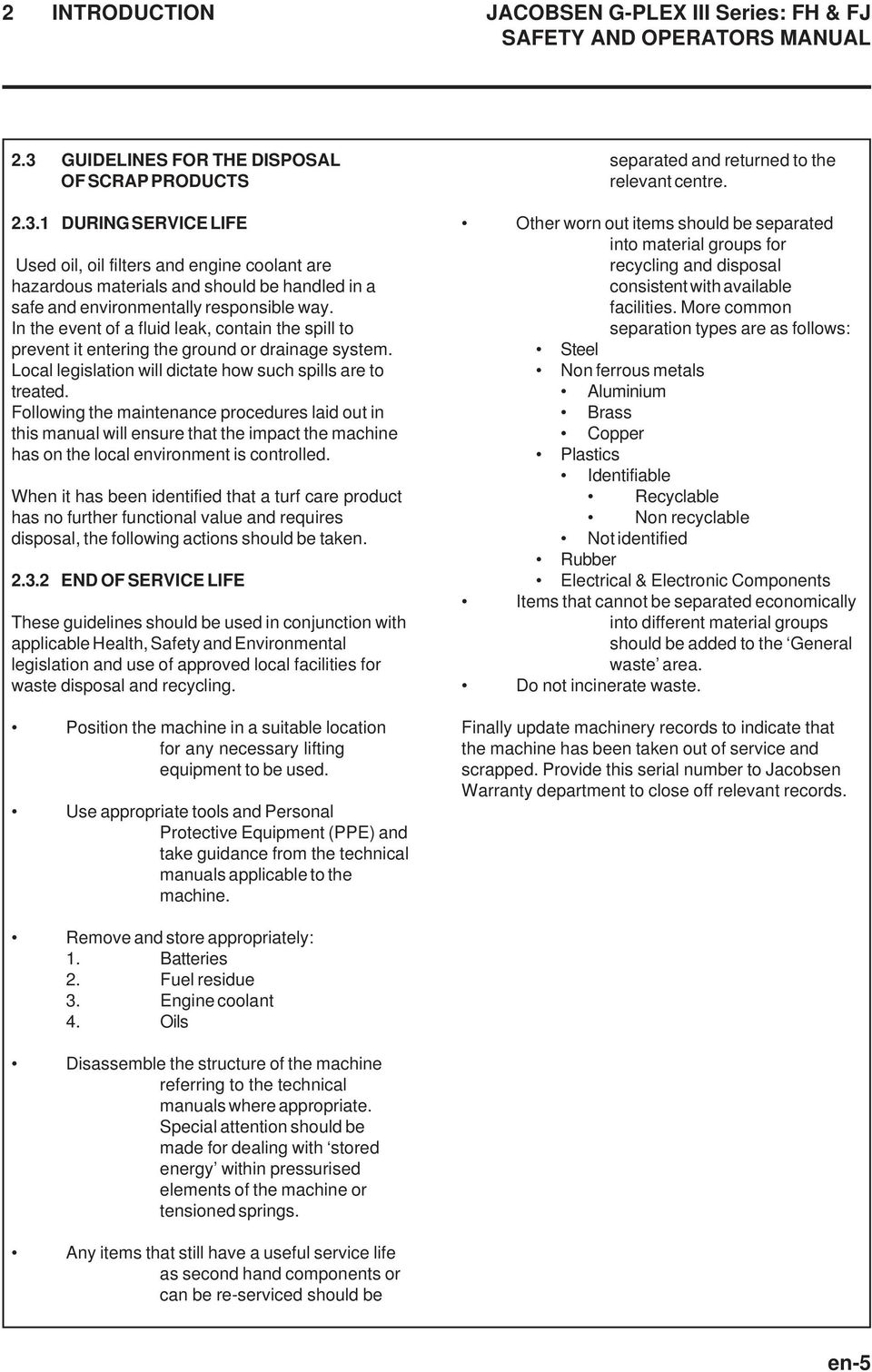

5 2 INTRODUCTION JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 2.3 GUIDELINES FOR THE DISPOSAL OF SCRAP PRODUCTS DURING SERVICE LIFE Used oil, oil filters and engine coolant are hazardous materials and should be handled in a safe and environmentally responsible way. In the event of a fluid leak, contain the spill to prevent it entering the ground or drainage system. Local legislation will dictate how such spills are to treated. Following the maintenance procedures laid out in this manual will ensure that the impact the machine has on the local environment is controlled. When it has been identified that a turf care product has no further functional value and requires disposal, the following actions should be taken END OF SERVICE LIFE These guidelines should be used in conjunction with applicable Health, Safety and Environmental legislation and use of approved local facilities for waste disposal and recycling. Position the machine in a suitable location for any necessary lifting equipment to be used. Use appropriate tools and Personal Protective Equipment (PPE) and take guidance from the technical manuals applicable to the machine. separated and returned to the relevant centre. Other worn out items should be separated into material groups for recycling and disposal consistent with available facilities. More common separation types are as follows: Steel Non ferrous metals Aluminium Brass Copper Plastics Identifiable Recyclable Non recyclable Not identified Rubber Electrical & Electronic Components Items that cannot be separated economically into different material groups should be added to the General waste area. Do not incinerate waste. Finally update machinery records to indicate that the machine has been taken out of service and scrapped. Provide this serial number to Jacobsen Warranty department to close off relevant records. Remove and store appropriately: 1. Batteries 2. Fuel residue 3. Engine coolant 4. Oils Disassemble the structure of the machine referring to the technical manuals where appropriate. Special attention should be made for dealing with stored energy within pressurised elements of the machine or tensioned springs. Any items that still have a useful service life as second hand components or can be re-serviced should be en-5

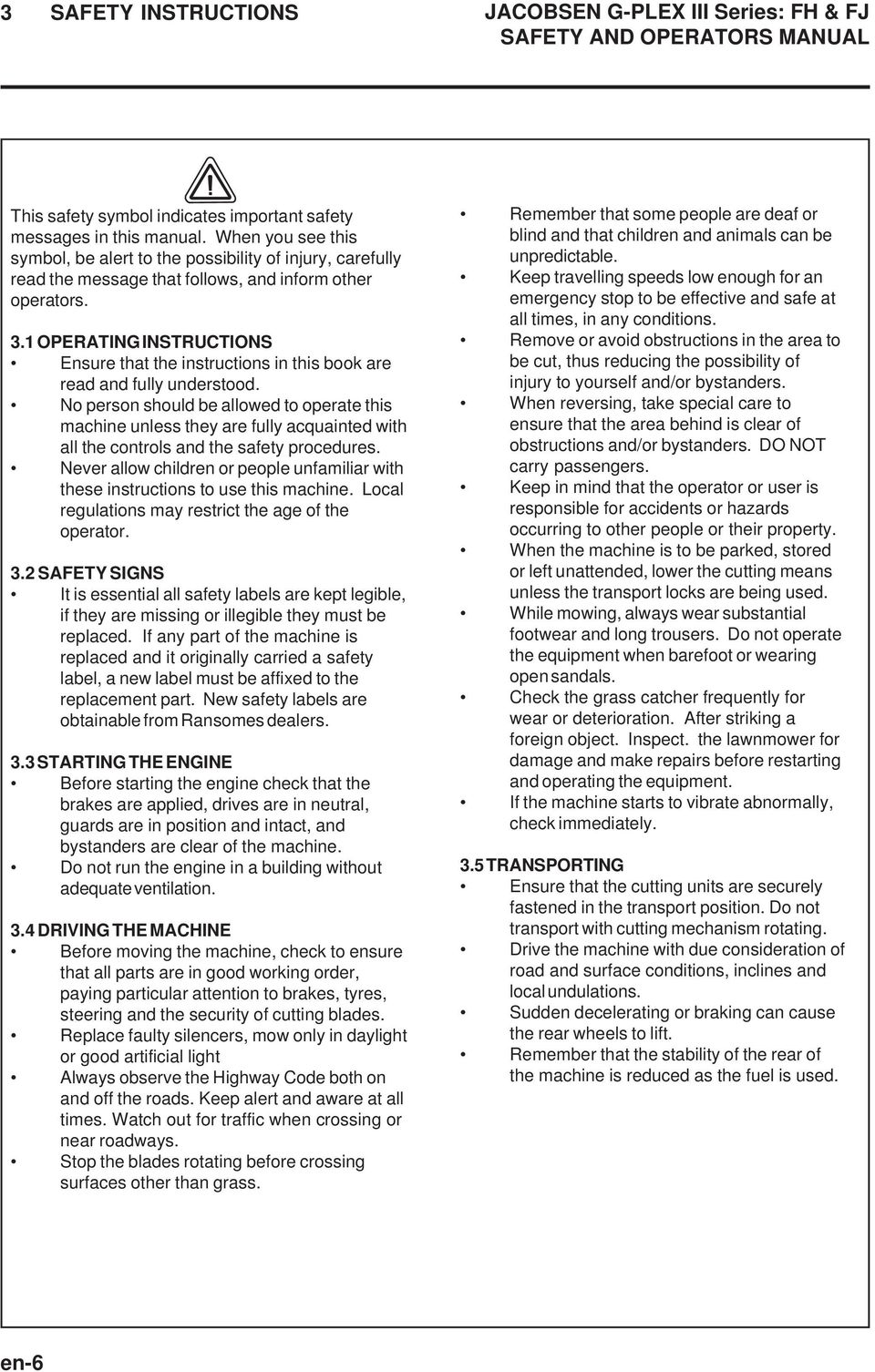

6 3 SAFETY INSTRUCTIONS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL This safety symbol indicates important safety messages in this manual. When you see this symbol, be alert to the possibility of injury, carefully read the message that follows, and inform other operators. 3.1 OPERATING INSTRUCTIONS Ensure that the instructions in this book are read and fully understood. No person should be allowed to operate this machine unless they are fully acquainted with all the controls and the safety procedures. Never allow children or people unfamiliar with these instructions to use this machine. Local regulations may restrict the age of the operator. 3.2 SAFETY SIGNS It is essential all safety labels are kept legible, if they are missing or illegible they must be replaced. If any part of the machine is replaced and it originally carried a safety label, a new label must be affixed to the replacement part. New safety labels are obtainable from Ransomes dealers. 3.3 STARTING THE ENGINE Before starting the engine check that the brakes are applied, drives are in neutral, guards are in position and intact, and bystanders are clear of the machine. Do not run the engine in a building without adequate ventilation. 3.4 DRIVING THE MACHINE Before moving the machine, check to ensure that all parts are in good working order, paying particular attention to brakes, tyres, steering and the security of cutting blades. Replace faulty silencers, mow only in daylight or good artificial light Always observe the Highway Code both on and off the roads. Keep alert and aware at all times. Watch out for traffic when crossing or near roadways. Stop the blades rotating before crossing surfaces other than grass. Remember that some people are deaf or blind and that children and animals can be unpredictable. Keep travelling speeds low enough for an emergency stop to be effective and safe at all times, in any conditions. Remove or avoid obstructions in the area to be cut, thus reducing the possibility of injury to yourself and/or bystanders. When reversing, take special care to ensure that the area behind is clear of obstructions and/or bystanders. DO NOT carry passengers. Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. When the machine is to be parked, stored or left unattended, lower the cutting means unless the transport locks are being used. While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals. Check the grass catcher frequently for wear or deterioration. After striking a foreign object. Inspect. the lawnmower for damage and make repairs before restarting and operating the equipment. If the machine starts to vibrate abnormally, check immediately. 3.5 TRANSPORTING Ensure that the cutting units are securely fastened in the transport position. Do not transport with cutting mechanism rotating. Drive the machine with due consideration of road and surface conditions, inclines and local undulations. Sudden decelerating or braking can cause the rear wheels to lift. Remember that the stability of the rear of the machine is reduced as the fuel is used. en-6

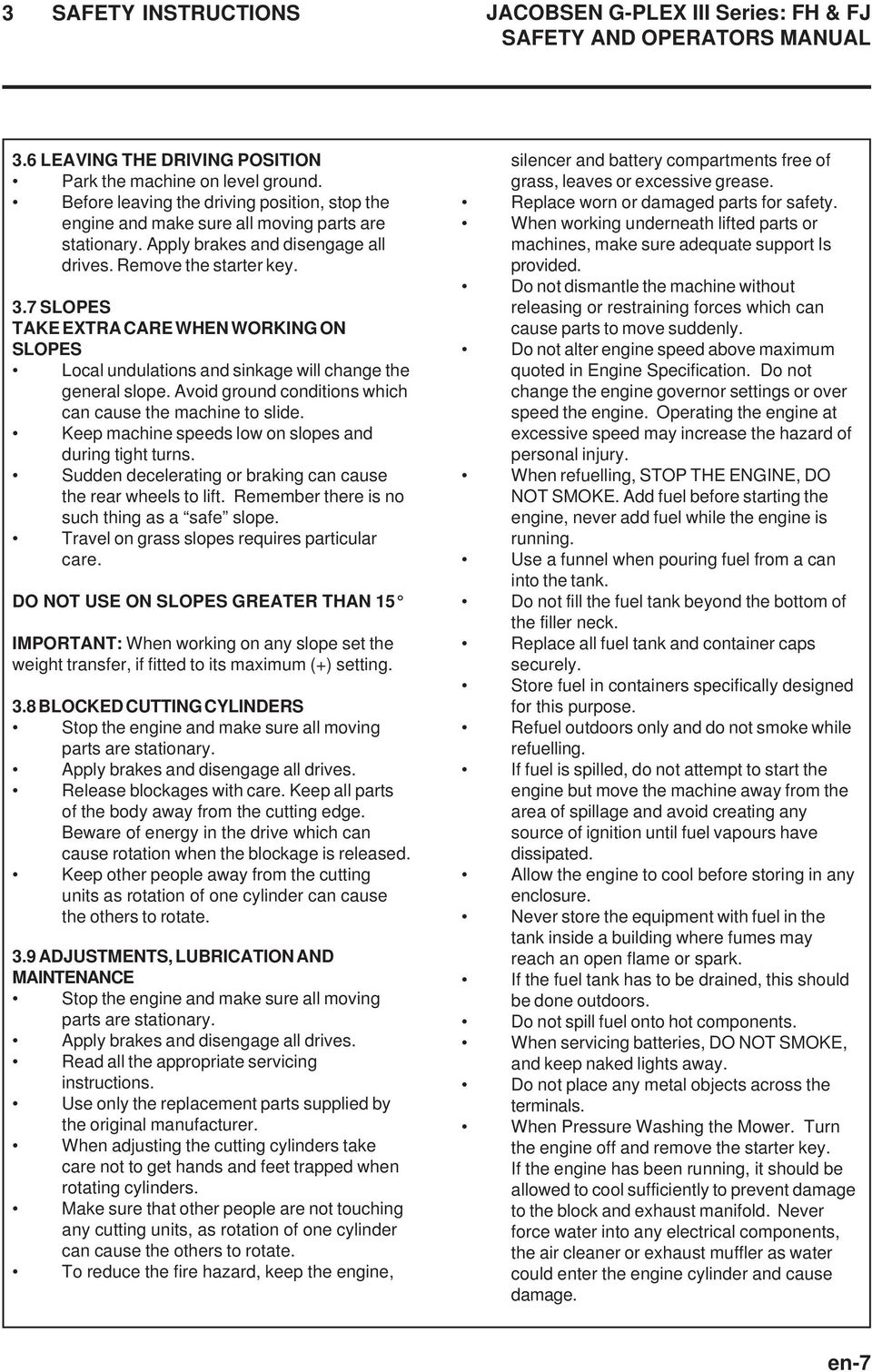

7 3 SAFETY INSTRUCTIONS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 3.6 LEAVING THE DRIVING POSITION Park the machine on level ground. Before leaving the driving position, stop the engine and make sure all moving parts are stationary. Apply brakes and disengage all drives. Remove the starter key. 3.7 SLOPES TAKE EXTRA CARE WHEN WORKING ON SLOPES Local undulations and sinkage will change the general slope. Avoid ground conditions which can cause the machine to slide. Keep machine speeds low on slopes and during tight turns. Sudden decelerating or braking can cause the rear wheels to lift. Remember there is no such thing as a safe slope. Travel on grass slopes requires particular care. DO NOT USE ON SLOPES GREATER THAN 15 IMPORTANT: When working on any slope set the weight transfer, if fitted to its maximum (+) setting. 3.8 BLOCKED CUTTING CYLINDERS Stop the engine and make sure all moving parts are stationary. Apply brakes and disengage all drives. Release blockages with care. Keep all parts of the body away from the cutting edge. Beware of energy in the drive which can cause rotation when the blockage is released. Keep other people away from the cutting units as rotation of one cylinder can cause the others to rotate. 3.9 ADJUSTMENTS, LUBRICATION AND MAINTENANCE Stop the engine and make sure all moving parts are stationary. Apply brakes and disengage all drives. Read all the appropriate servicing instructions. Use only the replacement parts supplied by the original manufacturer. When adjusting the cutting cylinders take care not to get hands and feet trapped when rotating cylinders. Make sure that other people are not touching any cutting units, as rotation of one cylinder can cause the others to rotate. To reduce the fire hazard, keep the engine, silencer and battery compartments free of grass, leaves or excessive grease. Replace worn or damaged parts for safety. When working underneath lifted parts or machines, make sure adequate support Is provided. Do not dismantle the machine without releasing or restraining forces which can cause parts to move suddenly. Do not alter engine speed above maximum quoted in Engine Specification. Do not change the engine governor settings or over speed the engine. Operating the engine at excessive speed may increase the hazard of personal injury. When refuelling, STOP THE ENGINE, DO NOT SMOKE. Add fuel before starting the engine, never add fuel while the engine is running. Use a funnel when pouring fuel from a can into the tank. Do not fill the fuel tank beyond the bottom of the filler neck. Replace all fuel tank and container caps securely. Store fuel in containers specifically designed for this purpose. Refuel outdoors only and do not smoke while refuelling. If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until fuel vapours have dissipated. Allow the engine to cool before storing in any enclosure. Never store the equipment with fuel in the tank inside a building where fumes may reach an open flame or spark. If the fuel tank has to be drained, this should be done outdoors. Do not spill fuel onto hot components. When servicing batteries, DO NOT SMOKE, and keep naked lights away. Do not place any metal objects across the terminals. When Pressure Washing the Mower. Turn the engine off and remove the starter key. If the engine has been running, it should be allowed to cool sufficiently to prevent damage to the block and exhaust manifold. Never force water into any electrical components, the air cleaner or exhaust muffler as water could enter the engine cylinder and cause damage. en-7

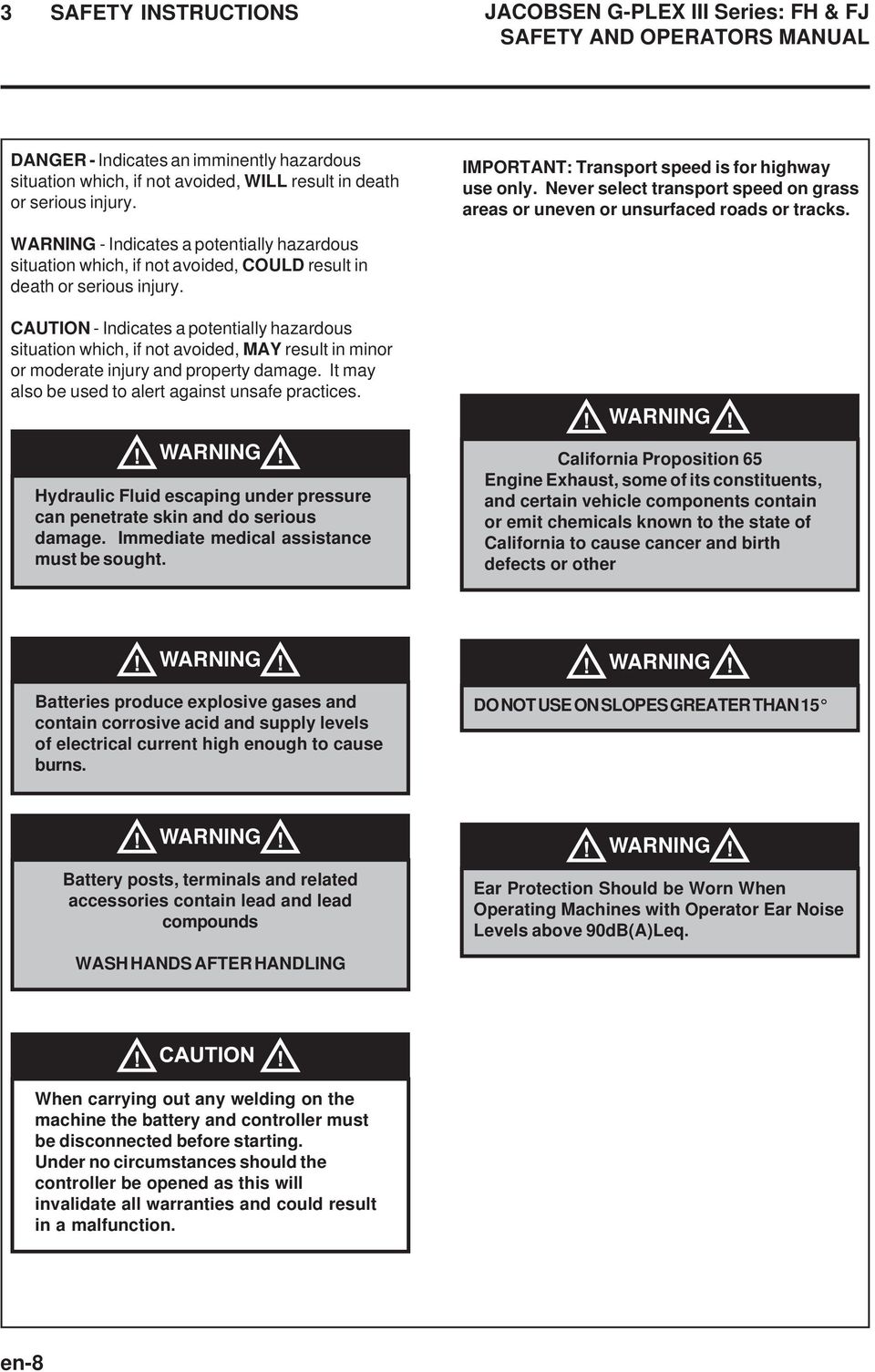

8 3 SAFETY INSTRUCTIONS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL DANGER - Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. IMPORTANT: Transport speed is for highway use only. Never select transport speed on grass areas or uneven or unsurfaced roads or tracks. WARNING - Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury. CAUTION - Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury and property damage. It may also be used to alert against unsafe practices. WARNING Hydraulic Fluid escaping under pressure can penetrate skin and do serious damage. Immediate medical assistance must be sought. WARNING California Proposition 65 Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of California to cause cancer and birth defects or other WARNING Batteries produce explosive gases and contain corrosive acid and supply levels of electrical current high enough to cause burns. WARNING DO NOT USE ON SLOPES GREATER THAN 15 WARNING Battery posts, terminals and related accessories contain lead and lead compounds WASH HANDS AFTER HANDLING WARNING Ear Protection Should be Worn When Operating Machines with Operator Ear Noise Levels above 90dB(A)Leq. When carrying out any welding on the machine the battery and controller must be disconnected before starting. Under no circumstances should the controller be opened as this will invalidate all warranties and could result in a malfunction. en-8

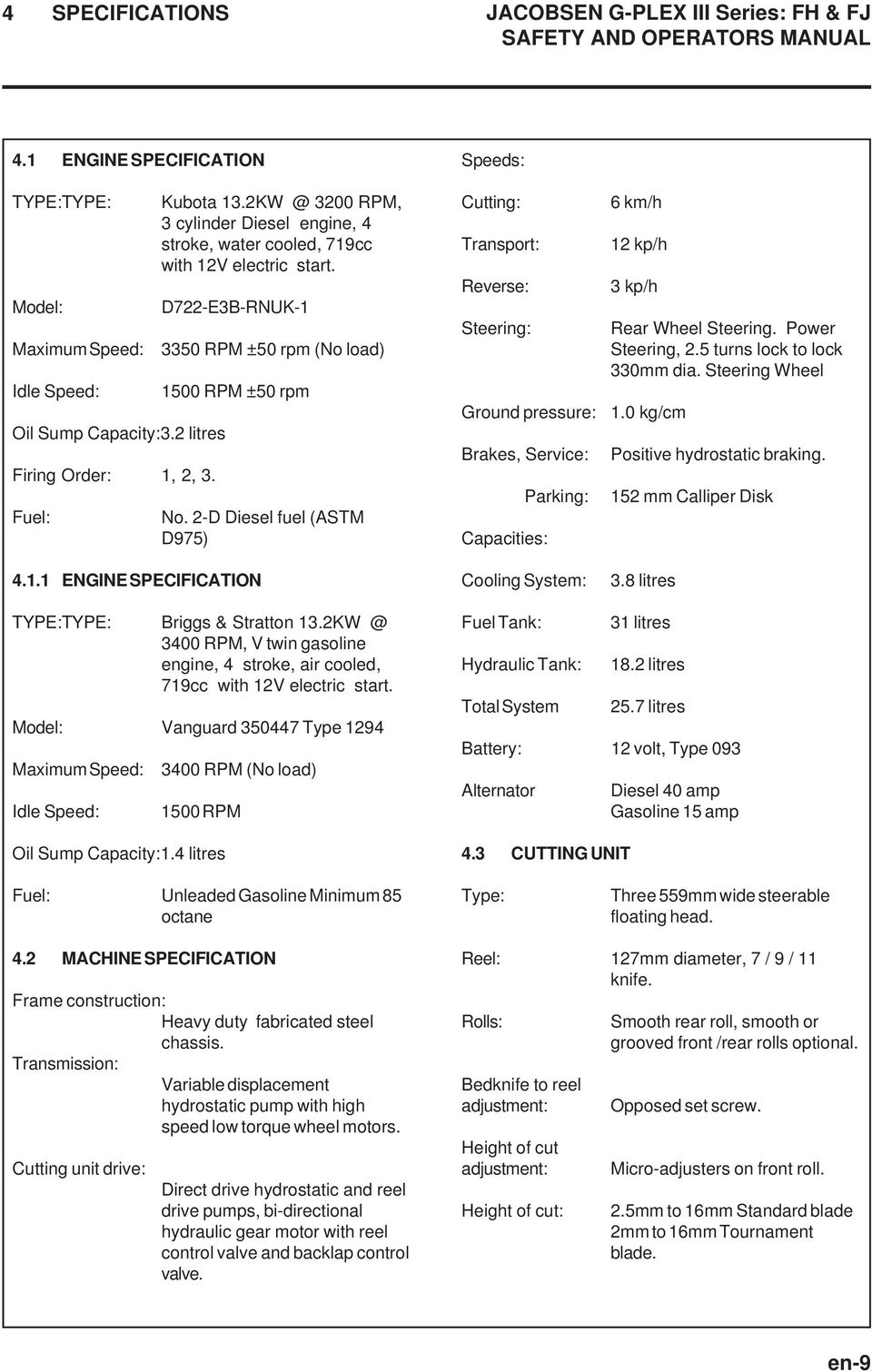

9 4 SPECIFICATIONS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 4.1 ENGINE SPECIFICATION Speeds: TYPE:TYPE: Model: Maximum Speed: Idle Speed: Oil Sump Capacity:3.2 litres Firing Order: 1, 2, 3. Fuel: Kubota 3200 RPM, 3 cylinder Diesel engine, 4 stroke, water cooled, 719cc with 12V electric start. D722-E3B-RNUK RPM ±50 rpm (No load) 1500 RPM ±50 rpm No. 2-D Diesel fuel (ASTM D975) ENGINE SPECIFICATION Cutting: Transport: Reverse: Steering: Ground pressure: Brakes, Service: Parking: Capacities: Cooling System: 6 km/h 12 kp/h 3 kp/h Rear Wheel Steering. Power Steering, 2.5 turns lock to lock 330mm dia. Steering Wheel 1.0 kg/cm Positive hydrostatic braking. 152 mm Calliper Disk 3.8 litres TYPE:TYPE: Briggs & Stratton 3400 RPM, V twin gasoline engine, 4 stroke, air cooled, 719cc with 12V electric start. Model: Vanguard Type 1294 Maximum Speed: Idle Speed: 3400 RPM (No load) 1500 RPM Oil Sump Capacity:1.4 litres Fuel Tank: Hydraulic Tank: Total System 31 litres 18.2 litres 25.7 litres Battery: 12 volt, Type 093 Alternator 4.3 CUTTING UNIT Diesel 40 amp Gasoline 15 amp Fuel: Unleaded Gasoline Minimum 85 octane Type: Three 559mm wide steerable floating head. 4.2 MACHINE SPECIFICATION Frame construction: Heavy duty fabricated steel chassis. Transmission: Variable displacement hydrostatic pump with high speed low torque wheel motors. Cutting unit drive: Direct drive hydrostatic and reel drive pumps, bi-directional hydraulic gear motor with reel control valve and backlap control valve. Reel: 127mm diameter, 7 / 9 / 11 knife. Rolls: Bedknife to reel adjustment: Height of cut adjustment: Height of cut: Smooth rear roll, smooth or grooved front /rear rolls optional. Opposed set screw. Micro-adjusters on front roll. 2.5mm to 16mm Standard blade 2mm to 16mm Tournament blade. en-9

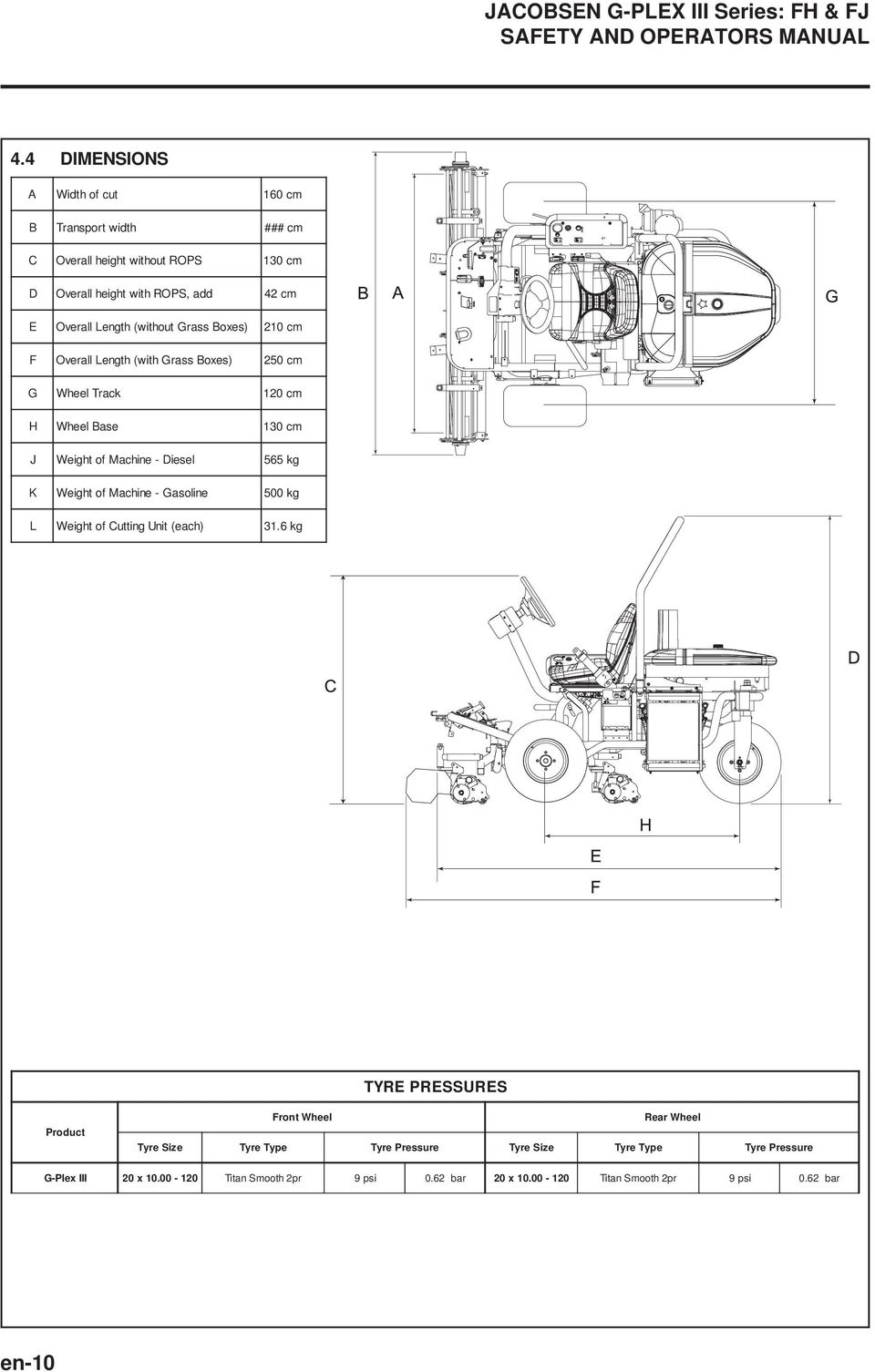

10 JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 4.4 DIMENSIONS A B C D Width of cut Transport width Overall height without ROPS Overall height with ROPS, add 160 cm ### cm 130 cm 42 cm E Overall Length (without Grass Boxes) F Overall Length (with Grass Boxes) 210 cm 250 cm G H J K Wheel Track Wheel Base Weight of Machine - Diesel Weight of Machine - Gasoline 120 cm 130 cm 565 kg 500 kg L Weight of Cutting Unit (each) 31.6 kg TYRE PRESSURES Product Tyre Size Tyre Type Front Wheel Tyre Pressure Tyre Size Tyre Type Rear Wheel Tyre Pressure G-Plex III 20 x Titan Smooth 2pr 9 psi 0.62 bar 20 x Titan Smooth 2pr 9 psi 0.62 bar en-10

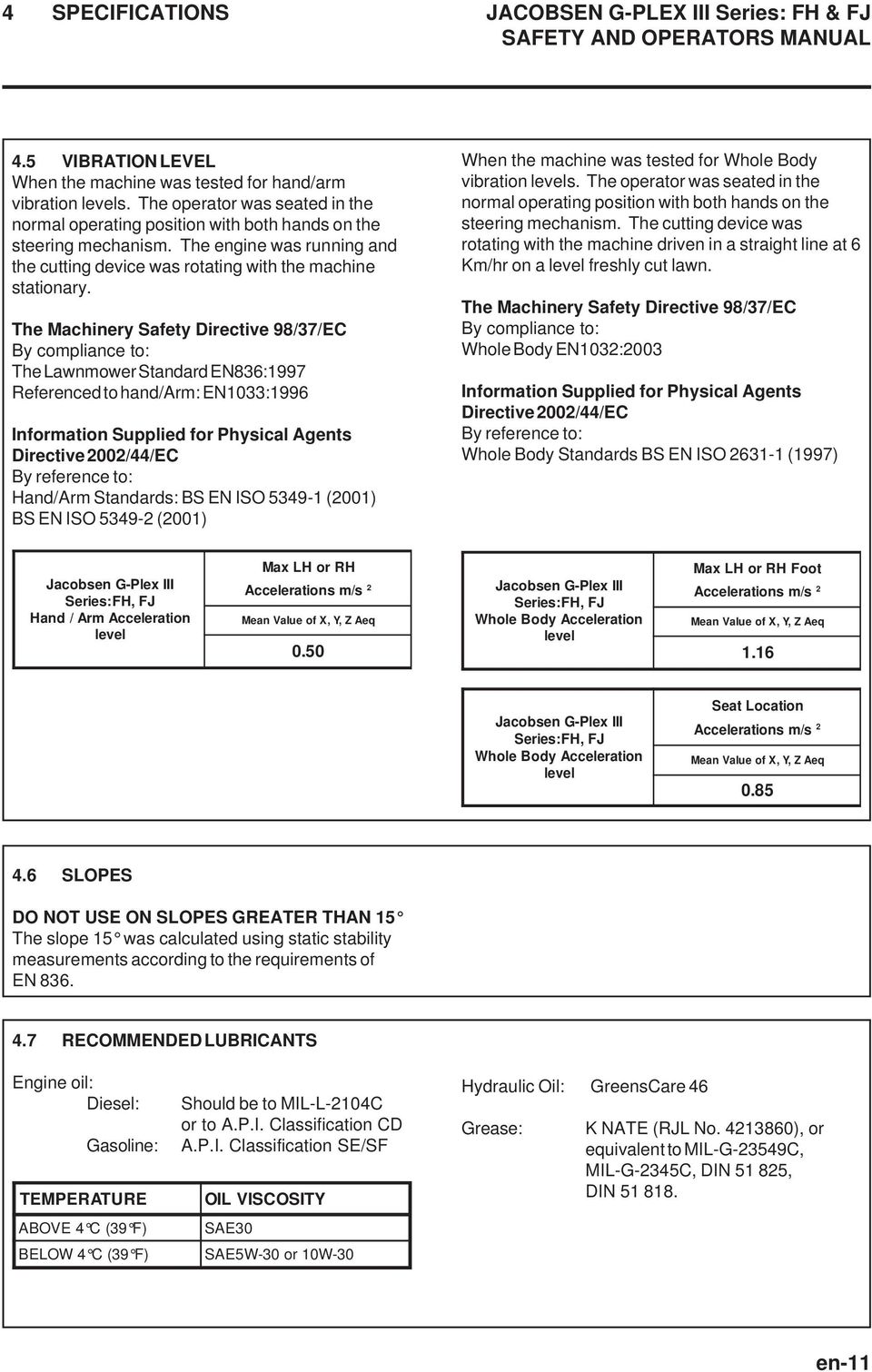

11 4 SPECIFICATIONS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 4.5 VIBRATION LEVEL When the machine was tested for hand/arm vibration levels. The operator was seated in the normal operating position with both hands on the steering mechanism. The engine was running and the cutting device was rotating with the machine stationary. The Machinery Safety Directive 98/37/EC By compliance to: The Lawnmower Standard EN836:1997 Referenced to hand/arm: EN1033:1996 Information Supplied for Physical Agents Directive 2002/44/EC By reference to: Hand/Arm Standards: BS EN ISO (2001) BS EN ISO (2001) When the machine was tested for Whole Body vibration levels. The operator was seated in the normal operating position with both hands on the steering mechanism. The cutting device was rotating with the machine driven in a straight line at 6 Km/hr on a level freshly cut lawn. The Machinery Safety Directive 98/37/EC By compliance to: Whole Body EN1032:2003 Information Supplied for Physical Agents Directive 2002/44/EC By reference to: Whole Body Standards BS EN ISO (1997) Jacobsen G-Plex III Series:FH, FJ Hand / Arm Acceleration level Max LH or RH 2 Accelerations m/s Mean Value of X, Y, Z Aeq 0.50 Jacobsen G-Plex III Series:FH, FJ Whole Body Acceleration level Max LH or RH Foot 2 Accelerations m/s Mean Value of X, Y, Z Aeq 1.16 Jacobsen G-Plex III Series:FH, FJ Whole Body Acceleration level Seat Location 2 Accelerations m/s Mean Value of X, Y, Z Aeq SLOPES DO NOT USE ON SLOPES GREATER THAN 15 The slope 15 was calculated using static stability measurements according to the requirements of EN RECOMMENDED LUBRICANTS Engine oil: Diesel: Gasoline: TEMPERATURE ABOVE 4 C (39 F) SAE30 Should be to MIL-L-2104C or to A.P.I. Classification CD A.P.I. Classification SE/SF OIL VISCOSITY BELOW 4 C (39 F) SAE5W-30 or 10W-30 Hydraulic Oil: GreensCare 46 Grease: K NATE (RJL No ), or equivalent to MIL-G-23549C, MIL-G-2345C, DIN , DIN en-11

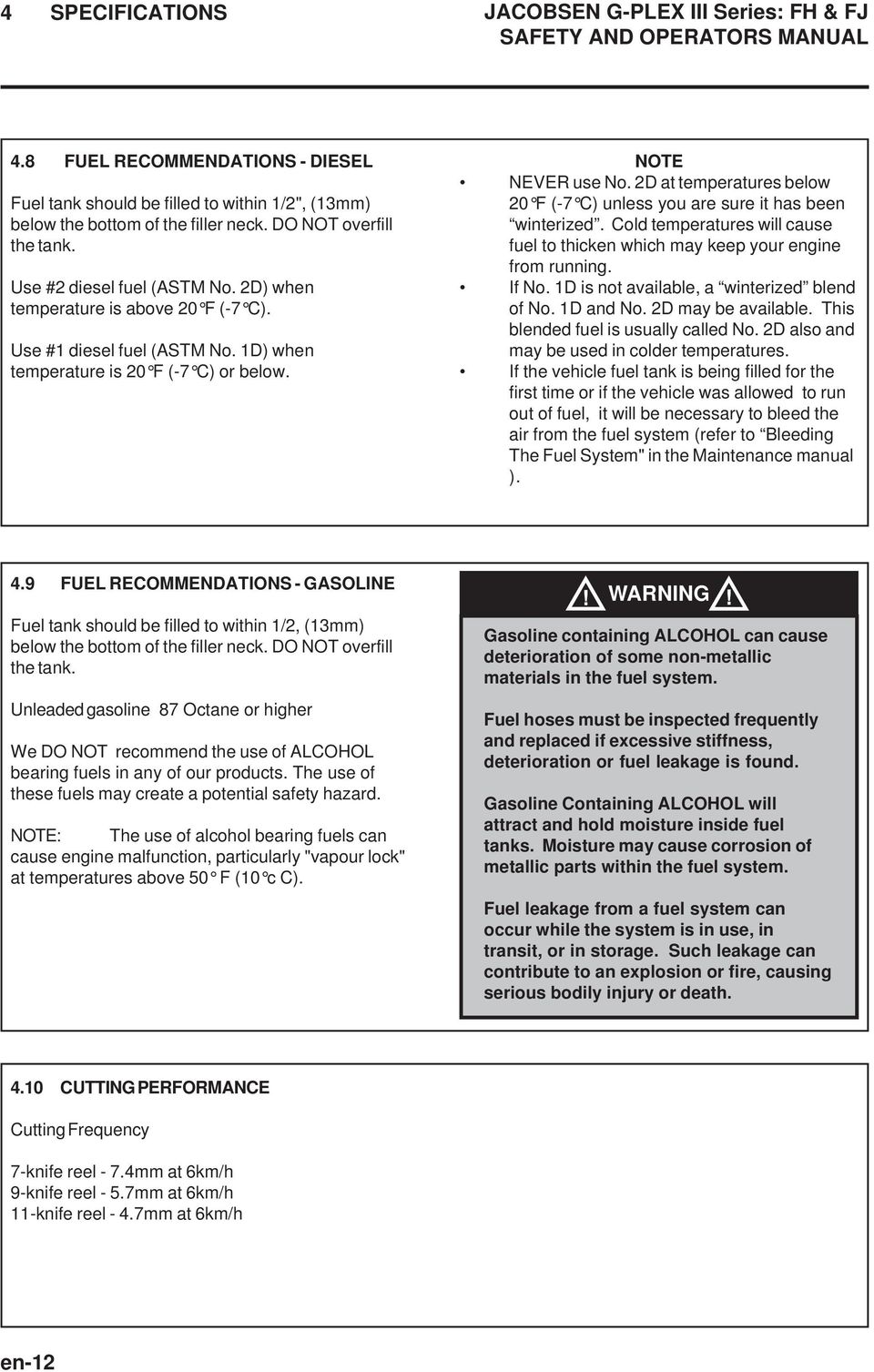

12 4 SPECIFICATIONS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 4.8 FUEL RECOMMENDATIONS - DIESEL Fuel tank should be filled to within 1/2", (13mm) below the bottom of the filler neck. DO NOT overfill the tank. Use #2 diesel fuel (ASTM No. 2D) when temperature is above 20 F (-7 C). Use #1 diesel fuel (ASTM No. 1D) when temperature is 20 F (-7 C) or below. NOTE NEVER use No. 2D at temperatures below 20 F (-7 C) unless you are sure it has been winterized. Cold temperatures will cause fuel to thicken which may keep your engine from running. If No. 1D is not available, a winterized blend of No. 1D and No. 2D may be available. This blended fuel is usually called No. 2D also and may be used in colder temperatures. If the vehicle fuel tank is being filled for the first time or if the vehicle was allowed to run out of fuel, it will be necessary to bleed the air from the fuel system (refer to Bleeding The Fuel System" in the Maintenance manual ). 4.9 FUEL RECOMMENDATIONS - GASOLINE Fuel tank should be filled to within 1/2, (13mm) below the bottom of the filler neck. DO NOT overfill the tank. Unleaded gasoline 87 Octane or higher We DO NOT recommend the use of ALCOHOL bearing fuels in any of our products. The use of these fuels may create a potential safety hazard. NOTE: The use of alcohol bearing fuels can cause engine malfunction, particularly "vapour lock" at temperatures above 50 F (10 c C). WARNING Gasoline containing ALCOHOL can cause deterioration of some non-metallic materials in the fuel system. Fuel hoses must be inspected frequently and replaced if excessive stiffness, deterioration or fuel leakage is found. Gasoline Containing ALCOHOL will attract and hold moisture inside fuel tanks. Moisture may cause corrosion of metallic parts within the fuel system. Fuel leakage from a fuel system can occur while the system is in use, in transit, or in storage. Such leakage can contribute to an explosion or fire, causing serious bodily injury or death CUTTING PERFORMANCE Cutting Frequency 7-knife reel - 7.4mm at 6km/h 9-knife reel - 5.7mm at 6km/h 11-knife reel - 4.7mm at 6km/h en-12

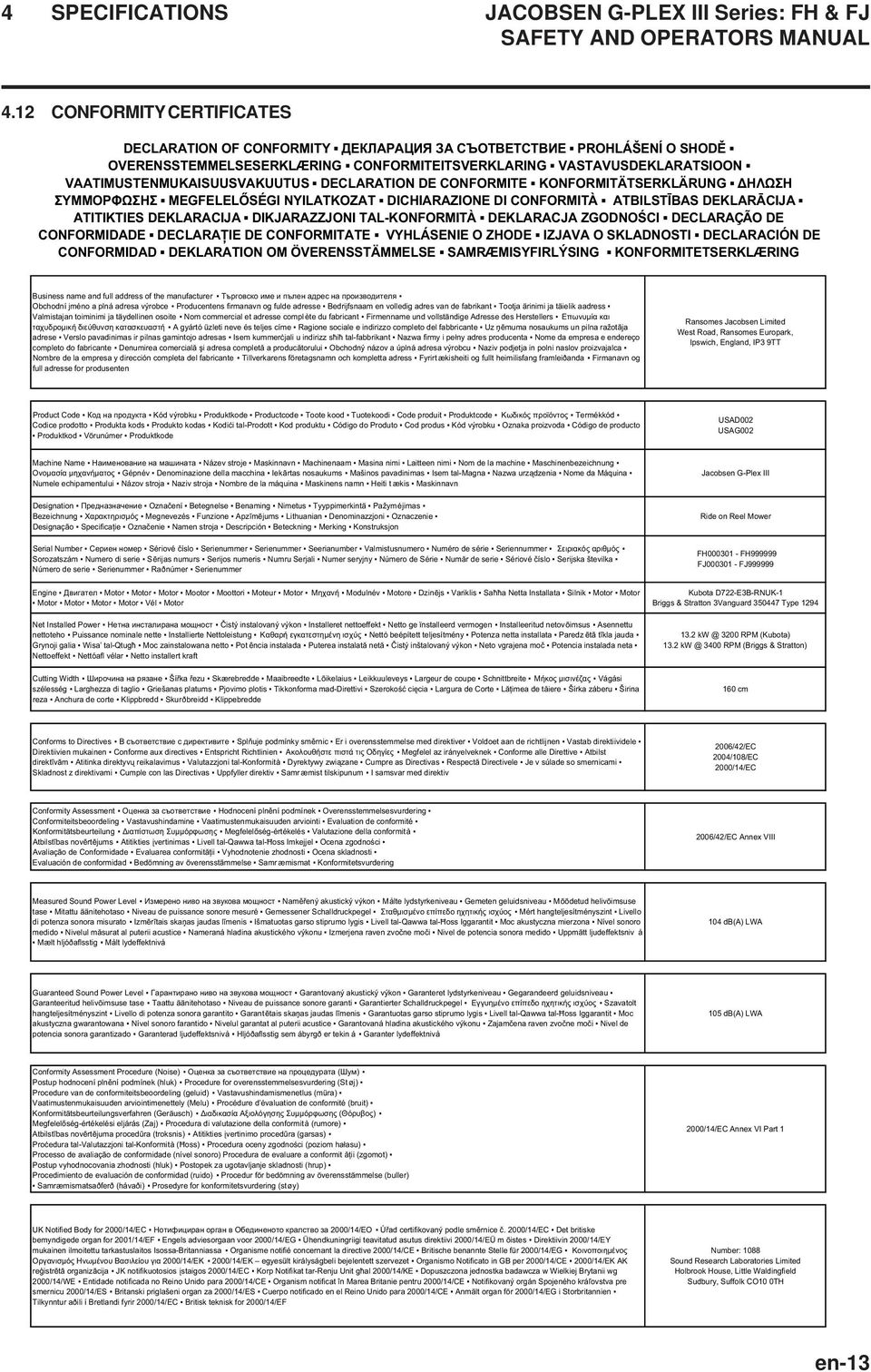

13 4 SPECIFICATIONS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 4.12 CONFORMITY CERTIFICATES DECLARATION OF CONFORMITY PROHLÁŠENÍ O SHOD OVERENSSTEMMELSESERKLÆRING CONFORMITEITSVERKLARING VASTAVUSDEKLARATSIOON VAATIMUSTENMUKAISUUSVAKUUTUS DECLARATION DE CONFORMITE KONFORMITÄTSERKLÄRUNG MEGFELEL SÉGI NYILATKOZAT DICHIARAZIONE DI CONFORMITÀ ATBILST BAS DEKLAR CIJA ATITIKTIES DEKLARACIJA DIKJARAZZJONI TAL-KONFORMITÀ DEKLARACJA ZGODNO CI DECLARAÇÃO DE CONFORMIDADE DECLARA IE DE CONFORMITATE VYHLÁSENIE O ZHODE IZJAVA O SKLADNOSTI DECLARACIÓN DE CONFORMIDAD DEKLARATION OM ÖVERENSSTÄMMELSE SAMRÆMISYFIRLÝSING KONFORMITETSERKLÆRING Business name and full address of the manufacturer Obchodní jméno a plná adresa výrobce Producentens firmanavn og fulde adresse Bedrijfsnaam en volledig adres van de fabrikant Tootja ärinimi ja täielik aadress Valmistajan toiminimi ja täydellinen osoite Nom commercial et adresse compl ète du fabricant Firmenname und vollständige Adresse des Herstellers A gyártó üzleti neve és teljes címe Ragione sociale e indirizzo completo del fabbricante Uz muma nosaukums un pilna ražot ja adrese Verslo pavadinimas ir pilnas gamintojo adresas Isem kummer jali u indirizz s i tal-fabbrikant Nazwa firmy i pe ny adres producenta Nome da empresa e endereço completo do fabricante Denumirea comercial i adresa complet a produc torului Obchodný názov a úplná adresa výrobcu Naziv podjetja in polni naslov proizvajalca Nombre de la empresa y dirección completa del fabricante Tillverkarens företagsnamn och kompletta adress Fyrirt ækisheiti og fullt heimilisfang framleiðanda Firmanavn og full adresse for produsenten Ransomes Jacobsen Limited West Road, Ransomes Europark, Ipswich, England, IP3 9TT Product Code Kód výrobku Produktkode Productcode Toote kood Tuotekoodi Code produit Produktcode Termékkód Codice prodotto Produkta kods Produkto kodas Kodi i tal-prodott Kod produktu Código do Produto Cod produs Kód výrobku Oznaka proizvoda Código de producto Produktkod Vörunúmer Produktkode USAD002 USAG002 Machine Name Název stroje Maskinnavn Machinenaam Masina nimi Laitteen nimi Nom de la machine Maschinenbezeichnung Gépnév Denominazione della macchina Iek rtas nosaukums Mašinos pavadinimas Isem tal-magna Nazwa urz dzenia Nome da Máquina Numele echipamentului Názov stroja Naziv stroja Nombre de la máquina Maskinens namn Heiti t ækis Maskinnavn Jacobsen G-Plex III Designation Ozna ení Betegnelse Benaming Nimetus Tyyppimerkintä Pažym jimas Bezeichnung Megnevezés Funzione Apz m jums Lithuanian Denominazzjoni Oznaczenie Designação Specifica ie Ozna enie Namen stroja Descripción Beteckning Merking Konstruksjon Ride on Reel Mower Serial Number Sériové íslo Serienummer Serienummer Seerianumber Valmistusnumero Numéro de série Seriennummer Sorozatszám Numero di serie S rijas numurs Serijos numeris Numru Serjali Numer seryjny Número de Série Num r de serie Sériové íslo Serijska številka Número de serie Serienummer Raðnúmer Serienummer Engine Motor Motor Motor Mootor Moottori Moteur Motor Modulnév Motore Dzin js Variklis Sa a Netta Installata Silnik Motor Motor Motor Motor Motor Motor Vél Motor Net Installed Power istý instalovaný výkon Installeret nettoeffekt Netto ge ïnstalleerd vermogen Installeeritud netovõimsus Asennettu nettoteho Puissance nominale nette Installierte Nettoleistung Nettó beépített teljesítmény Potenza netta installata Paredz t t kla jauda Grynoji galia Wisa tal-qtug Moc zainstalowana netto Pot ência instalada Puterea instalat net istý inštalovaný výkon Neto vgrajena mo Potencia instalada neta Nettoeffekt Nettóafl vélar Netto installert kraft FH FH FJ FJ Kubota D722-E3B-RNUK-1 Briggs & Stratton 3Vanguard Type RPM (Kubota) RPM (Briggs & Stratton) Cutting Width Ší ka ezu Skærebredde Maaibreedte Lõikelaius Leikkuuleveys Largeur de coupe Schnittbreite Vágási szélesség Larghezza di taglio Griešanas platums Pjovimo plotis Tikkonforma mad-direttivi Szeroko ci cia Largura de Corte L imea de t iere Šírka záberu Širina reza Anchura de corte Klippbredd Skurðbreidd Klippebredde 160 cm Conforms to Directives Spl uje podmínky sm rnic Er i overensstemmelse med direktiver Voldoet aan de richtlijnen Vastab direktiividele Direktiivien mukainen Conforme aux directives Entspricht Richtlinien Megfelel az irányelveknek Conforme alle Direttive Atbilst direkt v m Atitinka direktyv reikalavimus Valutazzjoni tal-konformità Dyrektywy zwi zane Cumpre as Directivas Respect Directivele Je v súlade so smernicami Skladnost z direktivami Cumple con las Directivas Uppfyller direktiv Samr æmist tilskipunum I samsvar med direktiv 2006/42/EC 2004/108/EC 2000/14/EC Conformity Assessment Hodnocení pln ní podmínek Overensstemmelsesvurdering Conformiteitsbeoordeling Vastavushindamine Vaatimustenmukaisuuden arviointi Evaluation de conformité Konformitätsbeurteilung Megfelel ség-értékelés Valutazione della conformità Atbilst bas nov rt jums Atitikties vertinimas Livell tal-qawwa tal- oss Imkejjel Ocena zgodno ci Avaliação de Conformidade Evaluarea conformit ii Vyhodnotenie zhodnosti Ocena skladnosti Evaluación de conformidad Bedömning av överensstämmelse Samr æmismat Konformitetsvurdering 2006/42/EC Annex VIII Measured Sound Power Level Nam ený akustický výkon Målte lydstyrkeniveau Gemeten geluidsniveau Mõõdetud helivõimsuse tase Mitattu äänitehotaso Niveau de puissance sonore mesuré Gemessener Schalldruckpegel Mért hangteljesítményszint Livello di potenza sonora misurato Izm r tais ska as jaudas l menis Išmatuotas garso stiprumo lygis Livell tal-qawwa tal- oss Iggarantit Moc akustyczna mierzona Nível sonoro medido Nivelul m surat al puterii acustice Nameraná hladina akustického výkonu Izmerjena raven zvo ne mo i Nivel de potencia sonora medido Uppmätt ljudeffektsniv å Mælt hljóðaflsstig Målt lydeffektnivå 104 db(a) LWA Guaranteed Sound Power Level Garantovaný akustický výkon Garanteret lydstyrkeniveau Gegarandeerd geluidsniveau Garanteeritud helivõimsuse tase Taattu äänitehotaso Niveau de puissance sonore garanti Garantierter Schalldruckpegel Szavatolt hangteljesítményszint Livello di potenza sonora garantito Garant tais ska as jaudas l menis Garantuotas garso stiprumo lygis Livell tal-qawwa tal- oss Iggarantit Moc akustyczna gwarantowana Nível sonoro farantido Nivelul garantat al puterii acustice Garantovaná hladina akustického výkonu Zajam ena raven zvo ne mo i Nivel de potencia sonora garantizado Garanterad ljudeffektsnivå Hljóðaflsstig sem ábyrgð er tekin á Garanter lydeffektnivå 105 db(a) LWA Conformity Assessment Procedure (Noise) ( ) Postup hodnocení pln ní podmínek (hluk) Procedure for overensstemmelsesvurdering (St øj) Procedure van de conformiteitsbeoordeling (geluid) Vastavushindamismenetlus (müra) Vaatimustenmukaisuuden arviointimenettely (Melu) Procédure d évaluation de conformité (bruit) Konformitätsbeurteilungsverfahren (Geräusch) ( ) Megfelel ség-értékelési eljárás (Zaj) Procedura di valutazione della conformità (rumore) Atbilst bas nov rt juma proced ra (troksnis) Atitikties vertinimo proced ra (garsas) Pro edura tal-valutazzjoni tal-konformità ( oss) Procedura oceny zgodno ci (poziom ha asu) Processo de avaliação de conformidade (nível sonoro) Procedura de evaluare a conformit ii (zgomot) Postup vyhodnocovania zhodnosti (hluk) Postopek za ugotavljanje skladnosti (hrup) Procedimiento de evaluación de conformidad (ruido) Procedur för bedömning av överensstämmelse (buller) Samræmismatsaðferð (hávaði) Prosedyre for konformitetsvurdering (støy) 2000/14/EC Annex VI Part 1 UK Notified Body for 2000/14/EC 2000/14/ Ú ad certifikovaný podle sm rnice. 2000/14/EC Det britiske bemyndigede organ for 2001/14/EF Engels adviesorgaan voor 2000/14/EG Ühendkuningriigi teavitatud asutus direktiivi 2000/14/EÜ m õistes Direktiivin 2000/14/EY mukainen ilmoitettu tarkastuslaitos Isossa-Britanniassa Organisme notifié concernant la directive 2000/14/CE Britische benannte Stelle für 2000/14/EG 2000/14/ 2000/14/EK egyesült királyságbeli bejelentett szervezet Organismo Notificato in GB per 2000/14/CE 2000/14/EK AK re istr t organiz cija JK notifikuotosios staigos 2000/14/EC Korp Notifikat tar-renju Unit g al 2000/14/KE Dopuszczona jednostka badawcza w Wielkiej Brytanii wg 2000/14/WE Entidade notificada no Reino Unido para 2000/14/CE Organism notificat în Marea Britanie pentru 2000/14/CE Notifikovaný orgán Spojeného krá ovstva pre smernicu 2000/14/ES Britanski priglašeni organ za 2000/14/ES Cuerpo notificado en el Reino Unido para 2000/14/CE Anmält organ för 2000/14/EG i Storbritannien Tilkynntur aðili í Bretlandi fyrir 2000/14/EC Britisk teknisk for 2000/14/EF Number: 1088 Sound Research Laboratories Limited Holbrook House, Little Waldingfield Sudbury, Suffolk CO10 0TH en-13

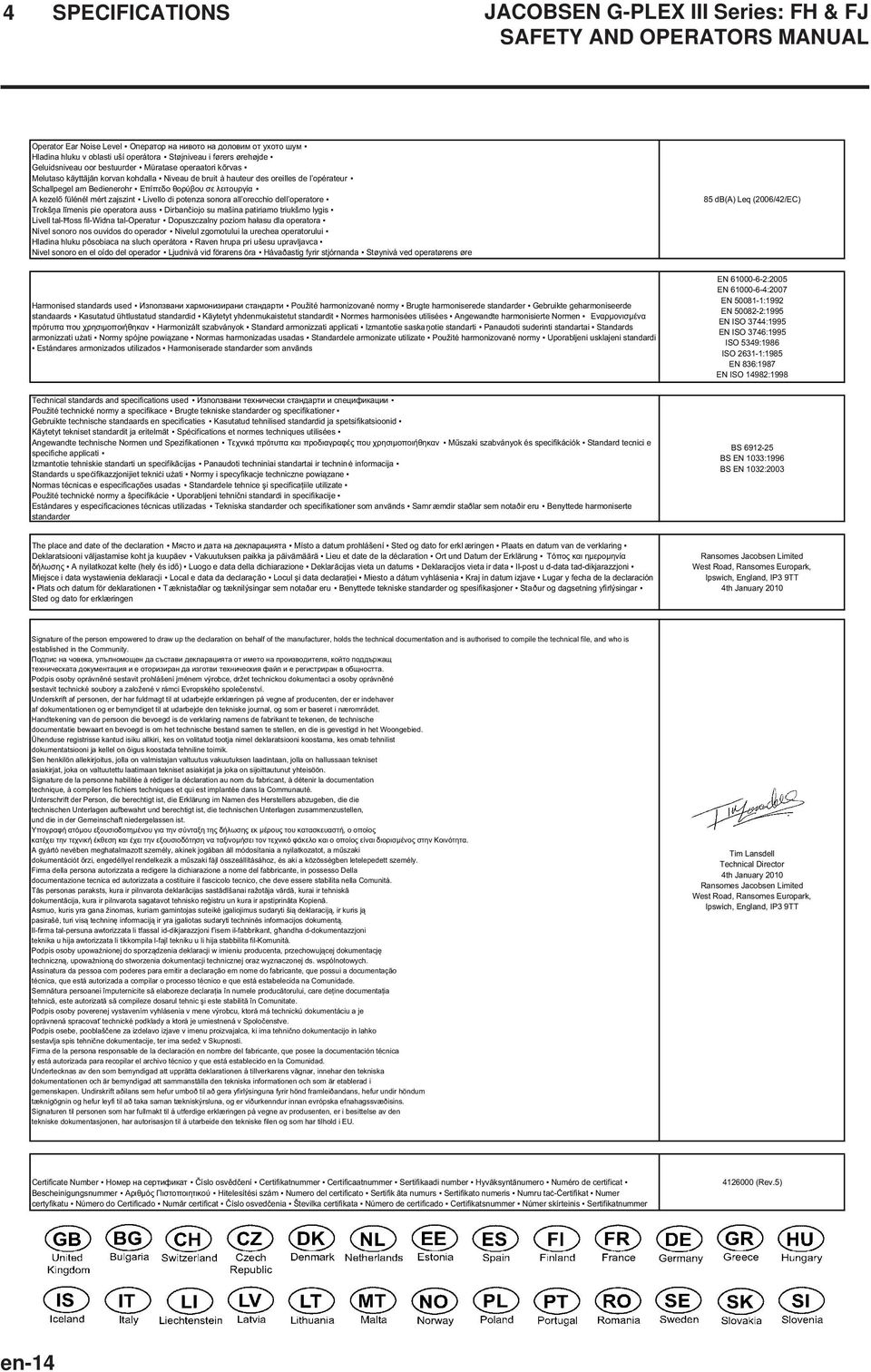

14 4 SPECIFICATIONS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL Operator Ear Noise Level Hladina hluku v oblasti uší operátora Støjniveau i førers ørehøjde Geluidsniveau oor bestuurder Müratase operaatori kõrvas Melutaso käyttäjän korvan kohdalla Niveau de bruit à hauteur des oreilles de l opérateur Schallpegel am Bedienerohr A kezel fülénél mért zajszint Livello di potenza sonora all orecchio dell operatore Trokš a l menis pie operatora auss Dirban iojo su mašina patiriamo triukšmo lygis Livell tal- oss fil-widna tal-operatur Dopuszczalny poziom ha asu dla operatora Nível sonoro nos ouvidos do operador Nivelul zgomotului la urechea operatorului Hladina hluku pôsobiaca na sluch operátora Raven hrupa pri ušesu upravljavca Nivel sonoro en el oído del operador Ljudnivå vid förarens öra Hávaðastig fyrir stjórnanda Støynivå ved operatørens øre 85 db(a) Leq (2006/42/EC) Harmonised standards used Použité harmonizované normy Brugte harmoniserede standarder Gebruikte geharmoniseerde standaards Kasutatud ühtlustatud standardid Käytetyt yhdenmukaistetut standardit Normes harmonisées utilisées Angewandte harmonisierte Normen Harmonizált szabványok Standard armonizzati applicati Izmantotie saska otie standarti Panaudoti suderinti standartai Standards armonizzati u ati Normy spójne powi zane Normas harmonizadas usadas Standardele armonizate utilizate Použité harmonizované normy Uporabljeni usklajeni standardi Estándares armonizados utilizados Harmoniserade standarder som används EN :2005 EN :2007 EN :1992 EN :1995 EN ISO 3744:1995 EN ISO 3746:1995 ISO 5349:1986 ISO :1985 EN 836:1987 EN ISO 14982:1998 Technical standards and specifications used Použité technické normy a specifikace Brugte tekniske standarder og specifikationer Gebruikte technische standaards en specificaties Kasutatud tehnilised standardid ja spetsifikatsioonid Käytetyt tekniset standardit ja eritelmät Spécifications et normes techniques utilisées Angewandte technische Normen und Spezifikationen M szaki szabványok és specifikációk Standard tecnici e specifiche applicati Izmantotie tehniskie standarti un specifik cijas Panaudoti techniniai standartai ir technin informacija Standards u spe ifikazzjonijiet tekni i u ati Normy i specyfikacje techniczne powi zane Normas técnicas e especificações usadas Standardele tehnice i specifica iile utilizate Použité technické normy a špecifikácie Uporabljeni tehni ni standardi in specifikacije Estándares y especificaciones técnicas utilizadas Tekniska standarder och specifikationer som används Samr æmdir staðlar sem notaðir eru Benyttede harmoniserte standarder BS BS EN 1033:1996 BS EN 1032:2003 The place and date of the declaration Místo a datum prohlášení Sted og dato for erkl æringen Plaats en datum van de verklaring Deklaratsiooni väljastamise koht ja kuupäev Vakuutuksen paikka ja päivämäärä Lieu et date de la déclaration Ort und Datum der Erklärung A nyilatkozat kelte (hely és id ) Luogo e data della dichiarazione Deklar cijas vieta un datums Deklaracijos vieta ir data Il-post u d-data tad-dikjarazzjoni Miejsce i data wystawienia deklaracji Local e data da declaração Locul i data declara iei Miesto a dátum vyhlásenia Kraj in datum izjave Lugar y fecha de la declaración Plats och datum för deklarationen T æknistaðlar og tæknilýsingar sem notaðar eru Benyttede tekniske standarder og spesifikasjoner Staður og dagsetning yfirlýsingar Sted og dato for erklæringen Ransomes Jacobsen Limited West Road, Ransomes Europark, Ipswich, England, IP3 9TT 4th January 2010 Signature of the person empowered to draw up the declaration on behalf of the manufacturer, holds the technical documentation and is authorised to compile the technical file, and who is established in the Community.,,. Podpis osoby oprávn né sestavit prohlášení jménem výrobce, držet technickou dokumentaci a osoby oprávn né sestavit technické soubory a založené v rámci Evropského spole enství. Underskrift af personen, der har fuldmagt til at udarbejde erklæringen på vegne af producenten, der er indehaver af dokumentationen og er bemyndiget til at udarbejde den tekniske journal, og som er baseret i nærområdet. Handtekening van de persoon die bevoegd is de verklaring namens de fabrikant te tekenen, de technische documentatie bewaart en bevoegd is om het technische bestand samen te stellen, en die is gevestigd in het Woongebied. Ühenduse registrisse kantud isiku allkiri, kes on volitatud tootja nimel deklaratsiooni koostama, kes omab tehnilist dokumentatsiooni ja kellel on õigus koostada tehniline toimik. Sen henkilön allekirjoitus, jolla on valmistajan valtuutus vakuutuksen laadintaan, jolla on hallussaan tekniset asiakirjat, joka on valtuutettu laatimaan tekniset asiakirjat ja joka on sijoittautunut yhteisöön. Signature de la personne habilitée à rédiger la déclaration au nom du fabricant, à détenir la documentation technique, à compiler les fichiers techniques et qui est implantée dans la Communauté. Unterschrift der Person, die berechtigt ist, die Erklärung im Namen des Herstellers abzugeben, die die technischen Unterlagen aufbewahrt und berechtigt ist, die technischen Unterlagen zusammenzustellen, und die in der Gemeinschaft niedergelassen ist.,. A gyártó nevében meghatalmazott személy, akinek jogában áll módosítania a nyilatkozatot, a m szaki dokumentációt rzi, engedéllyel rendelkezik a m szaki fájl összeállításához, és aki a közösségben letelepedett személy. Firma della persona autorizzata a redigere la dichiarazione a nome del fabbricante, in possesso Della documentazione tecnica ed autorizzata a costituire il fascicolo tecnico, che deve essere stabilita nella Comunità. T s personas paraksts, kura ir pilnvarota deklar cijas sast d šanai ražot ja v rd, kurai ir tehnisk dokument cija, kura ir pilnvarota sagatavot tehnisko re istru un kura ir apstiprin ta Kopien. Asmuo, kuris yra gana žinomas, kuriam gamintojas suteik galiojimus sudaryti ši deklaracij, ir kuris j pasiraš, turi vis technin informacij ir yra galiotas sudaryti technin s informacijos dokument. Il-firma tal-persuna awtorizzata li tfassal id-dikjarazzjoni f isem il-fabbrikant, g andha d-dokumentazzjoni teknika u hija awtorizzata li tikkompila l-fajl tekniku u li hija stabbilita fil-komunità. Podpis osoby upowa nionej do sporz dzenia deklaracji w imieniu producenta, przechowuj cej dokumentacj techniczn, upowa nion do stworzenia dokumentacji technicznej oraz wyznaczonej ds. wspólnotowych. Assinatura da pessoa com poderes para emitir a declaração em nome do fabricante, que possui a documentação técnica, que está autorizada a compilar o processo técnico e que está estabelecida na Comunidade. Semn tura persoanei împuternicite s elaboreze declara ia în numele produc torului, care de ine documenta ia tehnic, este autorizat s compileze dosarul tehnic i este stabilit în Comunitate. Podpis osoby poverenej vystavením vyhlásenia v mene výrobcu, ktorá má technickú dokumentáciu a je oprávnená spracova technické podklady a ktorá je umiestnená v Spolo enstve. Podpis osebe, pooblaš ene za izdelavo izjave v imenu proizvajalca, ki ima tehni no dokumentacijo in lahko sestavlja spis tehni ne dokumentacije, ter ima sedež v Skupnosti. Firma de la persona responsable de la declaración en nombre del fabricante, que posee la documentación técnica y está autorizada para recopilar el archivo técnico y que está establecido en la Comunidad. Undertecknas av den som bemyndigad att upprätta deklarationen å tillverkarens vägnar, innehar den tekniska dokumentationen och är bemyndigad att sammanställa den tekniska informationen och som är etablerad i gemenskapen. Undirskrift aðilans sem hefur umboð til að gera yfirlýsinguna fyrir hönd framleiðandans, hefur undir höndum tæknigögnin og hefur leyfi til að taka saman tækniskýrsluna, og er viðurkenndur innan evrópska efnahagssvæðisins. Signaturen til personen som har fullmakt til å utferdige erklæringen på vegne av produsenten, er i besittelse av den tekniske dokumentasjonen, har autorisasjon til å utarbeide den tekniske filen og som har tilhold i EU. Tim Lansdell Technical Director 4th January 2010 Ransomes Jacobsen Limited West Road, Ransomes Europark, Ipswich, England, IP3 9TT Certificate Number íslo osv d ení Certifikatnummer Certificaatnummer Sertifikaadi number Hyväksyntänumero Numéro de certificat Bescheinigungsnummer Hitelesítési szám Numero del certificato Sertifik ta numurs Sertifikato numeris Numru ta - ertifikat Numer certyfikatu Número do Certificado Num r certificat íslo osved enia Številka certifikata Número de certificado Certifikatsnummer Númer skírteinis Sertifikatnummer (Rev.5) en-14

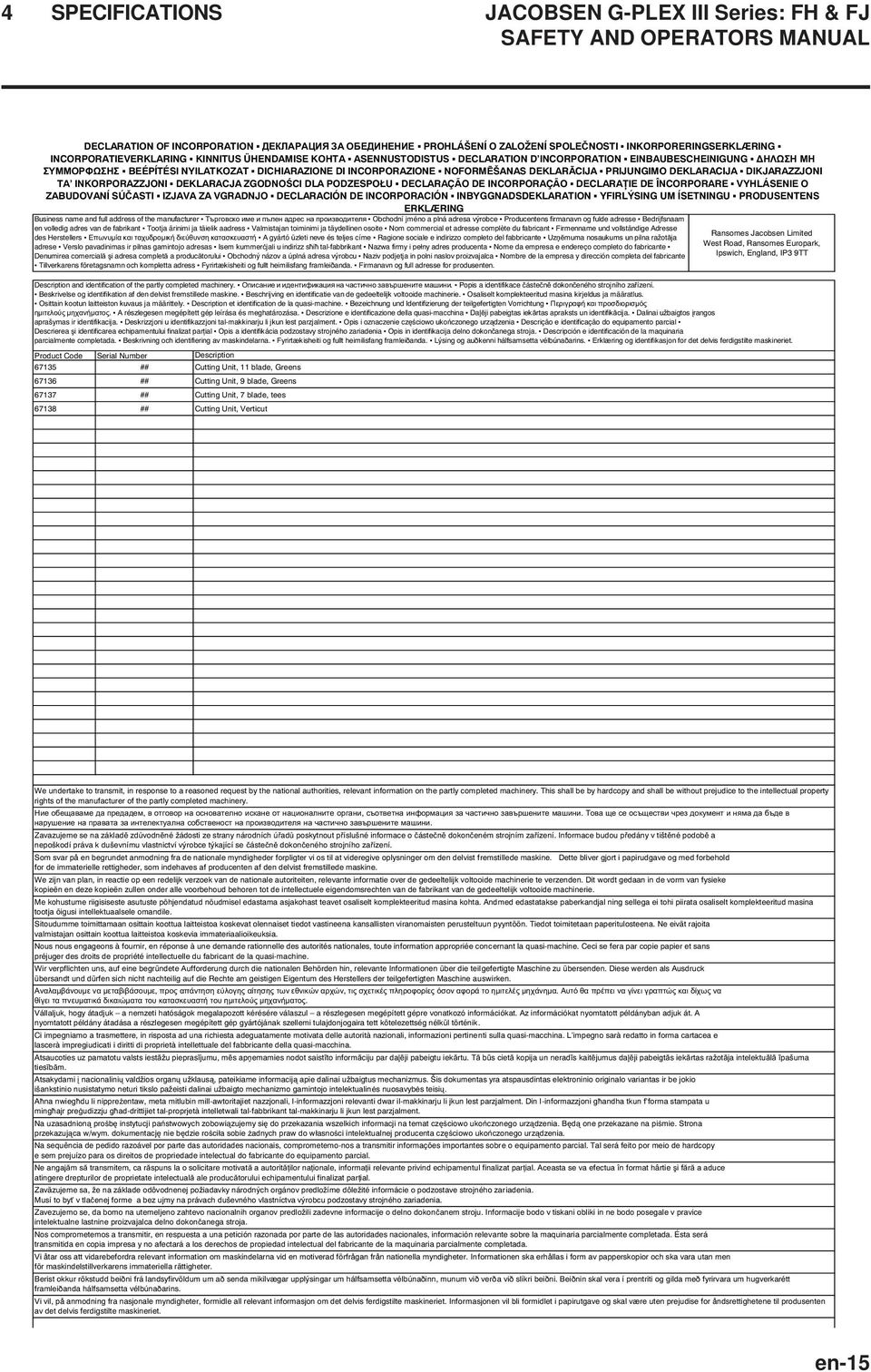

15 4 SPECIFICATIONS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL DECLARATION OF INCORPORATION PROHLÁŠENÍ O ZALOŽENÍ SPOLE NOSTI INKORPORERINGSERKLÆRING INCORPORATIEVERKLARING KINNITUS ÜHENDAMISE KOHTA ASENNUSTODISTUS DECLARATION D INCORPORATION EINBAUBESCHEINIGUNG BEÉPÍTÉSI NYILATKOZAT DICHIARAZIONE DI INCORPORAZIONE NOFORM ŠANAS DEKLAR CIJA PRIJUNGIMO DEKLARACIJA DIKJARAZZJONI TA INKORPORAZZJONI DEKLARACJA ZGODNO CI DLA PODZESPO U DECLARAÇÃO DE INCORPORAÇÃO DECLARA IE DE ÎNCORPORARE VYHLÁSENIE O ZABUDOVANÍ SÚ ASTI IZJAVA ZA VGRADNJO DECLARACIÓN DE INCORPORACIÓN INBYGGNADSDEKLARATION YFIRLÝSING UM ÍSETNINGU PRODUSENTENS ERKLÆRING Business name and full address of the manufacturer Obchodní jméno a plná adresa výrobce Producentens firmanavn og fulde adresse Bedrijfsnaam en volledig adres van de fabrikant Tootja ärinimi ja täielik aadress Valmistajan toiminimi ja täydellinen osoite Nom commercial et adresse complète du fabricant Firmenname und vollständige Adresse des Herstellers A gyártó üzleti neve és teljes címe Ragione sociale e indirizzo completo del fabbricante Uz muma nosaukums un pilna ražot ja adrese Verslo pavadinimas ir pilnas gamintojo adresas Isem kummer jali u indirizz s i tal-fabbrikant Nazwa firmy i pe ny adres producenta Nome da empresa e endereço completo do fabricante Denumirea comercial i adresa complet a produc torului Obchodný názov a úplná adresa výrobcu Naziv podjetja in polni naslov proizvajalca Nombre de la empresa y dirección completa del fabricante Tillverkarens företagsnamn och kompletta adress Fyrirtækisheiti og fullt heimilisfang framleiðanda. Firmanavn og full adresse for produsenten. Product Code Serial Number Description ## Cutting Unit, 11 blade, Greens ## Cutting Unit, 9 blade, Greens ## Cutting Unit, 7 blade, tees ## Cutting Unit, Verticut Ransomes Jacobsen Limited West Road, Ransomes Europark, Ipswich, England, IP3 9TT Description and identification of the partly completed machinery.. Popis a identifikace áste n dokon eného strojního za ízení. Beskrivelse og identifikation af den delvist fremstillede maskine. Beschrijving en identificatie van de gedeeltelijk voltooide machinerie. Osaliselt komplekteeritud masina kirjeldus ja määratlus. Osittain kootun laitteiston kuvaus ja määrittely. Description et identification de la quasi-machine. Bezeichnung und Identifizierung der teilgefertigten Vorrichtung. A részlegesen megépített gép leírása és meghatározása. Descrizione e identificazione della quasi-macchina Da ji pabeigtas iek rtas apraksts un identifik cija. Dalinai užbaigtos rangos aprašymas ir identifikacija. Deskrizzjoni u identifikazzjoni tal-makkinarju li jkun lest parzjalment. Opis i oznaczenie cz ciowo uko czonego urz dzenia Descrição e identificação do equipamento parcial Descrierea i identificarea echipamentului finalizat par ial Opis a identifikácia podzostavy strojného zariadenia Opis in identifikacija delno dokon anega stroja. Descripción e identificación de la maquinaria parcialmente completada. Beskrivning och identifiering av maskindelarna. Fyrirtækisheiti og fullt heimilisfang framleiðanda. Lýsing og auðkenni hálfsamsetta vélbúnaðarins. Erklæring og identifikasjon for det delvis ferdigstilte maskineriet. We undertake to transmit, in response to a reasoned request by the national authorities, relevant information on the partly completed machinery. This shall be by hardcopy and shall be without prejudice to the intellectual property rights of the manufacturer of the partly completed machinery.,,.. Zavazujeme se na základ zd vodn né žádosti ze strany národních ú ad poskytnout p íslušné informace o áste n dokon eném strojním za ízení. Informace budou p edány v tišt né podob a nepoškodí práva k duševnímu vlastnictví výrobce týkající se áste n dokon eného strojního za ízení. Som svar på en begrundet anmodning fra de nationale myndigheder forpligter vi os til at videregive oplysninger om den delvist fremstillede maskine. Dette bliver gjort i papirudgave og med forbehold for de immaterielle rettigheder, som indehaves af producenten af den delvist fremstillede maskine. We zijn van plan, in reactie op een redelijk verzoek van de nationale autoriteiten, relevante informatie over de gedeeltelijk voltooide machinerie te verzenden. Dit wordt gedaan in de vorm van fysieke kopieën en deze kopieën zullen onder alle voorbehoud behoren tot de intellectuele eigendomsrechten van de fabrikant van de gedeeltelijk voltooide machinerie. Me kohustume riigisiseste asutuste põhjendatud nõudmisel edastama asjakohast teavet osaliselt komplekteeritud masina kohta. Andmed edastatakse paberkandjal ning sellega ei tohi piirata osaliselt komplekteeritud masina tootja õigusi intellektuaalsele omandile. Sitoudumme toimittamaan osittain koottua laitteistoa koskevat olennaiset tiedot vastineena kansallisten viranomaisten perusteltuun pyyntöön. Tiedot toimitetaan paperitulosteena. Ne eivät rajoita valmistajan osittain koottua laitteistoa koskevia immateriaalioikeuksia. Nous nous engageons à fournir, en réponse à une demande rationnelle des autorités nationales, toute information appropriée concernant la quasi-machine. Ceci se fera par copie papier et sans préjuger des droits de propriété intellectuelle du fabricant de la quasi-machine. Wir verpflichten uns, auf eine begründete Aufforderung durch die nationalen Behörden hin, relevante Informationen über die teilgefertigte Maschine zu übersenden. Diese werden als Ausdruck übersandt und dürfen sich nicht nachteilig auf die Rechte am geistigen Eigentum des Herstellers der teilgefertigten Maschine auswirken.,,.. Vállaljuk, hogy átadjuk a nemzeti hatóságok megalapozott kérésére válaszul a részlegesen megépített gépre vonatkozó információkat. Az információkat nyomtatott példányban adjuk át. A nyomtatott példány átadása a részlegesen megépített gép gyártójának szellemi tulajdonjogaira tett kötelezettség nélkül történik. Ci impegniamo a trasmettere, in risposta ad una richiesta adeguatamente motivata delle autorità nazionali, informazioni pertinenti sulla quasi-macchina. L impegno sarà redatto in forma cartacea e lascerà impregiudicati i diritti di proprietà intellettuale del fabbricante della quasi-macchina. Atsaucoties uz pamatotu valsts iest žu piepras jumu, m s ap emamies nodot saist to inform ciju par da ji pabeigtu iek rtu. T b s ciet kopija un nerad s kait jumus da ji pabeigt s iek rtas ražot ja intelektu l pašuma ties b m. Atsakydami nacionalini valdžios organ užklaus, pateikiame informacij apie dalinai užbaigtus mechanizmus. Šis dokumentas yra atspausdintas elektroninio originalo variantas ir be jokio išankstinio nusistatymo neturi tikslo pažeisti dalinai užbaigto mechanizmo gamintojo intelektualin s nuosavyb s teisi. A na nwieg du li nippre entaw, meta mitlubin mill-awtoritajiet nazzjonali, l-informazzjoni relevanti dwar il-makkinarju li jkun lest parzjalment. Din l-informazzjoni g andha tkun f forma stampata u ming ajr pre udizzju g ad-drittijiet tal-proprjetà intelletwali tal-fabbrikant tal-makkinarju li jkun lest parzjalment. Na uzasadnion pro b instytucji pa stwowych zobowi zujemy si do przekazania wszelkich informacji na temat cz ciowo uko czonego urz dzenia. B d one przekazane na pi mie. Strona przekazuj ca w/wym. dokumentacj nie b dzie ro ci a sobie adnych praw do w asno ci intelektualnej producenta cz ciowo uko czonego urz dzenia. Na sequência de pedido razoável por parte das autoridades nacionais, comprometemo-nos a transmitir informações importantes sobre o equipamento parcial. Tal será feito por meio de hardcopy e sem prejuízo para os direitos de propriedade intelectual do fabricante do equipamento parcial. Ne angaj m s transmitem, ca r spuns la o solicitare motivat a autorit ilor na ionale, informa ii relevante privind echipamentul finalizat par ial. Aceasta se va efectua în format hârtie i f r a aduce atingere drepturilor de proprietate intelectual ale produc torului echipamentului finalizat par ial. Zaväzujeme sa, že na základe odôvodnenej požiadavky národných orgánov predložíme dôležité informácie o podzostave strojného zariadenia. Musí to by v tla enej forme a bez ujmy na právach duševného vlastníctva výrobcu podzostavy strojného zariadenia. Zavezujemo se, da bomo na utemeljeno zahtevo nacionalnih organov predložili zadevne informacije o delno dokon anem stroju. Informacije bodo v tiskani obliki in ne bodo posegale v pravice intelektualne lastnine proizvajalca delno dokon anega stroja. Nos comprometemos a transmitir, en respuesta a una petición razonada por parte de las autoridades nacionales, información relevante sobre la maquinaria parcialmente completada. Ésta será transmitida en copia impresa y no afectará a los derechos de propiedad intelectual del fabricante de la maquinaria parcialmente completada. Vi åtar oss att vidarebefordra relevant information om maskindelarna vid en motiverad förfrågan från nationella myndigheter. Informationen ska erhållas i form av papperskopior och ska vara utan men för maskindelstillverkarens immateriella rättigheter. Berist okkur rökstudd beiðni frá landsyfirvöldum um að senda mikilvægar upplýsingar um hálfsamsetta vélbúnaðinn, munum við verða við slíkri beiðni. Beiðnin skal vera í prentriti og gilda með fyrirvara um hugverkarétt framleiðanda hálfsamsetta vélbúnaðarins. Vi vil, på anmodning fra nasjonale myndigheter, formidle all relevant informasjon om det delvis ferdigstilte maskineriet. Informasjonen vil bli formidlet i papirutgave og skal være uten prejudise for åndsrettighetene til produsenten av det delvis ferdigstilte maskineriet. en-15

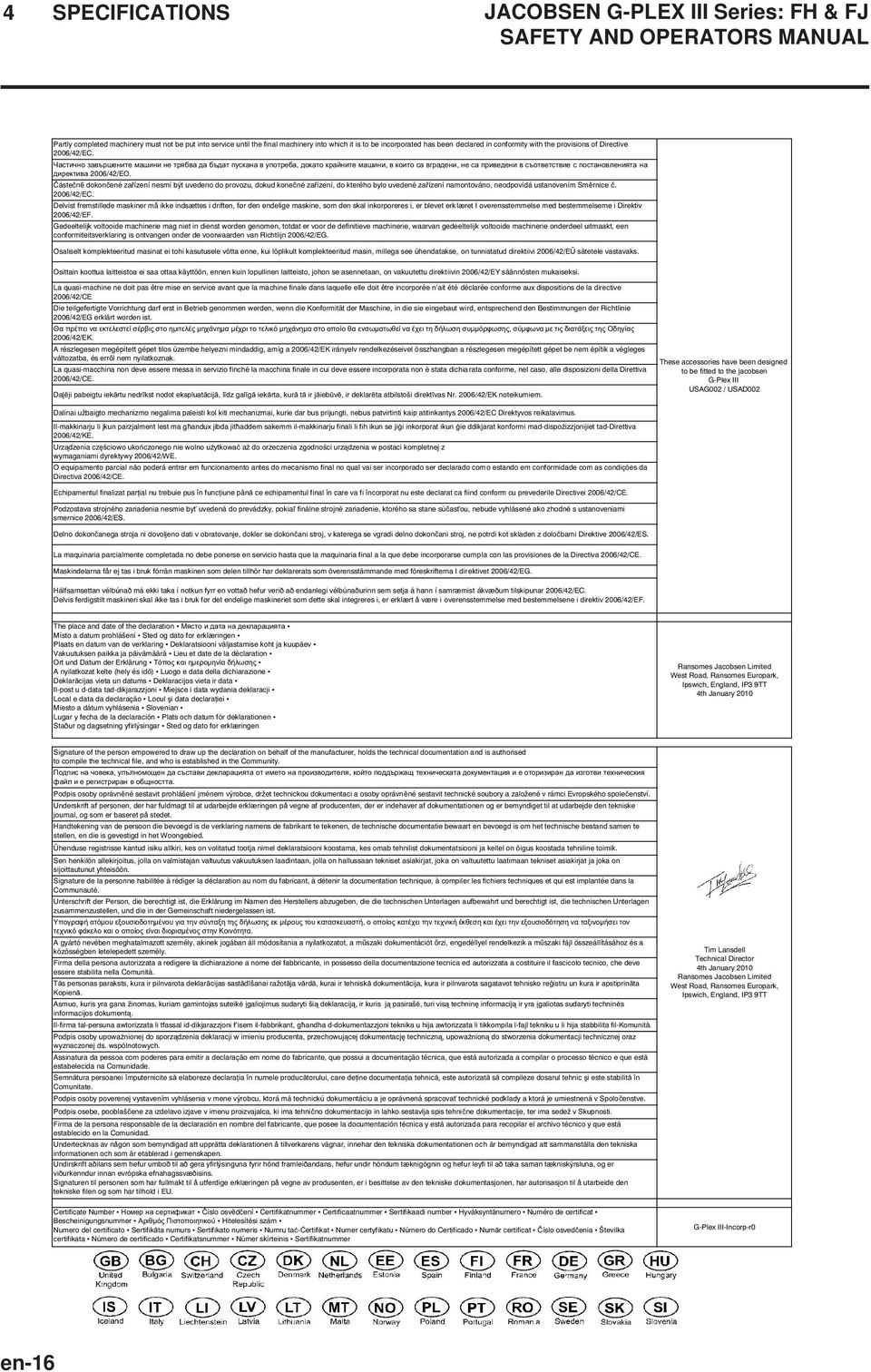

16 4 SPECIFICATIONS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL Partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the provisions of Directive 2006/42/EC.,,, 2006/42/E. áste n dokon ené za ízení nesmí být uvedeno do provozu, dokud kone né za ízení, do kterého bylo uvedené za ízení namontováno, neodpovídá ustanovením Sm rnice. 2006/42/EC. Delvist fremstillede maskiner må ikke indsættes i driften, før den endelige maskine, som den skal inkorporeres i, er blevet erklæret I overensstemmelse med bestemmelserne i Direktiv 2006/42/EF. Gedeeltelijk voltooide machinerie mag niet in dienst worden genomen, totdat er voor de definitieve machinerie, waarvan gedeeltelijk voltooide machinerie onderdeel uitmaakt, een conformiteitsverklaring is ontvangen onder de voorwaarden van Richtlijn 2006/42/EG. Osaliselt komplekteeritud masinat ei tohi kasutusele võtta enne, kui lõplikult komplekteeritud masin, millega see ühendatakse, on tunnistatud direktiivi 2006/42/EÜ sätetele vastavaks. Osittain koottua laitteistoa ei saa ottaa käyttöön, ennen kuin lopullinen laitteisto, johon se asennetaan, on vakuutettu direktiivin 2006/42/EY säännösten mukaiseksi. La quasi-machine ne doit pas être mise en service avant que la machine finale dans laquelle elle doit être incorporée n ait été déclarée conforme aux dispositions de la directive 2006/42/CE Die teilgefertigte Vorrichtung darf erst in Betrieb genommen werden, wenn die Konformität der Maschine, in die sie eingebaut wird, entsprechend den Bestimmungen der Richtlinie 2006/42/EG erklärt worden ist., 2006/42/. A részlegesen megépített gépet tilos üzembe helyezni mindaddig, amíg a 2006/42/EK irányelv rendelkezéseivel összhangban a részlegesen megépített gépet be nem építik a végleges változatba, és err l nem nyilatkoznak. La quasi-macchina non deve essere messa in servizio finché la macchina finale in cui deve essere incorporata non è stata dichiarata conforme, nel caso, alle disposizioni della Direttiva 2006/42/CE. Da ji pabeigtu iek rtu nedr kst nodot ekspluat cij, l dz gal g iek rta, kur t ir j ieb v, ir deklar ta atbilstoši direkt vas Nr. 2006/42/EK noteikumiem. These accessories have been designed to be fitted to the jacobsen G-Plex III USAG002 / USAD002 Dalinai užbaigto mechanizmo negalima paleisti kol kiti mechanizmai, kurie dar bus prijungti, nebus patvirtinti kaip atitinkantys 2006/42/EC Direktyvos reikalavimus. Il-makkinarju li jkun parzjalment lest ma g andux jibda jit addem sakemm il-makkinarju finali li fih ikun se ji i inkorporat ikun ie ddikjarat konformi mad-dispo izzjonijiet tad-direttiva 2006/42/KE. Urz dzenia cz ciowo uko czonego nie wolno u ytkowa a do orzeczenia zgodno ci urz dzenia w postaci kompletnej z wymaganiami dyrektywy 2006/42/WE. O equipamento parcial não poderá entrar em funcionamento antes do mecanismo final no qual vai ser incorporado ser declarado como estando em conformidade com as condições da Directiva 2006/42/CE. Echipamentul finalizat par ial nu trebuie pus în func iune pân ce echipamentul final în care va fi încorporat nu este declarat ca fiind conform cu prevederile Directivei 2006/42/CE. Podzostava strojného zariadenia nesmie by uvedená do prevádzky, pokia finálne strojné zariadenie, ktorého sa stane sú as ou, nebude vyhlásené ako zhodné s ustanoveniami smernice 2006/42/ES. Delno dokon anega stroja ni dovoljeno dati v obratovanje, dokler se dokon ani stroj, v katerega se vgradi delno dokon ani stroj, ne potrdi kot skladen z dolo bami Direktive 2006/42/ES. La maquinaria parcialmente completada no debe ponerse en servicio hasta que la maquinaria final a la que debe incorporarse cumpla con las provisiones de la Directiva 2006/42/CE. Maskindelarna får ej tas i bruk förrän maskinen som delen tillhör har deklarerats som överensstämmande med föreskrifterna I direktivet 2006/42/EG. Hálfsamsettan vélbúnað má ekki taka í notkun fyrr en vottað hefur verið að endanlegi vélbúnaðurinn sem setja á hann í samræmist ákvæðum tilskipunar 2006/42/EC. Delvis ferdigstilt maskineri skal ikke tas i bruk før det endelige maskineriet som dette skal integreres i, er erklært å være i overensstemmelse med bestemmelsene i direktiv 2006/42/EF. The place and date of the declaration Místo a datum prohlášení Sted og dato for erklæringen Plaats en datum van de verklaring Deklaratsiooni väljastamise koht ja kuupäev Vakuutuksen paikka ja päivämäärä Lieu et date de la déclaration Ort und Datum der Erklärung A nyilatkozat kelte (hely és id ) Luogo e data della dichiarazione Deklar cijas vieta un datums Deklaracijos vieta ir data Il-post u d-data tad-dikjarazzjoni Miejsce i data wydania deklaracji Local e data da declaração Locul i data declara iei Miesto a dátum vyhlásenia Slovenian Lugar y fecha de la declaración Plats och datum för deklarationen Staður og dagsetning yfirlýsingar Sted og dato for erklæringen Ransomes Jacobsen Limited West Road, Ransomes Europark, Ipswich, England, IP3 9TT 4th January 2010 Signature of the person empowered to draw up the declaration on behalf of the manufacturer, holds the technical documentation and is authorised to compile the technical file, and who is established in the Community.,,. Podpis osoby oprávn né sestavit prohlášení jménem výrobce, držet technickou dokumentaci a osoby oprávn né sestavit technické soubory a založené v rámci Evropského spole enství. Underskrift af personen, der har fuldmagt til at udarbejde erklæringen på vegne af producenten, der er indehaver af dokumentationen og er bemyndiget til at udarbejde den tekniske journal, og som er baseret på stedet. Handtekening van de persoon die bevoegd is de verklaring namens de fabrikant te tekenen, de technische documentatie bewaart en bevoegd is om het technische bestand samen te stellen, en die is gevestigd in het Woongebied. Ühenduse registrisse kantud isiku allkiri, kes on volitatud tootja nimel deklaratsiooni koostama, kes omab tehnilist dokumentatsiooni ja kellel on õigus koostada tehniline toimik. Sen henkilön allekirjoitus, jolla on valmistajan valtuutus vakuutuksen laadintaan, jolla on hallussaan tekniset asiakirjat, joka on valtuutettu laatimaan tekniset asiakirjat ja joka on sijoittautunut yhteisöön. Signature de la personne habilitée à rédiger la déclaration au nom du fabricant, à détenir la documentation technique, à compiler les fichiers techniques et qui est implantée dans la Communauté. Unterschrift der Person, die berechtigt ist, die Erklärung im Namen des Herstellers abzugeben, die die technischen Unterlagen aufbewahrt und berechtigt ist, die technischen Unterlagen zusammenzustellen, und die in der Gemeinschaft niedergelassen ist.,. A gyártó nevében meghatalmazott személy, akinek jogában áll módosítania a nyilatkozatot, a m szaki dokumentációt rzi, engedéllyel rendelkezik a m szaki fájl összeállításához és a közösségben letelepedett személy. Firma della persona autorizzata a redigere la dichiarazione a nome del fabbricante, in possesso della documentazione tecnica ed autorizzata a costituire il fascicolo tecnico, che deve essere stabilita nella Comunità. T s personas paraksts, kura ir pilnvarota deklar cijas sast d šanai ražot ja v rd, kurai ir tehnisk dokument cija, kura ir pilnvarota sagatavot tehnisko re istru un kura ir apstiprin ta Kopien. Asmuo, kuris yra gana žinomas, kuriam gamintojas suteik galiojimus sudaryti ši deklaracij, ir kuris j pasiraš, turi vis technin informacij ir yra galiotas sudaryti technin s informacijos dokument. Il-firma tal-persuna awtorizzata li tfassal id-dikjarazzjoni f isem il-fabbrikant, g andha d-dokumentazzjoni teknika u hija awtorizzata li tikkompila l-fajl tekniku u li hija stabbilita fil-komunità. Podpis osoby upowa nionej do sporz dzenia deklaracji w imieniu producenta, przechowuj cej dokumentacj techniczn, upowa nion do stworzenia dokumentacji technicznej oraz wyznaczonej ds. wspólnotowych. Assinatura da pessoa com poderes para emitir a declaração em nome do fabricante, que possui a documentação técnica, que está autorizada a compilar o processo técnico e que está estabelecida na Comunidade. Semn tura persoanei împuternicite s elaboreze declara ia în numele produc torului, care de ine documenta ia tehnic, este autorizat s compileze dosarul tehnic i este stabilit în Comunitate. Podpis osoby poverenej vystavením vyhlásenia v mene výrobcu, ktorá má technickú dokumentáciu a je oprávnená spracova technické podklady a ktorá je umiestnená v Spolo enstve. Podpis osebe, pooblaš ene za izdelavo izjave v imenu proizvajalca, ki ima tehni no dokumentacijo in lahko sestavlja spis tehni ne dokumentacije, ter ima sedež v Skupnosti. Firma de la persona responsable de la declaración en nombre del fabricante, que posee la documentación técnica y está autorizada para recopilar el archivo técnico y que está establecido en la Comunidad. Undertecknas av någon som bemyndigad att upprätta deklarationen å tillverkarens vägnar, innehar den tekniska dokumentationen och är bemyndigad att sammanställa den tekniska informationen och som är etablerad i gemenskapen. Undirskrift aðilans sem hefur umboð til að gera yfirlýsinguna fyrir hönd framleiðandans, hefur undir höndum tæknigögnin og hefur leyfi til að taka saman tækniskýrsluna, og er viðurkenndur innan evrópska efnahagssvæðisins. Signaturen til personen som har fullmakt til å utferdige erklæringen på vegne av produsenten, er i besittelse av den tekniske dokumentasjonen, har autorisasjon til å utarbeide den tekniske filen og som har tilhold i EU. Tim Lansdell Technical Director 4th January 2010 Ransomes Jacobsen Limited West Road, Ransomes Europark, Ipswich, England, IP3 9TT Certificate Number íslo osv d ení Certifikatnummer Certificaatnummer Sertifikaadi number Hyväksyntänumero Numéro de certificat Bescheinigungsnummer Hitelesítési szám Numero del certificato Sertifik ta numurs Sertifikato numeris Numru ta - ertifikat Numer certyfikatu Número do Certificado Num r certificat íslo osved enia Številka certifikata Número de certificado Certifikatsnummer Númer skírteinis Sertifikatnummer G-Plex III-Incorp-r0 en-16

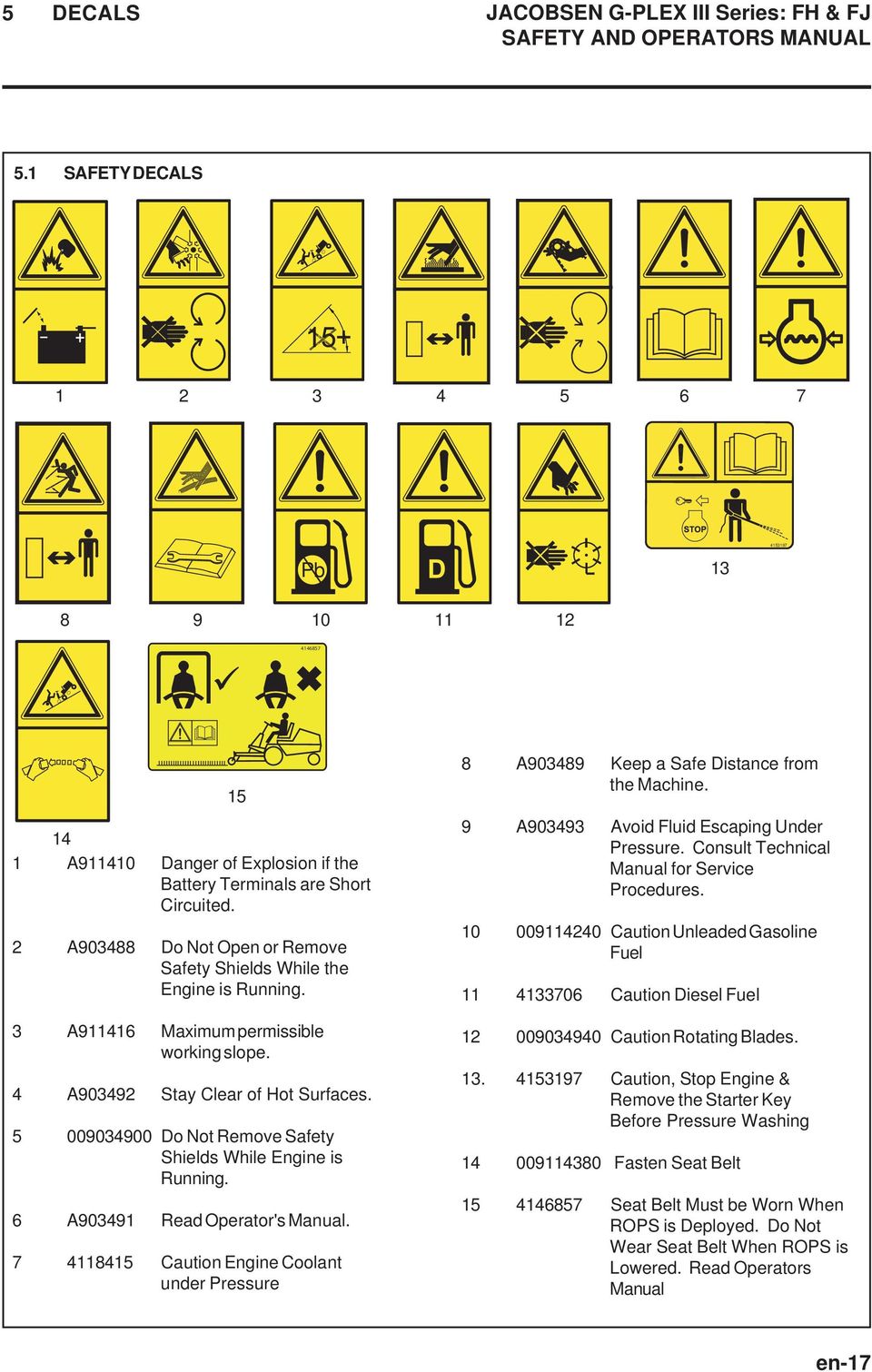

17 5 DECALS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 5.1 SAFETY DECALS Pb A Danger of Explosion if the Battery Terminals are Short Circuited. 2 A Do Not Open or Remove Safety Shields While the Engine is Running. 3 A Maximum permissible working slope. 4 A Stay Clear of Hot Surfaces Do Not Remove Safety Shields While Engine is Running. 6 A Read Operator's Manual Caution Engine Coolant under Pressure 8 A Keep a Safe Distance from the Machine. 9 A Avoid Fluid Escaping Under Pressure. Consult Technical Manual for Service Procedures Caution Unleaded Gasoline Fuel Caution Diesel Fuel Caution Rotating Blades Caution, Stop Engine & Remove the Starter Key Before Pressure Washing Fasten Seat Belt Seat Belt Must be Worn When ROPS is Deployed. Do Not Wear Seat Belt When ROPS is Lowered. Read Operators Manual en-17

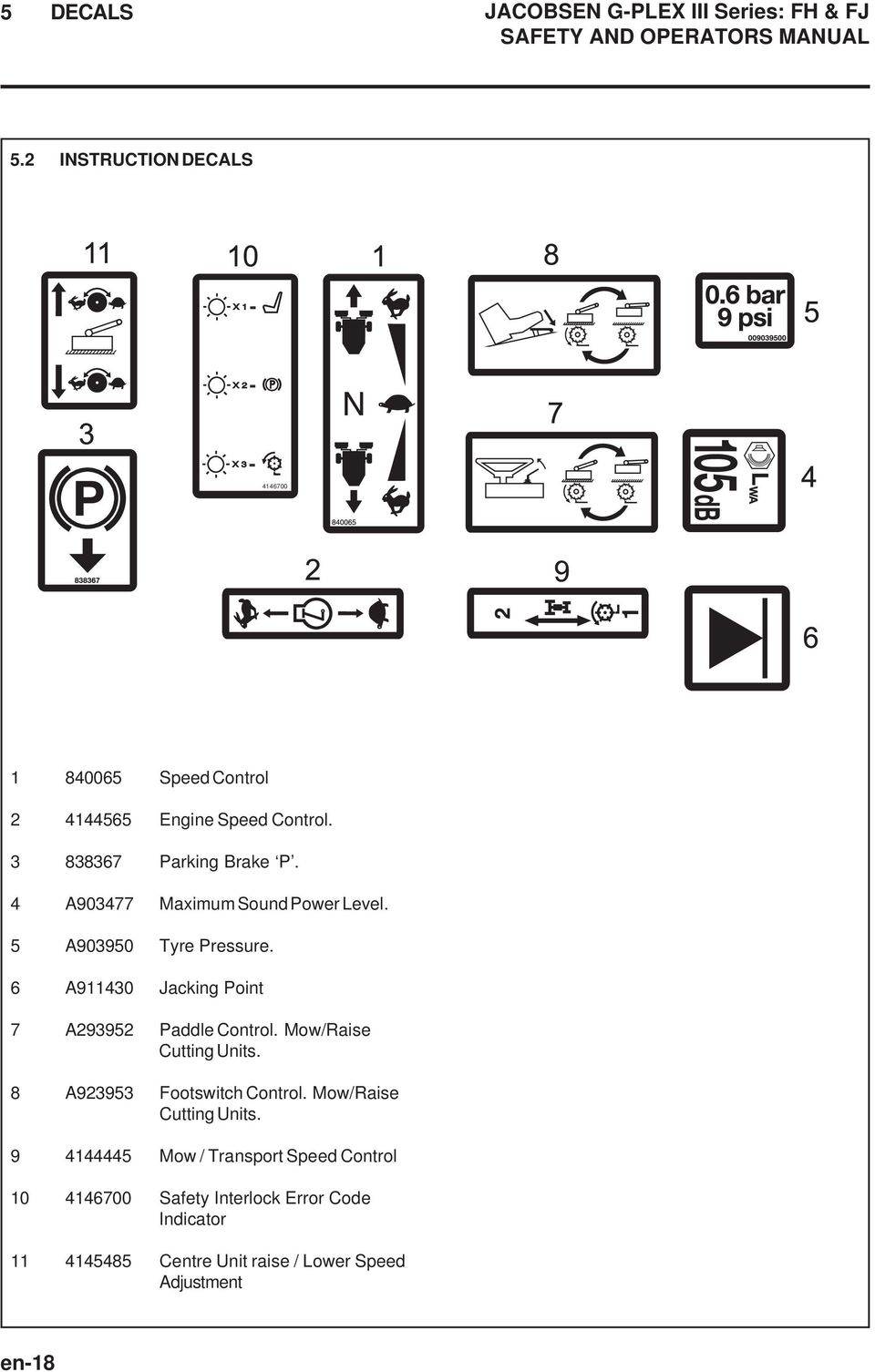

18 5 DECALS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 5.2 INSTRUCTION DECALS X 1 = X 2 = X 3 = Speed Control Engine Speed Control Parking Brake P. 4 A Maximum Sound Power Level. 5 A Tyre Pressure. 6 A Jacking Point 7 A Paddle Control. Mow/Raise Cutting Units. 8 A Footswitch Control. Mow/Raise Cutting Units Mow / Transport Speed Control Safety Interlock Error Code Indicator Centre Unit raise / Lower Speed Adjustment en-18

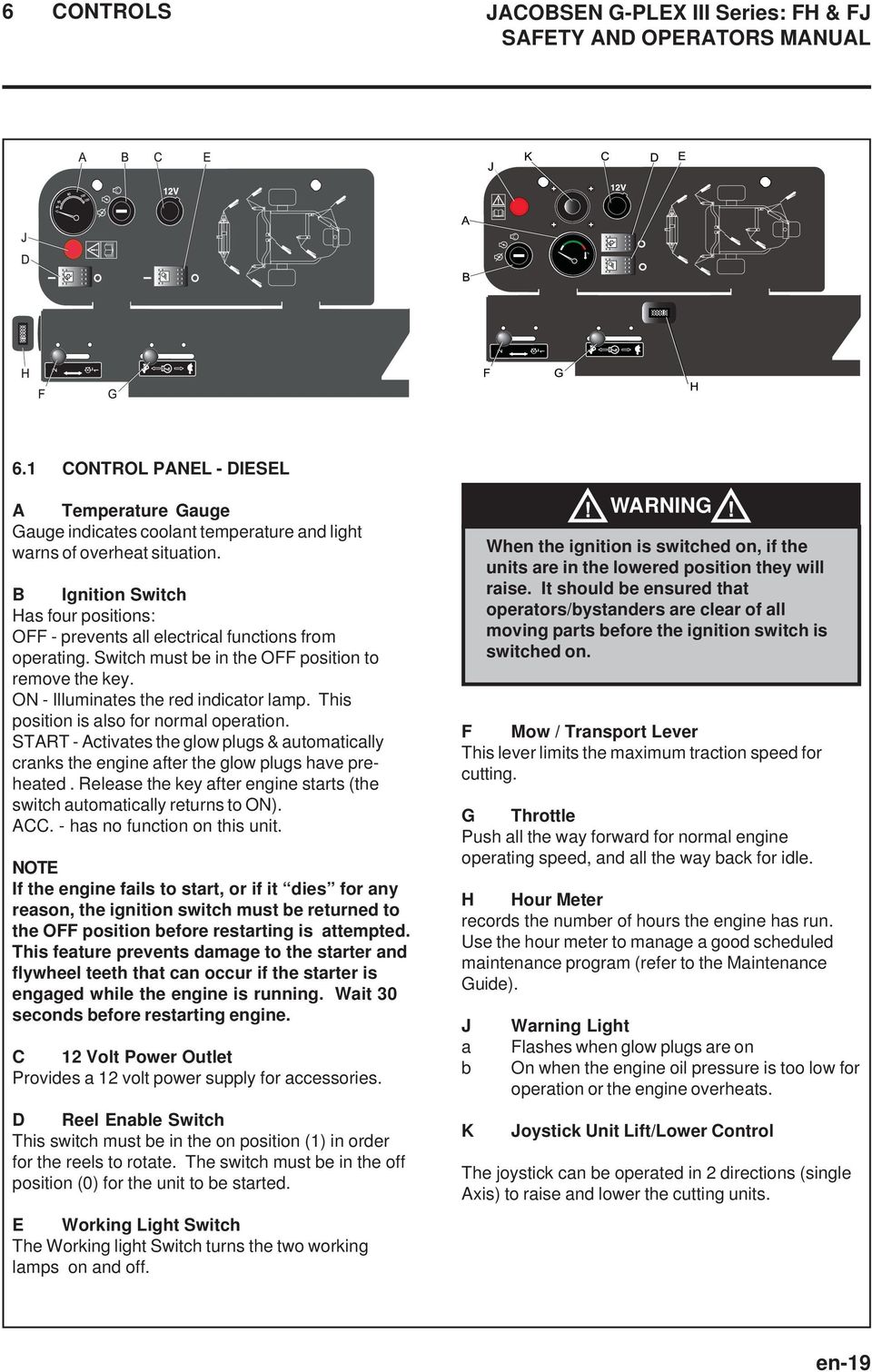

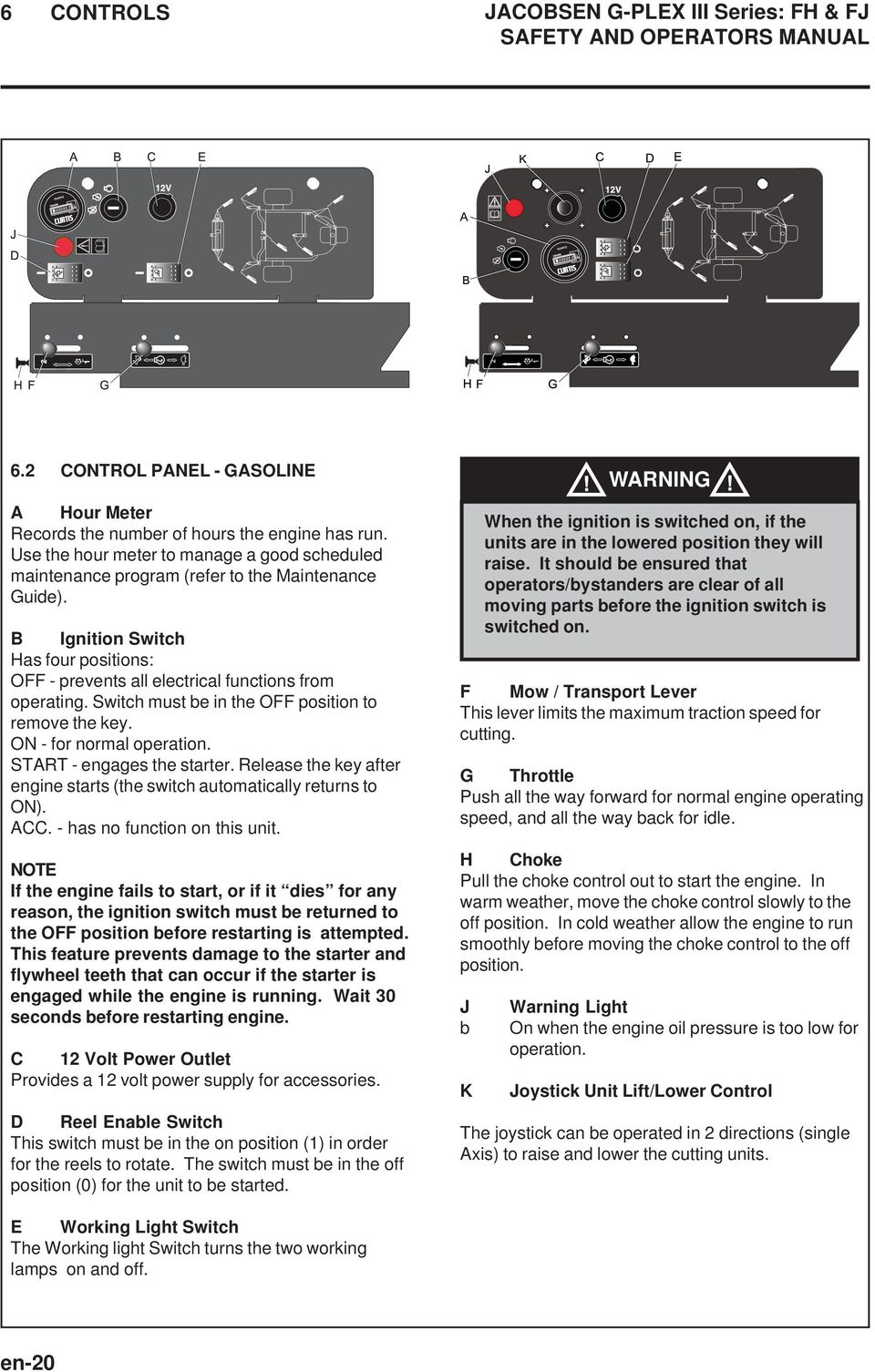

19 6 CONTROLS JACOBSEN G-PLEX III Series: FH & FJ SAFETY AND OPERATORS MANUAL 6.1 CONTROL PANEL - DIESEL A Temperature Gauge Gauge indicates coolant temperature and light warns of overheat situation. B Ignition Switch Has four positions: OFF - prevents all electrical functions from operating. Switch must be in the OFF position to remove the key. ON - Illuminates the red indicator lamp. This position is also for normal operation. START - Activates the glow plugs & automatically cranks the engine after the glow plugs have preheated. Release the key after engine starts (the switch automatically returns to ON). ACC. - has no function on this unit. NOTE If the engine fails to start, or if it dies for any reason, the ignition switch must be returned to the OFF position before restarting is attempted. This feature prevents damage to the starter and flywheel teeth that can occur if the starter is engaged while the engine is running. Wait 30 seconds before restarting engine. C 12 Volt Power Outlet Provides a 12 volt power supply for accessories. D Reel Enable Switch This switch must be in the on position (1) in order for the reels to rotate. The switch must be in the off position (0) for the unit to be started. E Working Light Switch The Working light Switch turns the two working lamps on and off. F Mow / Transport Lever This lever limits the maximum traction speed for cutting. G Throttle Push all the way forward for normal engine operating speed, and all the way back for idle. H Hour Meter records the number of hours the engine has run. Use the hour meter to manage a good scheduled maintenance program (refer to the Maintenance Guide). J a b K WARNING When the ignition is switched on, if the units are in the lowered position they will raise. It should be ensured that operators/bystanders are clear of all moving parts before the ignition switch is switched on. Warning Light Flashes when glow plugs are on On when the engine oil pressure is too low for operation or the engine overheats. Joystick Unit Lift/Lower Control The joystick can be operated in 2 directions (single Axis) to raise and lower the cutting units. en-19
