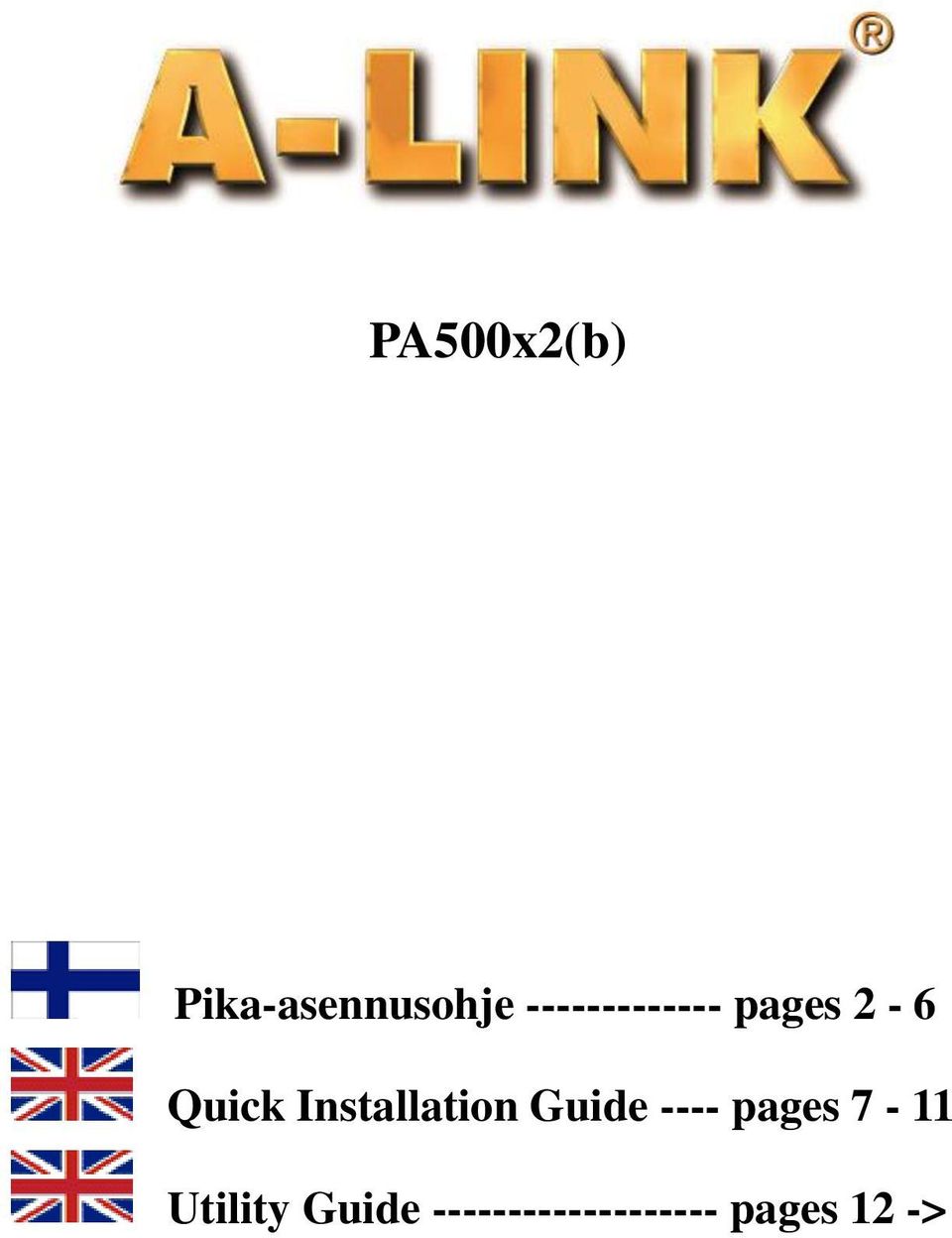

1 PA500x2(b) Pika-asennusohje pages 2-6 Quick Installation Guide ---- pages 7-11 Utility Guide pages 12 ->

2 Pakkaus sisältää: Pika-asennusohje - PA500x2(b) sovitin - 2x RJ-45 kaapeli (Verkko) - Asennusohje - Ohjelmisto CD Liittimet / Portit: 1. Security/Reset -painike: Tällä painikkeella voit tehdä pariliitoksen toisen sovittimen kanssa (paina 2 sek.) tai palauttaa tehdasoletukset (paina 10 sek.). 2. Virtapistoke: Liitä virtapistoke seinään sähkörasiaan. 3. LAN portti: Liitä tähän porttiin tietokone/modeemi/iptv verkkokaapelilla. Asennusvaatimukset: - Pidä tuote kaukana lämpöä tuottavista laitteista - Älä sijoita tuotetta pölyiseen tai kosteaan paikkaan 2

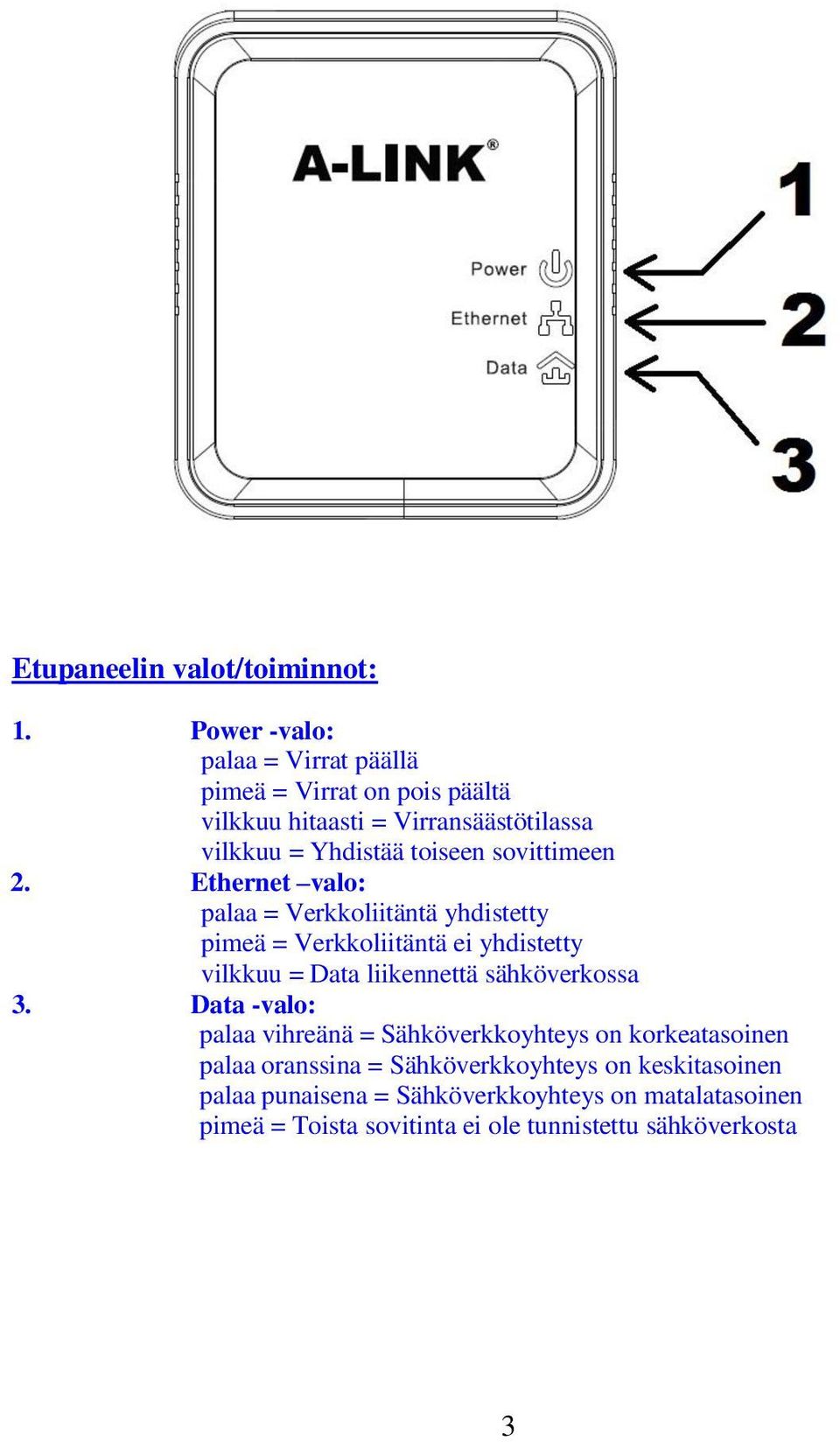

3 Etupaneelin valot/toiminnot: 1. Power -valo: palaa = Virrat päällä pimeä = Virrat on pois päältä vilkkuu hitaasti = Virransäästötilassa vilkkuu = Yhdistää toiseen sovittimeen 2. Ethernet valo: palaa = Verkkoliitäntä yhdistetty pimeä = Verkkoliitäntä ei yhdistetty vilkkuu = Data liikennettä sähköverkossa 3. Data -valo: palaa vihreänä = Sähköverkkoyhteys on korkeatasoinen palaa oranssina = Sähköverkkoyhteys on keskitasoinen palaa punaisena = Sähköverkkoyhteys on matalatasoinen pimeä = Toista sovitinta ei ole tunnistettu sähköverkosta 3

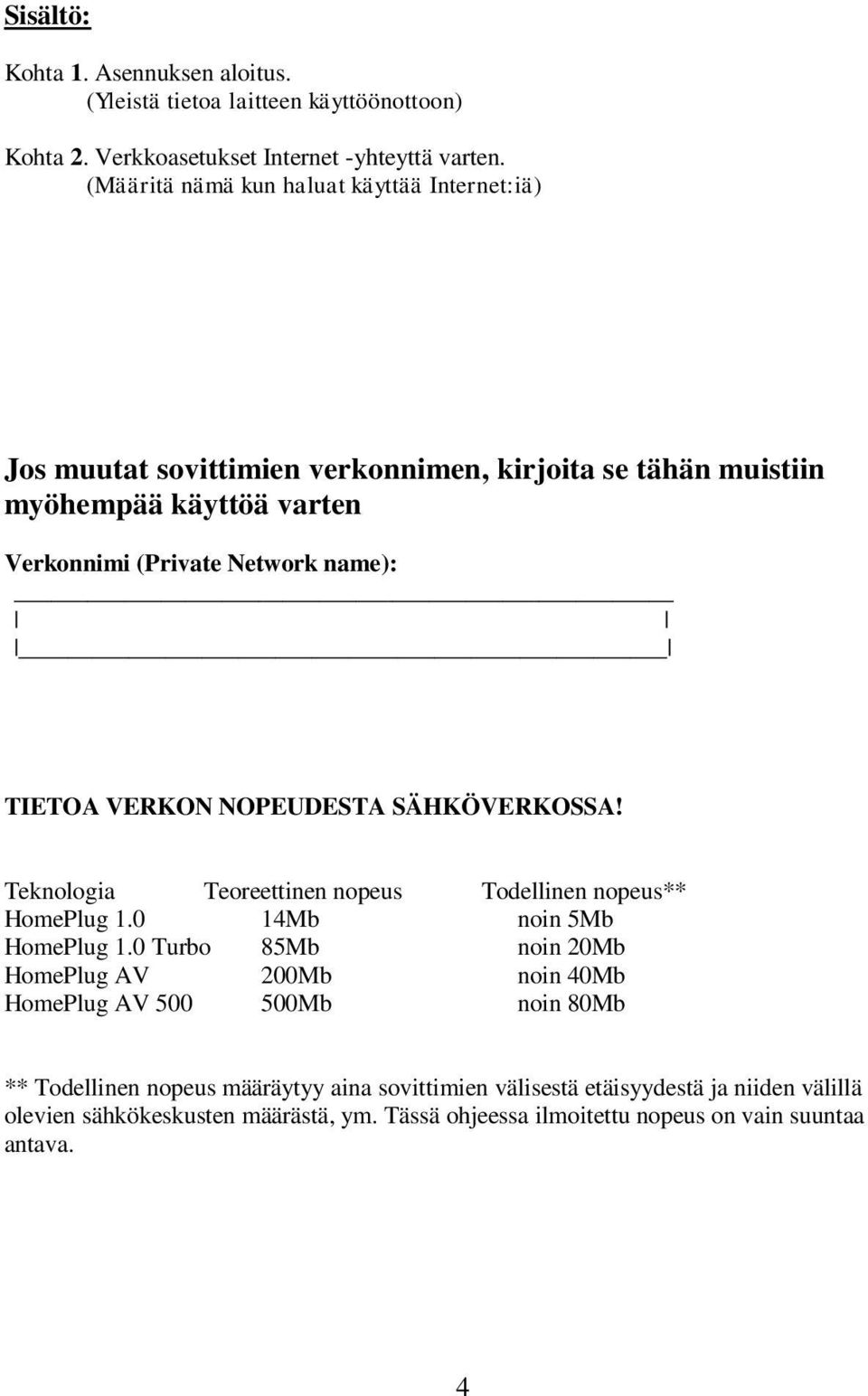

4 Sisältö: Kohta 1. Asennuksen aloitus. (Yleistä tietoa laitteen käyttöönottoon) Kohta 2. Verkkoasetukset Internet -yhteyttä varten. (Määritä nämä kun haluat käyttää Internet:iä) Jos muutat sovittimien verkonnimen, kirjoita se tähän muistiin myöhempää käyttöä varten Verkonnimi (Private Network name): TIETOA VERKON NOPEUDESTA SÄHKÖVERKOSSA! Teknologia Teoreettinen nopeus Todellinen nopeus** HomePlug Mb noin 5Mb HomePlug 1.0 Turbo 85Mb noin 20Mb HomePlug AV 200Mb noin 40Mb HomePlug AV Mb noin 80Mb ** Todellinen nopeus määräytyy aina sovittimien välisestä etäisyydestä ja niiden välillä olevien sähkökeskusten määrästä, ym. Tässä ohjeessa ilmoitettu nopeus on vain suuntaa antava. 4

5 1. Asennuksen aloitus (Yleistä tietoa laitteen käyttöönottoon) Tehdasoletuksena PA500x2(b) sovittimilla on alla luetellut asetukset: Network name = PLC30xxxx (xxxx=numerosarja joka sama sovitinparilla) Encryption = AES 128bit PA500x2(b) sovittimet ovat oletuksena määritetty pariksi ja yhteys sovittimien välillä on salattu. Sovittimet toimivat siltana verkkojen välissä. Kohdassa 2 on ohjeet tietokoneen IP osoitteiden määrittämisestä Internet yhteyttä varten. Laajennettu verkko Jos haluat laajentaa verkkoasi ja käyttää useampaa kuin kahta sovitinta, voit yhdistää uuden sovittimen valmiiksi salattuun yhteyteen sovittimen pohjassa olevalla Security painikkeella. Paina ensin 2 sekuntia uudesta sovittimesta ja tämän jälkeen 2 sekuntia toisesta olemassa olevasta sovittimesta. Kun uuden sovittimen Powerline valo palaa, on uusi sovitin liittynyt samaan verkkoon muiden sovittimien kanssa. Verkon laajennuksen voi myös tehdä PowerPacketUtility ohjelmiston avulla. Asenna ensin PowerPacketUtility ohjelma mukana tulleelta CD:ltä jonka jälkeen aseta jokaiseen sovittimeen sama verkonnimi Private Network Name. Tarkemmat ohjeet löydät Utility Guide ohjeesta. Tehdasasetusten palautus: Tarvittaessa tehdasasetukset palautetaan painamalla noin 10 sekuntia Reset -painiketta sovittimen pohjasta virran ollessa päällä. Kaikki oikeudet muutoksiin pidätetään 5

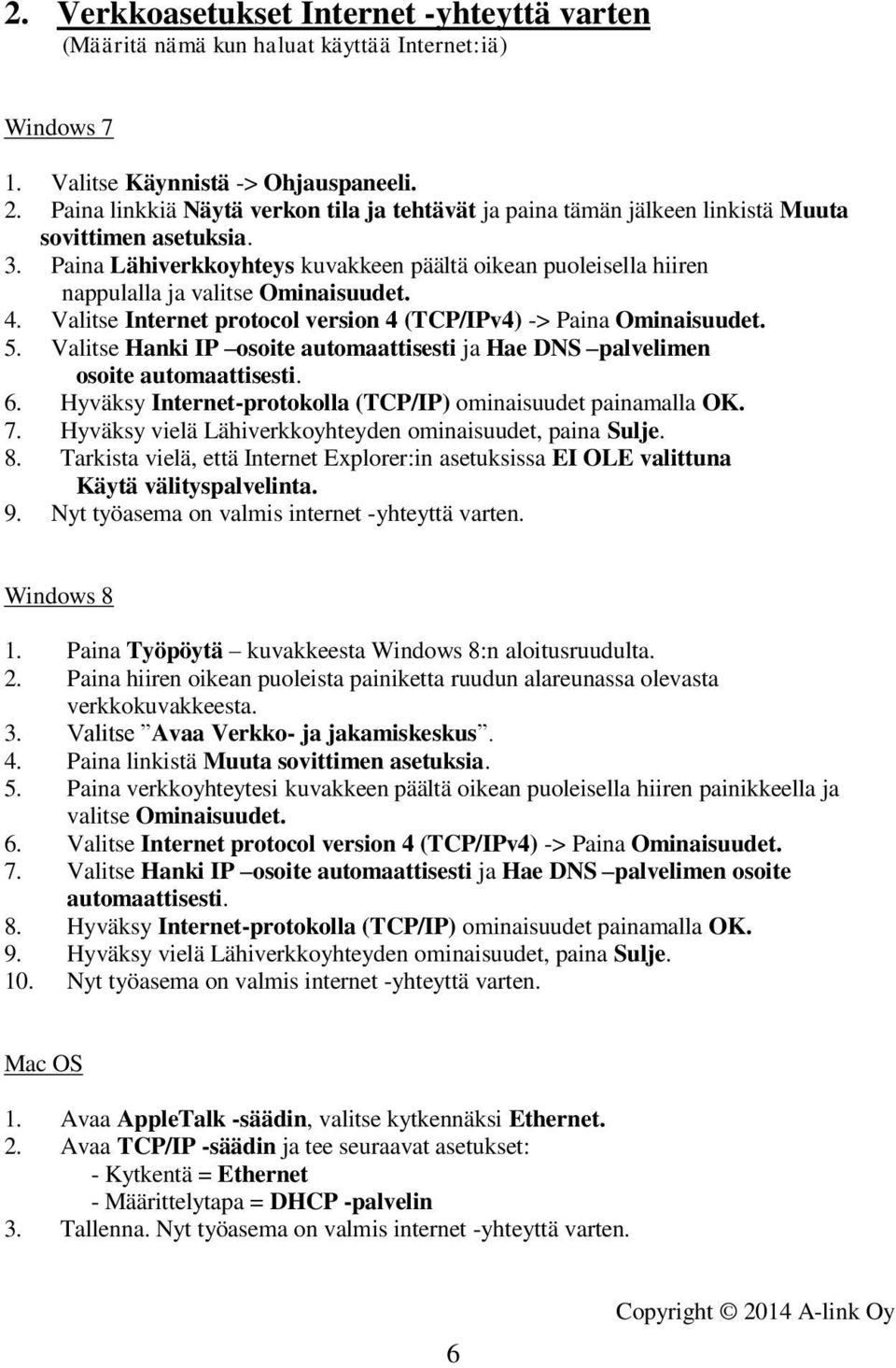

6 2. Verkkoasetukset Internet -yhteyttä varten (Määritä nämä kun haluat käyttää Internet:iä) Windows 7 1. Valitse Käynnistä -> Ohjauspaneeli. 2. Paina linkkiä Näytä verkon tila ja tehtävät ja paina tämän jälkeen linkistä Muuta sovittimen asetuksia. 3. Paina Lähiverkkoyhteys kuvakkeen päältä oikean puoleisella hiiren nappulalla ja valitse Ominaisuudet. 4. Valitse Internet protocol version 4 (TCP/IPv4) -> Paina Ominaisuudet. 5. Valitse Hanki IP osoite automaattisesti ja Hae DNS palvelimen osoite automaattisesti. 6. Hyväksy Internet-protokolla (TCP/IP) ominaisuudet painamalla OK. 7. Hyväksy vielä Lähiverkkoyhteyden ominaisuudet, paina Sulje. 8. Tarkista vielä, että Internet Explorer:in asetuksissa EI OLE valittuna Käytä välityspalvelinta. 9. Nyt työasema on valmis internet -yhteyttä varten. Windows 8 1. Paina Työpöytä kuvakkeesta Windows 8:n aloitusruudulta. 2. Paina hiiren oikean puoleista painiketta ruudun alareunassa olevasta verkkokuvakkeesta. 3. Valitse Avaa Verkko- ja jakamiskeskus. 4. Paina linkistä Muuta sovittimen asetuksia. 5. Paina verkkoyhteytesi kuvakkeen päältä oikean puoleisella hiiren painikkeella ja valitse Ominaisuudet. 6. Valitse Internet protocol version 4 (TCP/IPv4) -> Paina Ominaisuudet. 7. Valitse Hanki IP osoite automaattisesti ja Hae DNS palvelimen osoite automaattisesti. 8. Hyväksy Internet-protokolla (TCP/IP) ominaisuudet painamalla OK. 9. Hyväksy vielä Lähiverkkoyhteyden ominaisuudet, paina Sulje. 10. Nyt työasema on valmis internet -yhteyttä varten. Mac OS 1. Avaa AppleTalk -säädin, valitse kytkennäksi Ethernet. 2. Avaa TCP/IP -säädin ja tee seuraavat asetukset: - Kytkentä = Ethernet - Määrittelytapa = DHCP -palvelin 3. Tallenna. Nyt työasema on valmis internet -yhteyttä varten. 6 Copyright 2014 A-link Oy

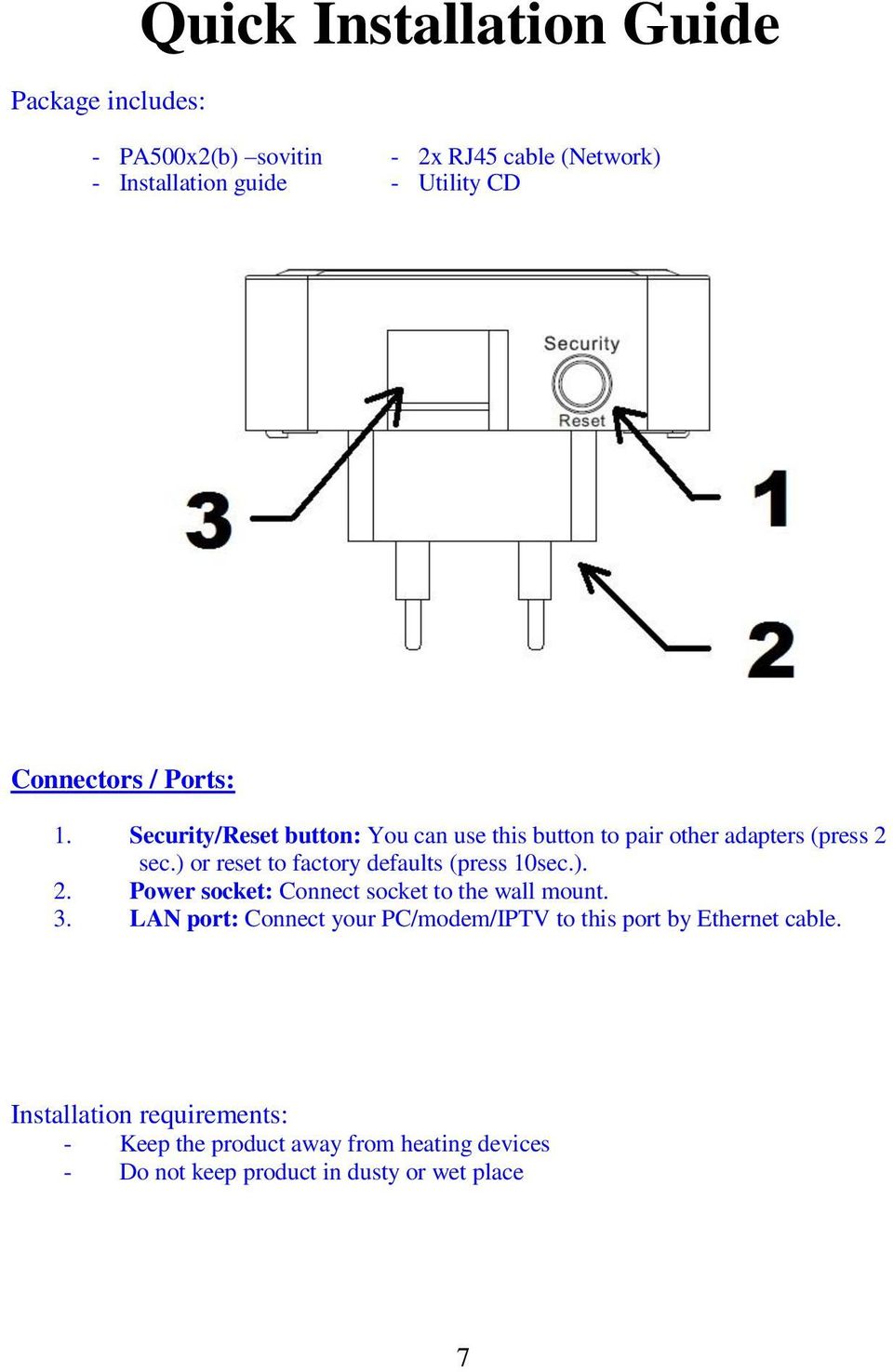

7 Package includes: Quick Installation Guide - PA500x2(b) sovitin - 2x RJ45 cable (Network) - Installation guide - Utility CD Connectors / Ports: 1. Security/Reset button: You can use this button to pair other adapters (press 2 sec.) or reset to factory defaults (press 10sec.). 2. Power socket: Connect socket to the wall mount. 3. LAN port: Connect your PC/modem/IPTV to this port by Ethernet cable. Installation requirements: - Keep the product away from heating devices - Do not keep product in dusty or wet place 7

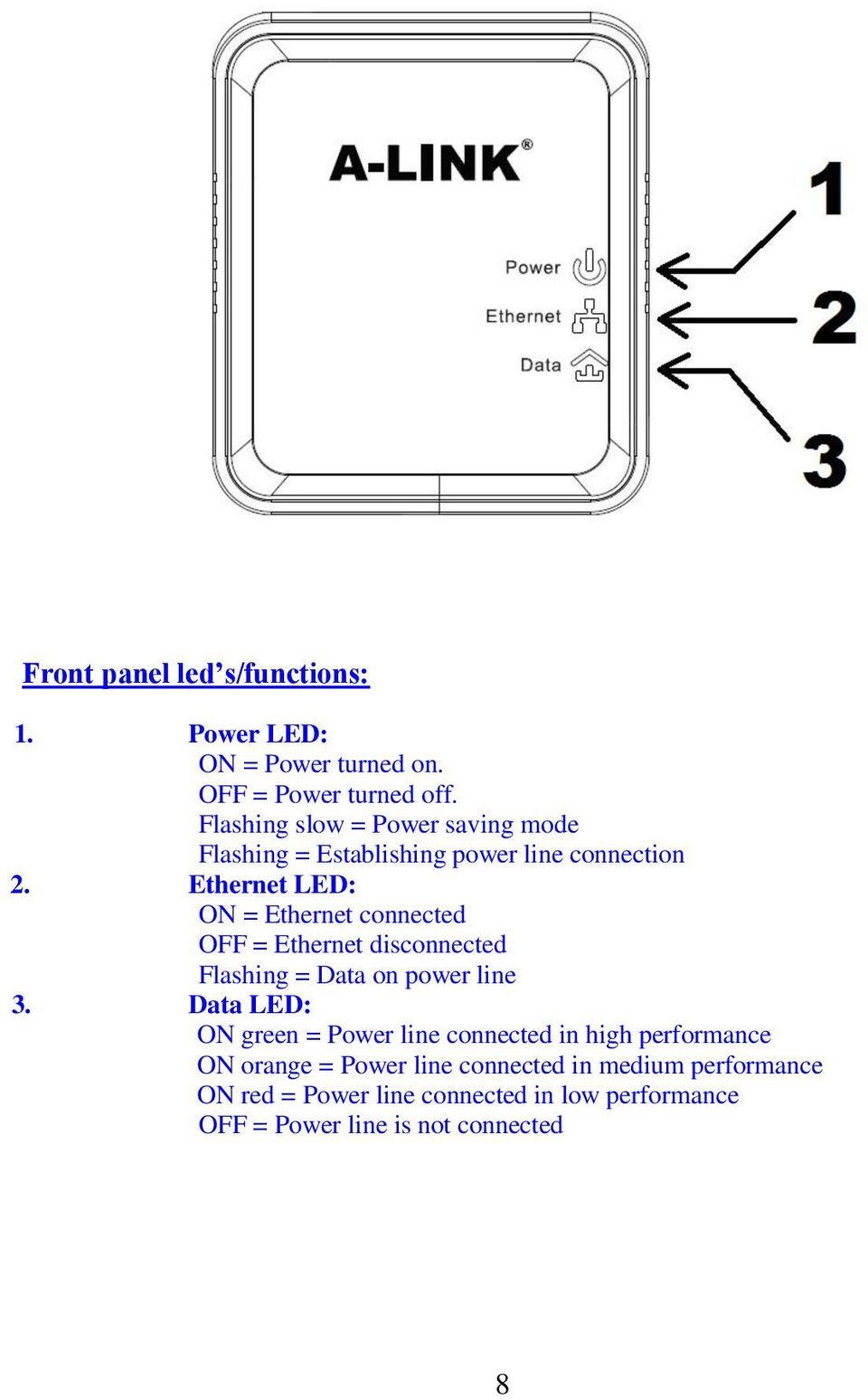

8 Front panel led s/functions: 1. Power LED: ON = Power turned on. OFF = Power turned off. Flashing slow = Power saving mode Flashing = Establishing power line connection 2. Ethernet LED: ON = Ethernet connected OFF = Ethernet disconnected Flashing = Data on power line 3. Data LED: ON green = Power line connected in high performance ON orange = Power line connected in medium performance ON red = Power line connected in low performance OFF = Power line is not connected 8

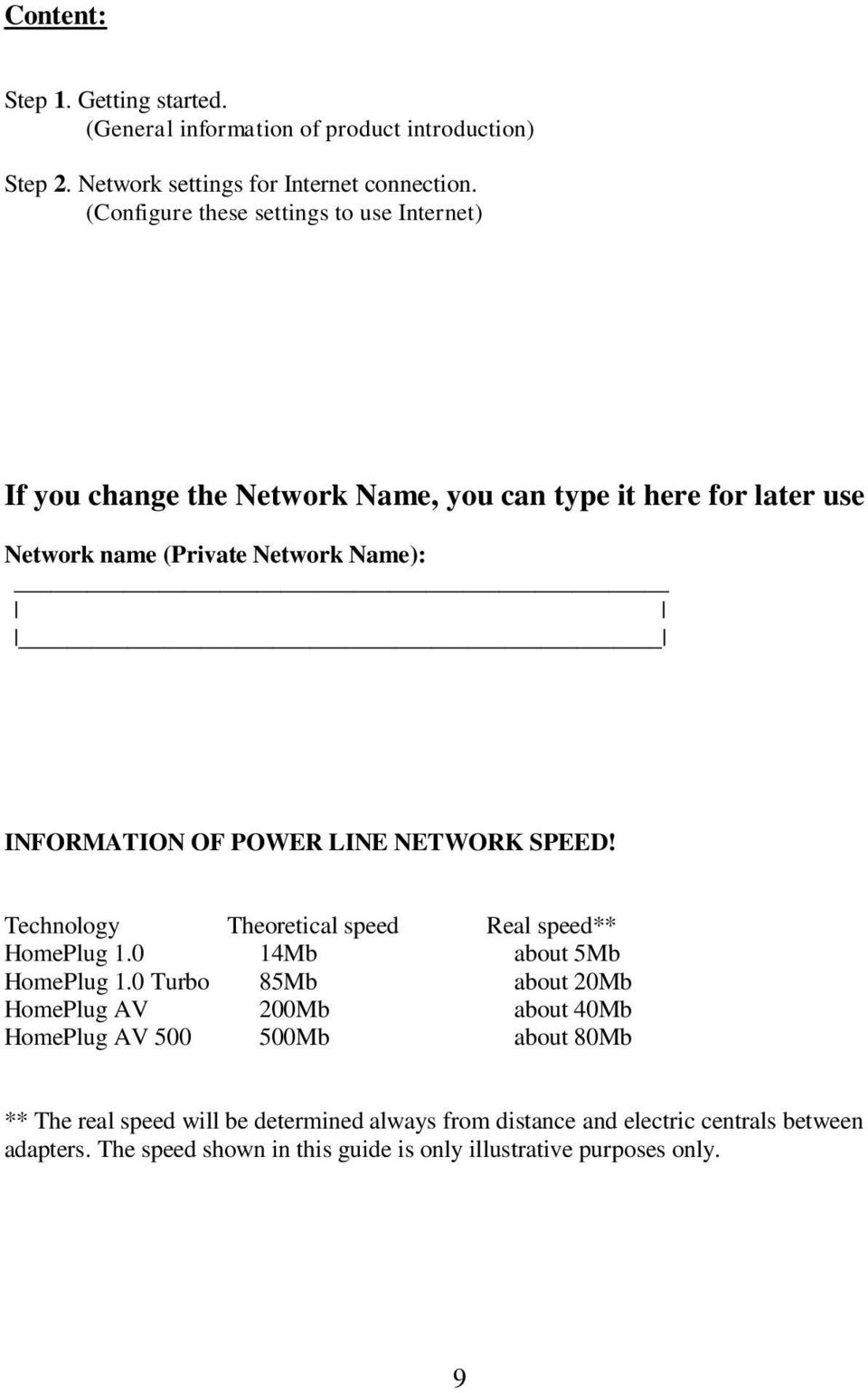

9 Content: Step 1. Getting started. (General information of product introduction) Step 2. Network settings for Internet connection. (Configure these settings to use Internet) If you change the Network Name, you can type it here for later use Network name (Private Network Name): INFORMATION OF POWER LINE NETWORK SPEED! Technology Theoretical speed Real speed** HomePlug Mb about 5Mb HomePlug 1.0 Turbo 85Mb about 20Mb HomePlug AV 200Mb about 40Mb HomePlug AV Mb about 80Mb ** The real speed will be determined always from distance and electric centrals between adapters. The speed shown in this guide is only illustrative purposes only. 9

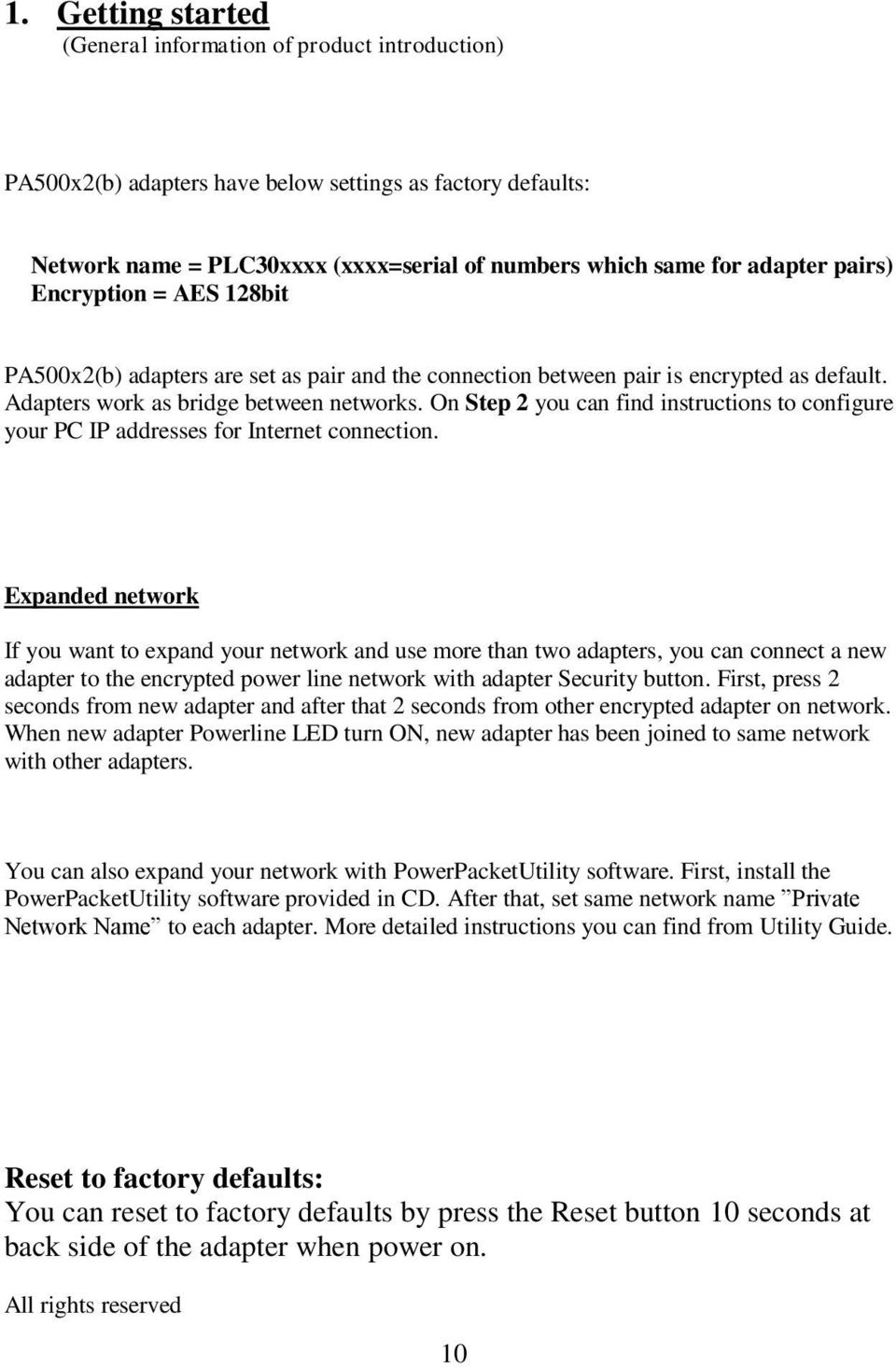

10 1. Getting started (General information of product introduction) PA500x2(b) adapters have below settings as factory defaults: Network name = PLC30xxxx (xxxx=serial of numbers which same for adapter pairs) Encryption = AES 128bit PA500x2(b) adapters are set as pair and the connection between pair is encrypted as default. Adapters work as bridge between networks. On Step 2 you can find instructions to configure your PC IP addresses for Internet connection. Expanded network If you want to expand your network and use more than two adapters, you can connect a new adapter to the encrypted power line network with adapter Security button. First, press 2 seconds from new adapter and after that 2 seconds from other encrypted adapter on network. When new adapter Powerline LED turn ON, new adapter has been joined to same network with other adapters. You can also expand your network with PowerPacketUtility software. First, install the PowerPacketUtility software provided in CD. After that, set same network name Private Network Name to each adapter. More detailed instructions you can find from Utility Guide. Reset to factory defaults: You can reset to factory defaults by press the Reset button 10 seconds at back side of the adapter when power on. All rights reserved 10

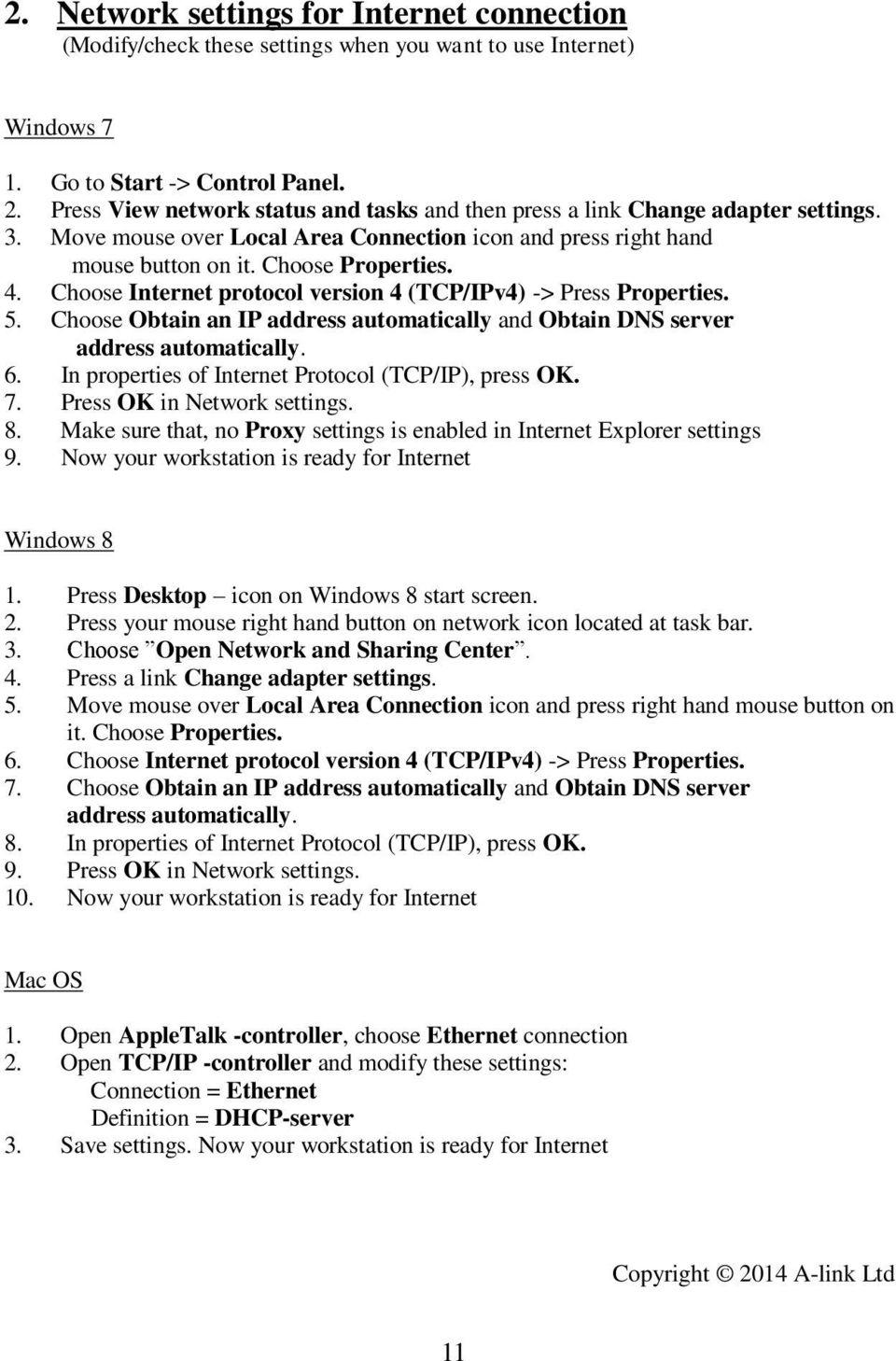

11 2. Network settings for Internet connection (Modify/check these settings when you want to use Internet) Windows 7 1. Go to Start -> Control Panel. 2. Press View network status and tasks and then press a link Change adapter settings. 3. Move mouse over Local Area Connection icon and press right hand mouse button on it. Choose Properties. 4. Choose Internet protocol version 4 (TCP/IPv4) -> Press Properties. 5. Choose Obtain an IP address automatically and Obtain DNS server address automatically. 6. In properties of Internet Protocol (TCP/IP), press OK. 7. Press OK in Network settings. 8. Make sure that, no Proxy settings is enabled in Internet Explorer settings 9. Now your workstation is ready for Internet Windows 8 1. Press Desktop icon on Windows 8 start screen. 2. Press your mouse right hand button on network icon located at task bar. 3. Choose Open Network and Sharing Center. 4. Press a link Change adapter settings. 5. Move mouse over Local Area Connection icon and press right hand mouse button on it. Choose Properties. 6. Choose Internet protocol version 4 (TCP/IPv4) -> Press Properties. 7. Choose Obtain an IP address automatically and Obtain DNS server address automatically. 8. In properties of Internet Protocol (TCP/IP), press OK. 9. Press OK in Network settings. 10. Now your workstation is ready for Internet Mac OS 1. Open AppleTalk -controller, choose Ethernet connection 2. Open TCP/IP -controller and modify these settings: Connection = Ethernet Definition = DHCP-server 3. Save settings. Now your workstation is ready for Internet Copyright 2014 A-link Ltd 11

12 PA500x2(b) Utility Guide VER:

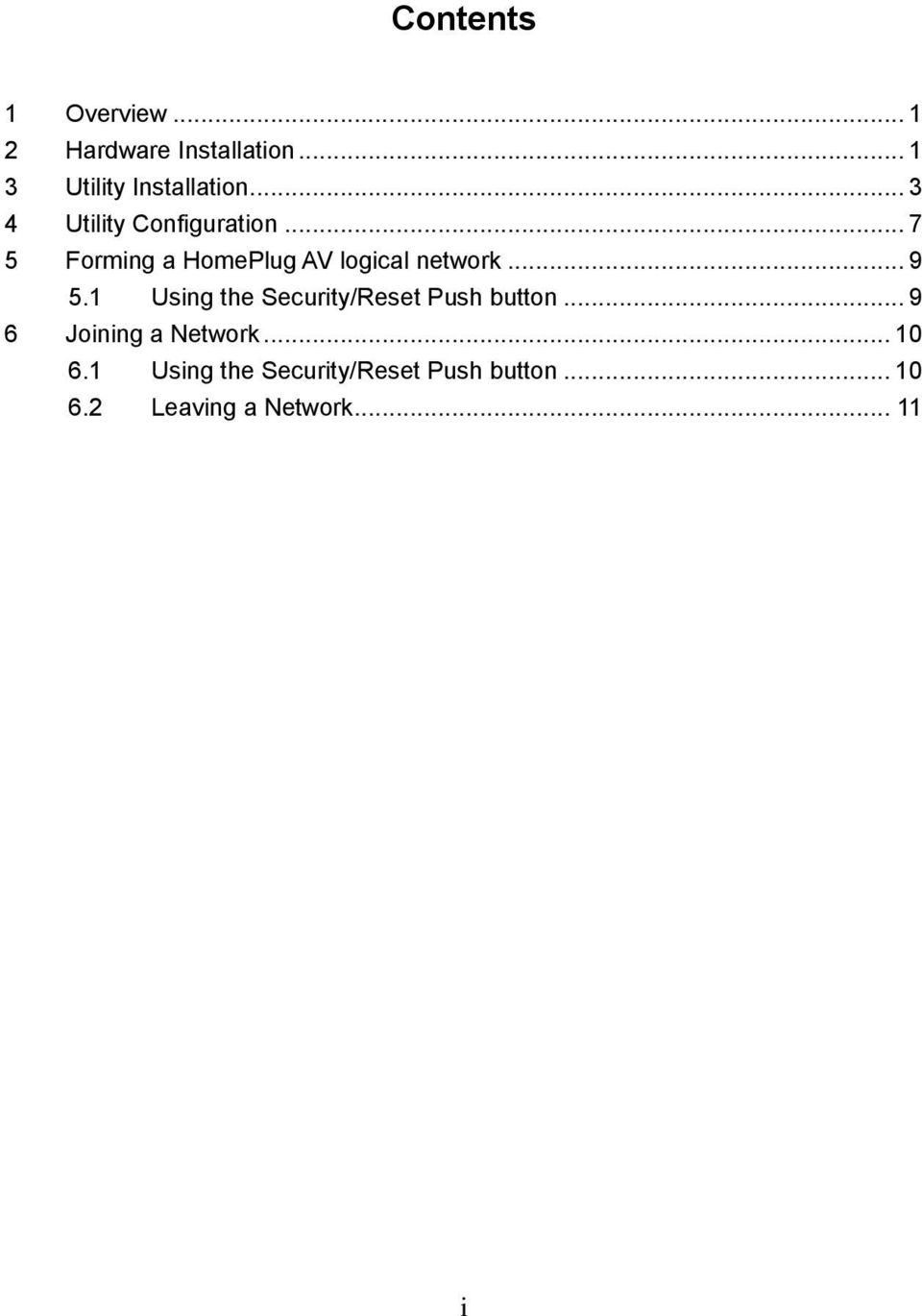

13 Contents 1 Overview Hardware Installation Utility Installation Utility Configuration Forming a HomePlug AV logical network Using the Security/Reset Push button Joining a Network Using the Security/Reset Push button Leaving a Network i

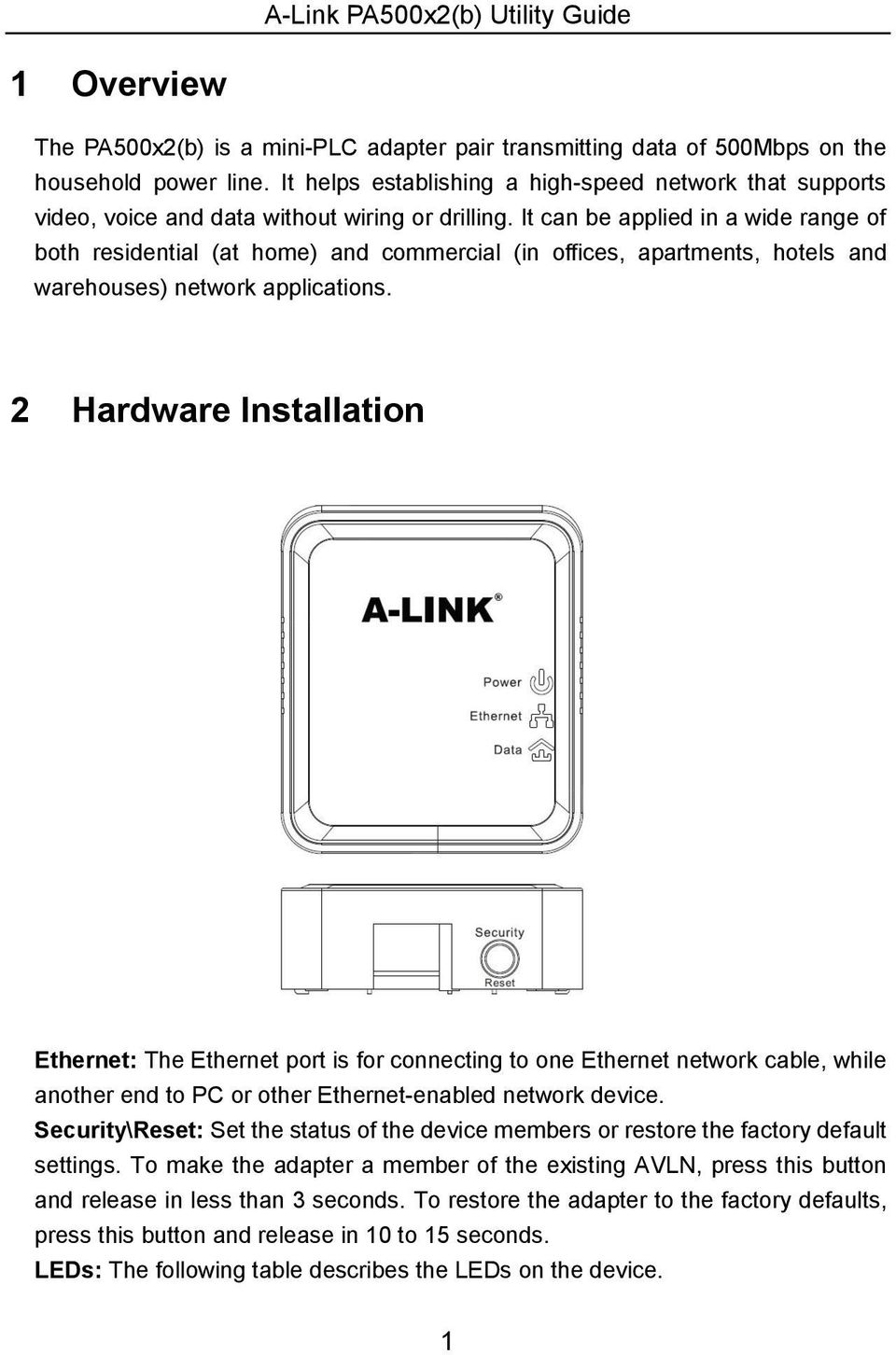

14 A-Link PA500x2(b) Utility Guide 1 Overview The PA500x2(b) is a mini-plc adapter pair transmitting data of 500Mbps on the household power line. It helps establishing a high-speed network that supports video, voice and data without wiring or drilling. It can be applied in a wide range of both residential (at home) and commercial (in offices, apartments, hotels and warehouses) network applications. 2 Hardware Installation Ethernet: The Ethernet port is for connecting to one Ethernet network cable, while another end to PC or other Ethernet-enabled network device. Security\Reset: Set the status of the device members or restore the factory default settings. To make the adapter a member of the existing AVLN, press this button and release in less than 3 seconds. To restore the adapter to the factory defaults, press this button and release in 10 to 15 seconds. LEDs: The following table describes the LEDs on the device. 1

15 A-Link PA500x2(b) Utility Guide LED Color Status Description The device is under process of Simple Connect Button (0.5s Blinking ON/0.5s OFF). Slow Blinking The device is under power saving mode (2s ON/ 2s OFF). Power Solid Green The device is power on. Green Off The device is power off. The Power Line link is established and data transmission on high Solid performance (Rx PHY Green Rate>50Mbps). The link is established and data transmission on medium Data Green/Orange/Red Solid performance (Rx PHY Rate: Orange 30~50Mbps). The Power Line link is established and data is transmitting on low Solid performance (Rx PHY Red Rate<30Mbps). The Power Line is not connected or Light off the Ethernet connection is down. The Ethernet connection is Ethernet Green Green established. No Ethernet connection is Off established. Note: When data is being transmitted, the Data indicator keeps on without blinking. 2

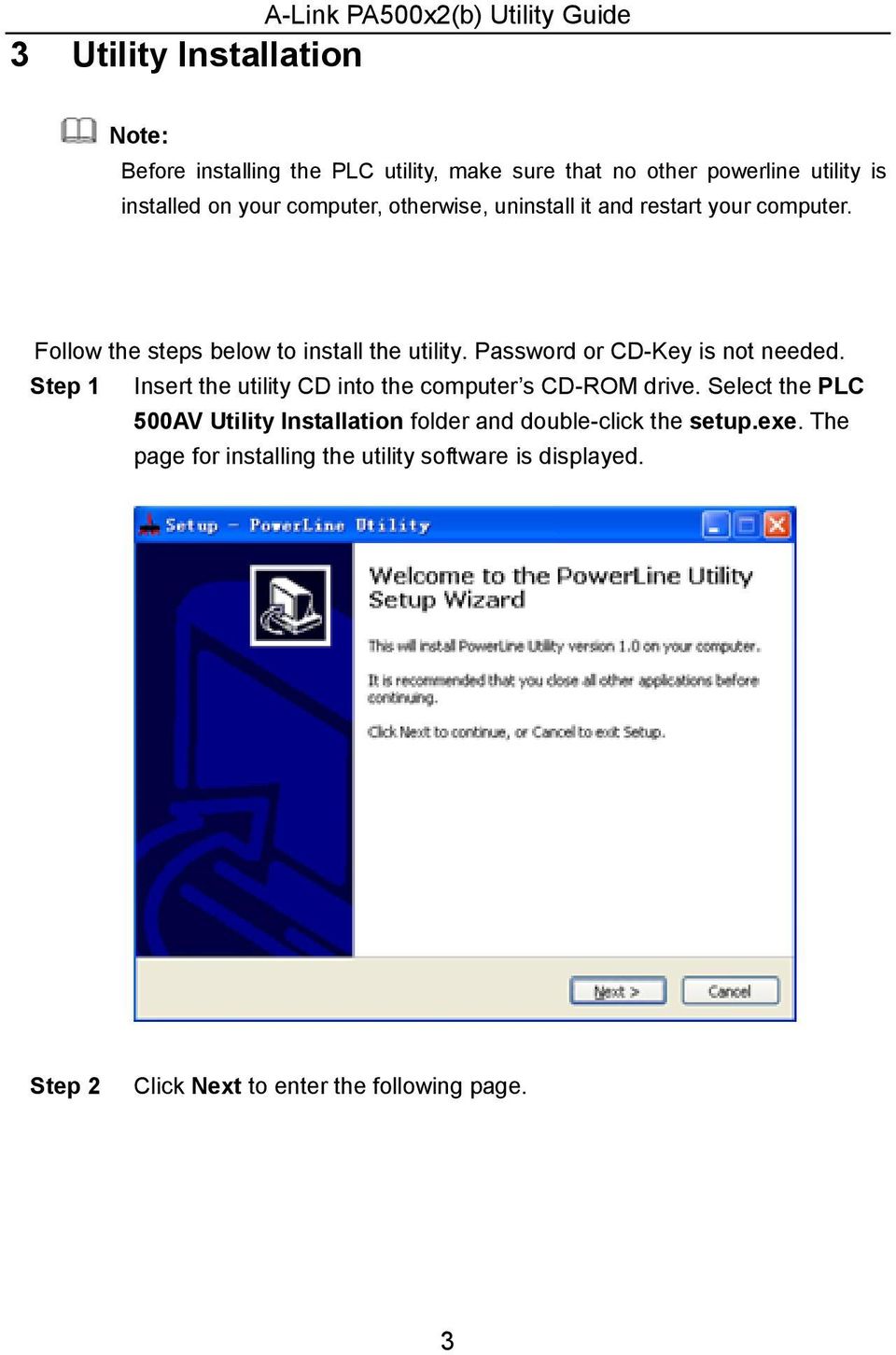

16 3 Utility Installation A-Link PA500x2(b) Utility Guide Note: Before installing the PLC utility, make sure that no other powerline utility is installed on your computer, otherwise, uninstall it and restart your computer. Follow the steps below to install the utility. Password or CD-Key is not needed. Step 1 Insert the utility CD into the computer s CD-ROM drive. Select the PLC 500AV Utility Installation folder and double-click the setup.exe. The page for installing the utility software is displayed. Step 2 Click Next to enter the following page. 3

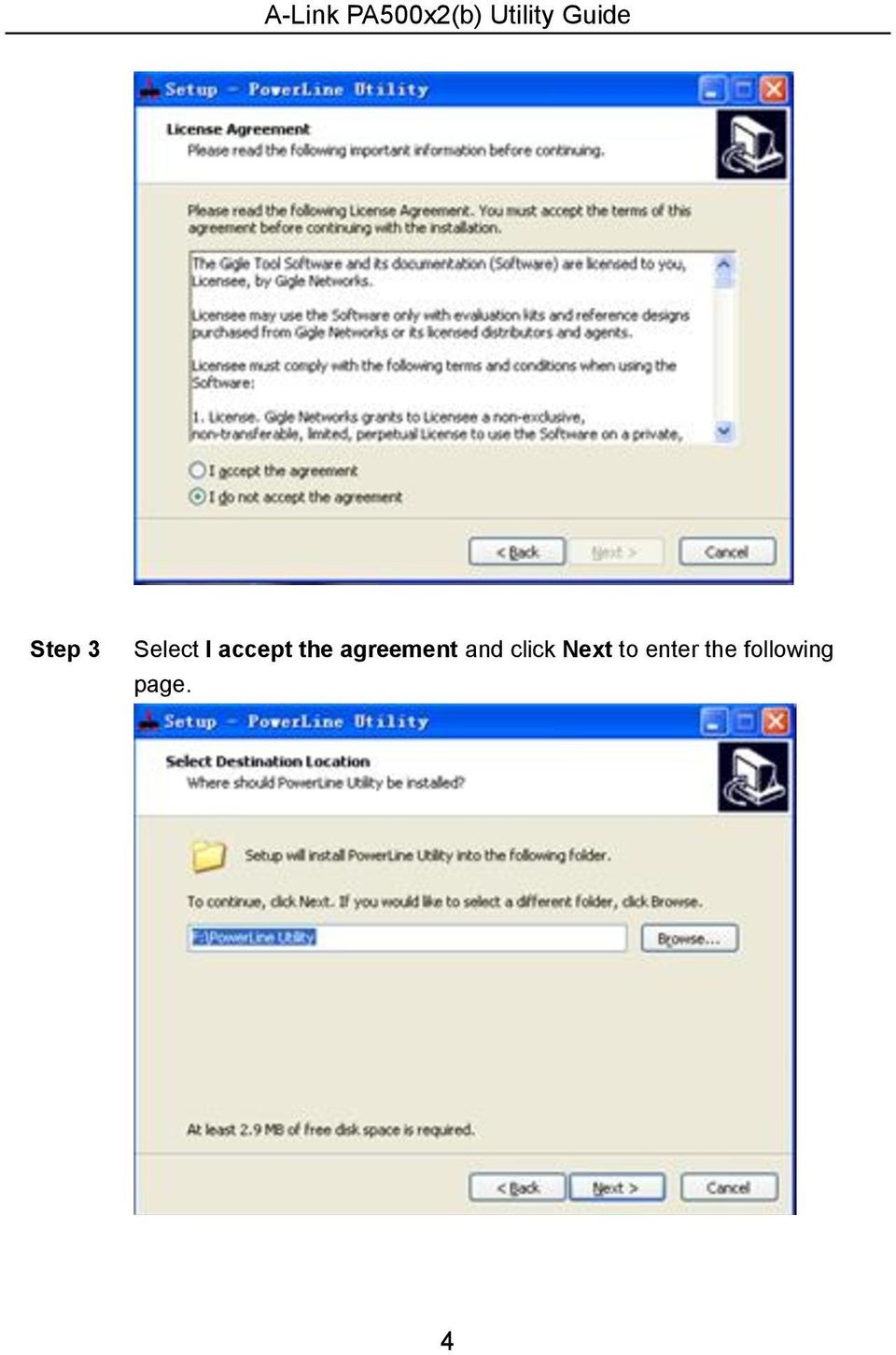

17 A-Link PA500x2(b) Utility Guide Step 3 Select I accept the agreement and click Next to enter the following page. 4

18 Step 4 A-Link PA500x2(b) Utility Guide Click Browse to select an installation folder and click Next. Step 5 Click Next to display the following page. Step 6 You may choose Create a desktop icon or create a Quick Launch icon, or choose both. Click Next to enter the following page 5

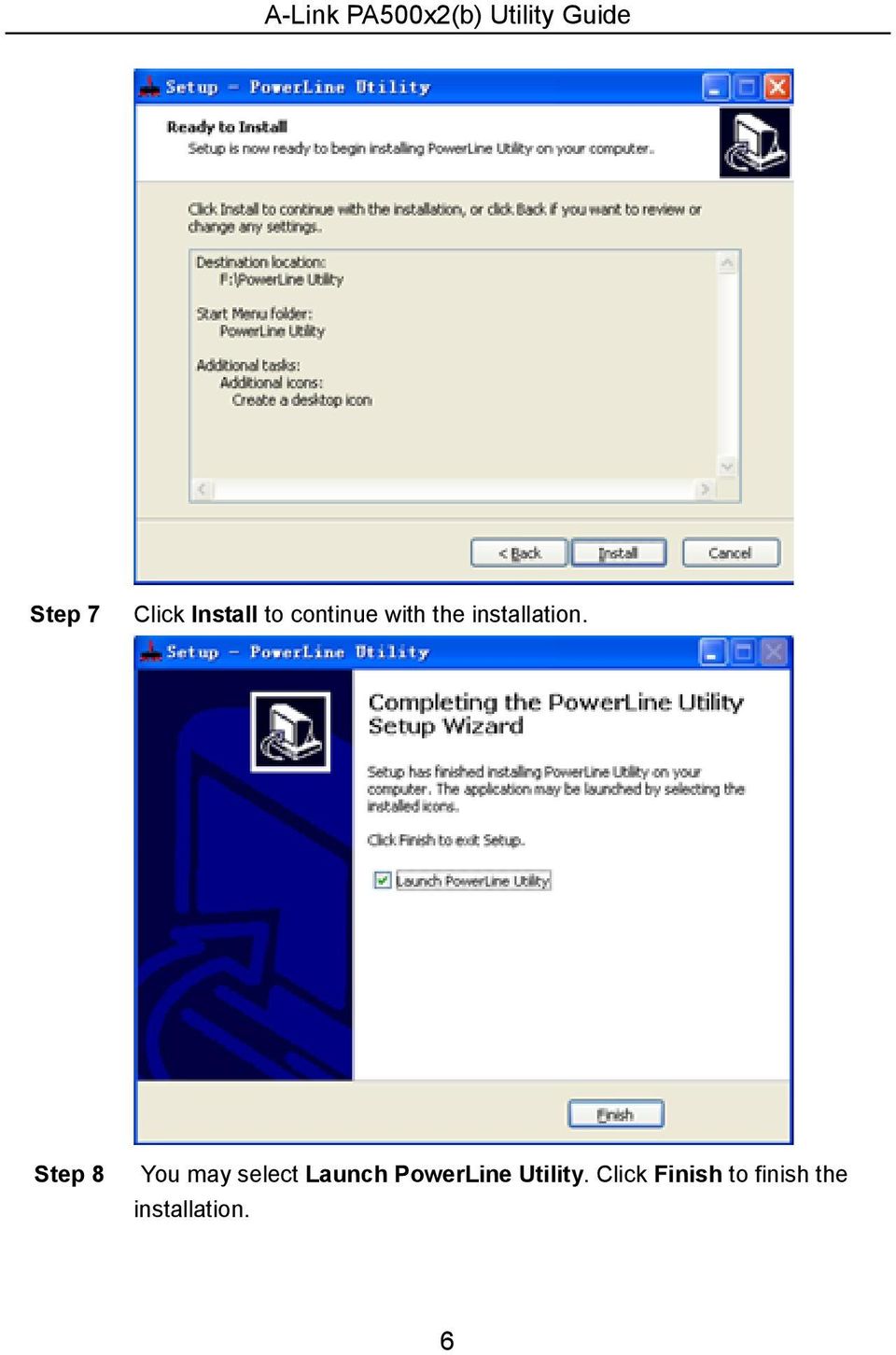

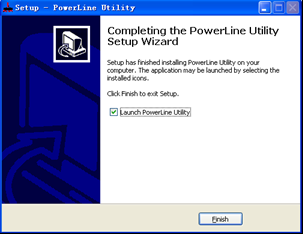

19 A-Link PA500x2(b) Utility Guide Step 7 Click Install to continue with the installation. Step 8 You may select Launch PowerLine Utility. Click Finish to finish the installation. 6

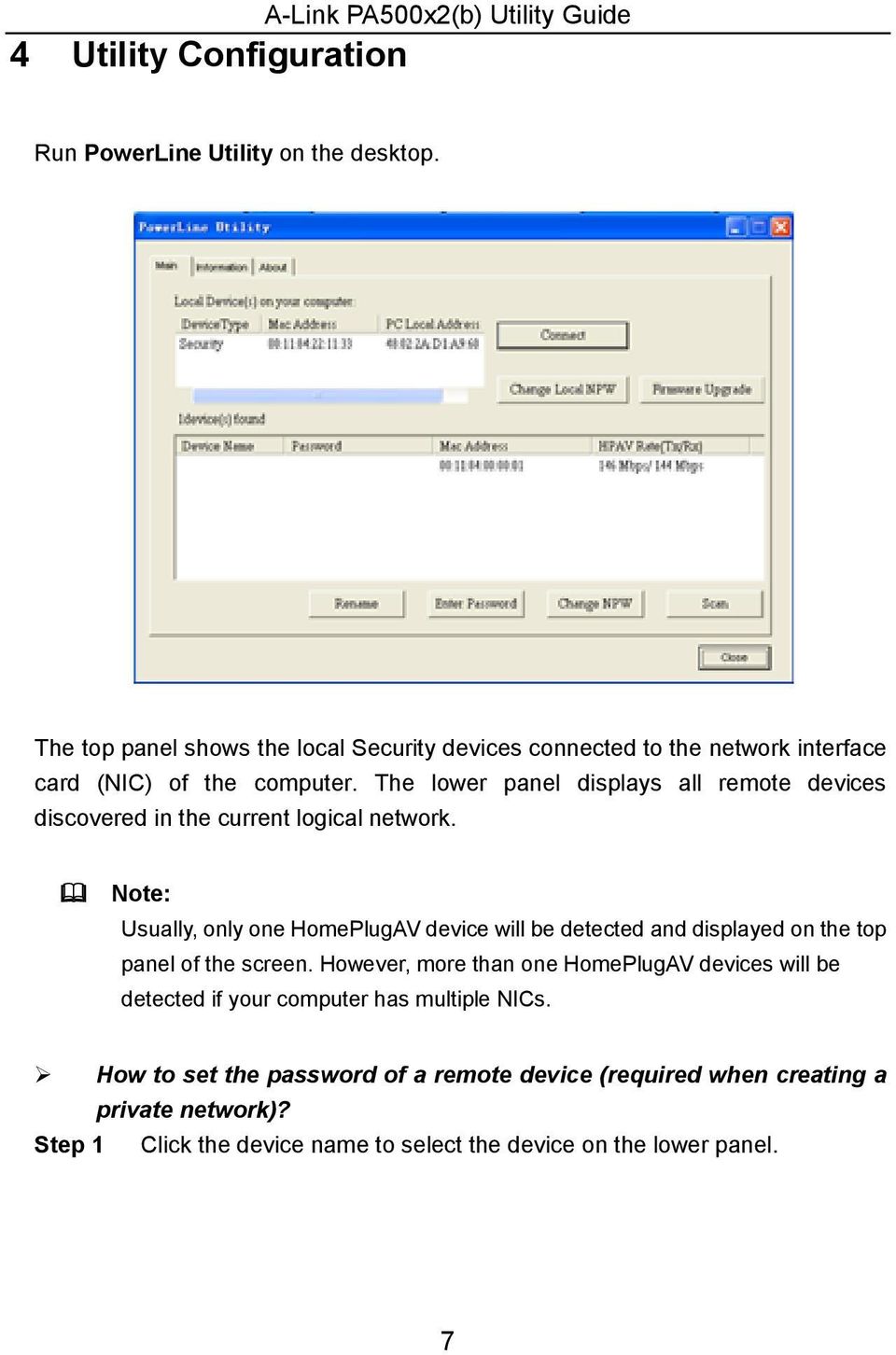

20 4 Utility Configuration A-Link PA500x2(b) Utility Guide Run PowerLine Utility on the desktop. The top panel shows the local Security devices connected to the network interface card (NIC) of the computer. The lower panel displays all remote devices discovered in the current logical network. Note: Usually, only one HomePlugAV device will be detected and displayed on the top panel of the screen. However, more than one HomePlugAV devices will be detected if your computer has multiple NICs. How to set the password of a remote device (required when creating a private network)? Step 1 Click the device name to select the device on the lower panel. 7

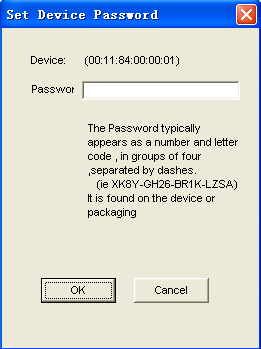

21 Step 2 A-Link PA500x2(b) Utility Guide Click Enter Password to prompt the dialog box shown as in the following figureerror! Reference source not found.. Step 3 Step 4 Click OK to verify the password. Enter a password in any case format and with or without dash. A confirmation box appears if the password is entered correctly. A message will be prompted if the device is not found, providing suggestions to solve the common problems. This process might take a few seconds. 8

22 A-Link PA500x2(b) Utility Guide 5 Forming a HomePlug AV logical network You can form a HomePlug AV logical network (AVLN) by using the Security/Reset push button or using the utility. 5.1 Using the Security/Reset Push button When device A and device B with different NMK values are connected to the same powerline, you can form a logical network by using the Security/Reset button. Step 1 Step 2 Step 3 Press the Security\Reset button on Device A for less than 3 seconds. Press the Security\Reset button on Device B for less than 3 seconds. The button on B must be pressed within 2 minutes. Wait for connection completing. The Power indicator on both devices will flash evenly at 1 second interval until the operation succeeds or fails. The Power indicator will illuminate steadily on successful completion. If any error occurs, the Power indicator on both devices will flash unevenly for 2 minutes. 9

23 6 Joining a Network A-Link PA500x2(b) Utility Guide You can add a device to an existing HomePlug AV logical network (AVLN) using the Security/Reset push button and using the Utility. 6.1 Using the Security/Reset Push button When device A and device B are located on network N, and device C (the joiner) not located in any networks attempts to join Network N. Any devices on Network N can become the adder. Perform the followings to add the device C to Network N using the Security/Reset button. Step 1 Press the Security\Reset button on Device A (or Device B) for less than 3 seconds, making it the adder. Step 2 Within 2 minutes, press the Security\Reset button on Device C (the joiner ) for less than 3 seconds. Step 3 Wait for connection completing. The Power indicator on Device A (or Device B) and Device C will flash at 1 second intervals until the process succeeds or fails. It will illuminate steadily on success. If any error occurs, the Power indicator on Device A (or Device B) and Device C will flash unevenly for 2 minutes. 10

24 6.2 Leaving a Network A-Link PA500x2(b) Utility Guide Device C is located on the network. Do as follows to remove device C from network N: Step 1 Press the Security/Reset pushbutton on device C (the leaver ) for 5-8 seconds. The device will reset and restart with a random NMK. Step 2 Wait for reset to complete. The Power indicator on device C momentarily extinguishes during reset, blinks during restart, and then illuminates steadily. After device C is removed from the existing network, users can disconnect the device from the medium or join it to another logical network on the same medium. PA500x2(b) EAN: Manufacturer / Valmistaja / Tillverkare: A-Link Ltd, Kylävainiontie 20, Espoo, Finland Technical support / Tekninen tuki : (2.70 / min +local network fee) Internet : or techsupport@a-link.com Copyright 2014 A-link Ltd 14a20T PA500x2b 11
