WPS/Reset Hold i 5 sekunder for å automatisk konfigurere med WPS. Hold i 10 Seoncds å tilbakestille WiFi å faktor standardinnstillingene.

Transkriptio

1 WiFi Push the front button you get the status of the WiFi device Trykk foran knappen får du status for WiFi-enhet Työnnä eteen painiketta saat tilan WiFi laitteen When the button blinks blue the WiFi is operating correctly with an active internet connection. WLAN/WPS/Reset Push the button breifly for WLAN feature. - When front button blink blue the WLAN is enable. - When front button blink redthe WLAN is disable. Hold for 5 seconds to auto configure with WPS. Hold for 10 Seconds to reset the WiFi to factor defaults. WAN Port Please connect your Broadband modem here. WAN porter deg Power connector Strøm kontakt Teho liitin On/Off Switch Av / på bryter On / Off kytkin When the button light red the WiFi has no active Internet connection. Please restart the WiFi and access the Admin Panel in you browser by typing Når knappen blinker rødt WiFi har en feil. Vennligst restart ruteren og få tilgang til kontrollpanelet i brownser din ved å skrive Kun painike vilkkuu punaisena WiFi on virhe. Ole hyvä ja käynnistä reititin ja kirjautua ohjauspaneeliin oman brownser kirjoittamalla WPS/Reset Hold i 5 sekunder for å automatisk konfigurere med WPS. Hold i 10 Seoncds å tilbakestille WiFi å faktor standardinnstillingene. WPS/Reset Pidä 5 sekuntia Auto määrittää WPS. Pidä 10 Seoncds nollata WiFi tekijä oletusarvot. USB Port Connect your USB storage device to this port and share the content through the network. USB port Du må aktivere denne porten i kontrollpanelet for å bruke denne funksjonen. USB-portti Sinun on kytkettävä tämä portti ohjauspaneelista käyttää tätä toimintoa. WAN porttien Network Ports Connect other network devices here.such as a router, networked printer Network storage Nettverksporter Koble andre nettverksenheter here.such som en ruter, nettverksskriver Network Storage Verkkoporttien Yhdistä muiden verkkolaitteiden here.such kuten reititin, verkkotulostimen verkko varastointi.

2 Installation Guide WiFi Connect the power adapter to the WiFi s power connector and to a power outlet. from the Broadband modem/cable modem to the blue WAN-port on the WiFi. Check the instructions for the Broadband modem/cable modem to see whether a crossover cable is required. If conneting to your WiFi wirelessly see instructions below the drawing Otherwise use a network cable connection via PC network card/adapter to one of the 2 yellow LAN ports on the router. Check whether you have Internet access If no Internet connection, Access the WiFi Admin Panel in your browser by typing Default username:admin Default password: 1234 Then follow the onscreen instructions to complete configuration. DSL Modem (Supplied by your ISP) USB Hard Drive Power Outlet Koobrick Boxi USB Cable Power Cable Connecting wirelessly to KooBrick WiFi KooBrick WiFi has two wireless networks. Network names and password can be found on the WiFi bottom housing sticker. Windows 7 Windows Vista Windows XP Macintosh OS X instructions. See also WiFi user manu al

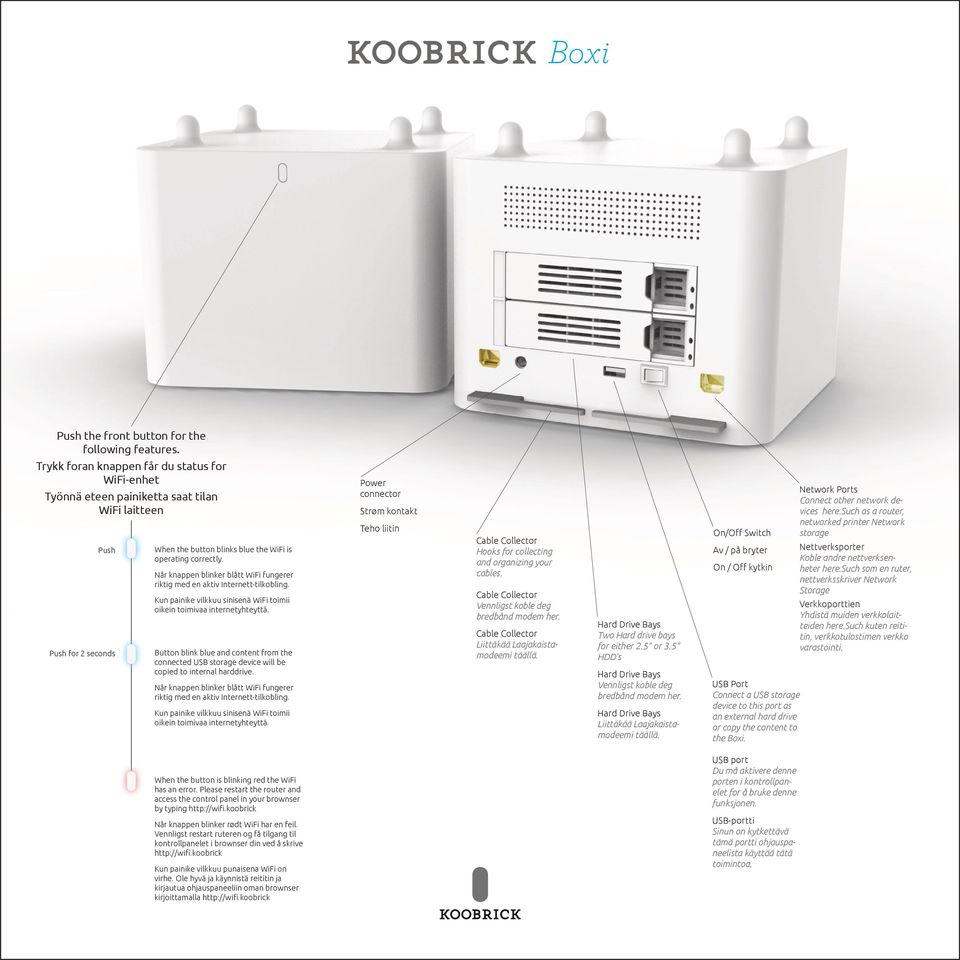

3 Boxi Push the front button for the following features. Trykk foran knappen får du status for WiFi-enhet Työnnä eteen painiketta saat tilan WiFi laitteen Push Push for 2 seconds When the button blinks blue the WiFi is operating correctly. Button blink blue and content from the connected USB storage device will be copied to internal harddrive. Power connector Strøm kontakt Teho liitin Hooks for collecting and organizing your cables. deg Two Hard drive bays for either 2.5 or 3.5 HDD s deg On/Off Switch Av / på bryter On / Off kytkin USB Port Connect a USB storage device to this port as an external hard drive or copy the content to the Boxi. Network Ports Connect other network devices here.such as a router, networked printer Network storage Nettverksporter Koble andre nettverksenheter here.such som en ruter, nettverksskriver Network Storage Verkkoporttien Yhdistä muiden verkkolaitteiden here.such kuten reititin, verkkotulostimen verkko varastointi. When the button is blinking red the WiFi has an error. Please restart the router and access the control panel in your brownser by typing Når knappen blinker rødt WiFi har en feil. Vennligst restart ruteren og få tilgang til kontrollpanelet i brownser din ved å skrive Kun painike vilkkuu punaisena WiFi on virhe. Ole hyvä ja käynnistä reititin ja kirjautua ohjauspaneeliin oman brownser kirjoittamalla USB port Du må aktivere denne porten i kontrollpanelet for å bruke denne funksjonen. USB-portti Sinun on kytkettävä tämä portti ohjauspaneelista käyttää tätä toimintoa.

4 Installation Guide Boxi Connect the power adapter to the Boxi s power connector and to an earthed power outlet. from the Koobrick WiFI yellow LAN port to either Yellow LAN port on the boxi. You can use any WiFi router in place of a Koobrick WiFi. To Configure your WiFi open a web browser on your PC or table by entering: From there follow the onscreen instructions to complete your WiFi configuration To connect your Boxi directly to your PC. to the Boxi in either of the yellow LAN ports and connect the other end to your PC s eithernet network port. 1 2 Power Outlet Koobrick WiFi (WiFi Router) Koobrick Boxi USB Hard Drive Power Cable USB Cable Do you need help? Support: Norway -xx yy xx zz Sweden - xx yy xx zz Denmark - xx yy zz xx Finland - xx yy zz xx or send an to support@koobrick.com

5 Usage Guide Roomi Be aware that overheating of electronic equipment stored in the compartment. They can cause fire and/or damage the devices! deg bredbånd modem her. Please connect your Broadband modem here. deg Hide Broadband modem, VoIP adapter, USB storage devices or other electronic. deg bredbånd modem her. Possible Uses Hard Drives Manuals USB Devices Communication and unused hardware ADSL Routers and other components
