1 spirit inspi intro reliability & superior product visibility multidecks

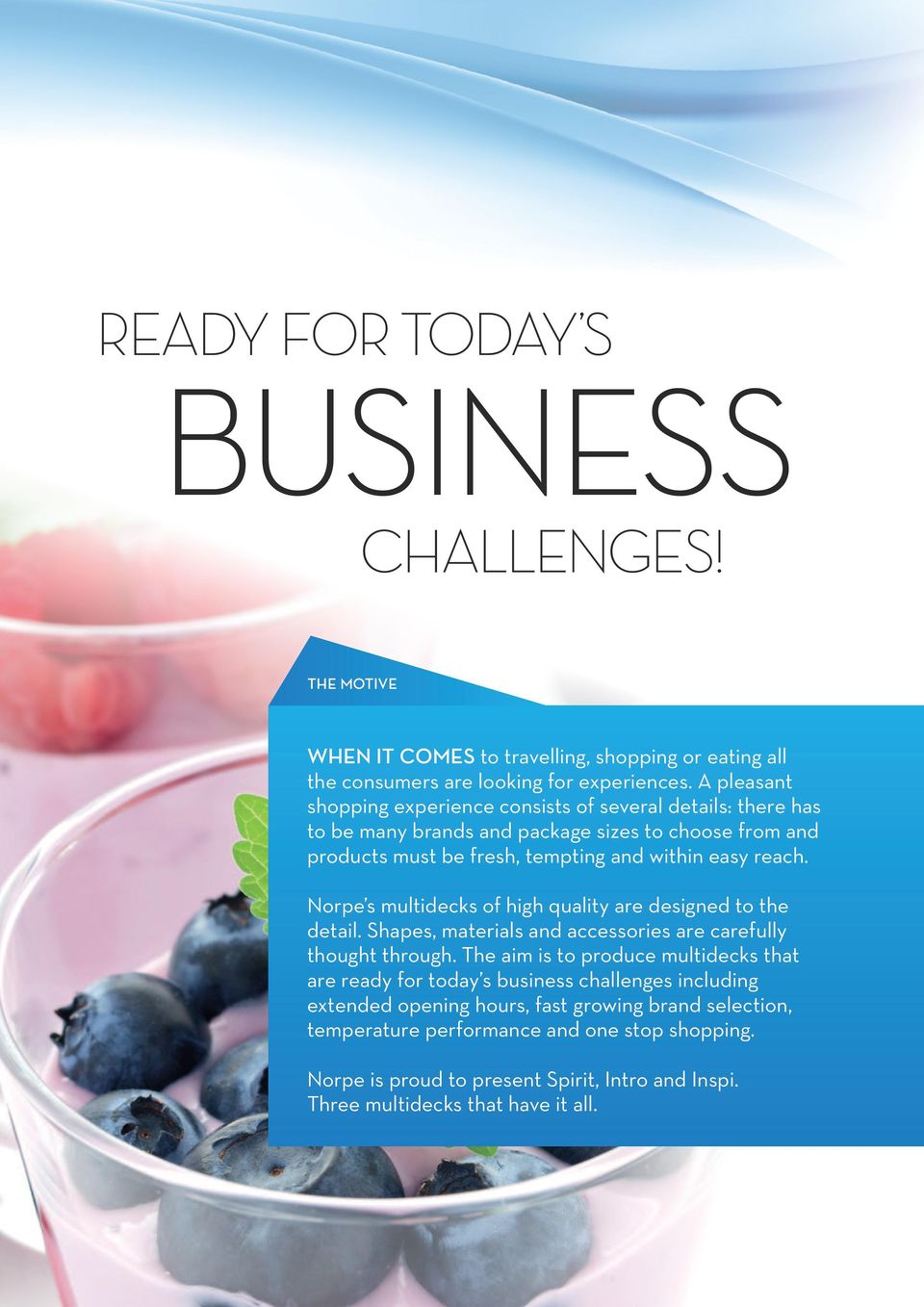

2 READY FOR TODAY S BUSINESS CHALLENGES! THE MOTIVE When it comes to travelling, shopping or eating all the consumers are looking for experiences. A pleasant shopping experience consists of several details: there has to be many brands and package sizes to choose from and products must be fresh, tempting and within easy reach. Norpe s multidecks of high quality are designed to the detail. Shapes, materials and accessories are carefully thought through. The aim is to produce multidecks that are ready for today s business challenges including extended opening hours, fast growing brand selection, temperature performance and one stop shopping. Norpe is proud to present Spirit, Intro and Inspi. Three multidecks that have it all.

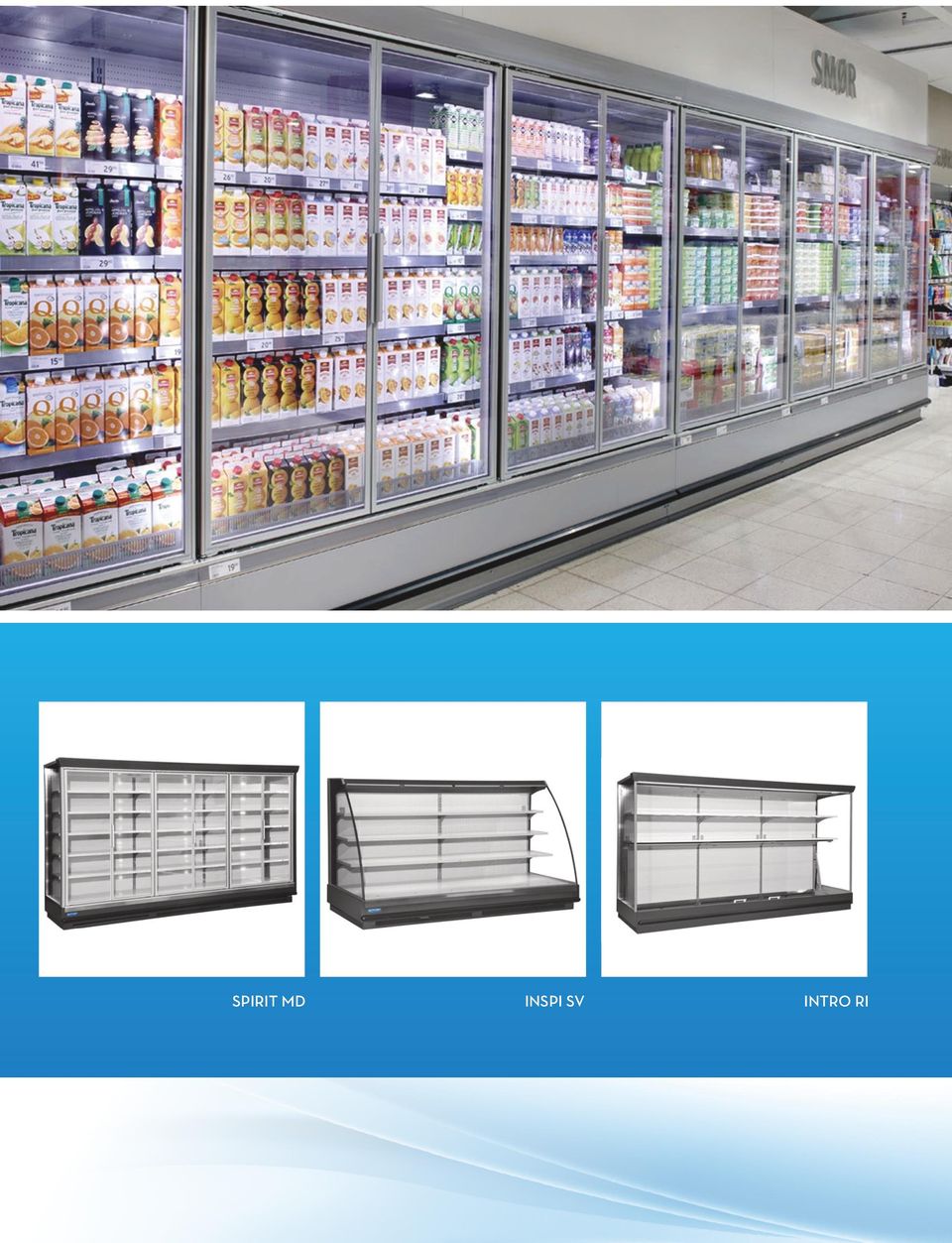

3 SPIRIT MD INSPI SV INTRO RI

4 Stylish and dynamic form of canopy Removable suction grid Spirit MD back to back plenty of sales space! Ticket strip holder Shelf lighting IN ACTION Watch this space All the multidecks have first-class temperature performance that keeps the products fresh. There are wider air channels to improve air circulation and for more exact air curtain control wider suction grid and honeycomb. These features keep the goods tempting, which will help to increase sales for sure. There is no longer need for all that storage space! MD23 offers the largest sales space compared to the occupied floor space. As one-stop-shopping is becoming more and more popular, a large sale space can offer everything a customer needs.

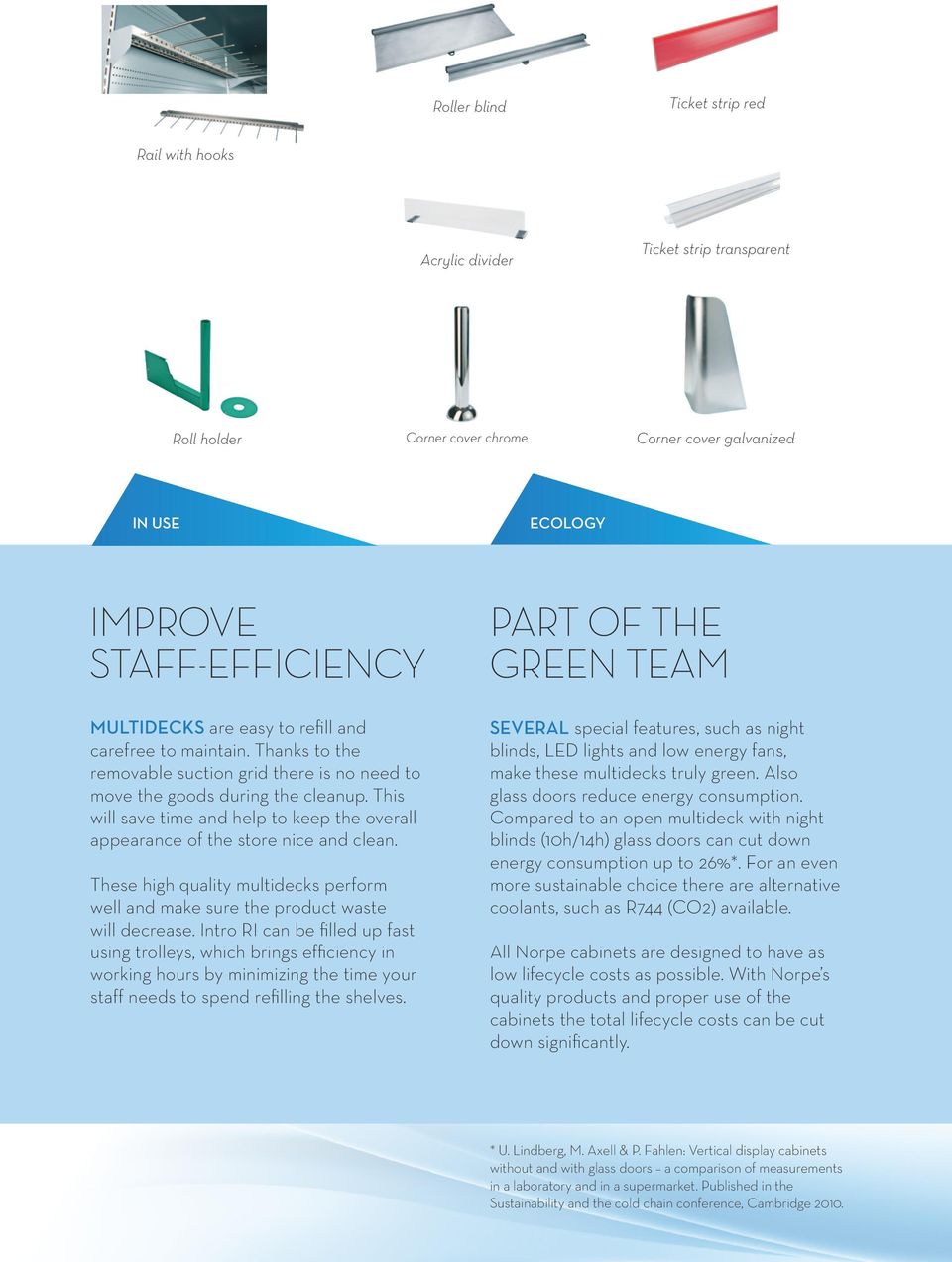

5 Roller blind Ticket strip red Rail with hooks Acrylic divider Ticket strip transparent Roll holder Corner cover chrome Corner cover galvanized IN USE ECOLOGY Improve staff-efficiency Multidecks are easy to refill and carefree to maintain. Thanks to the removable suction grid there is no need to move the goods during the cleanup. This will save time and help to keep the overall appearance of the store nice and clean. These high quality multidecks perform well and make sure the product waste will decrease. Intro RI can be filled up fast using trolleys, which brings efficiency in working hours by minimizing the time your staff needs to spend refilling the shelves. Part of the green team Several special features, such as night blinds, LED lights and low energy fans, make these multidecks truly green. Also glass doors reduce energy consumption. Compared to an open multideck with night blinds (10h/14h) glass doors can cut down energy consumption up to 26%*. For an even more sustainable choice there are alternative coolants, such as R744 (CO2) available. All Norpe cabinets are designed to have as low lifecycle costs as possible. With Norpe s quality products and proper use of the cabinets the total lifecycle costs can be cut down significantly. * U. Lindberg, M. Axell & P. Fahlen: Vertical display cabinets without and with glass doors a comparison of measurements in a laboratory and in a supermarket. Published in the Sustainability and the cold chain conference, Cambridge.

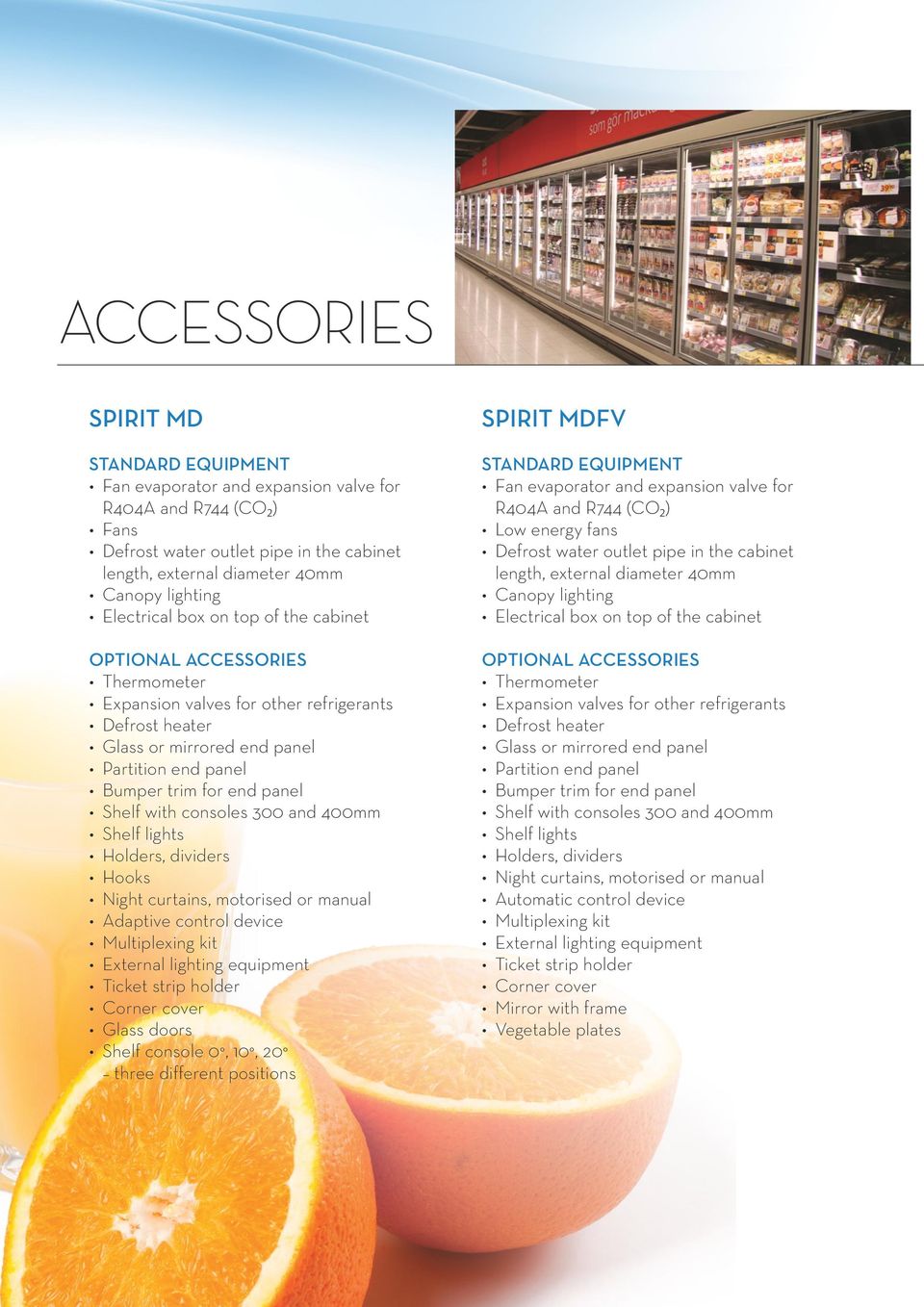

6 ACCESSORIES Spirit md Standard EQUIPMENT Fan evaporator and expansion valve for R404A and R744 (CO₂) Fans Defrost water outlet pipe in the cabinet length, external diameter 40mm Canopy lighting Electrical box on top of the cabinet Optional accessories Thermometer Expansion valves for other refrigerants Defrost heater Glass or mirrored end panel Partition end panel Bumper trim for end panel Shelf with consoles 300 and 400mm Shelf lights Holders, dividers Hooks Night curtains, motorised or manual Adaptive control device Multiplexing kit External lighting equipment Ticket strip holder Corner cover Glass doors Shelf console 0, 10, 20 three different positions Spirit MDFV Standard EQUIPMENT Fan evaporator and expansion valve for R404A and R744 (CO₂) Low energy fans Defrost water outlet pipe in the cabinet length, external diameter 40mm Canopy lighting Electrical box on top of the cabinet Optional accessories Thermometer Expansion valves for other refrigerants Defrost heater Glass or mirrored end panel Partition end panel Bumper trim for end panel Shelf with consoles 300 and 400mm Shelf lights Holders, dividers Night curtains, motorised or manual Automatic control device Multiplexing kit External lighting equipment Ticket strip holder Corner cover Mirror with frame Vegetable plates

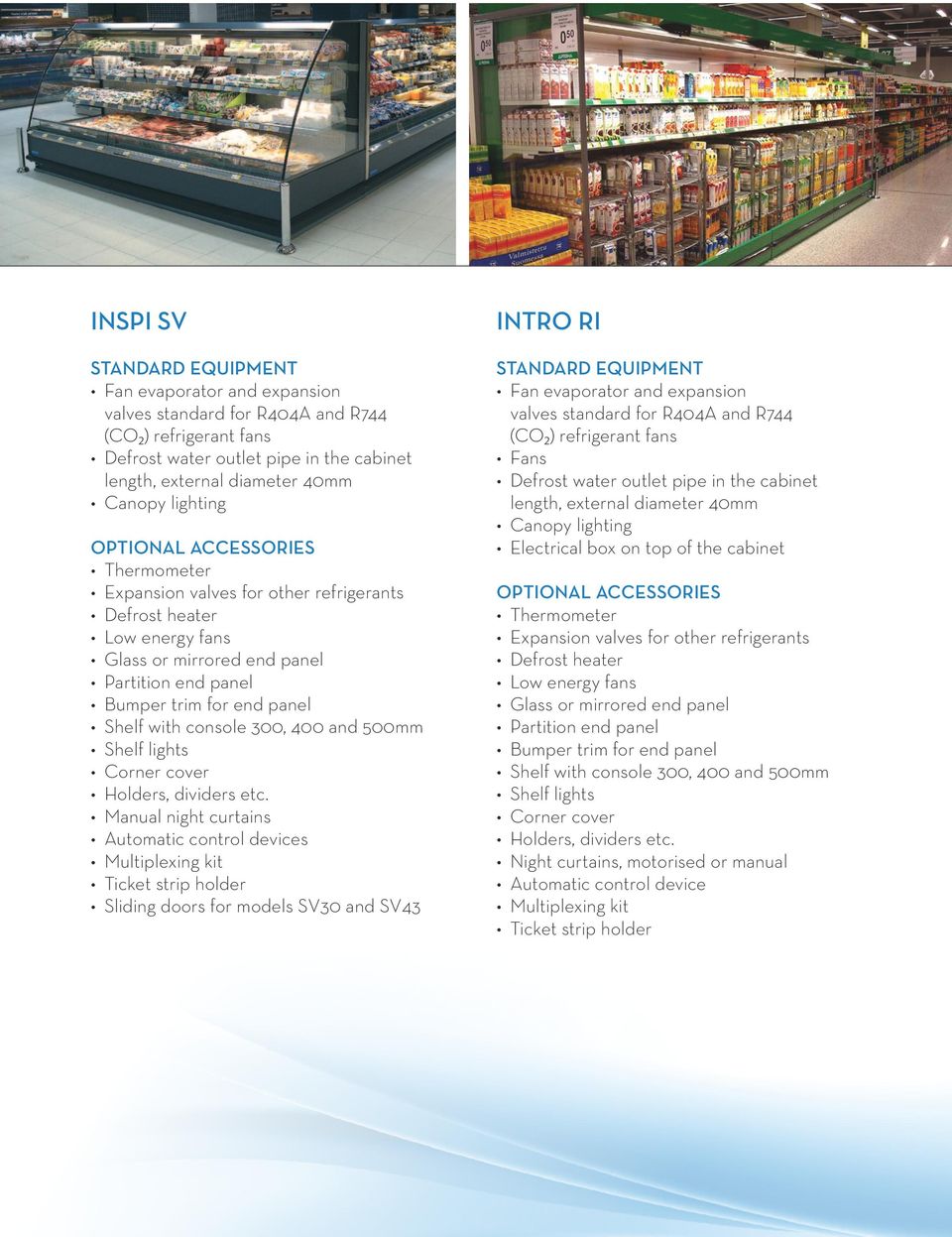

7 inspi SV Standard EQUIPMENT Fan evaporator and expansion valves standard for R404A and R744 (CO₂) refrigerant fans Defrost water outlet pipe in the cabinet length, external diameter 40mm Canopy lighting Optional accessories Thermometer Expansion valves for other refrigerants Defrost heater Low energy fans Glass or mirrored end panel Partition end panel Bumper trim for end panel Shelf with console 300, 400 and 500mm Shelf lights Corner cover Holders, dividers etc. Manual night curtains Automatic control devices Multiplexing kit Ticket strip holder Sliding doors for models SV30 and SV43 Intro RI Standard EQUIPMENT Fan evaporator and expansion valves standard for R404A and R744 (CO₂) refrigerant fans Fans Defrost water outlet pipe in the cabinet length, external diameter 40mm Canopy lighting Electrical box on top of the cabinet Optional accessories Thermometer Expansion valves for other refrigerants Defrost heater Low energy fans Glass or mirrored end panel Partition end panel Bumper trim for end panel Shelf with console 300, 400 and 500mm Shelf lights Corner cover Holders, dividers etc. Night curtains, motorised or manual Automatic control device Multiplexing kit Ticket strip holder

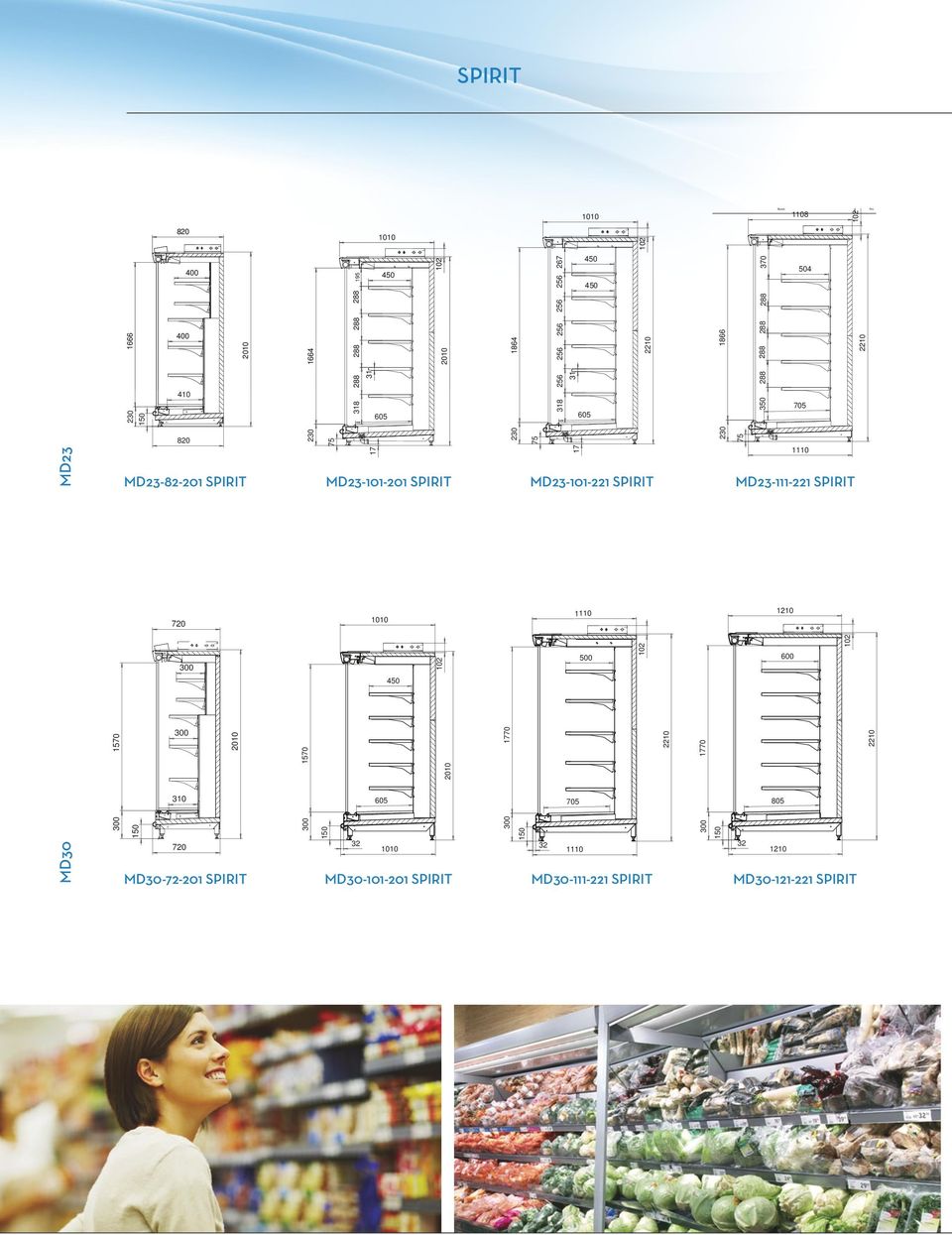

8 Spirit MD23 Pos M Pos JKH Pos JKH MD M1613 SFS EN m Mitta- JKH MD SPIRIT SFS EN m MD SPIRIT SPIRIT 1 : 12 MD SPIRIT kaava +1,-1 mm +1,-1 1 : 13 M1624 MD SPIRIT M1622 MD SPIRIT MITTAKUVA MITTAKUVA SFS EN m +1,-1 mm +1,-1 1 : 12 Pos +1,-1 mm +1,-1 MD SPIRIT M1613 M1624 MITTAKUVA MITTAKUVA M1625 SFS EN m 1 : 12 +1,-1 mm +1,-1 MD SPIRIT JKH M MD MD SPIRIT Pos Pos 32 PBO MD SPIRIT1 : 12 MD SPIRIT 1 : PBO Pos MD SPIRIT 1 : PBO MD SPIRIT M1582B MD SPIRIT M1578C MD SPIRIT M1577A

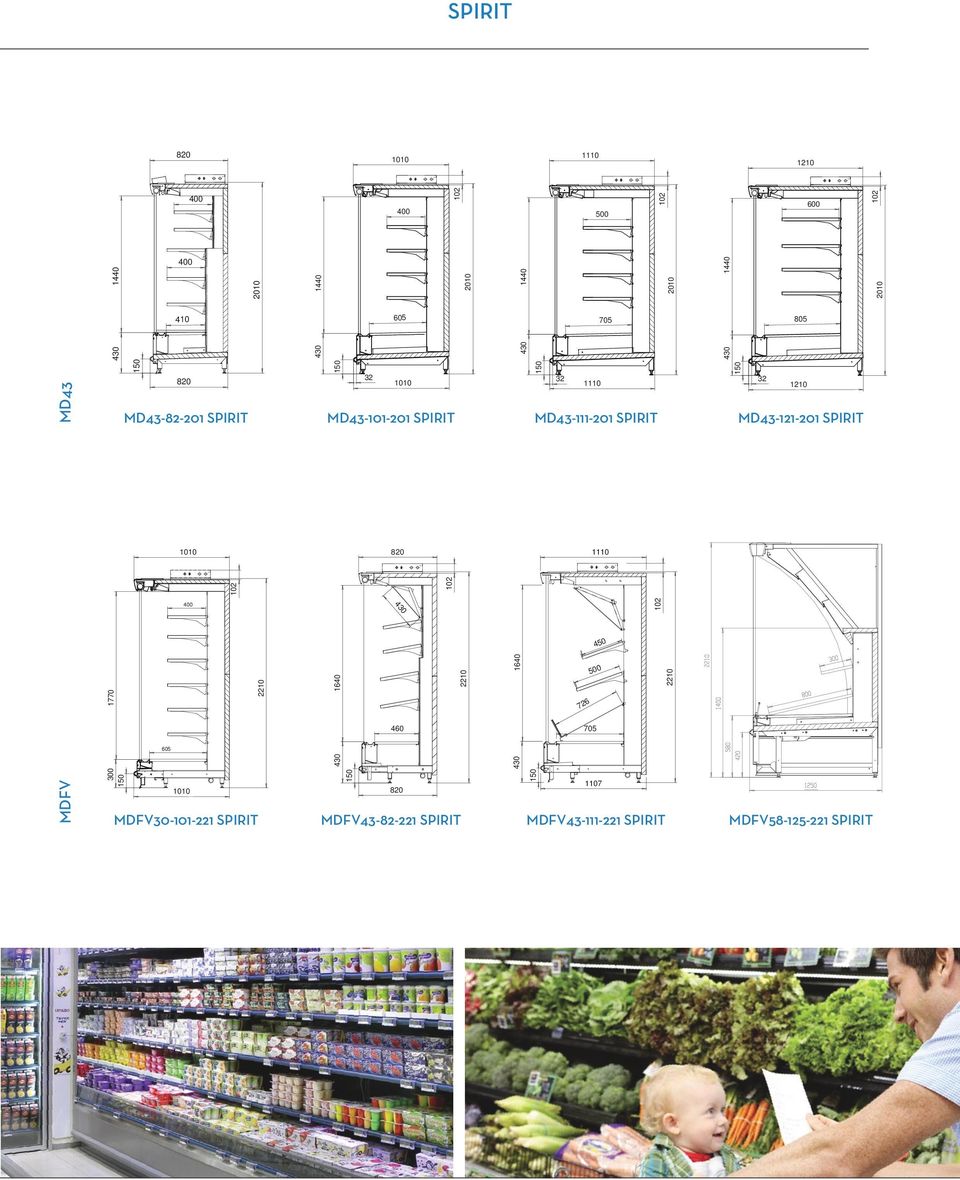

9 Spirit MD43 MD SPIRIT Pos Pos 32 MD SPIRIT MD SPIRIT M : 12 1 : 12 PBO Pos MD SPIRIT MD SPIRIT M1587 PBO MD SPIRIT PBO MD SPIRIT M : 12 Merkki Mark Part Revision Date Pvm Merkki Mark Muutt. Rev by Part Revision Date Pvm Muutt. Rev by MDFV MDFV SPIRIT General Yleistoleranssit tolerances SFS EN m +1,-1 mm +1, Drawing Piirustusnumero number Part nor tai assembly kokoonpanoryhmän group Standardi Muoto, malli Part Shape, Dimension, Designation Amount Item Tavaratunnus reference name kuvaus or tai catalog luettelo Lajimerkki Scale Department route MDFV SPIRIT Liittyy Ref MDFV :12 Projekti Project kg MITTAKUVA 1640 General Yleistoleranssit tolerances SFS EN m +1,-1 mm +1, Scale Department route MDFV SPIRIT Liittyy Ref MDFV :12 Projekti Project kg MITTAKUVA Drawing Piirustusnumero number Part nor tai assembly kokoonpanoryhmän group Standardi Muoto, malli Material Part Shape, Dimension, Designation Amount Material Item Tavaratunnus reference Kpl Qty name kuvaus or tai catalog luettelo Lajimerkki Kpl Qty MDFV SPIRIT Design Suunn JKH Check Tark. Acc Ent. Prev M1531A Uusi New Design Suunn JKH Check Tark. Acc Ent. Prev M1520A Uusi New

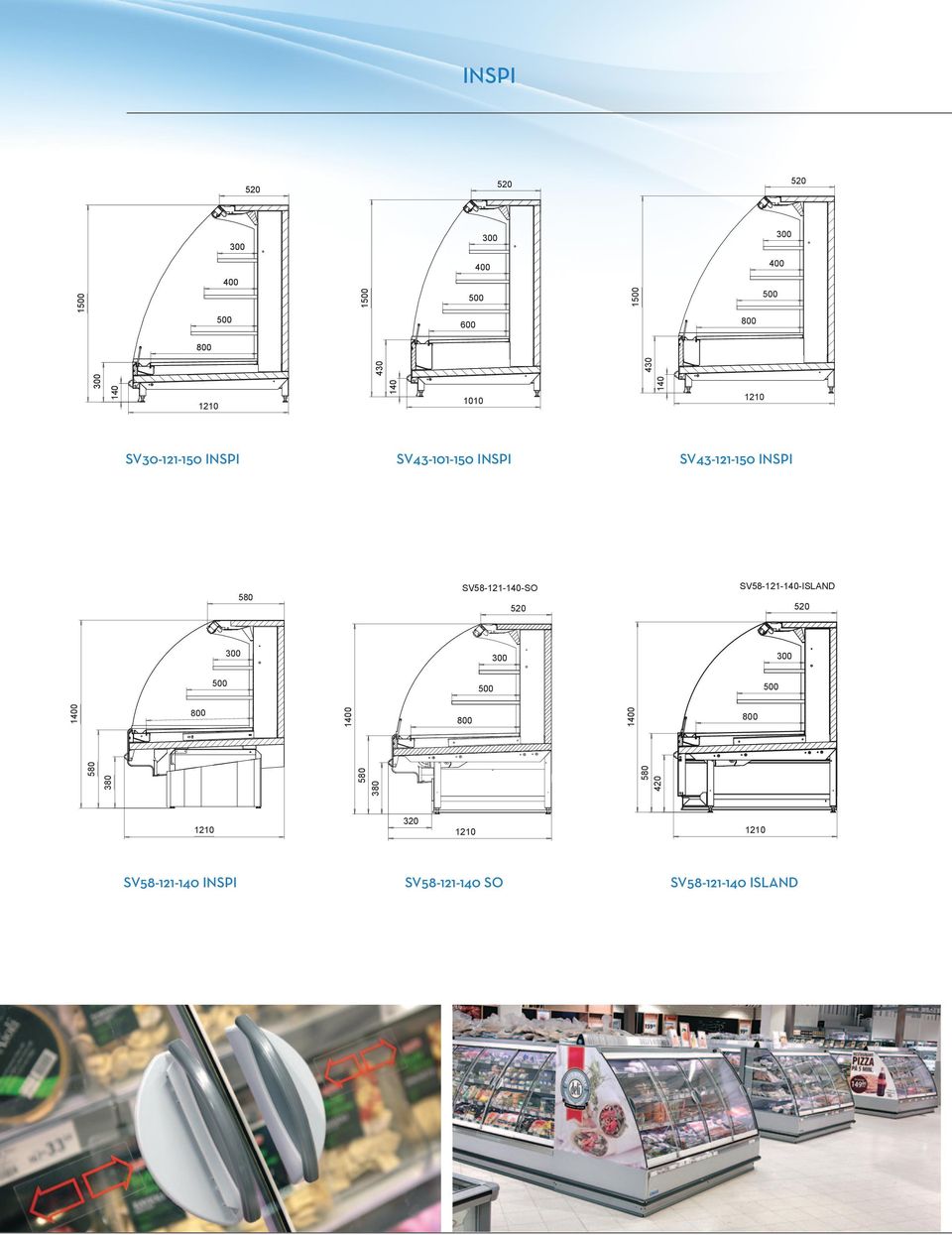

10 SV INSPI SV INSPI SV INSPI SV INSPI SV SO SV ISLAND inspi

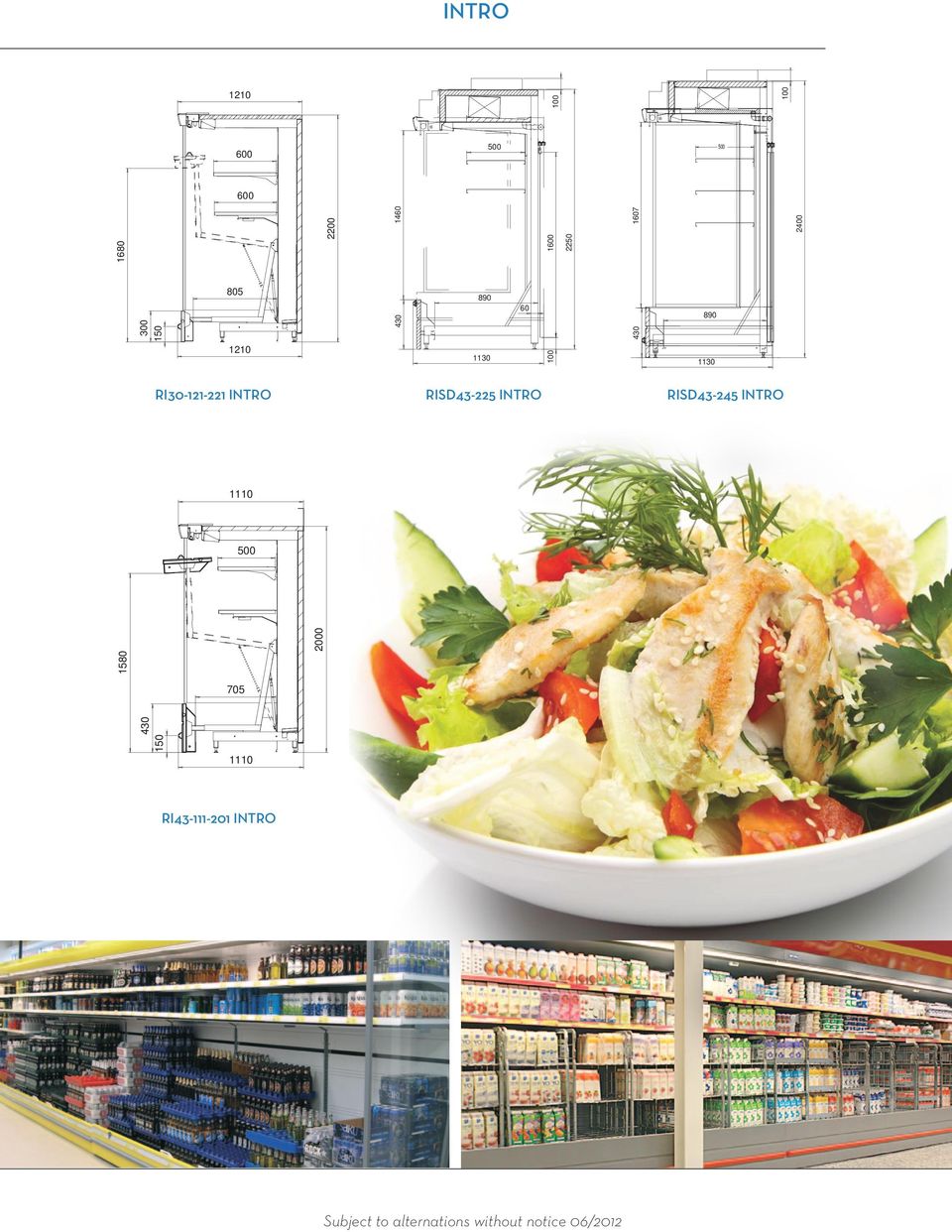

11 intro RI INTRO RISD INTRO RISD INTRO 1:10 M KP M1597 RISD INTRO 1: KP RISD INTRO 705 RI INTRO Subject to alternations without notice 06/2012
