1 Trends in stream water concentration and export of nitrogen and phosphorus from boreal forested catchments in Finland Sakari Sarkkola 1, Harri Koivusalo 1, Ari Laurén 1, Pirkko Kortelainen 2, Tuija Mattsson 2, Sirpa Piirainen 1, Mike Starr 3 & Leena Finér 1 1 Finnish Forest Research Institute 2 Finnish Environment Institute 3 University of Helsinki, Department of Forest Ecology Metsäntutkimuslaitos Skogsforskningsintitutet Finnish Forest Research Institute

2 Background In Finland and northern Scandinavia, 2/3 of the land area is covered by boreal forests Mostly dominated by Scots pine (Pinus sylvestris) or Norway spruce (Picea abies) About 30% of land area is covered by peatlands (histosols) In Finland, ca 80% of the forests are used for intensive forestry. Clear cutting a common method in the forest regeneration COST-FORMAN, Athens

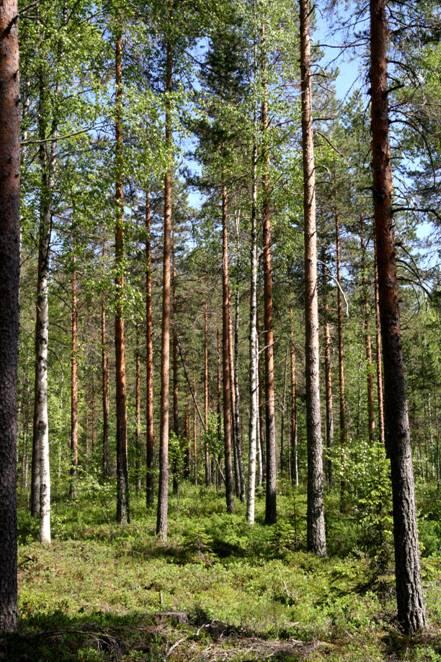

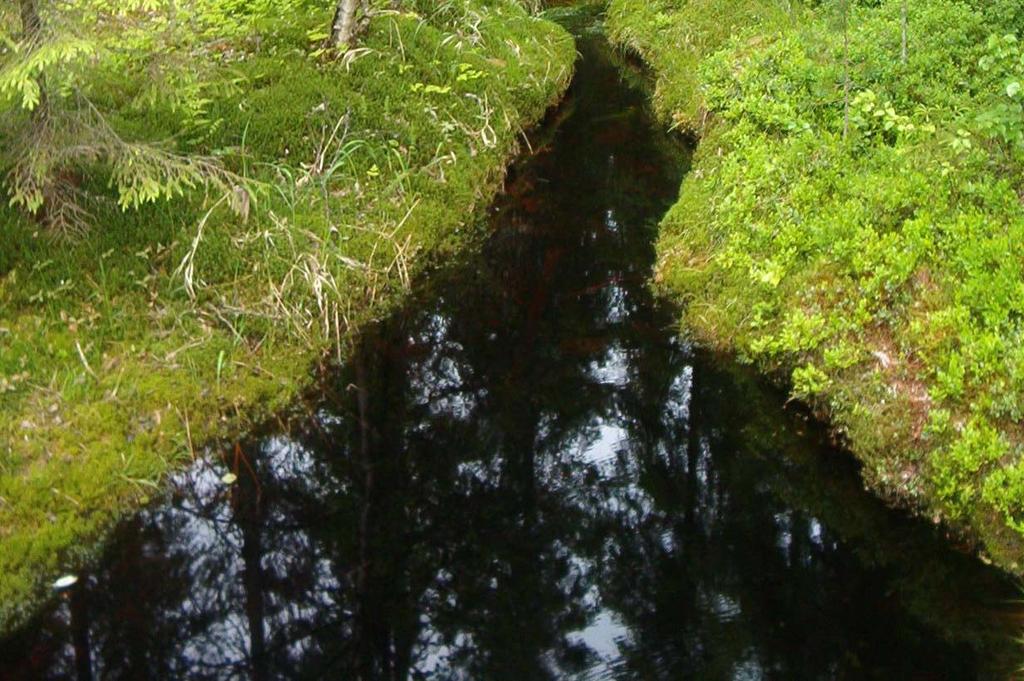

3 Thinned Scots pine stand Drained peatland Timber harvesting COST-FORMAN, Athens

4 Aquatic habitats of lakes typically nitrogen (N) and phosphorus limited Sensitive to eutrophication N and P leachings from terrestrial ecosystems affect the water quality Water protection an important environmental question in forestry Most of the leached N and P are is dissolved organic form (DON, DOP) Sedimentation ponds are used in water protection COST-FORMAN, Athens

5 During the latest years, increasing trends in dissolved organic matter concentrations have been found in the lakes and rivers across Europe and North America Climate change? Changes in atmospheric and soil chemistry? Changes in land-use management? Experimental data from boreal forested catchments and particularly from pristine areas are scarce COST-FORMAN, Athens

6 Objectives The aims of this study were: 1) to investigate long-term changes in TP, TON, NO 3 and NH 4 concentration and export in stream water discharged from forested headwater catchments in the boreal zone. 2) to identify the controlling factors affecting concentration and export of TP and N-fractions. climatic variables atmospheric deposition Organic matter in soil and vegetation Catchment characteristics COST-FORMAN, Athens

7 Material Catchments 8 forested catchments in boreal zone in eastern Finland ( ha) - ca 200 m a.s.l. - peatland cover 9-70% Located in same climatic area and on similar bedrock Monitored intensively (runoff daily, water samples twice a month) Time series Nurmes-catchments: 28 years Valu-catchments: 15 years Both managed and unmanaged areas are included COST-FORMAN, Athens 20 km

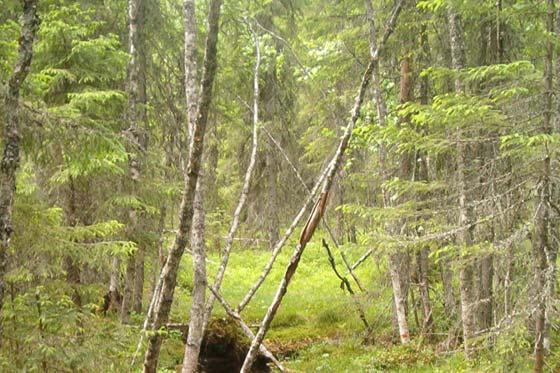

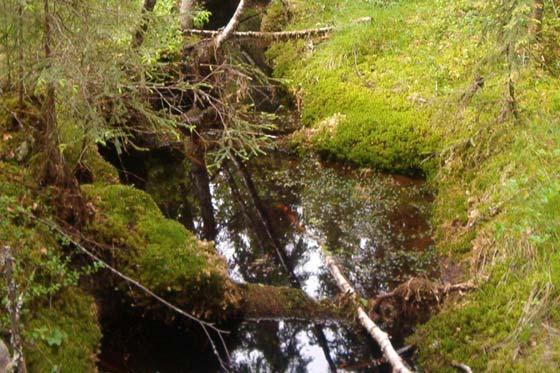

8 Main stream and the gauging station in the pristine Liuhapuro catchment. Runoff and water quality have been monitored since spring COST-FORMAN, Athens

9 Tree stands measured once during the monitoring periods (mean stand volume m 3 ha -1 ) The thickness of organic layer has been estimated by using the sample plots and peat geological inventory data The analysis of TP, TON, NH4, NO3 concentrations in the water samples were determined using standard methods COST-FORMAN, Athens

10 Methods Seasonal concentration (mg l -1 ) and export (kg ha -1 ) of TP, TON, NH4 and NO3 were calculated for: - Spring: March-May - Summer: June-August - Autumn: September-November Annual and seasonal concentrations were calculated as averages of the measurements within given time period COST-FORMAN, Athens

11 Weather and atmospheric deposition data were obtained from the two nearest weather stations Long-term trends were analysed using the Seasonal Kendall -test Controling factors affecting the concentration and export were identified using the mixed model -approach Climatic variables Deposition Soil and vegetation Other catchment characteristics The effect of forestry treatments were removed from the data in the time-serie analysis and modelling COST-FORMAN, Athens

12 Annual precipitation and mean temperature Results Climate variables Mean seasonal temperatures Mean temp. C Precipitation, mm Year Mean temp. Precip. mm Annual mean temperature has increased about 1.2 C during 27 years. Significant increase in summer and autumn. No trends in the annual precipitation. Mean temp. C degrees Year Winter Spring Summer Autumn (*) +(*) +(ns) +(ns) COST-FORMAN, Athens

13 Runoff Annual runoff, mm Kivipuro Liuhapuro Murtopuro Suopuro 500 Runoff, mm Year -Annual runoff decreased significantly only in unmanaged Liuhapurocatchment COST-FORMAN, Athens

14 Total phosphorus Concentration TP (ug l -1 ) Export TP (g ha -1 ) 200 Total phsophorus (TP), ug l Suopuro Välipuro Liuhapuro Kivipuro Murtopuro Total phosphorus, g ha Suopuro Välipuro Kivipuro Liuhapuro Murtopuro Year Treatment effect very clear in intensively managed Murtopuro catchment -The annual TP concentrations decreased in two catchments when the treatment effect was removed from the data. - Annual TP exports decreased in five catchments year COST-FORMAN, Athens

15 Organic nitrogen Concentrations TON ug l -1 Export TON (g ha -1 ) TON, ug l Suopuro Välipuro Kivipuro Liuhapuro Murtopuro Organic nitrogen, g ha Suopuro Välipuro Kivipuro Liuhapuro Murtopuro year Year - The TON concentrations increased or remained ungchanged - Changes occurred mostly in spring - The TON exports did not changed excluding decreasing trend in Liuhapuro COST-FORMAN, Athens

16 Inorganic nitrogen Ammonium (NH 4 N μg l -1 ) Nitrate (NO 3 N μg l -1 ) NH 4, ug l Suopuro Välipuro Kivipuro Liuhapuro Murtopuro NO 3, ug l Suopuro Välipuro Liuhapuro Murtopuro Kivipuro Year Year -The concentrations have decreased since mid of 1990s. - Decreases found in every seasons - Decreasing trend found also in the exports COST-FORMAN, Athens

17 Atmospheric deposition, kg ha -1 yr Deposition SO 4 -S (-) NO 3 -N (-) NH 4 -N (-) Tot N (-) Year Annual mean atmopheric depositions in Eastern Finland have distinctively decreased in years since beginning of 1990s COST-FORMAN, Athens

18 Explanatory factors for concentrations Annual Spring Summer Autumn TP +Peatland% +Peatland% +Peatland% +Peatland% +Snow layer +Water temp. +Precipitation +Fertile sites% +Precipitation + Water temp. +Runoff TON +Peatland% +Peatland% +Peatland% +Peatland% +Snowfall +Precipitation +Water temp. NO3 +Peatland% +Peatland% +Peatland% +Tsum +N-deposition +Precipitation +Fertile sites% -Precipitation NH4 +Peatland% +Peatland% +Peatland% +Peatland% +NH4-deposition +NH4-deposition +NH4-deposit. +NH4-deposit. -Precipitation COST-FORMAN, Athens

19 Conclusions Increasing trends in organic nitrogen, but no large change in the exports Temperature related changes in the leaching of DON Decreasing runoff affects the exports Decreasing trends in the concentrations and exports of inorganic nitrogen fractions Decreasing deposition have a decreasing effect on leaching The ecosystem has not reached the N saturation state COST-FORMAN, Athens

20 The peatland cover important factor explaining particularly the leaching of organic N. - Weather conditions control significantly the exports The identified trends in the concentrations and exports were smaller than the annual and seasonal variation and the variation between the catchments, however COST-FORMAN, Athens

21 Thank you!! COST-FORMAN, Athens

22 TOC, mg l -1 yr -1 TOC, mg l -1 yr Annual mean TOC concentrations Cutting Porkkasalo (unmanaged) Kangaslampi (unmanaged) Korsukorpi (Unmanaged) Iso-Kauhea (managed) Kangasvaara (managed) Year Year Kivipuro (cutting 1983) Murtopuro (cutting 1983) Liuhapuro (unmanaged) Välipuro (Unmanaged) +(***) +(**) +(**) -(NS) +(*) +(**) +(***) +(**) +(ns) TOC, kg ha -1 yr TOC, kg ha -1 yr -1 Annual mean TOC export cutting Porkkasalo Kangasvaara Kangaslampi Korsukorpi Iso-Kauhea Kangasvaara year Year Kivipuro Murtopuro Liuhapuro Välipuro +(*) -(NS) +(NS) -(NS) -(NS) +(NS) 50 -(NS) +(NS) Significant annual trends in TOC concentrations found particularly in pristine catchments - The largest increase in concentrations occurred after the middle of 1990s - Clear effect of intensive clearcuttings (57%of the area) and drainage (40%) in Murtopuro area - TOC export is largely controlled by runoff

23 Seasonal TOC-trends Significant (p<=0.05) seasonal trends in TOC concentration and export Catchment TOC, concentration TOC, export Winter Spring Summer Autumn Winter Spring Summer Autumn Suopuro Managed (+) (+) Kivipuro Managed (+) (+) (-) Koivupuro Managed (+) (+) Murtopuro Managed (-) (-) (+) (-) Isokauhea Managed (+) (+) Kangasvaara Managed (+) Välipuro Unmanaged (+) (+) (+) Liuhapuro Unmanaged (+) (+) Korsukorpi Unmanaged (+) Porkkavaara Unmanaged (+) (+) Kangaslampi Unmanaged (+) (+) COST-FORMAN, Athens

24 In the mixed models, percentage of peatland, amount of biologically active peat, and mean water temperature mostly explained the change in the concentrations (The direction of the effects have been presented). Concentration Winter Spring Summer Autumn (mg l -1 ) +Peatland% +Peatland% +Act.peat (kg/ha) +Act.peat (kg/ha) +Water temp. +Water temp. +Water temp. +Ditch/Area + Mean air temp. Export Winter Spring Summer Autumn (kg ha -1 ) + Runoff + Runoff + Runoff + Runoff +Peatland% +Peatland% +Act.peat (kg/ha) +Act.peat (kg/ha) +Precipitation +Precipitation -Precip. snow -Precip. snow +Temp. sum +Temp. sum Tree stand volume or biomass did not affect the concentrations or export COST-FORMAN, Athens

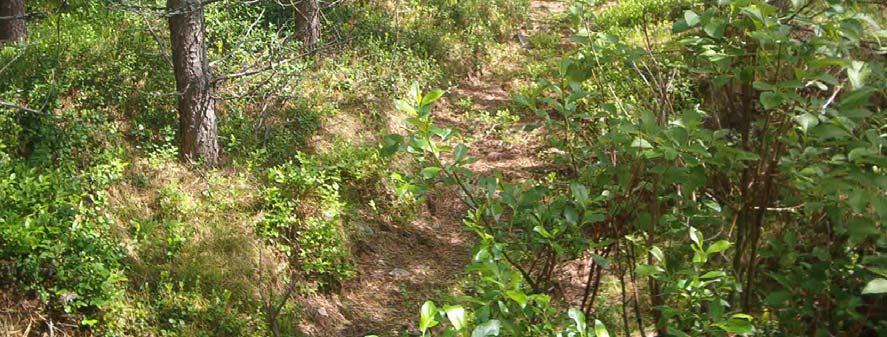

25 Mound Furrow 25 years old planted Scots pine stand in heavily managed Murtopuro catchment. The furrows of the site preparation measures are still visible, but the soil is already in stable state COST-FORMAN, Athens
