Villa Annual Illuminance 300 Lux

Koko: px

Aloita esitys sivulta:

Download "Villa Annual Illuminance 300 Lux"

Jere Nieminen
5 vuotta sitten
Katselukertoja:

1 Annual Illuminance 300 Lux Ground Floor Proposed Villa Annual Illuminance 300 Lux First Floor Proposed Villa Villa Annual Illuminance 300 Lux ALDAR OFF-GRID Sustainable Villa

2 228 Villas 225 Villas + Extension of greenbelt to district + Creation of greenislands + Creation of public plazas + Creation of greenislands 224 Villas ALDAR OFF-GRID Sustainable Villa

3 ALDAR OFF-GRID Sustainable Villa.BTUFSQMBO - No extension of greenbelt to district - Higher Density - No public plazas Urban 250 Villas + Extension of greenbelt to district + Creation of public plazas + Human friendly density 225 Villas Urban

4 Central Plant Supply scheme cooling system ALDAR OFF-GRID Sustainable Villa Central Plant Supply scheme PV centralized Wind Analysis

5 Villa Wind Analysis Study ALDAR OFF-GRID Sustainable Villa Folie 12

6 Results: Case 2, wind velocity distribution in 3 m above ground Villa Wind Analysis Study ALDAR OFF-GRID Sustainable Villa

single villa hot water pipes hot water pipes single adiabatic hybrid recooler cold water pipes cold water pipes exhaust air duct chilled supply air duct refrigeration machine heat recovery

7 single villa hot water pipes hot water pipes single adiabatic hybrid recooler cold water pipes cold water pipes exhaust air duct chilled supply air duct refrigeration machine heat recovery ventilation system, dehumidification and additional heating cold water pipes supply valve exhaust valve exit doors assigned Fancoils rooms technologyroom roof AUTHOR: A-3130 Herzogenburg Ossarner Ortsstrasse 20 tel SCALE: DATE: DRAWER PLANNR. schematic / fa _supply_V1_HK PROJEKT: MAP PRODUCTION: CONTENT: ALDAR Off GRID VILLAS supply scheme cooling system, single Villa refrigeration system Villa HVAC System ALDAR OFF-GRID Sustainable Villa

8 main technologyhouse hot water pipes hot water pipes hot water pipes cold water pipes exhaust air duct refrigeration machine chilled supply air duct technologyroom roof multi adiabatic hybrid recooler cold water pipes single villa 01 heat recovery ventilation system, dehumidification and additional heating cold water pipes exit doors assigned Fancoils supply valve exhaust valve hot water pipes hot water pipes connection to other villas cold water pipes cold water pipes connection to other villas single villa 02 single villa 03 hot water pipes cold water pipes connection to single villa 03 exhaust air duct chilled supply air duct heat recovery ventilation system, dehumidification and additional heating cold water pipes cold water pipes connection to single villa 03 supply valve exhaust valve exit doors assigned Fancoils rooms AUTHOR: A-3130 Herzogenburg Ossarner Ortsstrasse 20 tel SCALE: schematic DATE: DRAWER PLANNR / fa _supply_V2_HK Villa HVAC System Cluster ALDAR OFF-GRID Sustainable Villa PROJEKT: MAP PRODUCTION: CONTENT: ALDAR Off GRID VILLAS supply scheme cooling system, distric villa clus. refrigeration system

9 photovolatic photovolatic inverter inverter PV current (AC) for 1 villa PV current (AC) for 1 villa solar store villa 01 villa 24 PV current from 24 villas center power supply with PV power supply with PV main power supply main internet (fiber optic) AUTHOR: A-3130 Herzogenburg Ossarner Ortsstrasse 20 tel j.stockinger@sundp.at SCALE: DATE: DRAWER: PLANNR. schematic / mh _supply-scheme_V2 PROJEKT: MAP PRODUCTION: CONTENT: ALDAR Off GRID VILLAS supply scheme PV centralized electricity, photovoltaic, internt Villa Electrical/PV System Cluster ALDAR OFF-GRID Sustainable Villa

10 C A B D E F C A B D E F C A B D E F Guest Garden Fancoil Bathroom Outdoor Terrace Majlis Enclosed Courtyard Guest Apartment Robe Guest Bedroom + sd GF3 + sd GF3 Family Living Family Garden Family Dining Guest Entrance + sd GF3 Fancoil + md Kitchen + sd GF1 19" distributer Family Entrance Fancoil Entrance Drivers Garden Rm Foregarden MEP Water Tank Refuse Entrance Ground Floor RISER 2 RISER 2 RISER Logia Bedroom 1 + sd FF1 Fancoil Bathroom Roof Terrace RISER 1 Bathroom Bathroom Bedroom 2 WIR WIR Void WIR Master Bedroom WIR Bathroom RISER 1 Solar Panel Area Void Technical Room (Outdoor) RISER 1 Loggia Below Family + sd technical Bedroom 3 Living WC Logia Void Restroom WC Roof Terrace + sd GF2 Store/Pantry Laundry Roof Terrace Below Maids Rm Bathroom Bathroom First Floor Roof Level Fancoil Fancoil heat recovery ventilation system dehumidification and additional heating Fancoil + sd GF1 Fancoil + sd FF1 single adiabatic hybrid recooler + sd technical + pv refrigeration machine + sd FF1 Fancoil main internet (fiber optic) main power supply + md... main distributor + sd... sub distributor 19" distributor for internet/satellite tv/telephone LEGEND: heating/cooling system: ventilation system: drinking water system: architecture: title colour line type title colour line type title colour line type title colour line type supply air drinking hot water architecture fancoil system extract air drinking cold water low ceiling hot water pipes outdoor air waste water cold water pipes exhaust air AUTHOR: A-3130 Herzogenburg Ossarner Ortsstrasse 20 tel j.stockinger@sundp.at SCALE: DATE: DRAWER PLANNR. 1: / fa _supply_GP PROJEKT: MAP PRODUCTION: CONTENT: ALDAR Off GRID VILLAS technology system, single Villa floor plan Villa HVAC System ALDAR OFF-GRID Sustainable Villa

11 View to North/ Park Scenario Blocks and Square

creation of urban interactions on different scales of space, XL,L,M,S 0 50m 100m M S M S Schematic Design Public Space/Public Life Scenario Blocks and Square S S XL L S M Mishrif Park Development

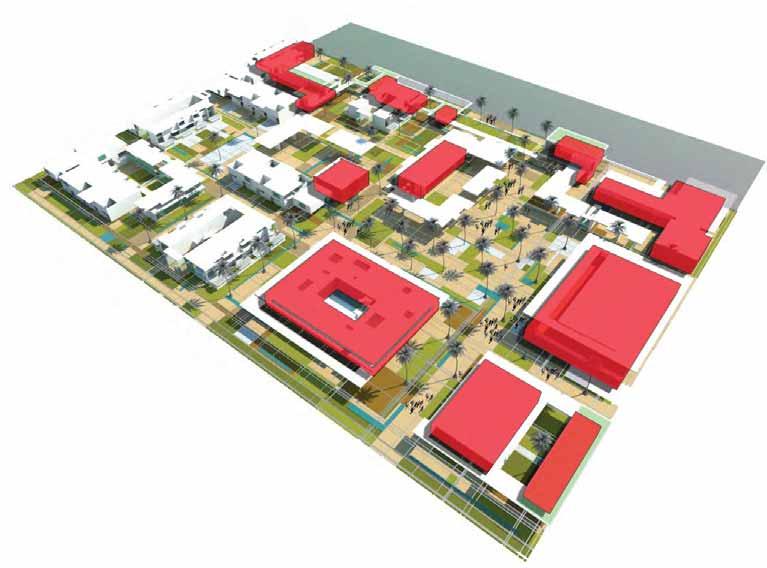

12 creation of urban interactions on different scales of space, XL,L,M,S 0 50m 100m M S M S Schematic Design Public Space/Public Life Scenario Blocks and Square S S XL L S M Mishrif Park Development Site XL L M S the Park, funtions: recreation, walking, enjoying oneself, famliy excursion, business excursion,.. open square, connecting many functions: shopping, meeting others, eating, sitting around, observing life, coming home (from garage), roaming,.. enclosed local square funtions: coming home (from garage), roaming, playing with your children, extension of own garden, meet a neighbour.. road pockets, entrance gates funtions: interaction with neighbourhood, coming home (from garage), walking, extension of own garden,..

13 Urban Interactions - Distinct Neighbourhoods Residential SQUARE Boulevard Schematic Design Public Space/Public Life Scenario Blocks and Square Park Walk Market SQUARE

14 Urban Interactions Square Boulevard Park Walk eractions Square Boulevard Park Walk PARK Schematic Design Public Space/Public Life Scenario Blocks and Square 17th Street Street Commercial/Retail mercial/retail

15 Urban Interactions Square/Playground Neighborhood Walks Park Walk PARK Residential Neighborhood Schematic Design Public Space/Public Life Scenario Blocks and Square 17th Street

16 Urban Density Commercial Base G+2 G+3 G+4 G+5 (top floor level19m) Schematic Design Public Space/Public Life Scenario Blocks and Square

17 Axonometric View Of Market Square Scenario Blocks and Square

18 View from Park Scenario Blocks and Square

19 North East Corner, Residence with Commercial Base Scenario Blocks and Square

20 South West Corner, Residence with Commercial Base Scenario Blocks and Square

21 Main Boulevard through to Square and Park Scenario Blocks and Square

22 Market Square Scenario Blocks and Square

23 Boulevard to Park with Residential and Commercial Areas Scenario Blocks and Square

24 View from Park to Pavillion and Walk Scenario Blocks and Square

25 View from from Serviced Apartments adjacent to park Scenario Blocks and Square

26 Residential Neighbourhood Square Scenario Blocks and Square

27 Axonometric View Scenario Blocks and Square

28 Al Ain UAE Headquarter AWPR Layered Gardens

29 Al Ain UAE Layered Gardens

30 natural ventilation Layered Gardens Energy Roof - producing energy - shading for buildings Rainwater collection Cooling Towers trees cooling down temperature water cooling down temperature Energy Roof Section Solar Panels natural ventilation

31 Layered Gardens Circulation through sunken garden

32 Layered Gardens Improved outdoor thermal environment

33 Layered Gardens Sunken garden + vertical garden

34 Layered Gardens Light without heat gain and glare

35 Layered Gardens Sunken garden Crossroad 1

36 Layered Gardens Sunken garden Crossroad 2

37 Layered Gardens Sunken garden Oasis

38 Layered Gardens Sunken garden Hanging Gardens Flying Roof

39 1:500-4,00 Auditorium 190 Seats liftable gate wc -4,00 Lobby GFA 500m² water water Sunken Garden -4,00 Building phase 3Future Expansion GFA 300m² Floorplan Level -1 Cafeteria -4,00 GFA 280m² water restrictedaccess wc kitchen water -4,00 SocialFunctions GFA 300m² PHASE 1 GFA 500m² PHASE 3 GFA 300m² PHASE 2 GFA 280m² PHASE 1 GFA 300m²

40 1:500-4,00 VoidAuditorium liftable gate Meeting /Presentation /Event/ Seminar Library and Archive -4,00 GFA 420m² 0,00 DEP 6 GFA 500m² 0,00 Building phase 3Future Expansion wc GFA 370m² DEP 11 Floorplan Level 0 PHASE 1 GFA 30m² PHASE 2 GFA 420m² PHASE 3 PHASE 1 GFA 370m² GFA 500m²

41 1:500 DEP 7 Buildingphase 2 DEP 5 DEP 10 GFA 420m² wc DEP 4 Building phase 3Future Expansion GFA 810m² Floorplan Level +1 Terrace GFA 190m² DEP 8 wc GFA 1930m² PHASE 2 GFA 470m² PHASE 1 GFA 1930m² PHASE 3 GFA 810m²

42 1:500 Terrace 500m² Terrace 430m² wc DEP 2 Building phase 3Future Expansion Terrace 760m² Floorplan Level +2 wc DEP 1 GFA 1520m² PHASE 1 GFA 1520m²

43 Layered Gardens Sustainable Facade

44 Layered Gardens Longitudinal section +15,20m +7,80m +/-0,00m 5m 10m 50m

45 Layered Gardens Cross section +16,20m +15,20m +11,70m +/-0,00m 5m 10m 50m

46 Layered Gardens Perspective Entrance

47 Layered Gardens Perspective Zoo
