Myytävät laitteet/instruments for sale

Transkriptio

1 Myytävät laitteet/instruments for sale Tektronix 2252 B ID: 100MHZ programmable oscilloscope Bandwidth: 100MHz Rise time: 3.5ns No. of channels: 4ch 100 MHz Dual Tie Base Oscilloscopes Smart Scopes with 100 MHz, Four Channels, and Advanced Features like Auto Setup, Tracking Cursors, Voltmeter, Rohde &schwartz ID: 4626 mobile: CRTU-G system enables R&D verification against GCF-CC requirements for GSM (ETSI 3GPP TS ) N5343a+N5302 Logic analyzer Support DigRF v3 and DigRF v4 bus Support speeds up to 3 Gb/s, with single or multilane configuration Provides digital stimulus for DigRF v3 or v4 based RF-IC and BB-IC Smart stimulus with protocol state machine emulation Customize header, payload and frame sequence generation Converts raw IQ and control information to DigRF v3 & v4 compliant packets CMU200 Radiotestset with bluetooth,gsm,gprs,egprs wcdma Agilent Technologies ID: 4637 ROHDE & SCHWARZ /002 ID: Page /sivu 1

2 Telebyte ID: ,2W55,9D8, SL ADSL ja muiden samamkaltaisten tietoliikenne standardien testaus runko kanavalle. (ADSL2+ VDSL2+)controlling from 1-24 channels and is ideal for testing DSL modems and other bandwidth-compliant telecom devices. Accepts Up to Three 458 Plug-In Modules Control up to 24 Channels in One Compact Unit Includes Chassis and Built-In Control Module RS-232, Ethernet or IEEE-488 Interface Includes 458 Universal GUI Software Upgrade firmware in the Field E Instruments ID: 3052 E8500 plus Gas Analyzer ET-systems ID: "6he*434,7 EAC-S 1000-usb Maximum of nine total gas sensors, up to six electrochemical type sensors and up to three NDIR type sensors. E8500 Gas Analyzer Including: O2 Sensor 0 to 25 % CO Sensor 0 to 8000 ppm* *With Auto-Range to 20,000 ppm NO/NOx Sensor 0 to 4000 ppm CO2 Calculated 0 to 99.9 % 1kVA AC -source EN testauksiin sekä poweri tuotekehitykseen. Vin: 230 VAC / 50 Hz Vout: VAC / VDC Cout: 0-12 A max Out freq: 50/60/400 Hz Hz Power: 500 VA Option../V700 Out voltag erange 700 VAC/1000VDC (C - 50%) Option../F1000frequency range Hz Option../IEEE 488 Interface IEEE 488, GPIB HEWLETT-PACKARD 9,5 ID: +3, ,5*17,8*62,5 6050A+60503B Modulaarinen DC-kuorma/electronic load 3V..240V 10A 250W mainframe accepts user-installable load modules for easy system configuration and future reconfiguration. The 6050A holds up to 6* 60501B, 60502B, and 60503B load modules, or 3* 60504B and 60507B load modules, allowing up to 1,800 watts of total maximum power. One GPIB address is all you need for complete control and readback of all load modules within a single mainframe. Page /sivu 2

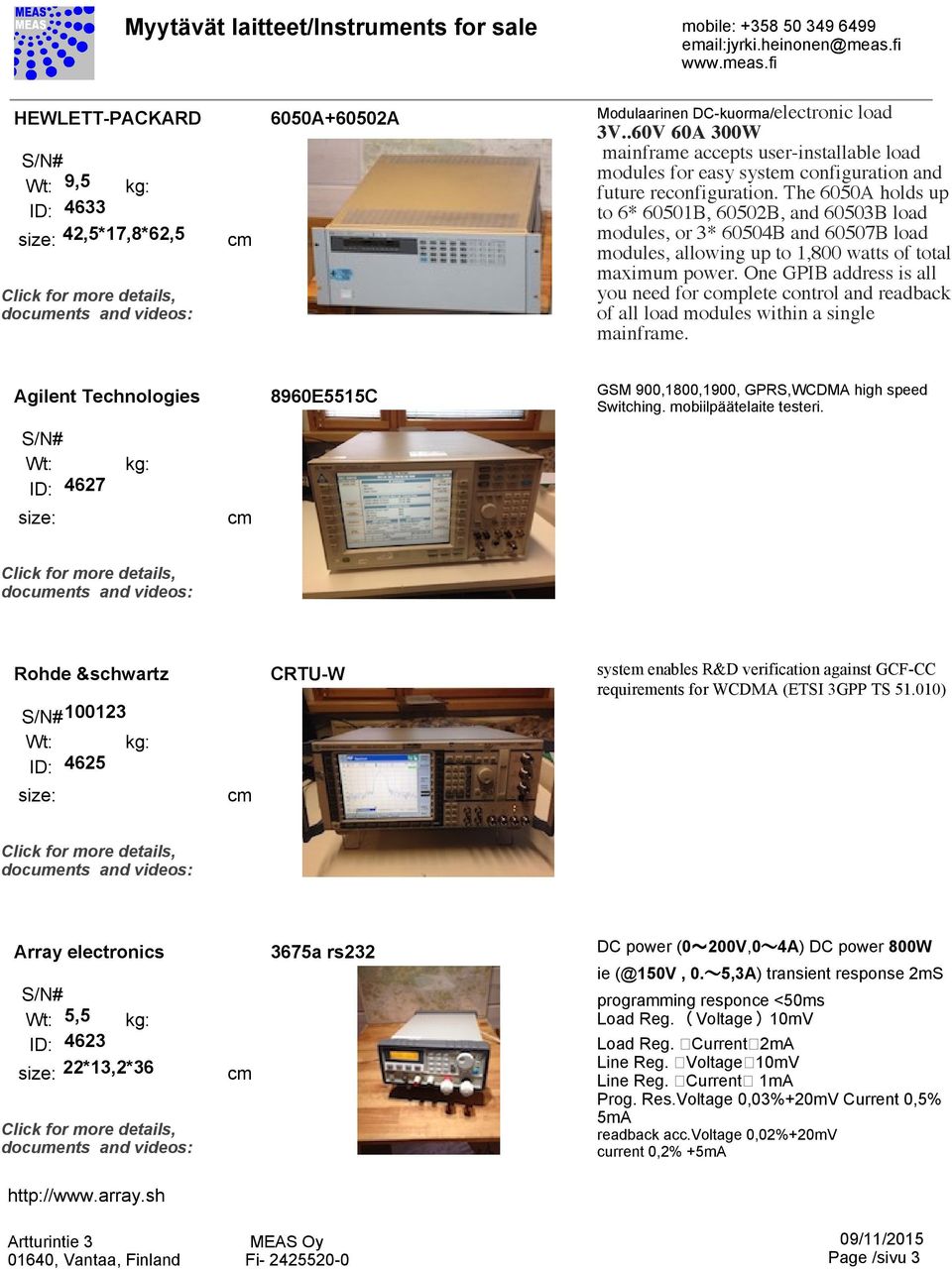

3 HEWLETT-PACKARD 9,5 ID: +3, ,5*17,8*62,5 6050A+60502A Modulaarinen DC-kuorma/electronic load 3V..60V 60A 300W mainframe accepts user-installable load modules for easy system configuration and future reconfiguration. The 6050A holds up to 6* 60501B, 60502B, and 60503B load modules, or 3* 60504B and 60507B load modules, allowing up to 1,800 watts of total maximum power. One GPIB address is all you need for complete control and readback of all load modules within a single mainframe. Agilent Technologies 8960E5515C GSM 900,1800,1900, GPRS,WCDMA high speed Switching. mobiilpäätelaite testeri. ID: 4627 Rohde &schwartz ID: 4625 CRTU-W system enables R&D verification against GCF-CC requirements for WCDMA (ETSI 3GPP TS ) Array electronics 5,5 ID: *13,2* a rs232 DC power (0~200V,0 4A) DC power 800W ie (@150V, 0. 5,3A) transient response 2mS programming responce <50ms Load Reg. (Voltage)10mV Load Reg. (Current(2mA Line Reg. (Voltage(10mV Line Reg. (Current( 1mA Prog. Res.Voltage 0,03%+20mV Current 0,5% 5mA readback acc.voltage 0,02%+20mV current 0,2% +5mA Page /sivu 3

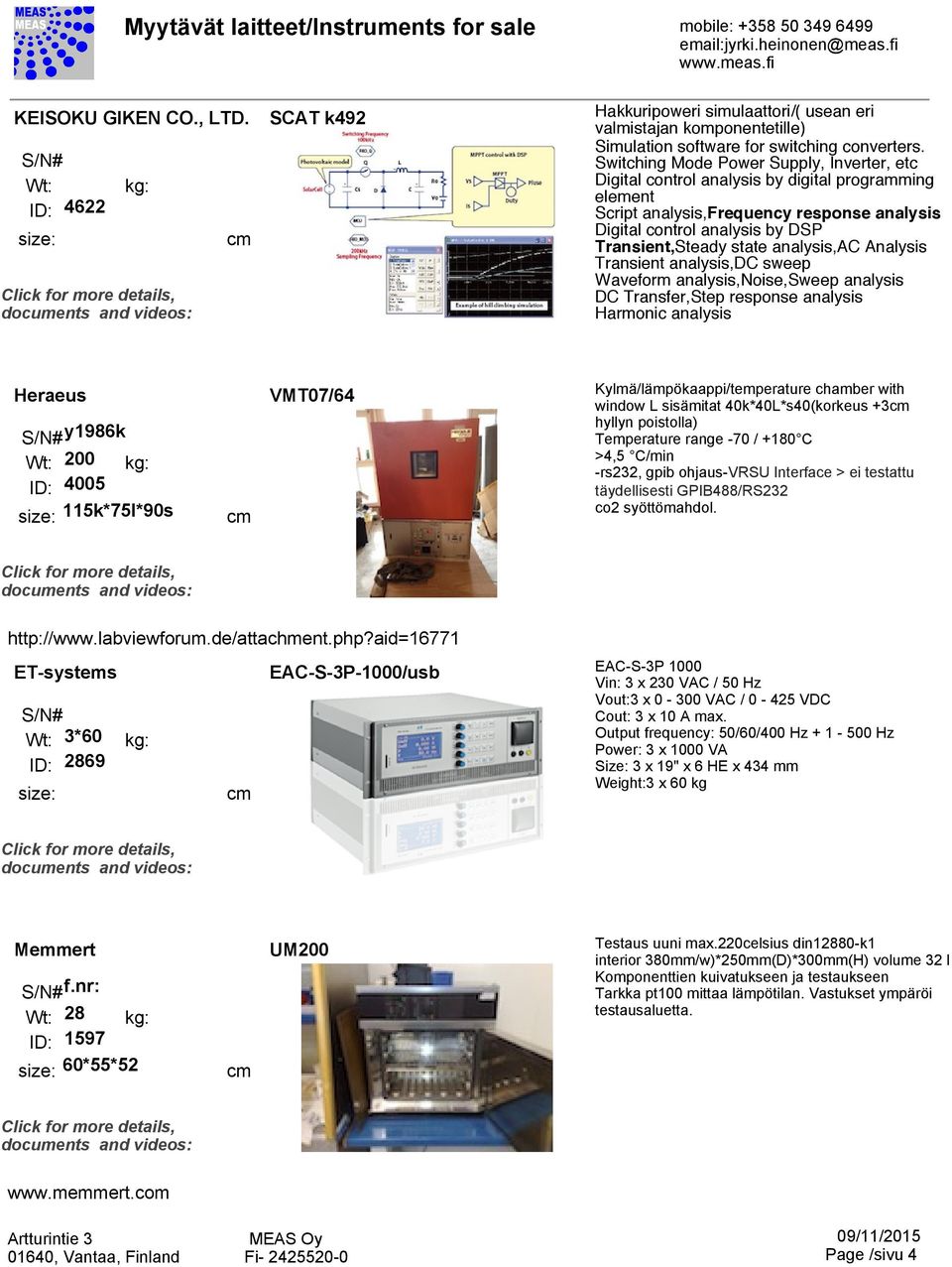

4 KEISOKU GIKEN CO., LTD. ID: 4622 SCAT k492 Hakkuripoweri simulaattori/( usean eri valmistajan komponentetille) Simulation software for switching converters. Switching Mode Power Supply, Inverter, etc Digital control analysis by digital programming element Script analysis,frequency response analysis Digital control analysis by DSP Transient,Steady state analysis,ac Analysis Transient analysis,dc sweep Waveform analysis,noise,sweep analysis DC Transfer,Step response analysis Harmonic analysis Heraeus y1986k mu200 ID: k*75l*90s VMT07/64 Kylmä/lämpökaappi/temperature chamber with window L sisämitat 40k*40L*s40(korkeus +3 hyllyn poistolla) Temperature range -70 / +180 C >4,5 C/min -rs232, gpib ohjaus-vrsu Interface > ei testattu täydellisesti GPIB488/RS232 co2 syöttömahdol. ET-systems EAC-S-3P-1000/usb 3*60 ID: 2869 EAC-S-3P 1000 Vin: 3 x 230 VAC / 50 Hz Vout:3 x VAC / VDC Cout: 3 x 10 A max. Output frequency: 50/60/400 Hz Hz Power: 3 x 1000 VA Size: 3 x 19" x 6 HE x 434 mm Weight:3 x 60 kg Memmert f.nr: b ID: *55*52 UM200 Testaus uuni max.220celsius din12880-k1 interior 380mm/w)*250mm(D)*300mm(H) volume 32 l Komponenttien kuivatukseen ja testaukseen Tarkka pt100 mittaa lämpötilan. Vastukset ympäröi testausaluetta. Page /sivu 4

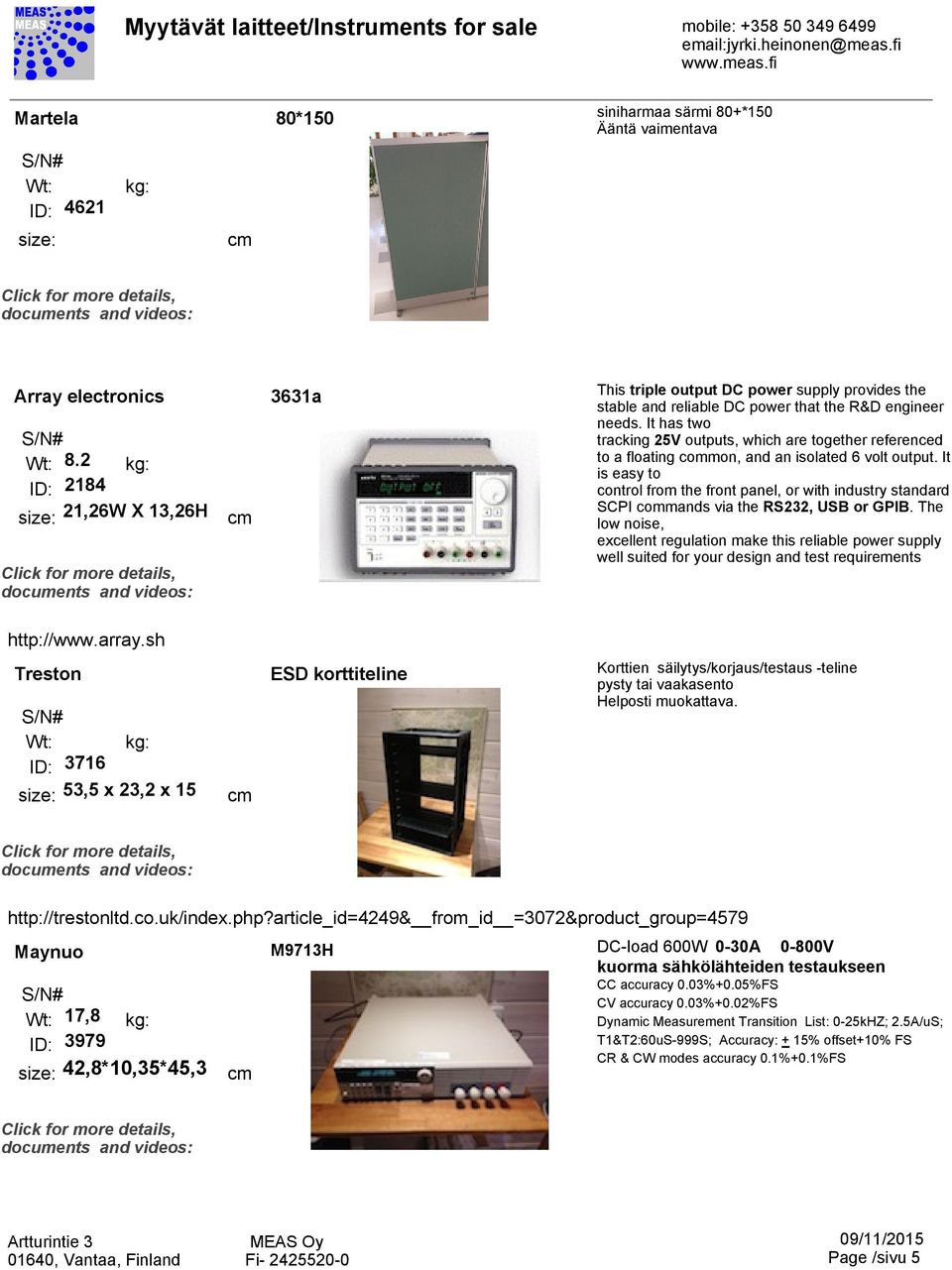

5 Martela 80*150 ID: 4621 siniharmaa särmi 80+*150 Ääntä vaimentava Array electronics 8.2 ID: ,26W X 13,26H X 36,0D 3631a This triple output DC power supply provides the stable and reliable DC power that the R&D engineer needs. It has two tracking 25V outputs, which are together referenced to a floating common, and an isolated 6 volt output. It is easy to control from the front panel, or with industry standard SCPI commands via the RS232, USB or GPIB. The low noise, excellent regulation make this reliable power supply well suited for your design and test requirements Treston ID: ,5 x 23,2 x 15 ESD korttiteline Korttien säilytys/korjaus/testaus -teline pysty tai vaakasento Helposti muokattava. from_id =3072&product_group=4579 Maynuo 17,8 ID: ,8*10,35*45,3 M9713H DC-load 600W 0-30A 0-800V kuorma sähkölähteiden testaukseen CC accuracy 0.03%+0.05%FS CV accuracy 0.03%+0.02%FS Dynamic Measurement Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy: + 15% offset+10% FS CR & CW modes accuracy 0.1%+0.1%FS Page /sivu 5

6 Metcal BGA-3000 BGA Juotin asema/bga rework station ID: SCHEPPACH 25 ID: 4615 BTS 900 X NAUHAHIOMAKONE Moottori, 230 V, ottoteho 450 W Hiomanauhan leveys 100 mm, hiomanauhan pituus 915 mm, hioma-nauhan nopeus 7,5 m/s, hiontalautasessa laikkojen tarrakiinnitys, säädettävä hiontavaste, pöydän koko 159 x 225 mm, purunimuliitoskappale, KEISOKU GIKEN CO., LTD. 13 ID: ,0X 12,8 X 42,0 LN-1000A-G7+lx-op Anritsu 7 ID: *18*39 MA8120E Elektroninen kuorma vaativaan käyttöön. (nousunopeus 30uA/S) Sisään rakennettu ohjelma jolla voi testata poweria ilman ulkoista PC. Voidaan linkittää saman mallin kuormiin. Electronic Load 120V-180A-1000W, slew rate 30A/us Standard USB interface. optional GPIB configure max. 10kW load (LN-1000A-G6 X 10 sets). Min operating voltage 1V(180A) /0.5V(90A) /0.2V(36A) Nominal resolution H 15mA M 1.5mA L 0.3mA häiriösuojattu testaus/shield box 800MHz..2,5GHz esim. gsm,dcs,pcn,wcdma,lte testeriin liitettäväksi +sis ant.couplerin Page /sivu 6

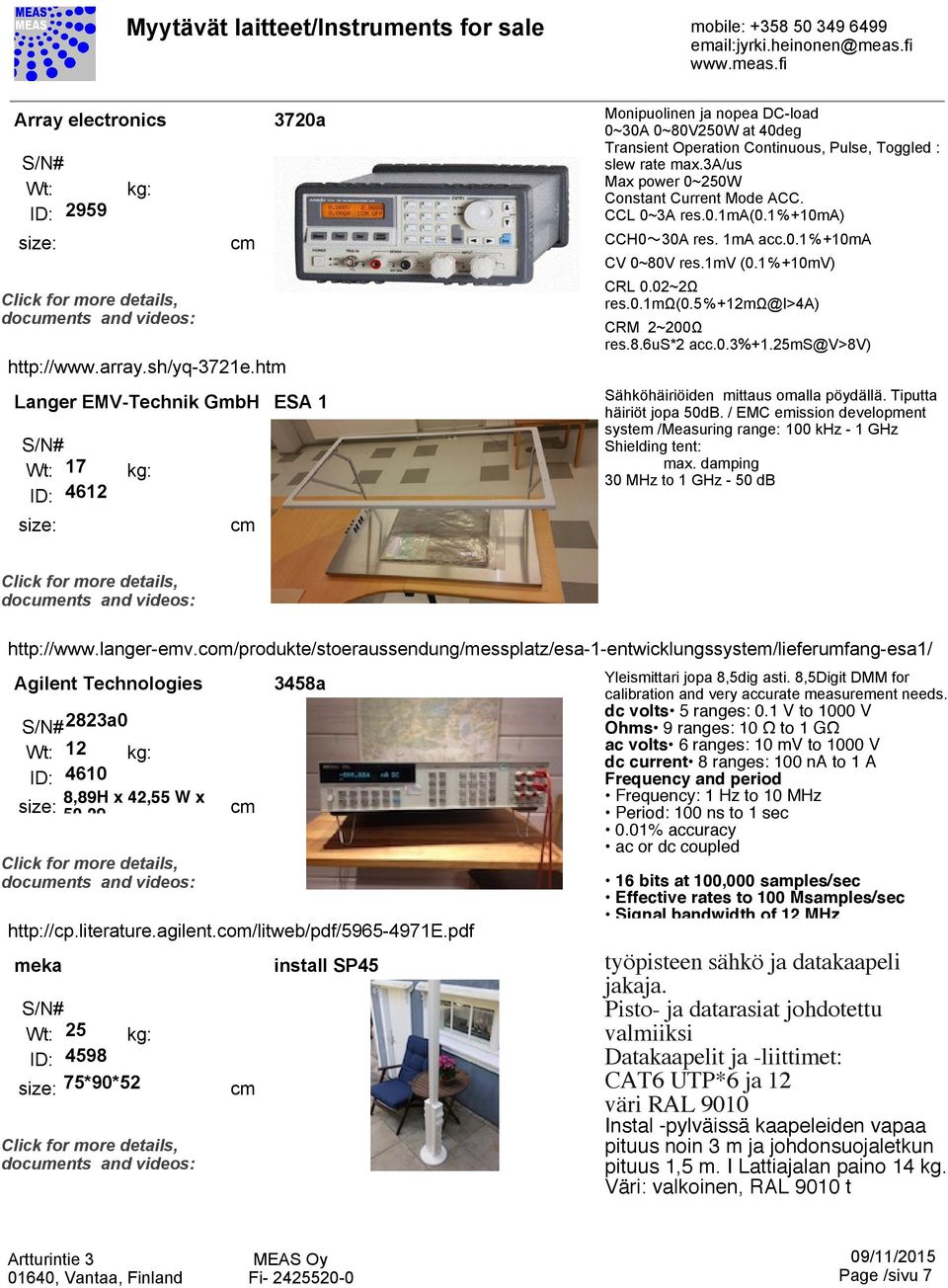

7 Array electronics ID: Langer EMV-Technik GmbH 17 ID: a ESA 1 Monipuolinen ja nopea DC-load 0~30A 0~80V250W at 40deg Transient Operation Continuous, Pulse, Toggled : slew rate max.3a/us Max power 0~250W Constant Current Mode ACC. CCL 0~3A res.0.1ma( mA) CCH0~30A res. 1mA acc mA CV 0~80V res.1mv ( mV) CRL 0.02~2Ω res.0.1mω( mΩ@I>4A) CRM 2~200Ω res.8.6us*2 acc.0.3%+1.25ms@v>8v) Sähköhäiriöiden mittaus omalla pöydällä. Tiputta häiriöt jopa 50dB. / EMC emission development system /Measuring range: 100 khz - 1 GHz Shielding tent: max. damping 30 MHz to 1 GHz - 50 db Agilent Technologies 2823a ID: ,89H x 42,55 W x 50, a meka 25 ID: *90*52 install SP45 Yleismittari jopa 8,5dig asti. 8,5Digit DMM for calibration and very accurate measurement needs. dc volts 5 ranges: 0.1 V to 1000 V Ohms 9 ranges: 10 Ω to 1 GΩ ac volts 6 ranges: 10 mv to 1000 V dc current 8 ranges: 100 na to 1 A Frequency and period Frequency: 1 Hz to 10 MHz Period: 100 ns to 1 sec 0.01% accuracy ac or dc coupled 16 bits at 100,000 samples/sec Effective rates to 100 Msamples/sec Signal bandwidth of 12 MHz työpisteen sähkö ja datakaapeli jakaja. Pisto- ja datarasiat johdotettu valmiiksi Datakaapelit ja -liittimet: CAT6 UTP*6 ja 12 väri RAL 9010 Instal -pylväissä kaapeleiden vapaa pituus noin 3 m ja johdonsuojaletkun pituus 1,5 m. I Lattiajalan paino 14 kg. Väri: valkoinen, RAL 9010 t Page /sivu 7

8 Agilent Technologies 28,2 ID: ,5W8,8Hx39,6 D 6811B AC and DC sähkölähde. esim.iec testauksiin Power 375 VA rms voltage 300 V rms current 3.25 A Rep.& non-repetitive peak current 40 A Crest factor 12 DC power 285 W ISKU ID: 4601 neuvottelu/työtuoli pyörivä pyörillä varustettu työtuoli. selkänoja verhoiltua koivuvaneria. Edullinen työtuoli kun et tarvitse ESD:tä ISKU neuvotteluhuoneen tuoli ruskea pehmuste pitkä selkänoja. käsinoja. takajaloissa pyörät. ID: *102*60 ISKU mappihylly/ kahvipöytä Pyörivä mappihylly. Pyörillä varustettu ID: *85 Page /sivu 8

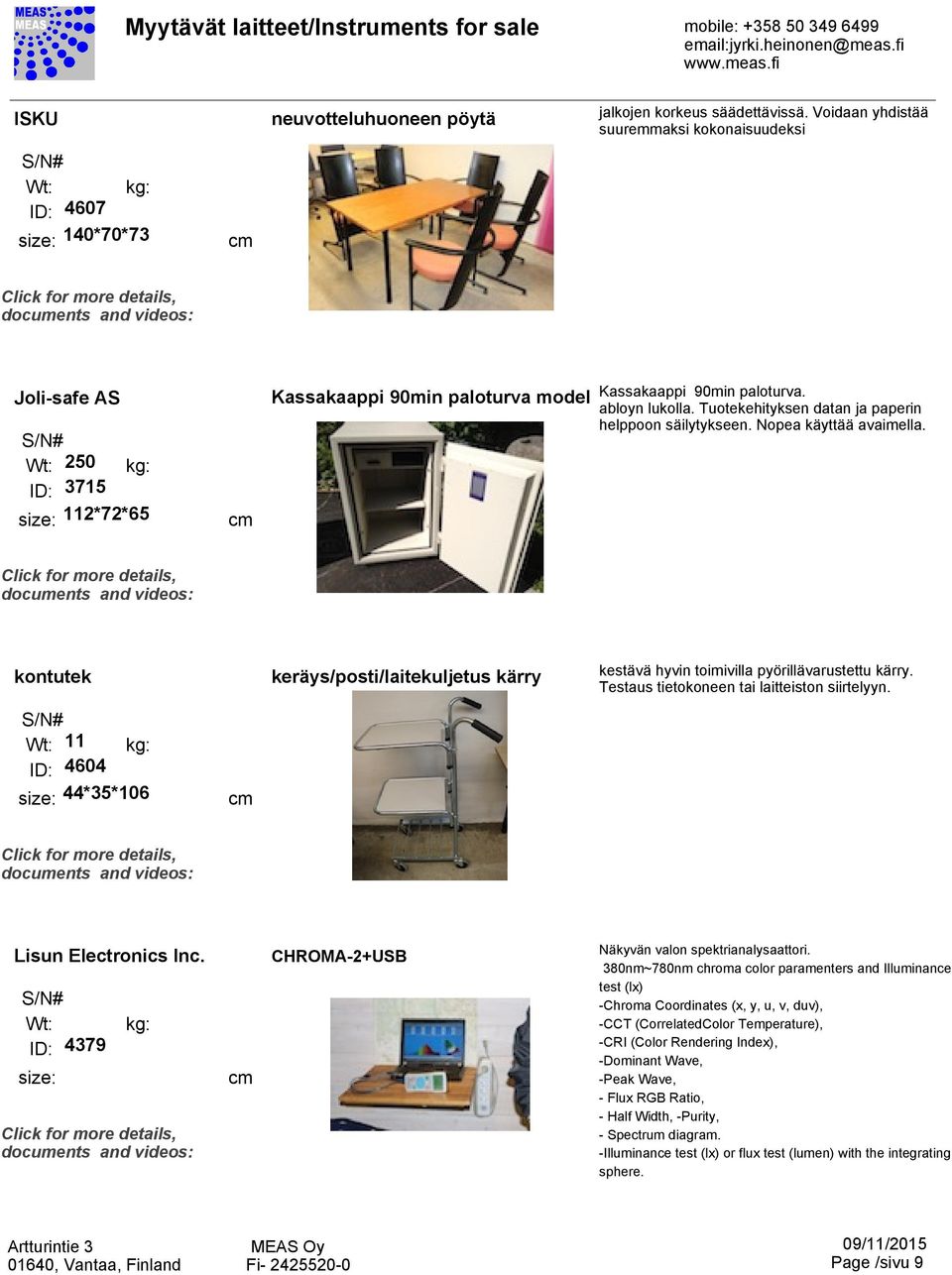

9 ISKU neuvotteluhuoneen pöytä jalkojen korkeus säädettävissä. Voidaan yhdistää suuremmaksi kokonaisuudeksi ID: *70*73 Joli-safe AS 250 ID: *72*65 Kassakaappi 90min paloturva model 6 Kassakaappi 90min paloturva. abloyn lukolla. Tuotekehityksen datan ja paperin helppoon säilytykseen. Nopea käyttää avaimella. kontutek keräys/posti/laitekuljetus kärry kestävä hyvin toimivilla pyörillävarustettu kärry. Testaus tietokoneen tai laitteiston siirtelyyn. 11 ID: *35*106 Lisun Electronics Inc. ID: 4379 CHROMA-2+USB Näkyvän valon spektrianalysaattori. 380nm~780nm chroma color paramenters and Illuminance test (lx) -Chroma Coordinates (x, y, u, v, duv), -CCT (CorrelatedColor Temperature), -CRI (Color Rendering Index), -Dominant Wave, -Peak Wave, - Flux RGB Ratio, - Half Width, -Purity, - Spectrum diagram. -Illuminance test (lx) or flux test (lumen) with the integrating sphere. Page /sivu 9

10 Weiss ID: ,5*78*87 WT11-180/40 Testaus kammio syklisiin testauksiin.environment Chamber -45 to +180C.(specs) testspace h75**d45*w58 (54Width between the shelves) lämpökaappi tilavuus 180l, ISKU rulolaatikko harmaa/koivuviilu ID: *87*43 Rulokaappi/Laatikosto toimistoon. Projektit/mapit piiloon pöydiltä nopeasti. teräs 90 ID: *90*52 komponentti säilytys lokerikko 10 Vetolaatikko 1m2 kokoisena eli 10m2 säilitystila komponenteille, kaapeleille, piirustuksille etc. Pääset helposti näkemään mitä komponentteja sinulla on. ESD tuotteet sisälle myydään erikseen Punta 140 ID: *103*50 Mittauslaite kaappi n.1mm pulverimaalatusta teräslevystä hitsattu kaappi. Abloy lukolla. Edustavan näköinen arkistokaapiksi toimistoon. Kestää kuljettelua. Page /sivu 10

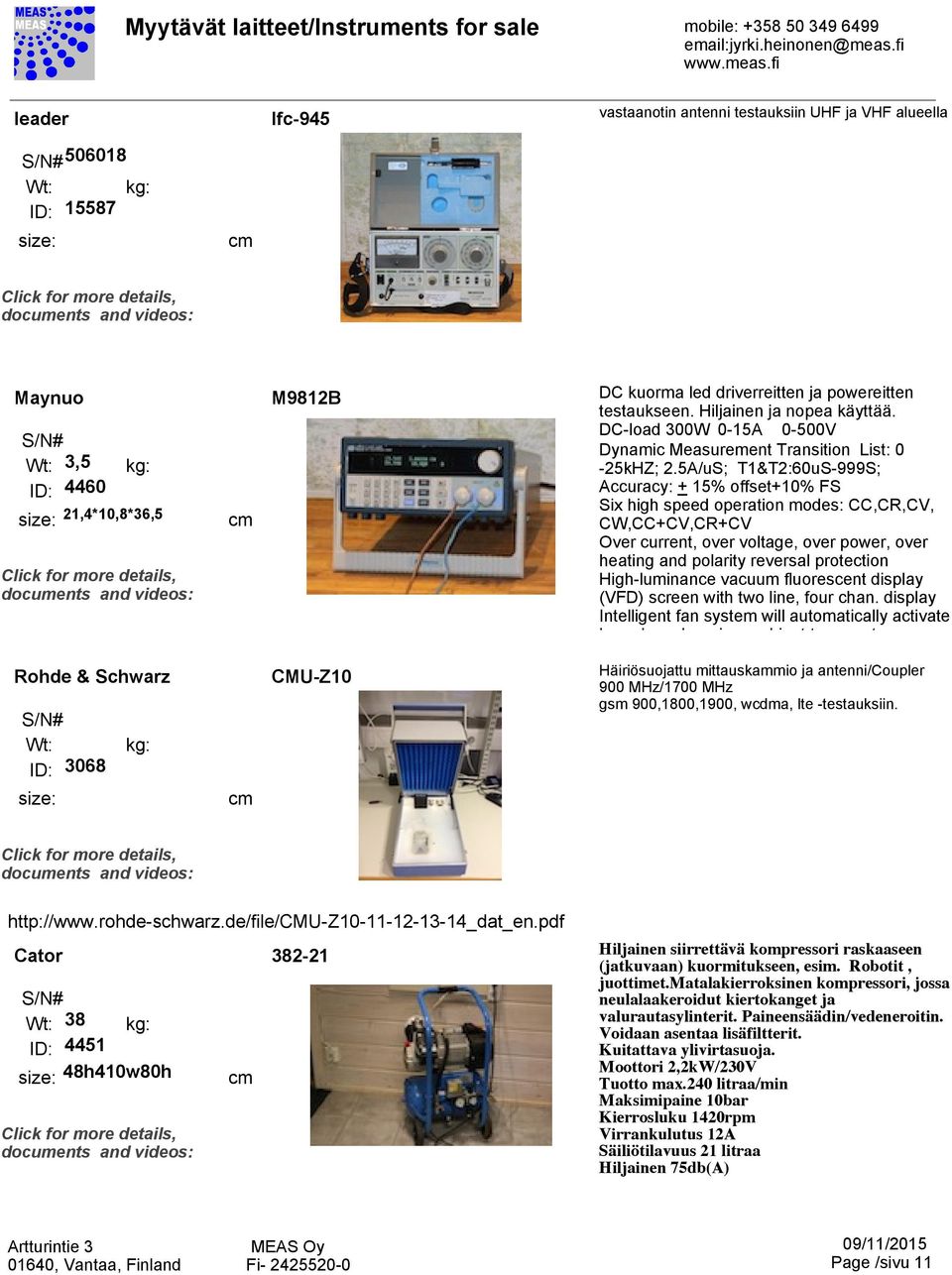

11 leader lfc-945 vastaanotin antenni testauksiin UHF ja VHF alueella ID: Maynuo 3,5 ID: ,4*10,8*36,5 M9812B DC kuorma led driverreitten ja powereitten testaukseen. Hiljainen ja nopea käyttää. DC-load 300W 0-15A 0-500V Dynamic Measurement Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy: + 15% offset+10% FS Six high speed operation modes: CC,CR,CV, CW,CC+CV,CR+CV Over current, over voltage, over power, over heating and polarity reversal protection High-luminance vacuum fluorescent display (VFD) screen with two line, four chan. display Intelligent fan system will automatically activate based on changing ambient temperatures Rohde & Schwarz ID: 3068 CMU-Z10 Häiriösuojattu mittauskammio ja antenni/coupler 900 MHz/1700 MHz gsm 900,1800,1900, wcdma, lte -testauksiin. Cator 38 ID: h410w80h Hiljainen siirrettävä kompressori raskaaseen (jatkuvaan) kuormitukseen, esim. Robotit, juottimet.matalakierroksinen kompressori, jossa neulalaakeroidut kiertokanget ja valurautasylinterit. Paineensäädin/vedeneroitin. Voidaan asentaa lisäfiltterit. Kuitattava ylivirtasuoja. Moottori 2,2kW/230V Tuotto max.240 litraa/min Maksimipaine 10bar Kierrosluku 1420rpm Virrankulutus 12A Säiliötilavuus 21 litraa Hiljainen 75db(A) Page /sivu 11

12 Seaward K ID: 3029 Sceptre EMC testaus häiriöiden mittaukseen. pre comp EMC testsystems with spectrum, lisn, antenna 30MHZ etc. input Frequncy range 150kHz-450MHz 1MHz 3dB bandwith 9kHz-120kHz CISPR measurements Scans1MHz,3MHz,10MHz,100MHz,300MHz Gains +20dB,0dB..-20dB 8 Amp LISN standard Quasi peak Detection Average facility Peak Hold facility EFD ultra1400 series Juotospasta/liima annostelia/dispencer for glues,flux -fluids 1647 ID: National Instruments V08X ID: 661 EI 22 PXI slot PXI chassis 18 korttipaikkainen PXI testaus räkki. Accepts both 3U PXI and 3UCompactPCI modules Software programmable trigger routing between bus segments Low jitter (<5 ps) 10 MHz reference clock External 10 MHz reference clock with BNC I/O connectors Removable, high-performance power supply with universal AC input Extended 0 to 55 C operating range Temperature controlled fan speed Remote power-inhibit control and voltage monitoring ET-systems ID: "6he*434,7 EAC-S kVA AC -source EN testauksiin sekä poweri tuotekehitykseen. Vin: 230 VAC / 50 Hz Vout: VAC / VDC Cout: 0-12 A max Out freq: 50/60/400 Hz Hz Power: 500 VA Option../V700 Out voltag erange 700 VAC/1000VDC (C - 50%) Option../F1000frequency range Hz Option../IEEE 488 Interface IEEE 488, GPIB Page /sivu 12

13 Agilent my ID: 2119 E4421B/1EM Signal generator 0.1-3GHz esim EMC testaukseen EN with AM,FM,PM modulatation and good quality LF generators StabilityAging rate< ±1 ppm/yr < ±1 ppm, typ. < ±0.1 ppm, typ.(+5% 10%) External reference input> 0.35 Vrms into 50 Ω load1, 2, 5, 10 MHz OutputFrequency Amplitude 250 khz to 1GHz+13 to 136 dbm >1to3GHz +10to 136dBm Agilent my ,11 ID: ,7*2,1 8491a Attenuator/vaimennin suojaamaan mittauslaitteita. DC to 12.4 GHz: ±0.3 db 12.4 to 18 GHz: ±0.4 db weinchel 7538 ID: a 50ohmin tarkka jakaja, jotta varmistat että RF/mikroaallto mittauksesi ovat tarkkoja.splitter NOMINAL IMPEDANCE: 50 Ω FREQUENCY RANGE: dc to 18.0 GHz INSERTION LOSS: 6 db nominal, 7.5 db maximum (Between Input and either output). MAXIMUM INPUT POWER: 1 watt average, 1 kilowatt peak (Input connector only) Armeka Engineering ESD strap madoitus ranneke johdolla. ID: 1719 Page /sivu 13

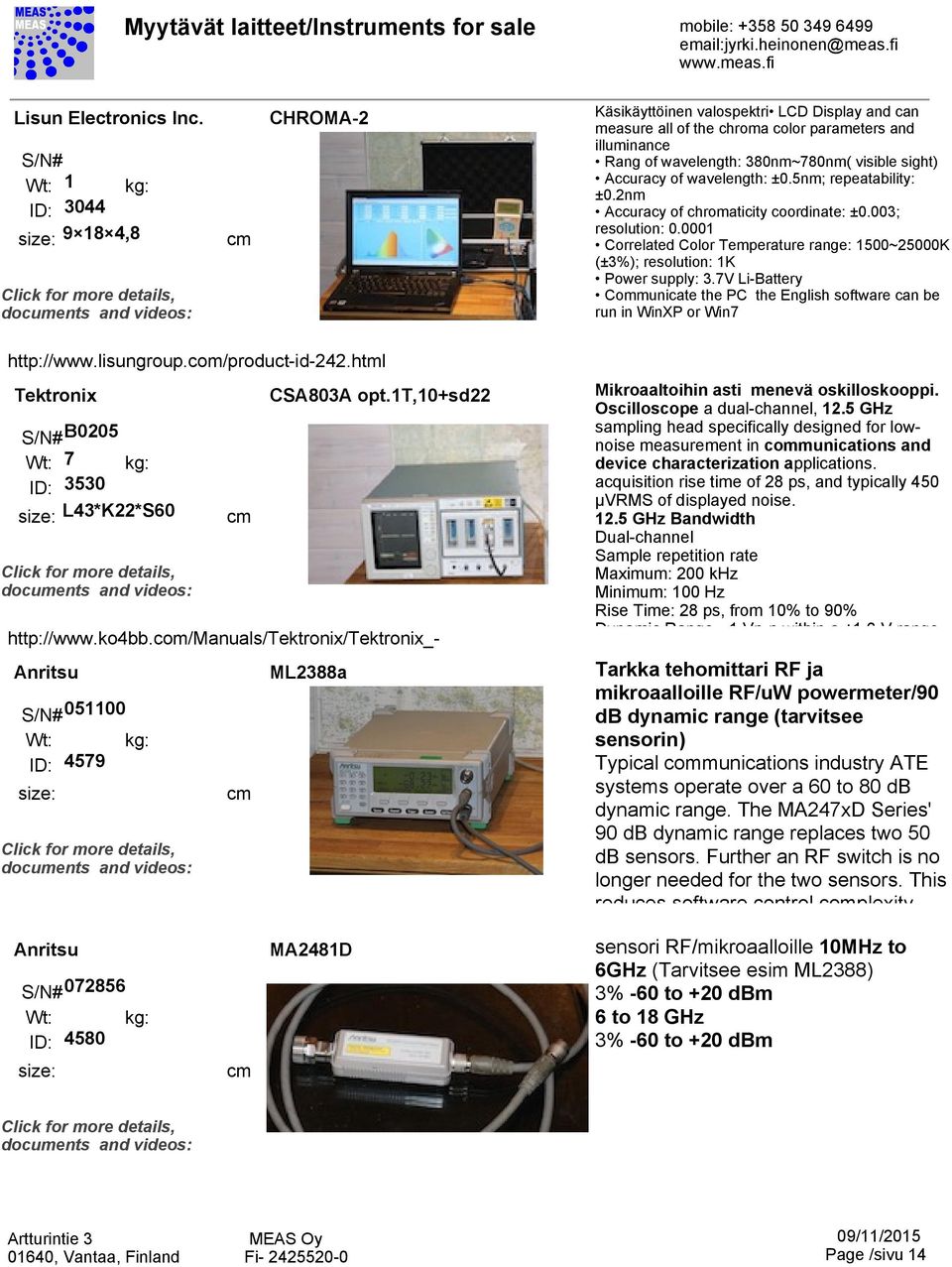

14 Lisun Electronics Inc. 1 ID: ,8 CHROMA-2 Käsikäyttöinen valospektri LCD Display and can measure all of the chroma color parameters and illuminance Rang of wavelength: 380nm~780nm( visible sight) Accuracy of wavelength: ±0.5nm; repeatability: ±0.2nm Accuracy of chromaticity coordinate: ±0.003; resolution: Correlated Color Temperature range: 1500~25000K (±3%); resolution: 1K Power supply: 3.7V Li-Battery Communicate the PC the English software can be run in WinXP or Win7 Tektronix B ID: 3530 L43*K22*S60 CSA803A opt.1t,10+sd22 _CSA803_Communication_System_Analyzer/Tek_SD20_UserManual.pdf Anritsu ML2388a ID: 4579 Mikroaaltoihin asti menevä oskilloskooppi. Oscilloscope a dual-channel, 12.5 GHz sampling head specifically designed for lownoise measurement in communications and device characterization applications. acquisition rise time of 28 ps, and typically 450 µvrms of displayed noise GHz Bandwidth Dual-channel Sample repetition rate Maximum: 200 khz Minimum: 100 Hz Rise Time: 28 ps, from 10% to 90% Dynamic Range - 1 Vp-p within a ±1.6 V range Tarkka tehomittari RF ja mikroaalloille RF/uW powermeter/90 db dynamic range (tarvitsee sensorin) Typical communications industry ATE systems operate over a 60 to 80 db dynamic range. The MA247xD Series' 90 db dynamic range replaces two 50 db sensors. Further an RF switch is no longer needed for the two sensors. This reduces software control complexity Anritsu ID: 4580 MA2481D sensori RF/mikroaalloille 10MHz to 6GHz (Tarvitsee esim ML2388) 3% -60 to +20 dbm 6 to 18 GHz 3% -60 to +20 dbm Page /sivu 14

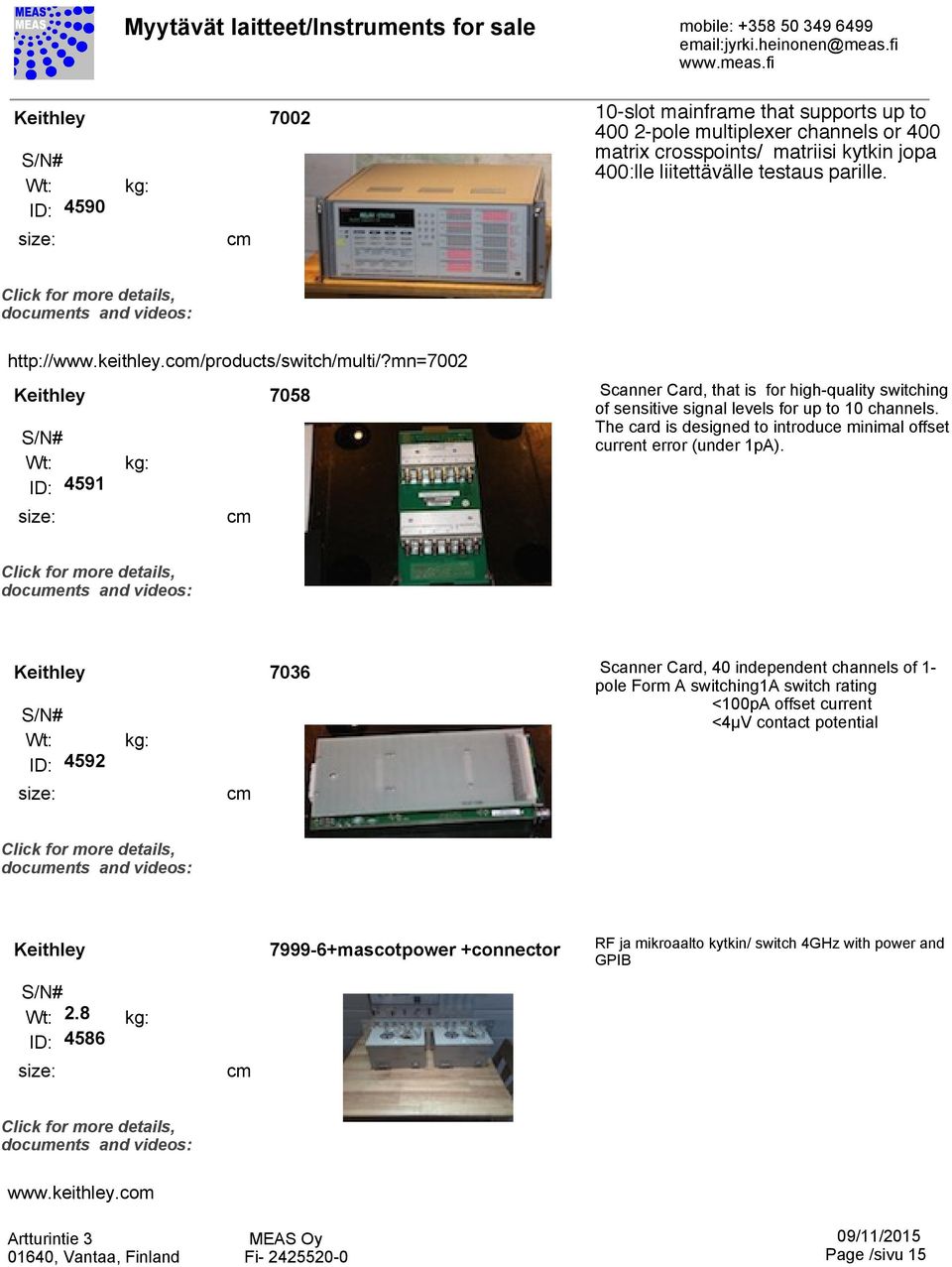

15 Keithley 7002 ID: slot mainframe that supports up to pole multiplexer channels or 400 matrix crosspoints/ matriisi kytkin jopa 400:lle liitettävälle testaus parille. Keithley 7058 ID: 4591 Scanner Card, that is for high-quality switching of sensitive signal levels for up to 10 channels. The card is designed to introduce minimal offset current error (under 1pA). Keithley 7036 ID: 4592 Scanner Card, 40 independent channels of 1- pole Form A switching1a switch rating <100pA offset current <4μV contact potential Keithley 2.8 ID: mascotpower +connector RF ja mikroaalto kytkin/ switch 4GHz with power and GPIB Page /sivu 15

16 Lambda yls -343cc ID: 4587 jwt75-522/c todella edullinen DC lähde useammalla lähdöllä. +5V 8A DC-power +12V 4A DC-power -12V 0,5A DC power 240V/1,4A ac 50/60HZ needed Thermo CRS F3 robot arm and C500C sisältää myös robotin käsiohjaimen. häiriösuojattu robotti toistuviin mittauksiin. ID: 3087 Traco power ID: 4589 TXL edullinen DC poweri24v 6,3A DC-power AC 50/60Hz 2,2A needed Anritsu ID: 4581 MA2481B Universal Power Sensor, 10 MHz to 6 GHz, 50 Ohm, -60 to +20dBm 3% -60 to +20 dbm 6 to 18 GHz 3% -60 to +20 dbm Page /sivu 16

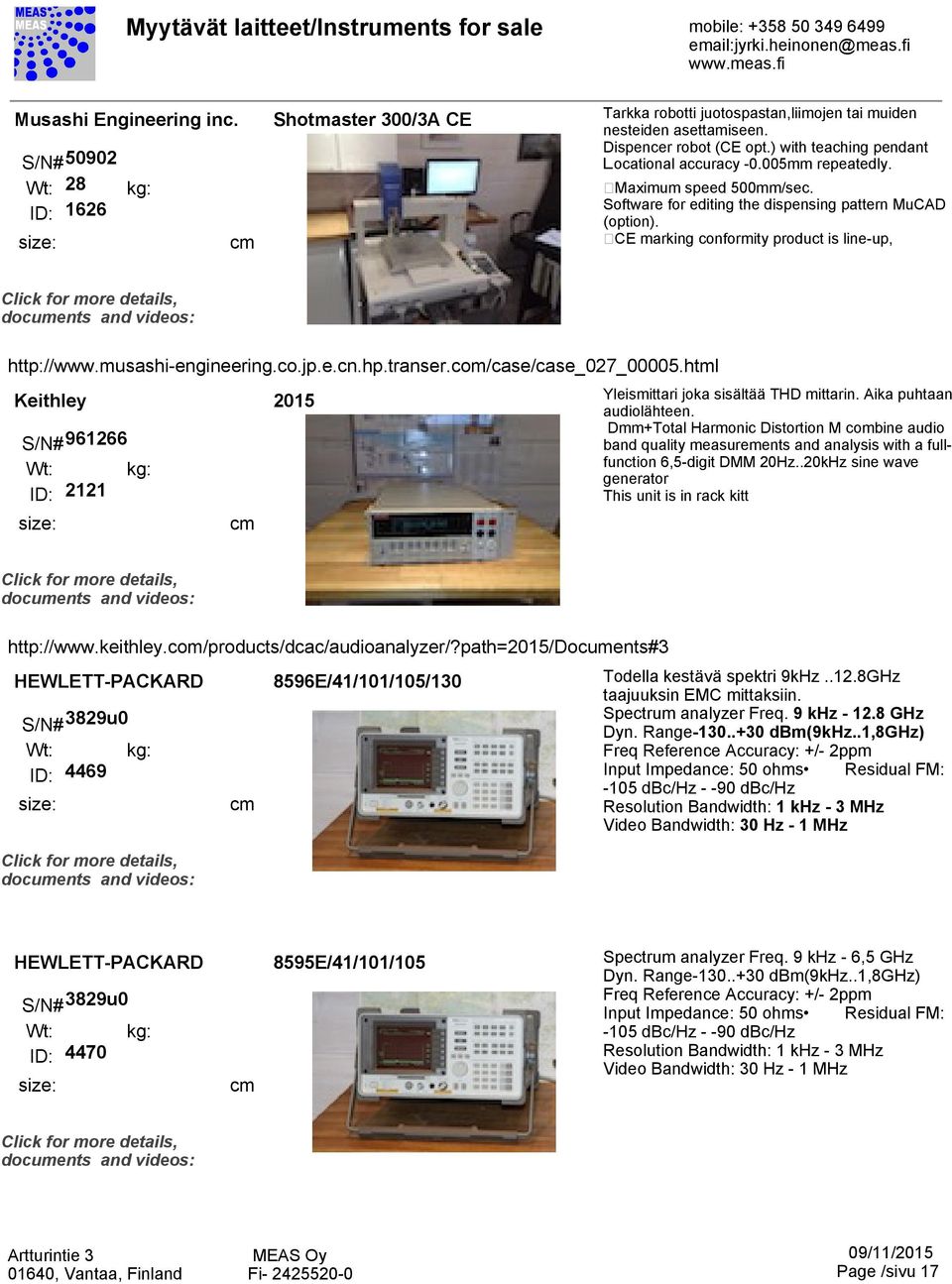

17 Musashi Engineering inc ID: 1626 Shotmaster 300/3A CE Tarkka robotti juotospastan,liimojen tai muiden nesteiden asettamiseen. Dispencer robot (CE opt.) with teaching pendant Locational accuracy mm repeatedly. (Maximum speed 500mm/sec. Software for editing the dispensing pattern MuCAD (option). (CE marking conformity product is line-up, Keithley ID: Yleismittari joka sisältää THD mittarin. Aika puhtaan audiolähteen. Dmm+Total Harmonic Distortion M combine audio band quality measurements and analysis with a fullfunction 6,5-digit DMM 20Hz..20kHz sine wave generator This unit is in rack kitt HEWLETT-PACKARD 3829u ID: E/41/101/105/130 Todella kestävä spektri 9kHz..12.8GHz taajuuksin EMC mittaksiin. Spectrum analyzer Freq. 9 khz GHz Dyn. Range dbm(9khz..1,8ghz) Freq Reference Accuracy: +/- 2ppm Input Impedance: 50 ohms Residual FM: -105 dbc/hz dbc/hz Resolution Bandwidth: 1 khz - 3 MHz Video Bandwidth: 30 Hz - 1 MHz HEWLETT-PACKARD 3829u ID: E/41/101/105 Spectrum analyzer Freq. 9 khz - 6,5 GHz Dyn. Range dbm(9khz..1,8ghz) Freq Reference Accuracy: +/- 2ppm Input Impedance: 50 ohms Residual FM: -105 dbc/hz dbc/hz Resolution Bandwidth: 1 khz - 3 MHz Video Bandwidth: 30 Hz - 1 MHz Page /sivu 17

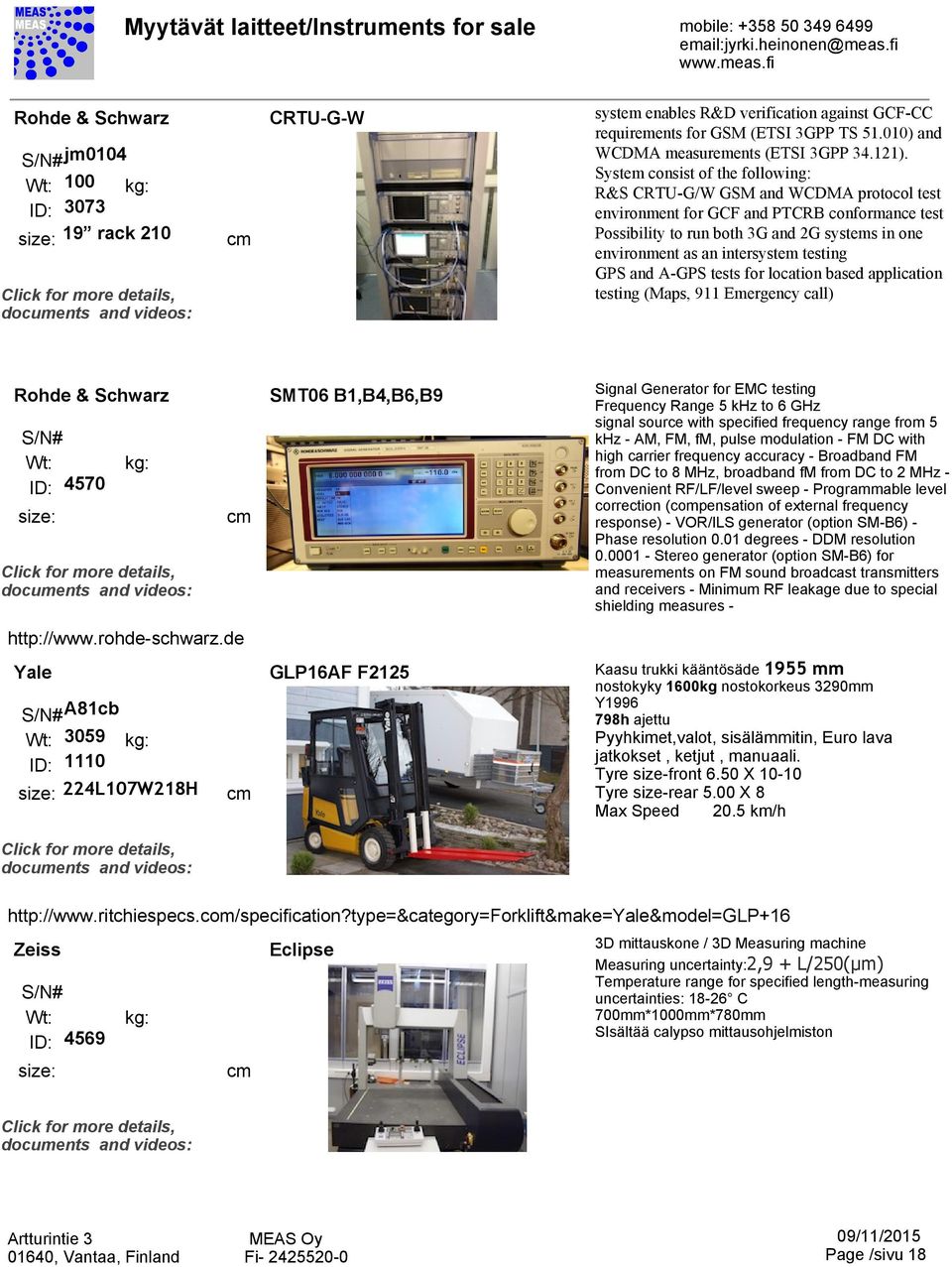

18 Rohde & Schwarz jm ID: rack 210 CRTU-G-W system enables R&D verification against GCF-CC requirements for GSM (ETSI 3GPP TS ) and WCDMA measurements (ETSI 3GPP ). System consist of the following: R&S CRTU-G/W GSM and WCDMA protocol test environment for GCF and PTCRB conformance test Possibility to run both 3G and 2G systems in one environment as an intersystem testing GPS and A-GPS tests for location based application testing (Maps, 911 Emergency call) Rohde & Schwarz ID: Yale A81cb 03063T 3059 ID: L107W218H SMT06 B1,B4,B6,B9 GLP16AF F2125 Signal Generator for EMC testing Frequency Range 5 khz to 6 GHz signal source with specified frequency range from 5 khz - AM, FM, fm, pulse modulation - FM DC with high carrier frequency accuracy - Broadband FM from DC to 8 MHz, broadband fm from DC to 2 MHz - Convenient RF/LF/level sweep - Programmable level correction (compensation of external frequency response) - VOR/ILS generator (option SM-B6) - Phase resolution 0.01 degrees - DDM resolution Stereo generator (option SM-B6) for measurements on FM sound broadcast transmitters and receivers - Minimum RF leakage due to special shielding measures - Kaasu trukki kääntösäde 1955 mm nostokyky 1600kg nostokorkeus 3290mm Y h ajettu Pyyhkimet,valot, sisälämmitin, Euro lava jatkokset, ketjut, manuaali. Tyre size-front 6.50 X Tyre size-rear 5.00 X 8 Max Speed 20.5 km/h +VX&modelid=95410 Zeiss Eclipse 3D mittauskone / 3D Measuring machine Measuring uncertainty:2,9 + L/250(μm) Temperature range for specified length-measuring uncertainties: C 700mm*1000mm*780mm SIsältää calypso mittausohjelmiston ID: 4569 Page /sivu 18

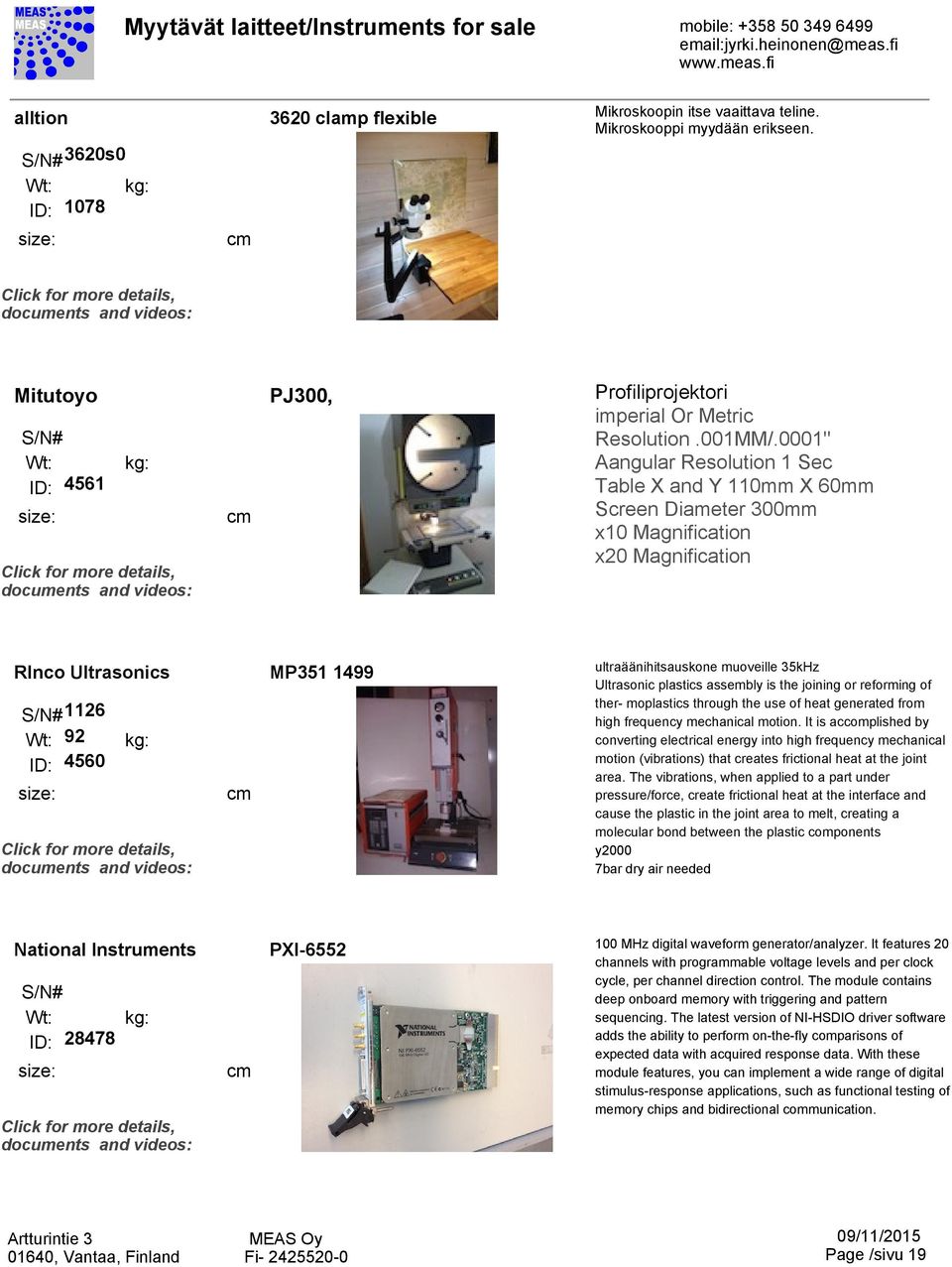

19 alltion 3620s0 01 ID: clamp flexible Mikroskoopin itse vaaittava teline. Mikroskooppi myydään erikseen. Mitutoyo ID: 4561 PJ300, Profiliprojektori imperial Or Metric Resolution.001MM/.0001" Aangular Resolution 1 Sec Table X and Y 110mm X 60mm Screen Diameter 300mm x10 Magnification x20 Magnification RInco Ultrasonics ID: 4560 MP ultraäänihitsauskone muoveille 35kHz Ultrasonic plastics assembly is the joining or reforming of ther- moplastics through the use of heat generated from high frequency mechanical motion. It is accomplished by converting electrical energy into high frequency mechanical motion (vibrations) that creates frictional heat at the joint area. The vibrations, when applied to a part under pressure/force, create frictional heat at the interface and cause the plastic in the joint area to melt, creating a molecular bond between the plastic components y2000 7bar dry air needed National Instruments ID: PXI MHz digital waveform generator/analyzer. It features 20 channels with programmable voltage levels and per clock cycle, per channel direction control. The module contains deep onboard memory with triggering and pattern sequencing. The latest version of NI-HSDIO driver software adds the ability to perform on-the-fly comparisons of expected data with acquired response data. With these module features, you can implement a wide range of digital stimulus-response applications, such as functional testing of memory chips and bidirectional communication. Page /sivu 19

20 Advantest ID: 4429 R3131 EMC Spectrum analyzer 9kHz to 3GHz with antennacompensation and QP detector Freq ref source accuracy: ±2 ppm/year±5ppm. Frequency span: zero, 10 khz to 3 GHz Freq. stab.:sb noise: 100 dbc/hz(20khzoffset) Resolution 3dB BW: 300 Hz to 1 MHz 1-3 step BW acc.: ±20% (RBW 1 khz to 1 MHz) ±50% (RBW 300 Hz, typ. ±20%) Video bandwidth: 10 Hz to 1MHz 1-10 step Improved ease of use through Auto TUNE function Total level accuracy guaranteed by Auto CAL function Standard interfaces: GPIB, RS232C, Centronics, and FD drive Large character display allows results to be seen Substantial EMC measurement function Tektronix ID: 4559 P ohm probe 3 GHz, 20X, lowcapacitance probe for TDS oscillocopes Willtek ID: M GSM 900,1800,1900, edge päätelaite testeri koodekilla ja audiolla. Signaaligeneraattori AM, GMSK -15dbm... ACPR mittari SIsältää powerin säädettävällä jännitteellä ja virtamittauksella. parsons 15 ID: *70*51 kovalaukku pyörällinen laitekuljetuslaukku sisämitat 44*28* *36*9+ 20*10*5 +27*14*9 + 37*29*9 (soft fyllings+2 on every measure) Page /sivu 20

21 Ulirvision ,393 ID: ,8 6,2 15,4 TI160 Tarkka lämpökamera kuvassa pikkurillin kynnenkokoinen FPGA 160 x120 pixels IR detector resolution Accuracy: ±2 or ±2 of reading, Temp range: -20 ~ 350, NETD<65mk at30 操 作 演 示.flv eri valmistajat ID: 4548 liitin laatikko Eri valmistajien adaptereita, esim N,BNC,UHF,VHF, TNC,SMA,SMB.plu,rca etc. sekä hyvä laatuinen kaapeli Fluke 1,2 ID: ,7k12,7l15,2p TIS Martin 0,22 ID: s3,2k4l IR1796 Kämpökamera vian etsintään elektroniikassa ja asuntojen vikojen etsimiseen Lämpötilan mittausalue -20 C C Lämpötilamittausten tarkkuus ±5 C tai 5 % Kuvaustaajuus 9 Hz:n virkistystaajuus Ilmaisintyyppi 120 x 120 ilmaisinmatriisi, jäähdyttämätön mikrobolometri Lämpöherkkyys (NETD) 0,1 C 30 C:n kohdelämpötilassa. (100 mk) Infrapunan spektrivaste 7,5 μm...14 μm (pitkä aalto) Vakioinfrapunalinssi Näkökenttä: 17 x 17 Spatiaalinen erottelukyky: (IFOV) 2,50 mrad Pienin tarkennusetäisyys: 15 Kuvan pysäytys, katselu ja tallennus Yhdellä kädellä Soldering Bottom Heater for small boards for Martin ha04/05/dbl04/05/hj05 soldeting robot kuuma alue 33mm*40mm Page /sivu 21

22 Martin ID: 4550 DB Easy cal set III calibration set/calibration tool verifies and calibrates top hot gas heaters of EXPERT 10.6 and 4.6 rework systems, ensuring optimum system performance and providing performance validation for internal or customer quality audits. Sisältää kaiken kalibroinnissa tarvittavan välineistön ohjelmineen. Calibration is supported by EASYCAL software, which calibrates the rework system. The tool analyzes gas flow rates, gas temperatures and verifies operation of sensor inputs. All calibration data is stored in a database and calibration documents are generated at the end of successfully performed calibrations. All calibration tool components come practically arranged in a small sturdy case. Microwave amps LTD ID: AM vahvistin/amplfier esim EMC testaukseen wlan,3g,4g, etc Gain Range : 40W Frequency Coverage : GHz Gain Flatness : 1dB p-p max Noise Figure : 4dB typ VSWR : 2:1 max Output Power P1dB : +46dBm Power Supply : +12V DC (external) Operating Temp Range : 0 to 60C Connectors : input SMA/output N Female ABB 250 ID: IRB140 / M2000 Robotti IRB140 M2000-ohjauksella (S4C+) Y liitynnät ja optiot RS232 kommunikoinnillle teaching pedant and base inc./opetusohjain ja alusta kuuluu mukaan Six axis multipurpose robot that handles payload of 6 kg, with long reach (810 mm). The IRB 140 can be floor mounted, inverted or on the wall in any angle. Available as Standard, Foundry Plus 2, Clean Room and Wash versions, all mechani- cal arms completely IP67 protected productlanguage=fi&country=fi Haefely PEFT ID: 4542 EFT burst tester EFT impulse generation according kv. Spike frequency1 Hz... 1 MHz ESD control and report functions for attaching an Electrostatic Discharge gun. Automatic test operation for shortest measuring time and minimal setup effort. Data exchange to printer or computer is possible without any additional hardware/software. Remote control is provided by optional software (WinFEAT&R) designed specially for EMC testing. ISO 9001 : 2000 certified manufactured Page /sivu 22

23 oma EMC clamp kapasitiivinen clamppi kuljetuslaatikoineen sis kaapelin clampista haefely HVout liittimeen. ID: 4538 maynuo 47 ID: ,8W20,7H45,35 D M8874USB 100V/11A/1100W Low ripple and low noise High resolution and accuracy (0.1mV/0.01mA) Built-in high-accuracy 5 1/2 voltmeter and milliohmmeter Supporting high-accuracy and dynamic programming output High-luminance VFD screen with two lines& four channels display Intellegent fan system fan will be automatically initiated according to the temperature Supporting remote voltage compensation and multidata storage Supporting external trigger input and output Ulirvision 0,65 ID: ,5 8,6 TI384 IR Resolution: 384 x 288 pixels Accuracy: ±2 or ±2% of reading Thermal Sensitivity: <65mk at 30 Temperature Range: -20 ~350 High Temperature alarm: Color and Voice Measurement: 4 moveable spots, 3 adjustable areas, horizontal, isotherm Ulirvision 0,393 ID: ,8 6,2 15,4 TI175 TI175 are for variety of industry application 160 x120 pixels IR detector resolution Accuracy: ±2 or ±2 of reading, NETD: <65mk at 30( Temp range: -20 ~ 250 thermal fusion Page /sivu 23

24 Alltion ID: 2999 XTL1A with flexstand Stereo Microscope with Total Magnification: 3.5X 225X (opt.parts) Standard Magnification: 7X 45XRatio: 1: 6 Objective Zoom Objective: 0.7X 4.5X Standard Working Distance: 90mm The working distance is changed to 137MM after adding 0.5X objective Array electronics 5,8 ID: ,5*32*22 Gigatronics/IFR ID: A Kuorma sähkölähteiden testauksiin tuotekehityksissä. DC-load 0~20A 0~200V 200W at 40deg Transient Operation Continuous, Pulse, Toggled : slew rate max.2a/us Max power 0~200W Constant Current Mode Accuracy. CCL 0~2A res.0.1ma( mA) CCH0~20A res. 1mA acc mA CV 0~200V res.2mv ( mV) CRL ~6.66Ω res.0.1mω mΩ@I>3A CRM 6.66~666Ω 2.6uS*2 ( mS@V>20V) power sensor Sensor, +20 dbm to -70 dbm, 10 MHz to 18 GHz KEISOKU GIKEN CO., LTD. 10 ID: ,5 12,9 42,0 LN-300A-G7 Electronic Load 120V-60A-300W, 20A/us Loading mode CC, CR, CV, CP, EXT, Dynamic, Short USB & EXT analog input: Standard >Easy measurement by free software. Ripple & noise measurement input. (Optional: RC-02A) Page /sivu 24

25 Agilent Technologies 25 ID: ,5Wx13,3Hx49, a 60V 9A DC power industry standard SCPI commands, via the GPIB Output voltage: 0 to 60 V Output current (40 C): 0 to 9 A Maximum current (50 C/55 C): 8.1 A/7.7 A Tektronix ID: TDS794D/13/1F/HD Oscilloscope 2GHz,4GSa/s,4ch 1% Vertical Accuracy 8-Bit Vertical Resolution, over 11-Bits with Averaging, and Over 13-Bits with Hi-res 1 ns Peak Detect 1 mv to 10 V/div Sensitivity Up to 1 GHz Differential Measurements Channel Deskew Record Lengths to 8M Points Floppy Disk Storage Iomega Zip Drive Compatible Advanced Triggering 29 Automatic Measurements and Takaya ID: 4517 APT-8400CE Flying probe tester Current 9A max power 2kW max JOT J /41 1m conveyor E ID: 4501 Page /sivu 25

26 Agilent ID: A+35676a Network/Spectrum Analyzer/imbedance analyzer 10Hz.. 500MHz Combined vector network and spectrum analysis capabilities. The frequency is covered from 10 Hz through 500 MHz with an excellent Hz resolution for audio, baseband, HF, and IF applications. It directly measures amplitude ratio, phase, group delay, and spectrum level needed for characterizing linear/non-linear analog circuits or components used in communications, telecommunications, consumer electronics, and other equipment. Tektronix ID: TDS794D/13/1F/HD/2F/2C Oscilloscope 2GHz,4GSa/s,4ch 1% Vertical Accuracy 8-Bit Vertical Resolution, over 11-Bits with Averaging, and Over 13-Bits with Hi-res 1 ns Peak Detect 1 mv to 10 V/div Sensitivity Up to 1 GHz Differential Measurements Channel Deskew Record Lengths to 8M Points Floppy Disk Storage Iomega Zip Drive Compatible Advanced Triggering 29 Automatic Measurements and Tektronix P6217 4GHz active probe 0,4pF 100kohm for TDS oscillocopes ID: 4488 philips ID: 2179 PM97 Hanheld Oscilloscope 50MHz 25MS/s 8Bit Channel A, Channel B and Megavolt (MV) input. The signal input is an isolated Bayonet Neill-Concelman (BNC) connector, and it has a common input of Black Safety Banana Jack, which is a section of the external trigger. The input coupling is alternating current (AC), direct current (DC) and ground (GND), and it has a maximum input voltage (Root square mean - RMS) of 300 Volts (V). The maximum constant for this machine is 356x, and it has a constant in roll of 10 x. The pulse-width for 100 per cent probability setting is 40 nanosecond (ns) and 10 ns for pulse-width for 25 per cent Timebase is a device that manages the sweep timing, and it is usually based on the seconds/division (s/div) control. The Page /sivu 26

27 König 1 ID: x 19x 6,5 SEC-AMP10 Video vahvistin säädettävä 0-12dB BNC in BNC out Ericsson ,108 ID: 4482 ntz N/ torgue driver(adjustable) Used for any tightening operation such as mass production assembly and maintenance. Tohnichi 48223b m0,05 ID: ,8*1,5 RTD Adjustable Torque Screwdriver /momentti rruvimeisseli EMCO ID: 4477 L81,3*D /momentti rruvimeisseli 30N-4N acc.3% Used for any tightening operation such as mass production assembly and maintenance. The rotary slip clutch reduces the possibility of over-torque. Once torque set is achieved, even if more force is applied, the tool ratchets and does not add additional torque. Adjustable torque setting by twisting shaft with main and supplementary Antenni Conical Log Spiral,50ohm max.100w (150Wpeak) n-connector(female) kalibroitu 200MHz-1GHz y1987 A broad variety of EMC testing using this model is common and often referred to as a MIL-STD 461 antenna, MilStd RE102 Antenna, MilStd 462 Antenna, MilStd 1541 Antenna, SAE ARP 958 Antenna, or an SAE J1113 RI Antenna. Conical log spirals are ideal for testing to Page /sivu 27

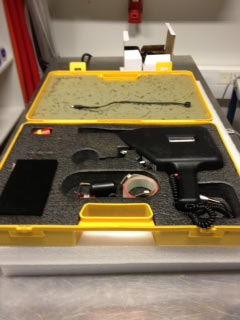

28 schaftner 1041 ID: 4478 NSG431 2 TO 21 KV STATIC DISCHARGE SIMULATOR. Features: * Rise Time: 5ns +/-30% at 2kV * Discharge voltage: 2 to 21kV * Polarity: positive - non switchable * Discharge capacitor Co: 150pF +/-10% * Discharge resistor Ro: 150 ohms +/-5% * Mode of operation: single/cont. (20 Hz) * For testing per IEC / 1984 Tektronix 9,5 ID: ,5D36,1W13,7 H 2712 Spectrumanalyzer 9kHz-1.8GHz EMC Frequency Accuracy Sensitivity to -139 dbm (-92 dbmv) with Built-In Preamp Internal Frequency Counter 4-Trace Digital Plus True-Analog Display 124 K of RAMEasy to Use Powerful Built-In Measurement Routines EMC Measurements with Optional Quasi-Peak Detector UL Listed 1244, Certified CSA C22.2 No. 231-M89 Applications:EMC Prequalification Testing Tektronix 5,9 ID: RF Preselector improves the flexiblity and accuracy of your Spectrum Analyzer measurements, and is especially useful for EMI applications. The Tektronix 2706 has 7 bandpass filter RF Input/Output Connectors - Type N. Input/Output Impedance - 50 Ohm nominal. VSWR (max) - 1.8:1. Ultimate Rejection, Stop Band - 60 db typical. 40 db min. below 500 MHz and 30 db min. above 500 MHz. Maximum Input dbm, 50 V DC. Oxford instrumens ID: 2108 X-MET3000TXR+ Alkuaine analysaatori analysoi materiaalista (lelut,maaaines,muovit,elektroniikka etc) tiedon kuinka paljon siinä on eri metalleja ja mineraaleja. (ROHS,WEE/ELV) Handheld EDXRF analyzer with Pentapin High resolution SI-PIN detector 40KV x-ray tube for ROHS measurement for Testing toys,soil etc. sis. kalibrointi palat, kantokotelon, kuljetuslaukun etc. Page /sivu 28

29 Langer EMV-Technik GmbH ID: 3110 PA303 Preamplifier The measurement of high-frequency near fields from 100 khz to 3 GHz directly on electronic modules aids in the reduction of disturbance emission. The preamplifier makes measurement with very small probes possible, while at the same time maintaining high sensitivity. Very weak fields, such as in the automobile area, can be measured with high spatial resolution. Langer EMV-Technik GmbH ID: 3111 RF4-E Near Field Probe Set The near field probes type RF4-E set contains two screened E field probes. Electrical fields can be measured in the frequency range from 30 MHz up to 3 GHz for comparison purposes. The near field probes are designed for the analysis of E field distributions, detection of coupling mechanisms on modules and evaluation of switching edges on signal leads and RF voltages of the supply system. HEWLETT-PACKARD 3723u ID: E/41 Spectrum analyzer Freq. 9 khz - 2.9GHz Dyn. Range dbm(9khz..1,8ghz) Freq Reference Accuracy: +/- 2ppm Input Impedance: 50 ohms Residual FM: -105 dbc/hz dbc/hz Resolution Bandwidth: 1 khz - 3 MHz Video Bandwidth: 30 Hz - 1 MHz Radiall R DC-2GHz 50ohms 6 W termination vswr ,044 ID: ,65 Page /sivu 29

30 aeroflex ID: S Suojele spektrisi edullisesti. Korjaaminen maksaa 100* enemmän. DC Blocking Attenuator SMA, 10 MHz - 2 GHz, 200 Volt ATTENUATION 6 db VSWR:1.15:1 Impedance:50ohm DC Block Type inner only Voltage Rating 200V Input Power Operating Temp. Range Mechanical:Connectors:Passivated weinschel ID: , db attenuator dc to 12.4 GHz 20db POWER RATING: 5 watts 25 C ambient temperature, derated linearly to C. 1 kilowatt peak (5 μsec pulse width; 0.25% duty cycle) POWER COEFFICIENT: <0.005 db/db/watt TEMPERATURE COEFFICIENT: < db/db/ C TEMPERATURE RANGE: -55 C to +125 C Spektrin ja tehomittarin tarkistus vaimennin.test DATA: Swept data plots of attenuation and SWR from 50 MHz to 12.4 / 18 GHz is available at additional cost. CONNECTORS: Precision Type N connectors per MIL- STD-348 interface dimensions - mate nondestructively with MIL-C connectors. weinschel ID: ,79 1B -10db attenuator dc to 12.4 GHz 10db POWER RATING: 5 watts 25 C ambient temperature, derated linearly to C. 1 kilowatt peak (5 μsec pulse width; 0.25% duty cycle) POWER COEFFICIENT: <0.005 db/db/watt TEMPERATURE COEFFICIENT: < db/db/ C TEMPERATURE RANGE: -55 C to +125 C TEST DATA: Swept data plots of attenuation and SWR from 50 MHz to 12.4 / 18 GHz is available at additional cost. CONNECTORS: Precision Type N connectors per MIL- STD-348 interface dimensions - mate nondestructively with MIL-C connectors. HEWLETT-PACKARD 3543A ID: E/004/041 Spectrum analyzer Freq. 9 khz GHz Dynamic Range: -130 dbm dbm Freq Reference Accuracy: +/- 2ppm Input Impedance: 50 ohms Residual FM: -105 dbc/hz dbc/hz Resolution Bandwidth: 1 khz - 3 MHz Video Bandwidth: 30 Hz - 1 MHz Page /sivu 30

31 IFR Ltd /19,5k ID: g d42w20h opt 30,32 Analogia ja digitaali radiomittapaikka. Radiotestset with analog and Tetra (opt.30,32) Digital and analog receiver and transmitter for 1GHz OPTION 30 TETRA MOBILE OPTION OPTION 32 TETRA DIRECT MODE RF SPECTRUM ANALYZER Frequency Range:100 khz to 1 GHz, useable from 30 khz to 1.05 GHz Spans 500 Hz/div to 100 MHz/div, in a 1, 2, 5 seq. Resolution Bandwidth 300 Hz to 300 khz in a 1, 3, 10 sequence and 3 MHz (automatically selected according to span and manually selectable) Video bandwidth fixed at 3 khz Filter Shape Nominally 3 db/60 db, 1:11 (300 Hz to 30 khz bandwidth) Reference Level (top of screen)-100dbm to +70dBm On Screen Dynamic Range80 db Vertical Res. 0.5dB on 10dB/div, 0.05dB on 1dB/div Bird ID: N-20db DC - 2GHz, 25 W forward 5W reverse, Type N (M-F) Fixed Coaxial Attenuator (50ohm) 20db hp 11708A 30 db Attenuator Pad (at 50 MHz) ID: db Attenuator Pad (at 50 MHz) Factory set to 30 db ± 0.05 db at 50 MHz SWR: <1.05 at 50 MHz (50ohm) Bird N-30db DC to 3 GHz, 75W, Type N (M-F) Fixed Coaxial Attenuator 30db (50ohm) ID: 4457 Page /sivu 31

32 HEWLETT-PACKARD ID: ES/075 NETWORK ANALYZER 300kHz-3GHz 75ohm /1EC opt Two independent channels can measure and display two parameters such as S21 (transmission) and S11 (reflection) in a variety of formats including delay and SWR, on rectangular, polar or Smith-chart displays HEWLETT-PACKARD ID: TIMS opt 001, j02 Measuring Set for audio(upto100khz) with battery pack, front cover, 1-110kHz bandwidth, choice of C-message, 3kHz flat, 15kHz flat, program and 50kBit filters, and a choice of impedances. Level frequency up to 110kHz Noise and noise-to-ground Noise-with-tone and signal-to-noise ratio 3-level impulse noise P/AR Bontronic 5,7 ID: w12h28d PS V DC power 0-1A current. Mahdollisuus 20% nimellisjännitteen ylitykseen (120V) lyhyitä aikoja Mascot 8921 DC power 24V 12A 290W Internally adjustable: VDC 1,55 ID: L*14,8D5,8H Page /sivu 32

33 Pace ID: 4444 ST 60E -sx +x-tracktor, mini thermojet Imujuotin puhallinjuotin, tarvitsee paineilman. alkuperäispakkaus ja uuden veroinen Philips s ,6 ID: w26d13h PE lähtöinen (2*0..20V 1*0..7V) analoginen DC sähkölähde.(lineaari poweri esim.emc testaukseen) Astratec electronics ID: 4433 XPresscheck XCP1N akkutesteri mobiililaitteiden akuille testaa Li ion, Nimh, ja Nicad akut HEWLETT-PACKARD 8656B 2622u ID: MHz signal generator edullinen signaaligeneraattori esim. EMC immuniteetti testauksin. Sis AM/FF moduloinnit 1db taso tarkkuus Page /sivu 33

34 HEWLETT-PACKARD 1937A ,56 ID: *86* D opt khz to 1.3 GHz esim EMC testauksiin antennien vahvistamiseen pre amplfier 3db point 75 khz to 1.7 GHz Gain >25dB(20 to30 C) gain flat. ±1.5 db100 khz to 1.3 GHz Out power for 1 db gain comp.> +7dBm Rohde &Schwarz CIT mobile installation tester /110 ID: 4428 Heijastusvaimennus /vswr mittari 50ohm 100MHz to 1000 MHz N-female 13 dbm to 43 dbm (20 mw to 20 W) res.0.1db(20to47 dbm);0.3db(13to20dbm) SWR Meas Range:1.0 to 10 DC Current Meas0to10A (res.10ma) DC Voltage Meas 0 to 30V (res.10mv)cit is designed to be used by car mechanics, who will be able to handle this compact tester in practically no time Rohde &schwarz /009 0,240 ID: ,2 5,7 2 ZRB2 5 to 2500 MHz Directivity 40 db Meas error( r = magnitude of meas refl.coeff.) r 2 Power-handling capacity 0.5 W Stabilock 4039 ID: MHz radio test set res 10Hz analogia radioiden testaukseen ja viritykseen GP-IB Conform to IEEE488 kasetteja ja ohjelmointi mahdollisuus Page /sivu 34

35 Weller 598 ID: 4437 Ws-80 edullinen Juotin yksikkö asteelle säätimellä ja kynämallisella juottimella. alakuori viottunut Temp. dial control from 300 F F Automatic tool recognition All Weller accessories up to 80W may be connected Temperature locking via key-operated switch WS80 Accuracy ±2% of final value Weller 5910/ ID: 4440 WAD 100 SUOJAKAASUJUOTOSMUUNTAJA, DIGITAALINEN, SÄÄDETTÄVÄ 80W, ESD Käytetään sovelluksissa, missä suojakaasun sisällä tehtävä juotos on ainoa keino välttää juotospisteen hapettuminen. Suojakaasu syötetään PUWAD-101 muuntajasta juottimen kärjen kiinnitysholkin läpi juotettavan kohteen ympärille. Muuntajalla ohjataan juottimen kärjen lämpötilaa sekä suojakaasun virtaamaa. Juottimen vastuksen ohi virratessaan kaasu lämpenee, eikä näin jäähdytä juotospistettä. Stop&Go-juotinteline sulkee kaasun virtauksen, kun juotin asetetaan telineeseen. Vision ID: 4436 cobra Microscope Magnification: Ranging from 2X to 160X Working Distance: From 26mm to 312mm Magnification: 6X-40X zoom New Ergonomic Design: Microscope users can now work in a more upright position and even wear eyeglasses. Metrix ID: 4423 AX 323 DC power 2*0..30V 0..2,5A 1*4,5..5,5V 5A Page /sivu 35

36 Agilent us ID: B Oscilloscope 2+2 channel 150MHz with GPIB chan 3,4 DC...250MHz input impedance 10MΩ, 13 pf sample rate 20Ms/S single 10Gs/S repetitve Grundig PN300 fnr154 4 ID: 4414 DC power supply DC 2*0..30V 0-2,3A 1*DC 5V 2A with GPIB agilent 3499 switch mainframe cn ID: 2694 Agilent 34401a dmm 6,5digit 34146a ID: 4386 Page /sivu 36

37 ELMED /4 ID: S series ISOTEST Speciale gaz Testeri pinnoituksen tai kaapeleiden eristystestaukseen ja viokojen etsintään. Korkeajännite testeri joka on säädettävissä 500V.. 35kV Maalipintojen, putkien etc. korkeajännitetestaukseen Varoittaa jos pinnoitteessa on pienikin reikä tai ohuempi kohta sierra (ford) 463B ID: B bi-directional RF Wattmeter that can be inserted in a coax transmission line to measure power and VSWR. Wattmeter scale reads 0-10, 0-25 and 0-50 Watts. The actual power ranges are determined by the plug-in elements. Array electronics 5,5 ID: *13,2* a GPIB 0~35V,0~14.5A DC power supply Load Reg. (Voltage)<0.01%+2mV Load Reg. (Current(<0.01%+1mA Line Reg. (Voltage(<0.01%+2mV Line Reg. (Current( <0.01%+1mA Prog. Res.Voltage 2mV Current 1mA Equipped with SENSE terminals to compensate for the line loss Array electronics 5,5 ID: *13,2* a GPIB 0~80V,0~6.5A DC power supply Load Reg. (Voltage)<0.01%+2mV Load Reg. (Current(<0.01%+1mA Line Reg. (Voltage(<0.01%+2mV Line Reg. (Current( <0.01%+1mA Prog. Res.Voltage 2mV Current 1mA Page /sivu 37

38 parsons ID: *70*51 kovalaukku Mittalaitteiden kuljetukseen pyörällinen laitekuljetuslaukku sisämitat 47*43* *20*5+ 20*10*5 +46*20*3,5 (soft fyllings+2 on every measure) varastossa on erillaisia sisältöjä Maynuo ID: 4211 M8812 USB Rohde & Schwarz FSIQ7 B4, B5, B7, B13, B15, B70, K11, K72 ID: W 0-2A 0-75V DC power with sense and USB control Low ripple and low noise High resolution and accuracy (0.1mV/0.01mA) Built-in high-accuracy 5 1/2 voltmeter and milliohmmeter Supporting high-accuracy and dynamic programming output High-luminance VFD screen with two lines& four channels display Intellegent fan system fan will be automatically initiated according to the temperature Supporting remote voltage compensation and multidata storage Supporting external trigger input and output Spectrum analysis frequency 20Hz-7GHz with ultrawide dynamic range for sophisticated ACPR meas: NF=15 db/toi=+20 db Integrated vector signal analyzer for universal analysis of digital and analog modulated signals BPSK to 16QAM, (G)MSK, AM, FM, PM High-speed synthesizer with 5 ms sweep time for FULL SPAN (FSIQ 3/7) High display update rate up to 25 sweeps/s National Instruments AT-GPIB/TNT AT-GPIB/TNT Card AA56B F ID: 505 EM 41 Page /sivu 38

39 National Instruments PCI-MIO-16XE-10 Multifunction DAQ 16-Bit, 100 ks/s 10CBA C6 ID: 730 EM 06 National Instruments PXI-6551 Digital Data Generator/Analyzer 50MHz E4C9F 3 ID: 510 EM 25 Advantest ID: 4025 U3851 9kHz-8GHz Spectrumanalyzer with two channels and with tracking generator 100kHz..6GHz and with EMC filter (QP etc) Connect the magnetic field probe to CH1 and the electric field probe to CH2 and measure the radiation from electronic and IC components in both the electric and magnetic field levels. near-field multipath measurement The near-field multipath components between RFIDs and the reader are measured by CH1 and CH2, respectively, and the time difference (phase difference) is analyzed. EMCO ID: EMC test-table rotation controller.device driver is a Antenna Tower which is supported by RadiMation. The EMCO 1090 is an intelligent turntable and antenna tower controller of EMCO. This device is a combination of the older EMCO 1050 and EMCO 1060 controllers. Page /sivu 39

40 Agilent my ID: 2120 E4406a Digital Vector signal analyzer for baseband I/Q signals. In receivers, baseband I/Q analysis may be used to test the I and Q products of I/Q demodulators, after an RF signal has been down converted and demodulated. Measures also: -Spectrum (Frequency Domain) - Time Domain Measurements -Adjacent Channel Power (ACP) -Power Measurements -Making Power Stat CCDF Measurements hp 8590B 3016u ID: Spectrumanalyzer freq of 9 khz to 1.8GHz Amplitude range -115dBm..30dBm amp. acc. 1,5dB rel 2dB HEWLETT-PACKARD Modulaton domain analyzer 3121A ID: 4015 HEWLETT-PACKARD us ID: 4016 E5501B Phase noise measurement solution for 50 khz to 1.6 GHz Ability to test a wide range of devices Measure AM noise directly Measure offsets to 100 MHz Page /sivu 40

41 Keithley ID: a Electrometer for high imbedance measurement 200TΩ input impedance <3fa bias current Up to 125 rdgs/s 0.75fa p-p noise Built-in ±1kv voltage source Current measurements from 1fA to 20mA Voltage measurements from 10μV to 200V Resistance measurements from 50Ω to 1016Ω Charge measurements from 10fC to 2μC Rohde &Schwarz /085 ID: 4010 URV 3 with RF-probe 10kHz -2GHz Millivoltmeter 0,7mV-1050V Rocla 053B ID: *52*117 TMA-25 Pumppukärry pituus n.1,9m nostokyky 2,5t nostokorkeus mm>205mm +alinkorkeus85..93mm haarukanpituus 1520mm haarukan leveys 520mm Fluke 0,9 ID: ,4Lx10,0Wx64 41B Voltage Range and Res.5 to 600Vrms (AC+DC) ±5.0 V to ±933 V peak Acc. rms: ±(0.5 % + 2 digits); Peak or DC: ±(2% +3digits) (Add 2 digits if<15v rms) Current (1mV/A) Isolated input Range and Res.1.00 A to 1000 A rms (AC+DC); ±1.0 A to ±2000 A peak Acc.: rms: ±(0.5%+3digits)+probe specs; Peak or DC: ±(2 % + 4 digits) + probe specs Watts/Volt-Amps (1mV/A) isolated input Range and Res.0.0W(VA) to 600 kw(kva) average; 0.0W(VA) to ±2000 kw(kva)peak Acc.AC+DC:±(1%+4 digits)+probe specs Harmonics(harm.level>5% using Smooth20) Page /sivu 41

42 Agilent 2536A ID: *9,8* a Frequency counter DC.. 100MHZ Damage Level:500V(DC+ACrms) taajuuslaskuri vaihtosähkötehoille ja taajuuksille Boonton model 92 RF millivoltmeter 1,2GHz 2200 ID: Inter-venture Logic Bridge 136 ID: Sarjaliikenne/pulssi liikenteen työkalu tallentaa 50 erillaista aaltomuotoa. Pystyy vertailemaan signaalin muotoeroa eri probien välillä. clitch, audio,tone etc. tuotteen sarjaliikenne tarkastelemiseen EMC, lämpötila etc. testien aikana. Meratronik SA ID: ,5 x 18,5 x 8,5 Meratester V40.28 analog meter DC and AC voltage ranges 1,5mV V DC and AC currents 150nA..1,5A ohms 100ohm..100MHohms Lämpötilan mittaus Deg. probe P-233 DC AC current 150A by shunt 0,5% acc. 1GHz ac probe P-225 Included 1KHz..1GHZ Frequencies DC AC Voltages 1,5% FullScale The 1,35 V battery is used for resistance measurement. Page /sivu 42

43 Rohde &Schwarz 14 ID: ,2 16,1 51,4 NGPU 7/10 DC Voltage 0-70 V 10 A adjustable via pot.meter or IEC/IEEE(GPIB) bus Resolution Manual control 0.02% IEC/IEEE bus 1000 steps/range; for voltage current ranges :0.1/1/10 A Fluke ,4 ID: ,6W*9,3Hx28,6 D 45/05 Dual Display Multimeter with GPIB Commtech ID: 3985 Fastcom : ESCC-PCI Fluke ,05 ID: x 12.2 x 17.0 TIR32 VDC Range: 0V-1000VRes.1 µv-0.01v Best Accuracy: ± 0.025% + 2* VAC True-rms AC Coup. Freq. 20H-100khz Range: 0V-750VResolution: 1 µv-0.01v Best Accuracy: ± 0.2% + 10* ADC Range:0 ma-10a Res.0.1 µa-10 ma Best Accuracy: ± 0.05% + 2 AAC True-rms, AC Coup. Freq khzrange:15 µa-10a Res. 0.1 µa-10ma Best Accuracy: ± 0.5% + 10 * Res.Range:0-100 MΩRes.: mΩ Best Accuracy: ± 0.05% + 2 * Frequency Range: 5 Hz - 1 MHz Resolution:.01 Hz-1 khz Universal PCI Bus Dual Port Synchronous Comm. Adapt. CRC generation either CRC-32 or CRC-CCITT polynomials (CRC-16/CCITT for BISYNC) CRC reset state all 1's or all 0's Manchester line encoding FM encoding (Bi-Phase Space/Bi-Phase Mark) Preamble transmission (with repetition) BISYNC operating mode, receiving and sending BISYNC formatted data ASYNC operating mode, receiving and sending ASYNC formatted data, in true asynchronous (no clocks, data over sampled) or isosynchronous (async data format with no over sampling) 320x240 resolution Infrared Camera. 20 C to +150 C Thermal Sensitivity (NETD) C at 30 C target temp (40 mk) Stand.Infr. Lens Field of View.23 x 17 Minimum Focus Distance..15 Voice Annotation..60 seconds umeng0100.pdf Page /sivu 43

44 Musashi Engineering inc. 2sc ID: 1625 Super Ex Simple operated super intelligent dispencer Suitable for automated systems tektronix ,6 ID: ,8*44* MHz 2 channel oscilloscope for service and maintenance collins 707 ID: s-6a hp 1045a ,79 ID: a VOR/ILS Signal Generator has all the capabilities required to test and troubleshoot VOR, ILS, and marker beacon navigation receivers in one easy-touse, solid-state instrument! While providing both RF and audio signals, you'll find quality results with simple setup and operation. Frequencies: 75MHz +0.4 MHz (marker beacon); 108 to 118MHz (VOR/LOC); 329 to 335MHz (glideslope); 118 to 152MHz (communications). Selectable VOR radials from to dregees and 1020Hz audio tone for identification signal come standard on this generator. Variable RF output: 6 to -120 db mw VSWR: <1.5:1 - See more at: testequipmentconnection. com/1472/collins_radio_479s-6.php#sthash. Generator forsine (0.1% THD) and square waves (50 ns rise/fall time). The ranges are: 4-40 Hz Hz 200-2,000 Hz 2-20 khz khz MHz. For audio, the three 20 Hz - 20 khz ranges are ideal, while the lowest range covers infrasonics. The higher ranges are best for interfering with AM radio broadcasts. Output source impedance is 600 Ω, and output opencircuit sine-wave voltages range from 260 mv (-11 Page /sivu 44

45 hp 2444a ID: a 010 Input 1 Frequency range: 500 MHz to 20 GHz Sensitivity (full operating environment) 500 MHz to 12.4 GHz: -25 dbm 12.4 GHz to 20 GHz: -20 dbm Maximum input: +7 dbm Damage level: +25 dbm, peak Impedance: 50 Ω, nominal SWR 500 MHz - 10 GHz: Typically, <2:1 10 GHz - 20 GHz: Typically, <3:1 Coupling: DC to 50 Ω termination, AC to instrument Accuracy: ±1 count ±time base error x frequency Resolution: Selectable 1 Hz to 1 MHz Connector: Precision Type N female Rohde &Schwarz 13,6 ID: ,0 x 19,5 x 34,6 FAMA opt B1,B8,B2 modulation analyzer VOR/ILS 55kHZ MHz The Rohde & Schwarz Modulation Analyzer FAMA is a microprocessor controlled unit for analysis of modulated RF signals, with simultaneous frequency measurement. Modulation measurement with AM, FM, and phase modulation. Switch-selected highpass and lowpass filters for various test bandwidths, CCITT and CCIR weighting filters optional. Modulation signal measurement using weighting filters (AF voltmeter or psophometer function). IEC-bus (HP-IB) compatible. Carrier frequency range from 55 khz to 1360 MHz Alltion ID: 3108 GS23 (kuva epromin sisältä) Microscope LCD Resolution Continuing Zoom Range 0.7~4.5 Storage : SD Card &PC 720P/fps and 1080P/30fps HD video and HDMI HD Output Mega digital professional camera and integration of capture, video and storage 9 Inches HD screen real-time display and no need to connect to computer ifr ,1 ID: x13x41 nav-401l Designed to meet the electronic functional test requirements of Category I and Category II ILS Systems, Communication (COMM), Navigation (NAV), and Marker MKR) Systems Includes a signal generator with a variable attenuator which can be connected to the equipment under test by a radiated signal from a self-contained antenna or by a coax line Can be operated under either crystal frequency control or in a variable frequency mode in each band Page /sivu 45

46 Array electronics a ID: hp 2949u ID: a 8508a+85082a+85081b DC-load 0~40A 0~80V400W at 40deg Transient Operation Continuous, Pulse, Toggled : slew rate max.4a/us Max power 0~400W Constant Current Mode ACC. CCL 0~4A res.0.1ma( mA) CCH0~30A res. 1mA acc mA CV 0~80V res.1mv ( mV) CRL 0.02~2Ω res.0.1mω( mΩ@I>4A) CRM 2~200Ω res.8.6us*2 acc.0.3%+1.25ms@v>8v) CRH 20~2000Ω res.0.96us Antenni sovituksien mittauksiin kun omaa lähetintä ei haluta sulkea testin ajaksi. RF voltage and phase measurements 100 khz..1ghz high-imp. probe inputs 300 khz to 2 GHz 50 Ωinputs Absolute Accuracy +1/ 1.5 db, 100 khz to 300 khz (A,B 100 mv, 15 to 30 C) ±.5 db, 300 khz to 1 MHz ±.3 db, 1 MHz to 100 MHz ±.6 db, 100 MHz to 300 MHz ±1 db, 300 MHz to 1 GHz (±1 db, 300 MHz to 1.5 GHz1 ) (+1/ 2 db, 1.5 GHz to 2 GHz1 ) Its narrowband measuring technique gives a dynamic 344a01 0 ID: 661 Primetest 100 schuko hand held battery powered unit suitable for carrying out electrical safety checks on: Class I appliances Class II appliances IEC mains leads Extension leads Mains outlet wiring A10 näytemylly. Pilkkoo näytteen tomuksi ID: 1102 Page /sivu 46

47 bird 43 ID: Measures both forward and reflected CW power in 50W coaxial transmission lines. Low VSWR and insertion loss, ± 5% of full scale accuracy. Plug-in elements provide a wide choice of frequency ranges from 2 to 1000 MHz and power levels from 1W to 10KW. Select one or more elements to suit your requirements. Comes with Type-N connector digiproduct dg500a putkinäyttöinen laskuri ID: hp 2027g ID: a The HP 8015A is a 50 MHz pulse generator that features dual outputs - each capable of delivering pulses up to 16 V in amplitude. When the outputs are combined (A + B mode), up to 30 V is available. The 8015A is easy to use - the front panel layout is clear and unambiguous. Controls are positioned so that parameters are easily identified and invalid combinations of parameters can be avoided.delay, double pulse, and square wave modes of operation are available. A feature of the 8015A is the B Del mode where channel B output is delayed with respect to channel A output. This can be combined with A + B mode so that complex and 3-level waveforms can be synthesized. The external input has a threshold level variable between +1 V and -1 V with 50 Ω input hp 3457a ,5dig dmm with switching 2505a ID: ,9*42,5*29,2 Page /sivu 47

48 normarc nm3701 ILS tone generator 116 ID: philips ID: pm5109 Number of Channels 2 ch Waveform Sine,Square Min.Freq.10 Hz Max.Freq, 100 khz Frequency Accuracy 5 % Minimum Output Voltage 0 V Maximum Output Voltage 10 V Output Impedance 50 Ohm philips pm MHz pulsegenerator TTL compatible signals. ID: rohde& schwarz /002 ID: FAMA opt.b1,b2,b8 modulation analyzer VOR/ILS 55kHZ MHz The Rohde & Schwarz Modulation Analyzer FAMA is a microprocessor controlled unit for analysis of modulated RF signals, with simultaneous frequency measurement. Modulation measurement with AM, FM, and phase modulation. Switch-selected highpass and lowpass filters for various test bandwidths, CCITT and CCIR weighting filters optional. Modulation signal measurement using weighting filters (AF voltmeter or psophometer function). IEC-bus (HP-IB) compatible. Carrier frequency range from 55 khz to 1360 MHz Page /sivu 48

49 rohde& schwarz FAM opt.b2 modulation analyzer 55kHZ MHz / ID: tektronics DPO4comp sw DPO4c omp00 ID: 1137 tektronics DPO2conn sw c ID: 1142 tektronics DPO4a uto001 ID: 1143 DPO4usb DPO4USB USB 2.0 Triggering and Analysis Automated Trigger, Decode, and Search for USB 2.0 Designed for use with MDO4000, MSO4000, and DPO4000 Series Oscilloscopes Page /sivu 49

50 tektronix MHz, 4 channel oscilloscope b ID: tektronix b ID: tm515/wr501/counter100mhz/dm501a/ Counter,DMM, Oscilloscope etc. in same frame. The WR 501 is a 16-channel word recognizer with sc502 delay, packaged in a TM 500 plug-in. The WR 501 can provide a trigger signal for an oscilloscope or provide a trigger signal and data acquisition for the LA 501 Logic Analyzer. The DM501 Multimeter Module measures DC volts (2 V to 1 kv FS), AC volts (2 to 500 V FS), AC/DC current (2 ma to 2 A FS), resistance (2 kohms to 20 Mohms full scale. Features 4 1/2-digit LED display, auto polarity, and ±0.1% DC voltage accuracy. Used with TM-Series module. Temperature (-55º to +125º C). pdf tektronix 495p Covers 100Hz to 1.8GHz with -131 dbm Sensitivity and ±1 db Frequency Response 10 9 Marker and Center Frequency Accuracy, Builtin Signal Counter; External Reference Input with b Option 05: 10 5 Frequency Accuracy with the standard 495/495P ID: Front Panel Execution of Downloaded Programs with the 495P Option 05 Intelligent Markers with Signal Processing Functions Pushbutton Occupied Bandwidth and Noise Normalization Functions Switch Selectable 50 ohms and 75 ohms Impedance (Option 07) for IF, CATV and Local Area Network Applications Nonvolatile Memory for Up to Nine Waveforms and _495P_Spectrum_Analyzer/Tek_495P_User_Manual_B020100_and_above.pdf tektronix ID: portable data&logic analyser Timing analysis of parallel signals State analysis of parallel signals State analysis of serial transmissions Signature analysis The 308 provide an 8-channel input, a 20 MHz clock speed, and 52-bits/channel memory size when used as a Parallel Timing analyzer. The eight channel (expandable to 24 channel) parallel word recognizer triggers upon recognition of a preset digital word. If no preset data is presence, the 308 immediately and automatically generates an internal trigger at the start of an acquisition. Data sampling rate ranging from 50ns to 200ms (20 MHz Page /sivu 50

51 Treston RA60 kokoonpanopöytä hissillä valoineen. 2460/8 9 ID: 1154 Agilent ID: a Powerware RY205 a0368 ID: The Agilent 85024A high-frequency 3GHz probe makes it easy to perform in-circuit measurements. An input capacitance of only 0.7 pf shunted by 1 megohm of resistance permits high frequency probing without adversely loading the circuit under test. Excellent frequency response and unity gain guarantee high accuracy in swept measurements with this probe. High probe sensitivity and low distortion levels allow measurements to be made while taking advantage of the full dynamic range of Agilent RF analyzers. UPS 1500VA/1050W Input 208,220,230, Hz Input 48VDC 25A Output 208,220,230,240V 50-60Hz id=&key=&quest_user_id=&leadg_q_qrequired=&site=&menu=&cx=79&x=15&y=10 tektronics TAP1500 B ID: TAP1500 Single-ended Active FET Probe provides excellent high-speed electrical and mechanical performance required for today s digital system designs. Specifically designed for use and direct connection to the TekVPI probe interface used on Tektronix new DPO7000 and DPO/MSO4000 Series Oscilloscopes, the TAP1500 Active FET probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems: Lower DUT loading effects with 1 pf input capacitance and 1 MΩ Page /sivu 51

52 tektronics DPO4a uto002 ID: 1140 DPO4auto sw Automotive Serial Triggering and Analysis Module for tek dpo 4000 series Enables triggering on packet-level information on CAN and LIN buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with timestamp information. Signal Inputs LIN: Any Ch1 - Ch4 (and any D0 - D15 on MSO models); CAN: Any Ch1 - Ch4 (and any D0 - D15 on MSO models), single-ended probing only Recommended Probing LIN: Single ended; CAN: tektronics DPO3c omp00 ID: 1141 DPO3comp Computer Serial Triggering and Analysis Module for tek dpo 3000 series. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information. tektronics DPO2conn c ID: 1142 LAN Port RJ-45 connector, supports 10/100Base-T for MSO2000 Series DPO2000 Series Tektronix p5050 p5050s 001 ID: 1117 Attenuation1 10X ±0.5% at DC Input Resistance1 10 MΩ ±0.5% Input Capacitance 8.0 pf (±0.8 pf) Compensation Range 16 pf to 22 pf System Bandwidth (--3 db) 500 MHz (TDS3054) or TDS500 series avaamaton paketti Page /sivu 52

53 Tektronix DPO3A UTO00 ID: 1122 DPO3AUTO Automotive Serial Triggering and Analysis Module for tek dpo 3000series Enables triggering on packet-level information on CAN bus and LIN bus as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information. Rohde & Schwarz CRTU-G Protocol Tester ID: Bro_en.pdf Spirent GSS4200 Multi-channel Satellite Simulator: A GPS simulation solution specifically designed to 1084 support production testing of A-GPS enabled handsets.test location-capable CDMA phones, a critical element of assisting in meet the U.S. ID: 3075 FCC E911 requirements. Spirent has leveraged its success in mobile performance and certification testing in the CDMA market to also bring comprehensive performance analysis to the GSM and WCDMA market 6 channels GPS L1 C/A code Allows position fix with representative satellite dynamics and data Single channel mode XTL1A microcope XTL1A 004 ID: 1074 Page /sivu 53

54 FUG elektronik ID: *22,2*3 HU / 13,3 mcn V DC supply Setting res.: ±1 x mA 31 2 digit DVM for voltage and current (at 1 219" units switch- selected) Residual ripple: Up to 350 W nominal power <5 x 10-5pp + 50 mvpp, from 700 W nominal power on <2x10-4pp mvpp ID: 1619 BMM2000 ESD Accuracy 1000V, 500V, 250V, +15% Accuracy 1000V 20GΩ ±2% ±2digits ±0,2% per GΩ 500V 10GΩ ±2% ±2digits ±0,2% per GΩ 250V 5GΩ ±2% ±2digits ±0,2% per GΩ Measuring Range: EN61557 range:0,10mω to 1,00GΩ leagage current :10% ±3digits Accuracy: Continuity0,01Ω to 99,9Ω Test current:210ma ±10mA (0-2Ω) IKH ID: P 86L 183,8 xk1025 käsikäyttöinen,hydraulinen pinoamisvaunukuormituskapasiteetti 1000 kg takapyörät on varustettu jarruilla - max. nostokorkeus 2500 mm - haarukoiden min. korkeus 90 mm - haarukoiden pituus 1100 mm - haarukkaleveys 550 mm - korkeus masto alhaalla 1838, korkeus masto ylhäällä 2970 mm - kääntösäde 1350 mm - kuorman painopiste 500 mm - max. nostokapasiteetti/pumppaus: kuormalla 20 mm/pumppaus, ilman kuormaa 22 mm/pumppaus - max. laskunopeus: kuormalla 145 mm/s, ilman kuormaa 53 mm/s parsons 1492 ID: 1492 kovalaukku sisämitat 46*55*25 +55*14*5 (soft fyllings+2 on every measure) Missing handle 14.9 fixed tires Page /sivu 54

55 spellmann CO ID: 1098 XLF60N60x Heraeus ID: *69*63 VT5050EK HV power 60kV 10mA Plastics Sorting Crystal Inspection Diamond Inspection Filament: 12 5 amps, preheat level is 0.45 amps in standby. Voltage Regulation: Load: 0.005% of full output voltage no load to full load. LIne: 0.005% for input voltage range change. Current Regulation: Load: 0.05% of full current ±100μA from 0 to full voltage. Temperature and depressure chamber Lämmön ja alipaineen testaus kammio Interior/sisätilavuus: 49*49*50 maks lämpötila: 250astetta min alipaine: 1mBar Liitäntä 1kpl alipainepumpulle sekä 1kpl sähköselle tiedonsiirrolle. Agilent 13 ID: x 9x B DC power 0 to 50 V Current 0 to 2 A with GPIB &cc=FI&lc=fin Agilent N9320A Spectrum Analyzer 9 khz to 3 GHz range 10 Hz to 1 MHz RBW 148 dbm DANL with pre-amp CN dbm third-order intercept with optional handle and bumpers 9,1 - all original accessories included in the case ID: paper manuals included 13,3 x 32,0 x 40,0 Page /sivu 55

56 Agilent ID: A active probe (5Hz - 500MHz) - all original accessories included in the case - paper manuals included Rohde &Schwarz / ID: ,5 x 23,6 x 36,3 ESHS10 EMC receiver for high measurement accuracy, typical error 0.5 db Freq.9 khz to 30 MHz Comply with CISPR 16-1, VDE 0876 and ANSI C63.2 For measurements to European Standards to 55022, ETS, FCC, VCCI and VDE 0871 to 0879 Level measurement range -36 to +137 dbμv Frequency resolution 10 Hz EIP ,8 ID: rack 2 units 545A opt.03,08.09 Microwave Frequency Counte 10Hz to 18.0GHz is read directly from a 12-digit LED display which is sectionalized into GHz, MHz, khz and Hz making it easy for even unskilled operators to make measurements quickly and accurately. Three input bands are standard: Band 1 is from 10Hz to 100MHz (sensitivity of 25 mv rms) with 1 Mohm impedance (BNC); Band 2 is from 10MHz to 1.0GHz (sensitivity of -20 dbm) with 50-ohms impedance (BNC); Band 3 is from 1.0GHz to 18.0GHz (sensitivity: -30 dbm from 1.0GHz to 12.4GHz; -25 dbm from 12.4GHz to 18.0GHz) with 50-ohms impedance (TYPE N). Time base crystal frequency is 10MHz with an aging rate of <3x10E-7 / month, 10MHz square wave (1 V p-p minimum into 50-ohms) output is available. Overall Seaward 0,8 ID: x10x 5.5 Solar Survey Valo-energiamittari,kompassilla, kulma ja lämpötilan mittauksilla. IRRADIANCE Disp. Range W/m-2 Meas Range W/m-2 Resolution 1 BTU/hr-ft2/ 1W/m-2 COMPASS BEARING Display Range 0 to 360 Measurement Ranges 0 to 360 Resolution 1 INCLINOMETER Display Range 0 to 90 Measurement Ranges 0 to 90 Resolution 1 Page /sivu 56

57 Ulirvision 0,393 ID: ,8 6,2 15,4 TI120 Tarkka lämpökamera auto ja manual focus 160 x120 pixels IR detector resolution Accuracy±0.6 Temp range: 20 ~ +50, enclosure IP54 IEC529 操 作 演 示.flv Willtek lx ID: Coupler 500MHz-2GHz Universal Antenna Coupler for all mobile phone types Functional check of mobiles includes antenna Mobile phone clamp fits all standard models Caters all mobile frequency bands (800/900/1800/1900 MHz) and standards (GSM, CDMA, TDMA) Can be used with all Willtek RF Testers: 4100, 4200, 4300, 4350, and 4400 RF Shield Box and Universal Antenna Coupler combination provides accurate and interference-free results Schaffner NSG203A ID: 3021 The Schaffner NSG 203A is a Line Voltage Variation Simulator Schaffner ID: 3022 NSG222A Fast Impulse Plug-In for NSG200 Produces fast interference pulses typical to mechanical devices such as relays, switches etc. Pulse amplitude 50 to 2500V, rise time 5 to 10ns, pulse duration unload 100ns loaded 80ns into 50O. Page /sivu 57

58 Schaffner 1007 ID: 3023 NSG223A Generates high energy pulses typical of Those produced by switching Inductive and capacitive loads, lightning strikes, etc. The pulsescan be symmetrically or asymmetrically superimposod on the mains supply by means of the coupler in the main-frame as well as being available via separate sockets for component testing purposes. Because of their relatively high energy of about 2 Joules, the pulses can result in damage to unprotected or unsuitably arranged elements in input circuits. This type of pulse is defined by varlous standards. IEC among them. Compared to this specification, the NSG 223A generator has a some what higher internal impedance of 45 Ohm in keeping with the wishes of many instrument manufactures Schaffner NSG426 Coupling unit for data line pairs 210 ID: 3025 schaftner 250 ID: 3027 NSG431 2 TO 21 KV STATIC DISCHARGE SIMULATOR. Features: * Rise Time: 5ns +/-30% at 2kV * Discharge voltage: 2 to 21kV * Polarity: positive - non switchable * Discharge capacitor Co: 150pF +/-10% * Discharge resistor Ro: 150 ohms +/-5% * Mode of operation: single/cont. (20 Hz) * For testing per IEC / 1984 Radiasun meters 0,45 ID: *10*5 RA Testing the distance of the fiber and identify the faults location in the fiber link. Distance Accuracy(Reflection Event) ±(2m+2*10(-4(*Distance( Operating Wavelength 1550nm(1310nmOpt), FC/APC or SC/APC universal connectors Locates reflective and non-reflective breaks in the fiber network. Inspection of fiber repair and maintenance. OTDR technical principles and integrates the powerful analysis software, which enables the RA3304 fiber ranger detect fiber faults location more accurate and easy. Main Features Page /sivu 58

59 Myytävät laitteet/instruments for sale KEISOKU GIKEN CO., LTD. 1, ID: 18*8,5*30 RM MPI Ripple Noise Measurement Automaattinen testaus vaihtosähkön häirion testaamiseen sähkölähteestä. DC Volt. Measurement Range V V V Resolution 0.1mV 1.0mV 10.0mV Accuracy(*5) % of rdg % of f.s. Max. Applied Volt V Measurement Time less than 90ms(Fast Mode)/less than250ms(slow Mode) Ranges 300.0mVp-p 3000mVp-p Resolution 0.1mV 1.0mV Accuracy(*1,*2,*3) +-2% of rdg. +-1% of f.s. Nominal Bandwidth 100MHz LF Bandwidth 50Hz - 2KHz HG7900 BGA Juotin asema/bga rework station Bottom Heater and Camera System for PCB's Up to 410x410mm Ei vaadi ulkoista tietokonetta vaatii paineilman TI395 Thermal camera for building application 384 x 288 pixels IR detector resolution Temp range: -20 ~ fc0 4 ID: 2955 mobile: Ulirvision 0,393 ID: ,8 6,2 15,4 Accuracy: ±2 or ±2 of reading, NETD: <65mk at Agilent 34401a dmm 6,5digit my ID: 2934 Page /sivu 59
